WiFi 7 vs WiFi 5 and 6: Speeds, Upgrade Benefits and Switch Choices

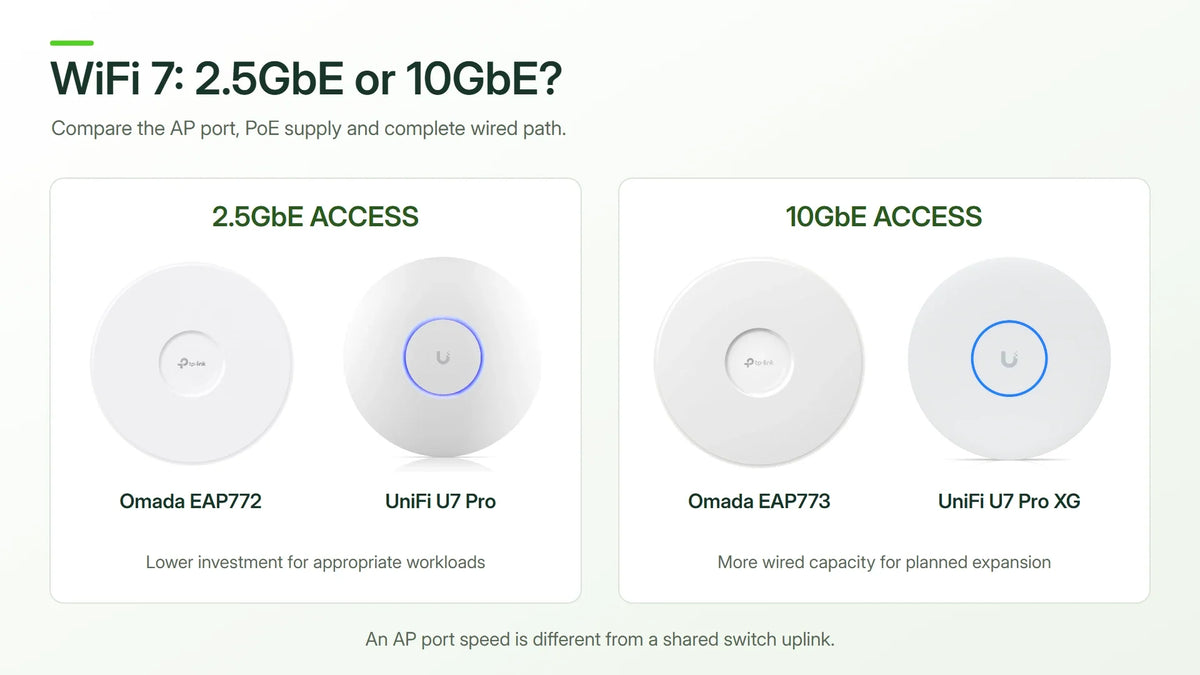

Quick answer: WiFi 7 does not prescribe one switch speed. The Omada EAP772 and UniFi U7 Pro use 2.5GbE wired uplinks; the EAP773 and U7 Pro XG provide 10GbE. Choose 2.5GbE for a practical lower-investment design where it meets demand, or build a complete 10GbE path where local traffic and expansion justify the additional capacity.

The distinction matters when buying a switch. A model with 2.5GbE access ports and 10G SFP+ uplinks is a sensible mixed-speed design. It does not deliver 10GbE to an AP connected to one of those 2.5GbE ports.

Highlights

• Choose the AP port deliberately. EAP772 and EAP773 have different wired interfaces; U7 Pro and U7 Pro XG do too.
• Separate access ports from uplinks. A 10G SFP+ slot does not upgrade the adjacent RJ45 sockets.
• Plan PoE independently. Link speed, per-port power and total power budget are different limits.
• Keep the whole route in view. Clients, cabling, shared uplinks, NAS and internet service can each limit results.
• Buy for a defined expansion plan. Extra capacity is valuable when it has a credible use.

Why Upgrade If Netflix and YouTube Already Work?

A smooth video stream is a useful baseline, but it uses only a fraction of a Gigabit connection. Netflix recommends a stable 15 Mb/s or higher for 4K; YouTube lists 20 Mb/s for 4K UHD. Four streams at 20 Mb/s total 80 Mb/s before other traffic, well below a 1 Gb/s line rate.

The reasons to upgrade appear elsewhere: a large phone-photo backup to a NAS, several people moving project files, a crowded radio channel, or calls and interactive work sharing the network with downloads. Better capacity can reduce waiting and contention where the complete path supports it. It does not improve the resolution of an already satisfactory 4K stream by itself.

If coverage, firmware support, congestion and transfer times are already satisfactory, keep that working system until a defined need appears. When a new installation or replacement is due, a supported WiFi 7 platform and appropriate multi-gigabit switching can avoid rebuilding the same path for the next devices.

WiFi 5, WiFi 6, WiFi 6E and WiFi 7: What Changes?

A generation label does not specify one real-world speed. Channel width, spatial streams, signal, interference, firmware and the route to the destination determine the useful result. Wider channels and Multi-Link Operation are capabilities to plan and test, not automatic promises of lower latency everywhere.

iPhone Pro, iPhone Duo and Galaxy Foldables: Plan for the Actual Client

These current clients support WiFi 7, but their feature combinations, regional operation and real traffic can differ. Keep the individual model in view when comparing results.

Six Phones Compared: Download and Upload

Download is traffic arriving at the phone; Upload is traffic leaving it. The iPhone 17 Pro and S26 Ultra entries are supplied field results. The four newer-phone entries use a published 18 Pro reference and clearly identified percentage calculations, rather than same-ISP measurements of those models.

Two 10GbE Test Setups

Field feedback describes broadly similar speeds from these UniFi and Omada paths:

For a fair comparison on the same ISP, keep the broadband service, test server and phone position the same, then compare the highest repeatable Download and Upload readings.

iPhone 18 Pro Max vs Galaxy Z Fold8 Ultra

iPhone 18 Pro Max

Download

1,943 Mb/s

Upload

1,790 Mb/s

The published iPhone 18 Pro result provides the baseline for these percentage comparisons. The Pro Max itself was not measured in this set.

Samsung Galaxy Z Fold8 Ultra

Download

1,788 Mb/s

Upload

1,647 Mb/s

Calculated at 8% below the reference for both Download and Upload. The gap illustrates a small difference in transfer time once both connections are already well above Gigabit.

In the calculated comparison, a 5 GB file takes about 21 seconds at the reference Download rate and 22 seconds at the 8%-lower rate, before overhead. Consistent coverage and a fast destination usually matter more than this small gap.

iPhone Duo vs Galaxy Z Fold8

iPhone Duo

Download

1,826 Mb/s

Upload

1,683 Mb/s

Calculated at 6% below the reference for both Download and Upload. This comparison shows the scale of the percentage gap, without claiming a measured Duo result.

Samsung Galaxy Z Fold8

Download

1,772 Mb/s

Upload

1,632 Mb/s

Calculated at 3% below the Duo comparison for both Download and Upload. This is a percentage example, rather than a prediction of which foldable will be faster.

The calculated 3% gap between the foldables changes that ideal 5 GB transfer by less than a second. Choose the AP and wired path around the workload and number of active users, rather than treating a small percentage as a reason to replace a phone.

iPhone 17 Pro vs Galaxy S26 Ultra

iPhone 17 Pro

Download

1,556 Mb/s

Upload

1,336 Mb/s

This supplied field result already exceeds a Gigabit wired path. Good signal, multi-gigabit access and the complete gateway-to-AP route make that extra capacity usable.

Samsung Galaxy S26 Ultra

Download

1,515 Mb/s

Upload

1,371 Mb/s

The S26 Ultra field result is in a similar Download range to the iPhone 17 Pro, with a slightly higher Upload reading in these checks. Signal and network conditions can change the next result.

These supplied field checks both reach about 1.5 Gb/s Download and 1.3 Gb/s Upload, already beyond a Gigabit path. Coverage and stability matter for video; extra capacity becomes useful for larger transfers and more simultaneous users.

What Does More Speed Save on a Real Task?

Consider a 5 GB decimal photo or project-file transfer. At an assumed sustained application rate of 500 Mb/s it takes 80 seconds; at 900 Mb/s, about 44 seconds; at 1,800 Mb/s, about 22 seconds. These are worked calculations from chosen rates, not measurements of any listed phone or AP.

Scale the same task to 50 GB and the arithmetic becomes roughly 13 minutes 20 seconds, 7 minutes 24 seconds and 3 minutes 42 seconds respectively. That is where extra capacity becomes more tangible than a streaming demonstration.

Shared traffic matters too. Four APs each carrying an assumed 1.5 Gb/s create 6 Gb/s towards a common destination. Their 2.5GbE access ports can be appropriate while a shared 1G uplink is not. A 10G aggregation path can make sense without buying a 10G port for every low-demand endpoint.

Omada and UniFi: Four AP Options Compared

These are wired-interface categories, not a ranking of wireless coverage or measured speed. Radio capability, client support, mounting location and configuration still need assessment. Both platforms offer managed deployment options; their controllers and feature sets form separate ecosystems.

For current EAP773 versions, Omada documents 802.3at PoE support; older V1 installations may require the relevant firmware update because earlier guidance specified 802.3bt. Match the exact hardware and software before choosing a power source. U7 Pro and U7 Pro XG list PoE+.

When 2.5GbE Is the Sensible Investment

A small office whose main workload is email, web applications and a 500 Mb/s internet service may gain more from good AP placement and wired backhaul than from 10GbE at every ceiling point. A 2.5GbE design offers more nominal AP-link capacity than Gigabit while keeping the switch choice focused on the actual workload.

It is still a shared connection. Four clients each requesting 500 Mb/s across the same AP port create 2 Gb/s of aggregate demand in a planning example. A 2.5GbE link has nominal room above that total; a 1 Gb/s link does not. This is arithmetic, not a promise that four real clients will each achieve the assumed rate.

A 10GbE-capable switch can also be installed now and negotiate a supported lower rate with a 2.5GbE AP. That may fit a staged upgrade, provided the exact interfaces support the required rate and PoE. The AP remains a 2.5GbE endpoint until it is replaced.

When 10GbE Deserves the Extra Budget

Consider 10GbE access when several capable users share high-volume local workflows, such as moving large project files to a fast NAS, or when the next AP generation is already part of a funded expansion. Confirm that the server, storage and aggregation links can use the additional capacity.

Ten-gigabit Ethernet provides four times the nominal line rate of 2.5GbE, but it does not guarantee four times the application speed. A 1 Gb/s internet connection, a slow disk array or a client with poor signal can still determine the result.

Divide bits by eight for a byte-rate ceiling: 2.5 Gb/s corresponds to 312.5 MB/s and 10 Gb/s to 1,250 MB/s before overhead. Actual transfers are lower. Combined wireless signal rates across bands are a different figure again and should not be treated as a single laptop's file-copy speed.

Two Deployment Paths: 2.5GbE Access or 10GbE Access

Path A: connect EAP772 units to suitable 2.5GbE PoE+ access ports, then use a correctly specified 10G uplink for shared traffic to the core or NAS. Within UniFi, U7 Pro fits the same AP-interface tier, paired with a suitable UniFi multi-gigabit PoE switch where unified management is desired.

Path B: use EAP773 or U7 Pro XG with genuine 10GbE RJ45 PoE access ports and a suitably sized core path. A 10G uplink shared by several 10G AP ports can itself become the aggregate constraint; design from simultaneous demand rather than multiplying every maximum.

Ethernet and standards-based PoE can interoperate across brands when correctly specified. That does not give an Omada controller management of a UniFi AP, or a UniFi controller management of an Omada switch. Select an ecosystem deliberately and document any mixed-platform responsibilities.

Read the Switch Port Layout Before Ordering

The Omada example suits a 2.5GbE access design. The UniFi example provides 10GbE copper access and supports lower negotiated rates. Its eight PoE++ ports do not each receive the complete 155 W shared budget; per-port and total limits both apply.

An SFP+ cage is not itself a powered RJ45 AP port. Specify the compatible transceiver or DAC, destination interface and reach for each uplink. A separate injector must support the intended data rate as well as the AP's required power.

Check Power, Cabling and the Destination Together

Reserve a realistic power allocation for every AP and other powered endpoint. For illustration, four 30 W port allocations total 120 W, leaving 40 W within a 160 W PoE budget. That is a budgeting assumption, not measured AP consumption. Switch electronics and conversion losses also matter when sizing the AC supply or UPS.

For a new 10G copper installation, specify a suitable structured-cabling design rather than assuming an old cable label guarantees performance. Category 6A is a common choice for a 100 m 10GBASE-T channel; existing Category 6 performance depends on the channel length and installation. Test terminations, patch leads, negotiated speed and errors.

Keep wired backhaul where available. A mesh hop introduces a separate radio path and cannot be treated as the equivalent of a 10G cable. The mesh and access point guide explains that topology choice. The PoE guide and UPS runtime guide cover power planning.

A Practical Upgrade Sequence

1. Identify the demanding applications and whether traffic goes to the internet, a local NAS or a server.
2. Check client capability, signal conditions and the planned AP positions.
3. Choose 2.5GbE or 10GbE AP access from the expected shared traffic and expansion plan.
4. Match copper port speeds, PoE, shared uplinks, transceivers and cabling.
5. Test the complete client-to-destination route before repeating the design across the site.

Test the Upgrade Around the Busy Period

Use an internet test such as Speedtest for the internet route and a local test such as iperf3 for the WLAN-to-server path. Keep the phone, location, band, firmware, channel width and server consistent when comparing APs. Repeat the run and record the conditions.

Check latency and stability while the network is busy as well as when it is idle. A better download figure alone does not establish improved roaming, fewer dropouts or lower loaded latency. A well-placed, well-powered AP with sound cabling is a stronger starting point than changing the generation label alone.

Frequently Asked Questions

Will WiFi 7 make Netflix look better on a connection that already streams 4K smoothly?

Not by itself. Its useful advantages are more likely to appear in shared capacity, appropriate local transfers, spectrum options and the next supported devices.

How should two APs be compared?

Use the same client, server, location, band and relevant settings. Repeat local and internet tests separately, then compare stability and latency during a representative busy period.

Does EAP772 need a 10GbE switch?

No. Its wired interface is 2.5GbE. A compatible 10GbE switch can be part of an expansion plan, but it will not turn EAP772 into a 10GbE AP.

Is U7 Pro the same as U7 Pro XG?

No. U7 Pro has a 2.5GbE wired interface, while U7 Pro XG has 10GbE. Compare the exact model and its complete specification.

Do two 10G SFP+ uplinks mean every switch port is 10G?

No. Read the RJ45 access-port specification separately. A switch can combine 2.5GbE access with 10G uplinks.

Will 10GbE increase an internet subscription's speed?

It does not change the service rate. It can provide useful capacity for appropriate local and shared workloads.

Is 10GbE always the better long-term purchase?

It provides more wired headroom, but value depends on clients, workloads, cable paths, power and expected expansion. Compare the complete design and current quotation.

The Recommendation: 2.5GbE for Budget, 10GbE for Planned Growth

For a measured budget: choose EAP772 or U7 Pro on suitable 2.5GbE PoE+ access ports, with a properly sized shared uplink. This is a sensible step for everyday offices and homes whose measured demand fits that path.

For a four-to-five-year expansion plan: where multi-gigabit broadband, fast NAS transfers or more capable clients are expected, prioritise 10GbE-capable copper access, suitable cabling, PoE and core capacity. EAP773 and U7 Pro XG provide a 10GbE AP route. That headroom can reduce an avoidable switch or cable replacement as demand grows; it cannot guarantee that every client or AP will remain suitable for five years.

If the problem is buffering today, diagnose first. Fix coverage, wired backhaul or a congested path before spending solely for a generation label. If the existing connection is already healthy, buy the capacity that the next applications and devices can actually use. The enterprise networking guide explains the next step from access to aggregation and core.
