Ubiquiti USW-Pro-XG-48 Pro XG 48-Port L3 10GbE Etherlighting Switch

High-Capacity 10GbE Switch for Advanced Enterprise Networks

The Ubiquiti USW-Pro-XG-48 is a robust Layer 3 10GbE rackmount switch designed for high-performance enterprise environments. Combining high throughput, advanced Layer 2 and Layer 3 features, and Etherlighting™ technology, it offers reliable, scalable, and secure connectivity for demanding network infrastructures.

Highlights

• 48 Ports Total: 32× 10 GbE RJ45, 16× 2.5 GbE RJ45, 4× 25G SFP28 for versatile high-speed connectivity

• 920 Gbps Switching Capacity: Non-blocking throughput up to 460 Gbps with forwarding rate of 684 Mpps

• Advanced Layer 3 Routing: Supports DHCP Server/Relay, Inter-VLAN, static routing for complex network management

• Comprehensive Layer 2 Features: LACP, STP/RSTP, IGMP snooping, 802.1X, ACLs, port isolation, jumbo frames, and more

• Etherlighting™ Support: Integrated lighting control protocol for unified network and lighting management

• 1U Rackmount Form Factor: Compact design with durable SGCC steel enclosure and mounting hardware included

• Power Redundancy: Internal 300W AC/DC power supply with DC power backup and USP RPS input support

• 1.3" Touchscreen LCD: Onboard display for easy monitoring and configuration

• NDAA Compliant and certified for CE, FCC, and IC standards

Key Features

Port and Performance Specifications

• Port Layout:
  • 32× 10 GbE RJ45 supporting 10G/5G/2.5G/1G/100M/10M speeds
  • 16× 2.5 GbE RJ45 supporting 2.5G/1G/100M/10M speeds
  • 4× 25G SFP28 ports supporting 25G/10G/1G speeds

• High Throughput:
  • 920 Gbps switching capacity with 460 Gbps total non-blocking throughput
  • 684 million packets per second forwarding rate

Advanced Layer 3 Features

• Routing and DHCP: Local DHCP server, DHCP relay, inter-VLAN routing, static routing

• Large Tables: 128,000 ARP entries, 256,000 IPv4 routes, 128,000 MAC address table size

Comprehensive Layer 2 Features

• Port Aggregation: LACP support for link redundancy and increased bandwidth

• Network Security: 802.1X, MAC-based ACLs, DHCP snooping and guarding, IP-based ACLs

• Traffic Management: Egress rate limiting, storm control, multicast/broadcast rate limiting, flow control

• Other: Port isolation, port mirroring, jumbo frames support, loop protection, voice VLAN

Hardware and Build

• Power: 250W max consumption, 300W internal AC/DC power supply, supports DC power backup and USP RPS input

• Dimensions: 442 × 480 × 44 mm (17.4 × 18.9 × 1.7 inches)

• Weight: 7.5 kg (without mounting brackets), 7.6 kg (with brackets)

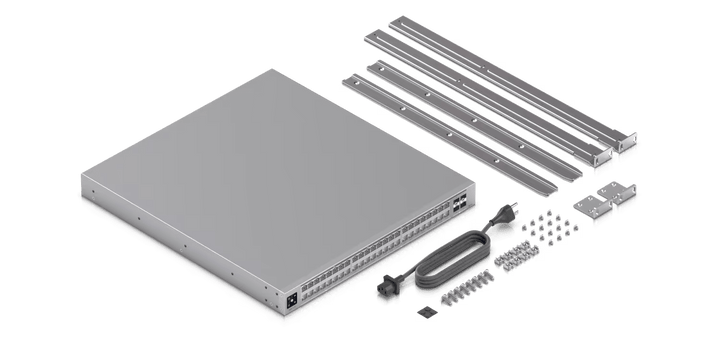

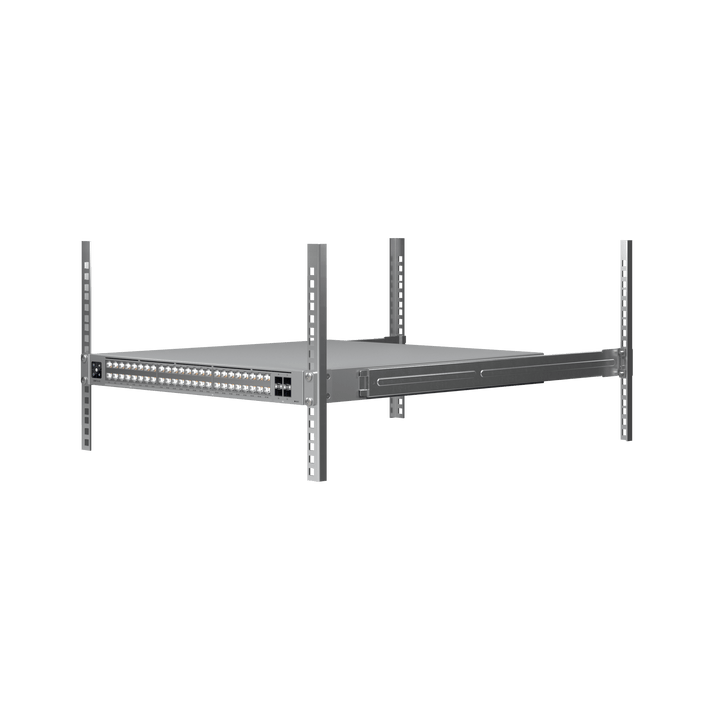

• Enclosure: Durable SGCC steel chassis with compatible mounting hardware for 19" four-post racks (supports depths 600-1066 mm)

• Environmental: Operating temperature -5 to 40°C, humidity 10–90% non-condensing

• ESD Protection: Air ±30kV, contact ±14kV

Summary / Conclusion

The Ubiquiti USW-Pro-XG-48 is an enterprise-grade Layer 3 switch delivering ultra-high bandwidth, extensive routing capabilities, and powerful Layer 2 features in a compact 1U form factor. With multi-speed ports including 25G SFP28, advanced network security, and Etherlighting™ support, it is tailored for modern data centers and high-demand networks requiring performance, reliability, and scalability.

Ubiquiti USW-Pro-XG-48 Pro XG 48-Port L3 10GbE Etherlighting Switch

The Ubiquiti USW-Pro-XG-48 is a high-performance Layer 3 Etherlighting switch designed for demanding enterprise networks. It delivers massive switching capacity, extensive Layer 2 and Layer 3 features, and robust hardware reliability with a sleek 1U rackmount form factor.
