Ubiquiti UACC-Cable-Patch-EL UniFi Etherlighting Patch Cable
Slim 10GbE Connections That Show Etherlighting Clearly The Ubiquiti UACC-Cable-Patch-EL is a White indoor RJ45 patch cable designed for Ethernet links up to 10GbE. Its...
Pickup available at 3005, Ubi Avenue 3, #01-88
Usually ready in 2-4 Business Day (Excluding Public Holiday)
Ubiquiti UACC-Cable-Patch-EL UniFi Etherlighting Patch Cable
Description
Slim 10GbE Connections That Show Etherlighting Clearly

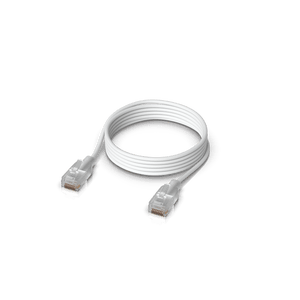

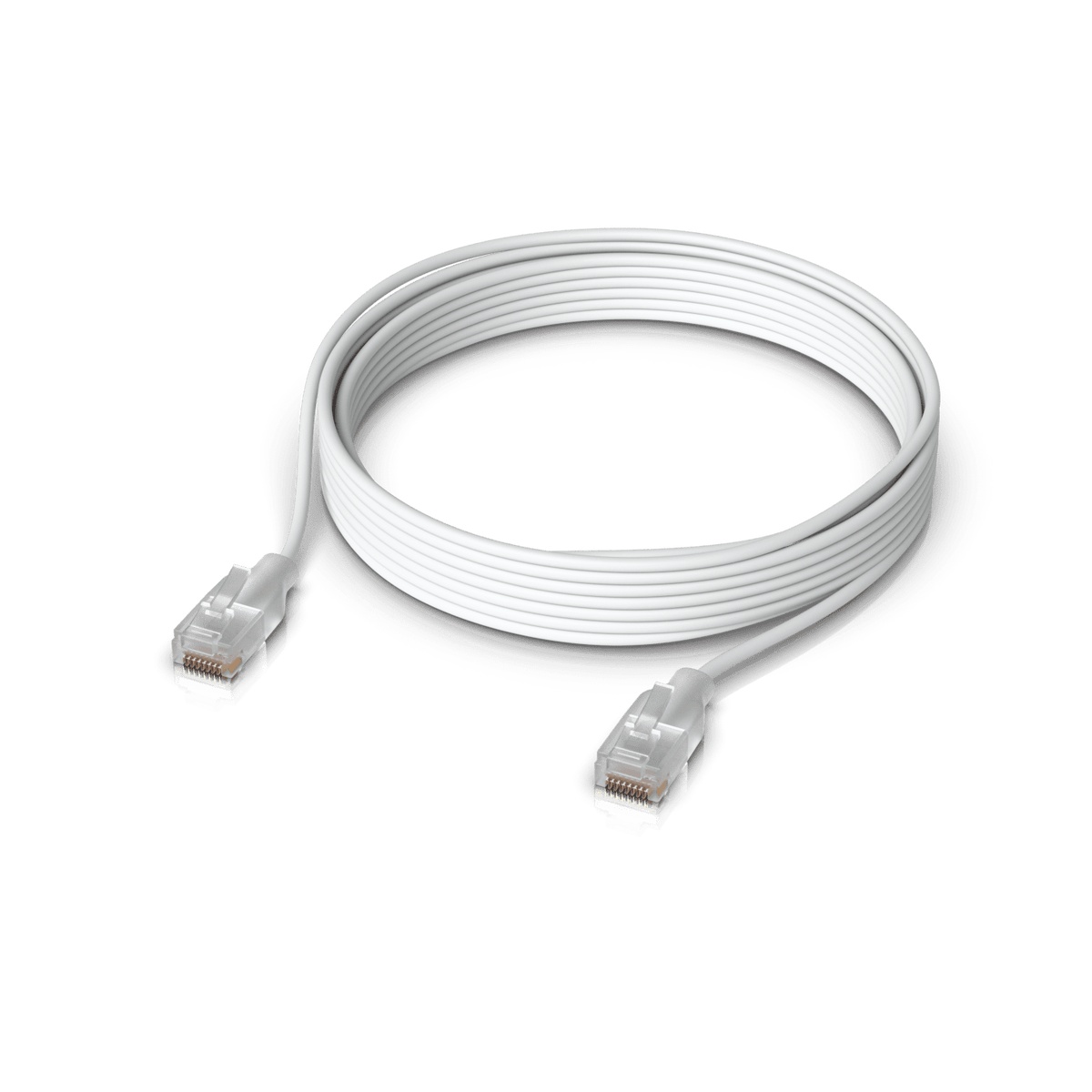

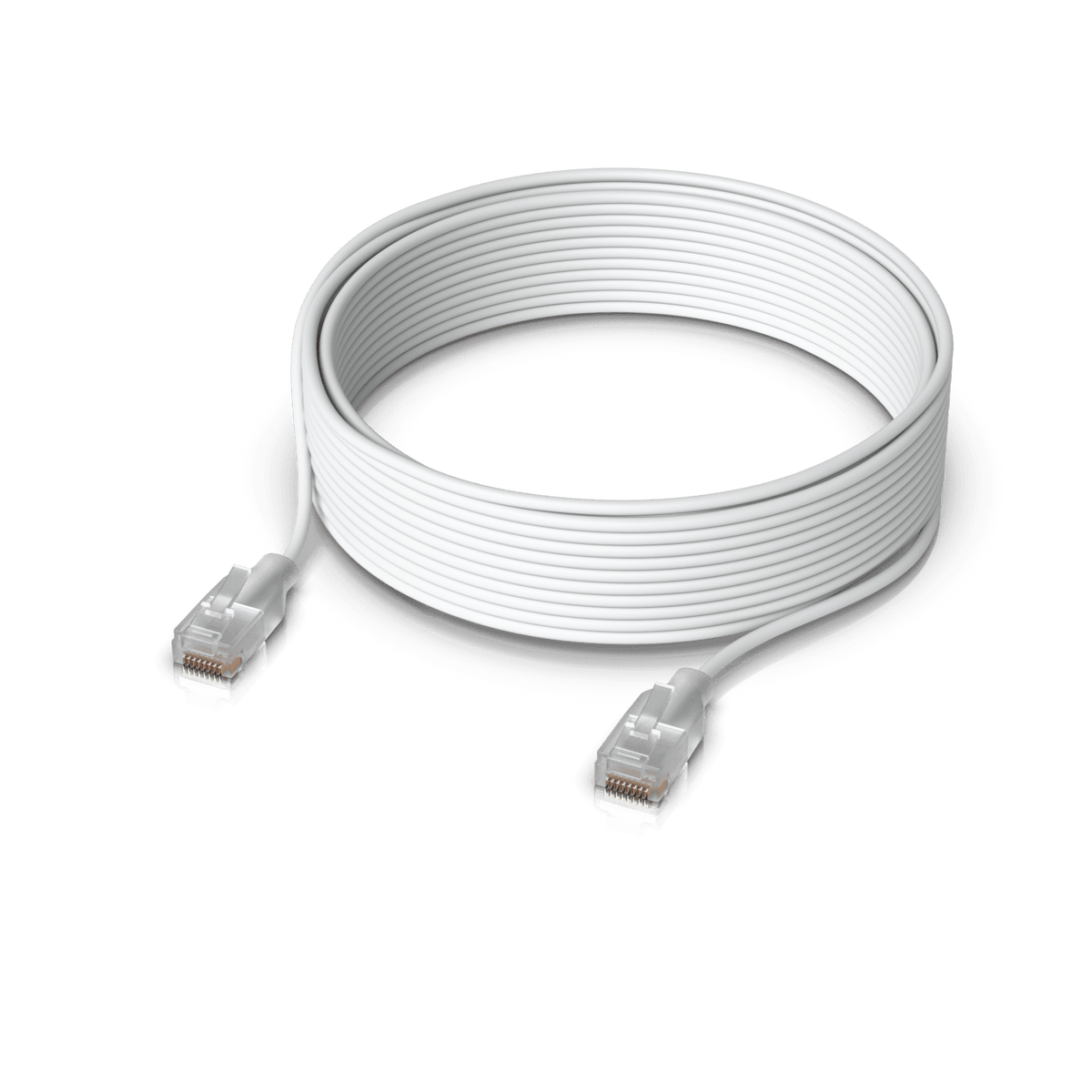

The Ubiquiti UACC-Cable-Patch-EL is a White indoor RJ45 patch cable designed for Ethernet links up to 10GbE. Its narrow cable profile and translucent connector boots suit neat switch cabinets where Etherlighting port illumination needs to remain visible.

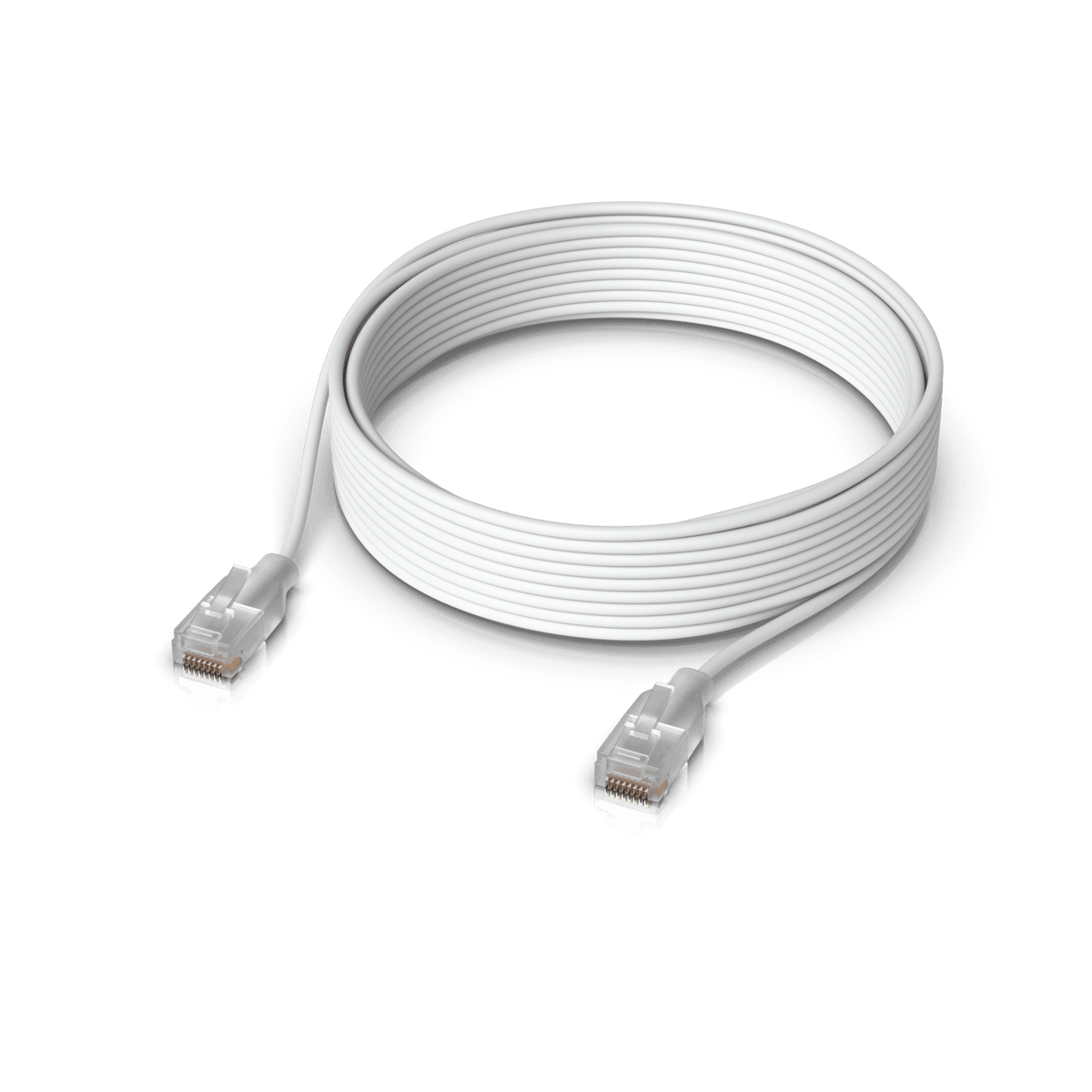

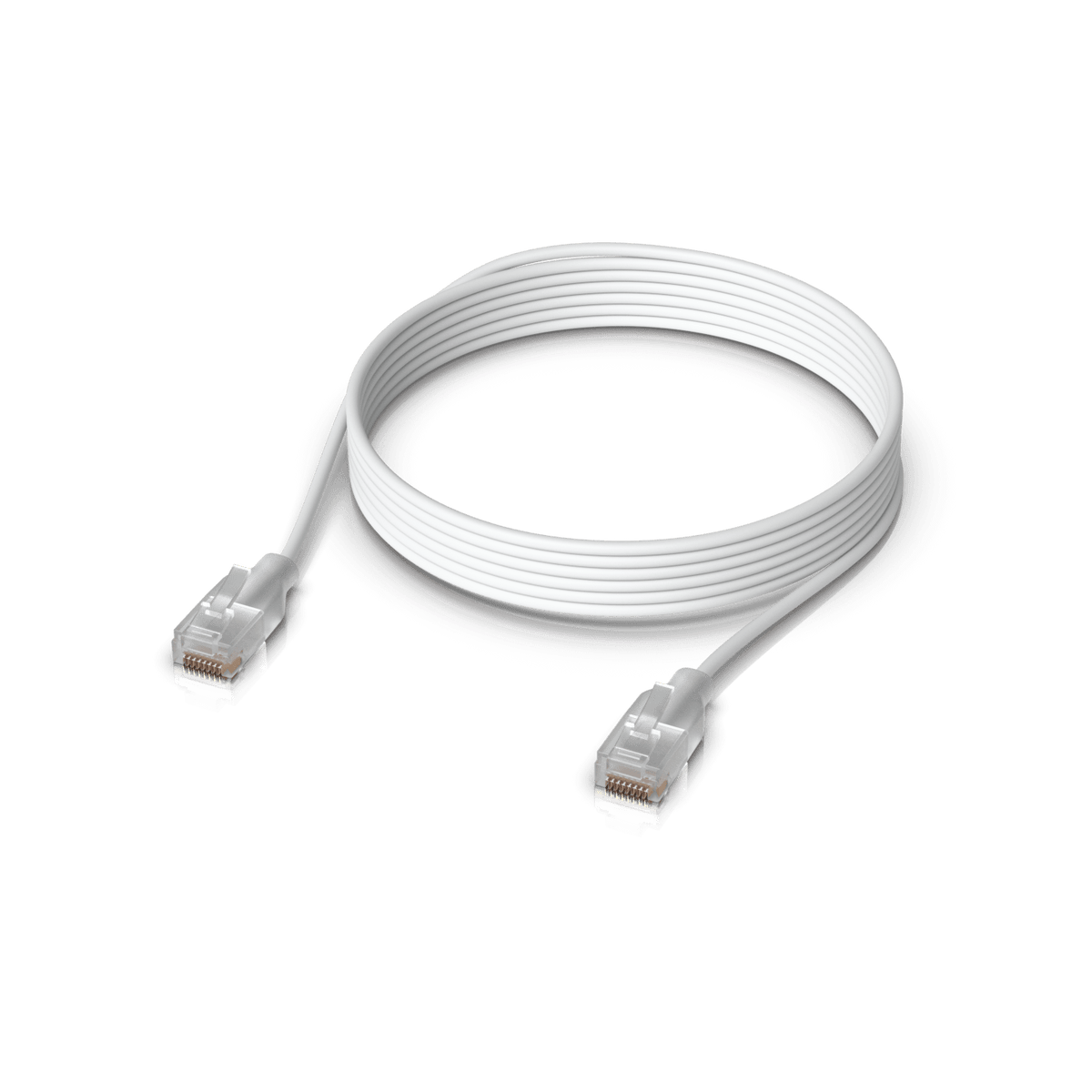

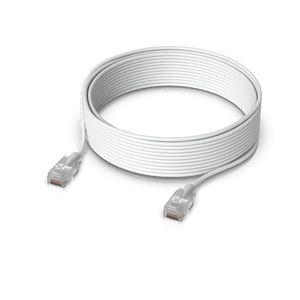

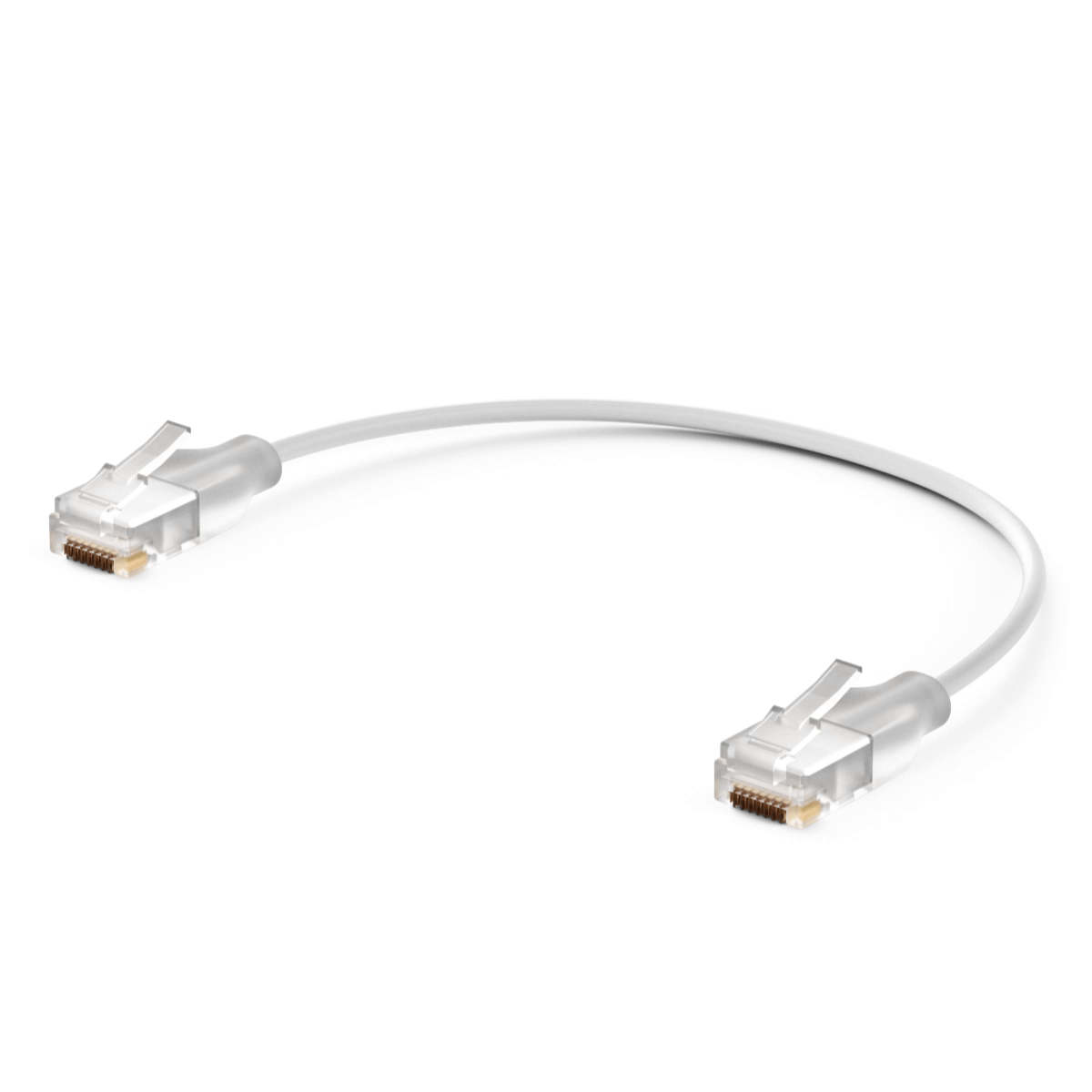

This family includes single cables from 0.15M to 15M and a 0.15M 24-Pack. Use short leads between neighbouring patch-panel and switch ports, or select a longer cable where the equipment layout needs more reach.
Highlights
- Data-rate support up to 10GbE.

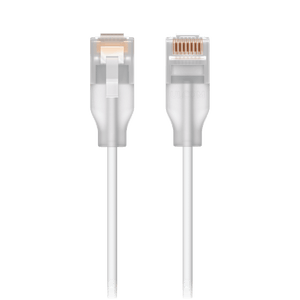

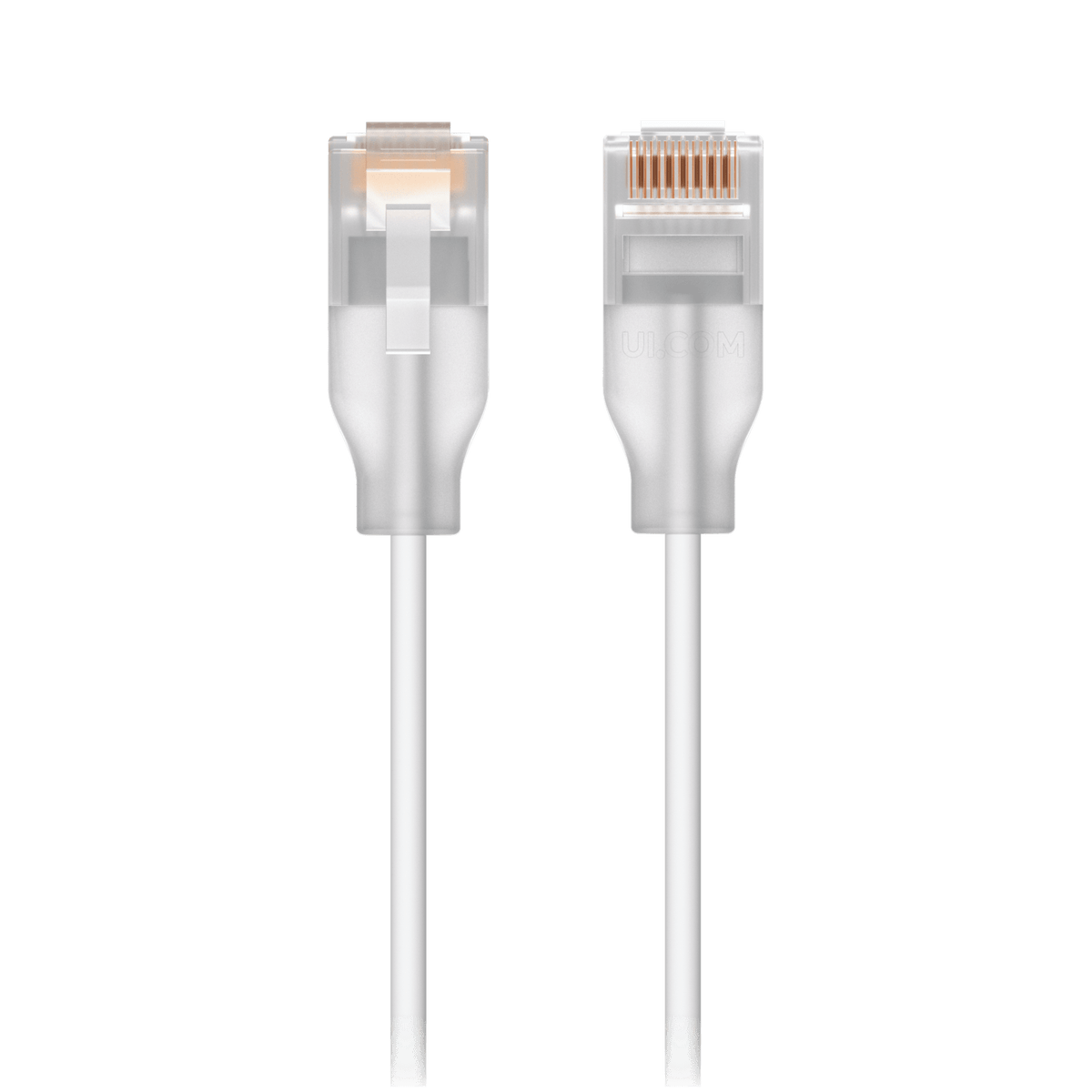

- Translucent RJ45 boots for Etherlighting-capable switch ports.
- 2.5mm cable diameter through 8M; 2.9mm at 12M and 15M.
- Indoor TPE jacket with stranded copper conductors.
Key Features
Show the Port Lighting

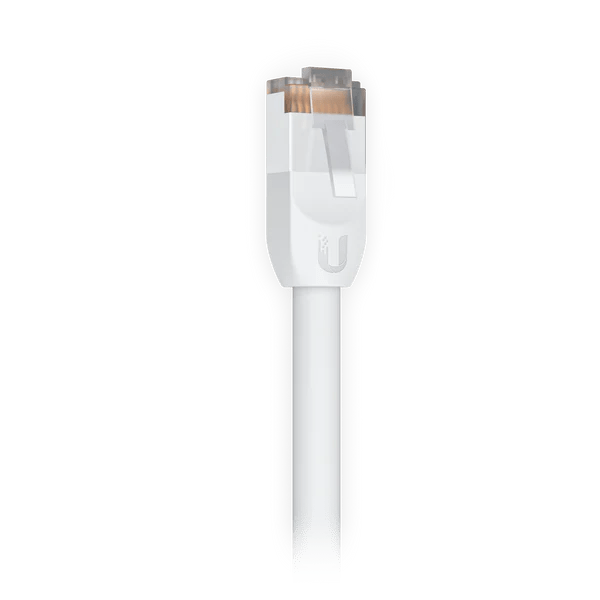

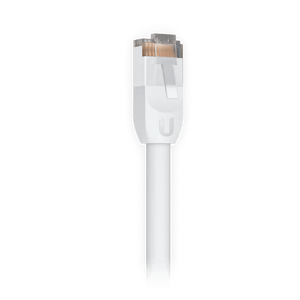

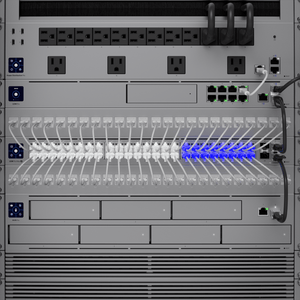

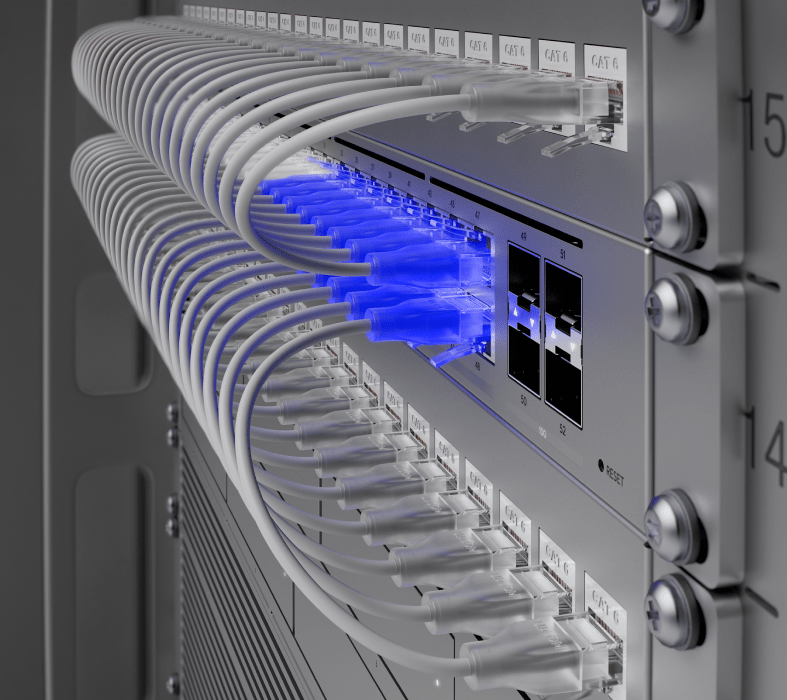

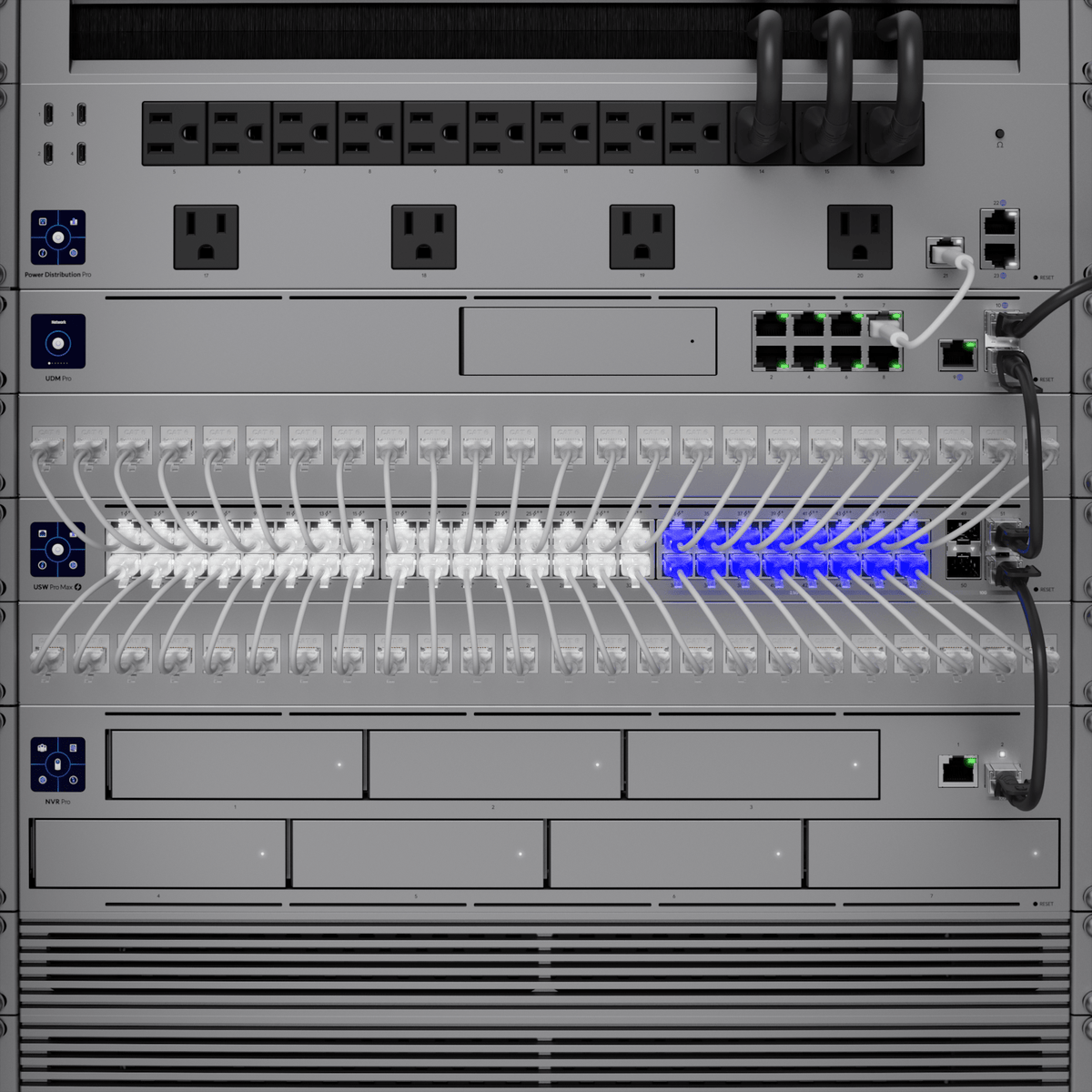

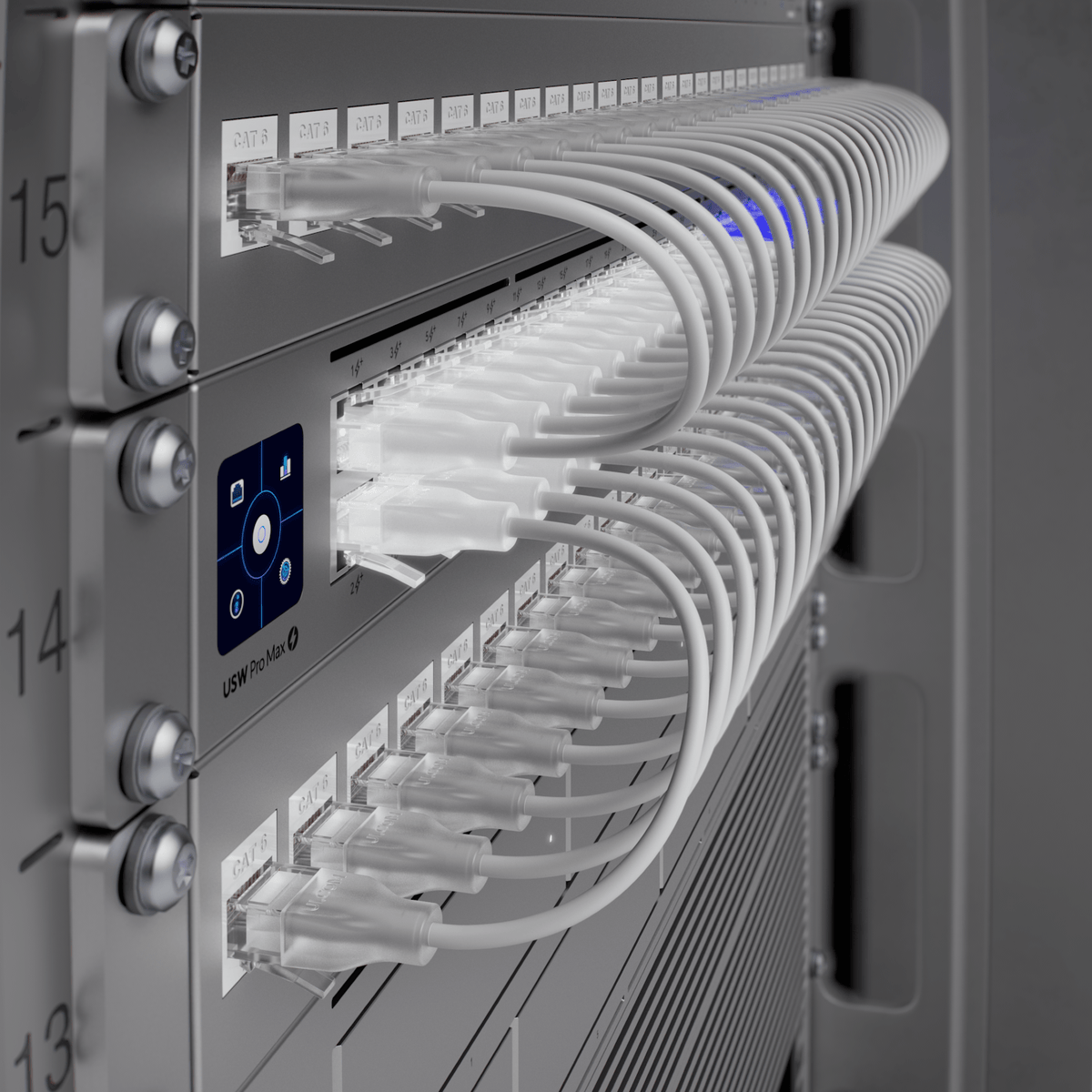

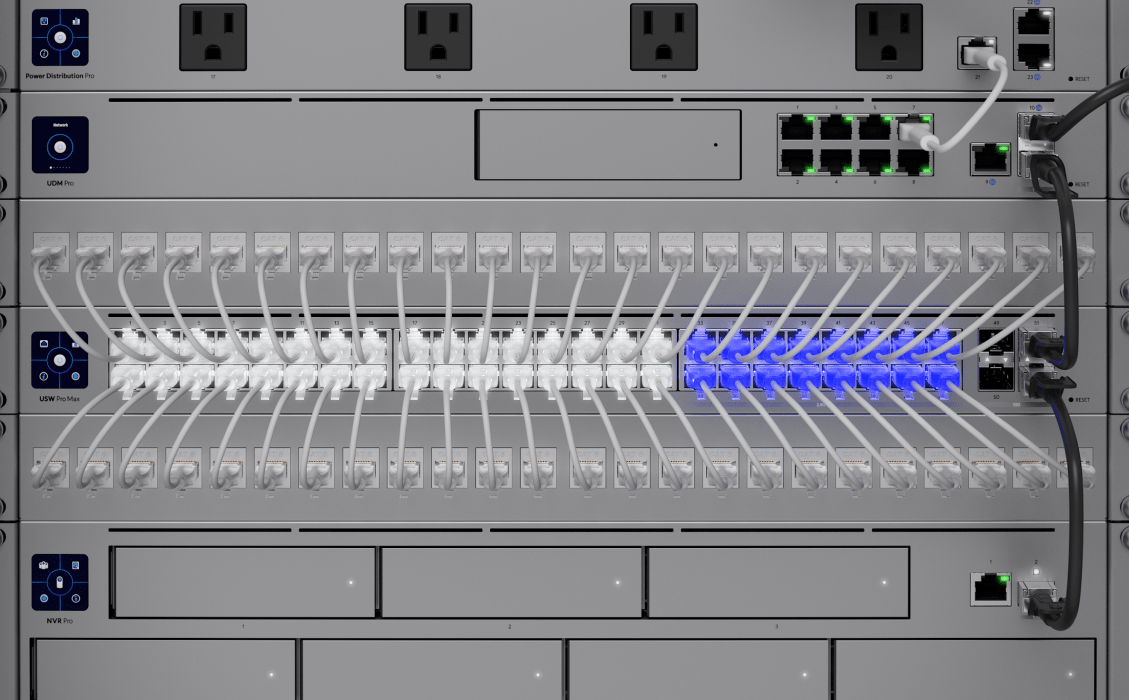

The translucent boots allow the light from a compatible Etherlighting switch port to show through. Lighting is produced by the switch rather than the cable, so an ordinary RJ45 device can still use the cable without lighting functionality.
Reduce Excess Cable Around Ports
Choosing a length close to the actual route helps keep ports accessible and reduces loose coils in front of the equipment. Provide a service loop and support the cable rather than leaving tension on the connectors.
Match Cable Size to Routing Space

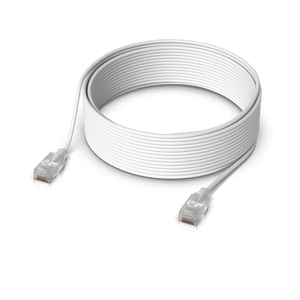

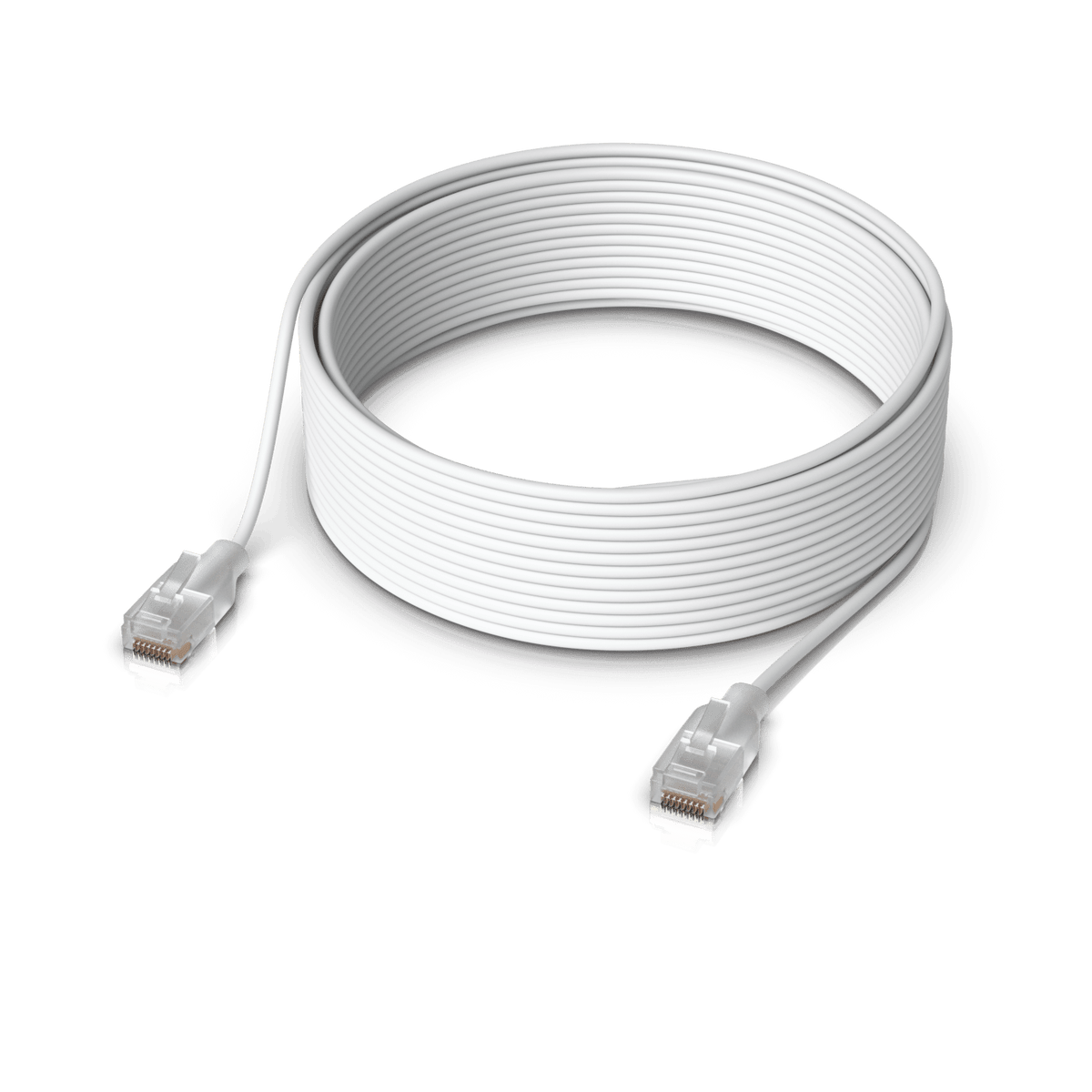

The 0.15M to 8M versions have a 2.5mm outer diameter, while 12M and 15M use a 2.9mm cable. The longer versions also use a larger conductor size. Maintain the manufacturer's bend-radius guidance and avoid tight kinks at the RJ45 plug.
Use Compatible Network and PoE Equipment
The cable supports PoE up to PoE+++, but it does not supply power by itself. Both the Ethernet data rate and the available device power depend on the connected equipment and complete cable path. This indoor UTP cable is not intended as an outdoor weatherproof lead.
Summary
The UACC-Cable-Patch-EL is a slim indoor patching choice for 10GbE equipment and installations that use Etherlighting. Select the required length or 24-Pack while keeping cable routing and port access in mind.
Specs
Ubiquiti UACC-Cable-Patch-EL UniFi Etherlighting Patch Cable
White indoor patch cable with translucent RJ45 boots. The stated dimensions and construction apply to this Etherlighting cable family.
| Specification | Details |
|---|---|
| Family and Options | |
| Model family | UACC-Cable-Patch-EL |
| Colour | White |

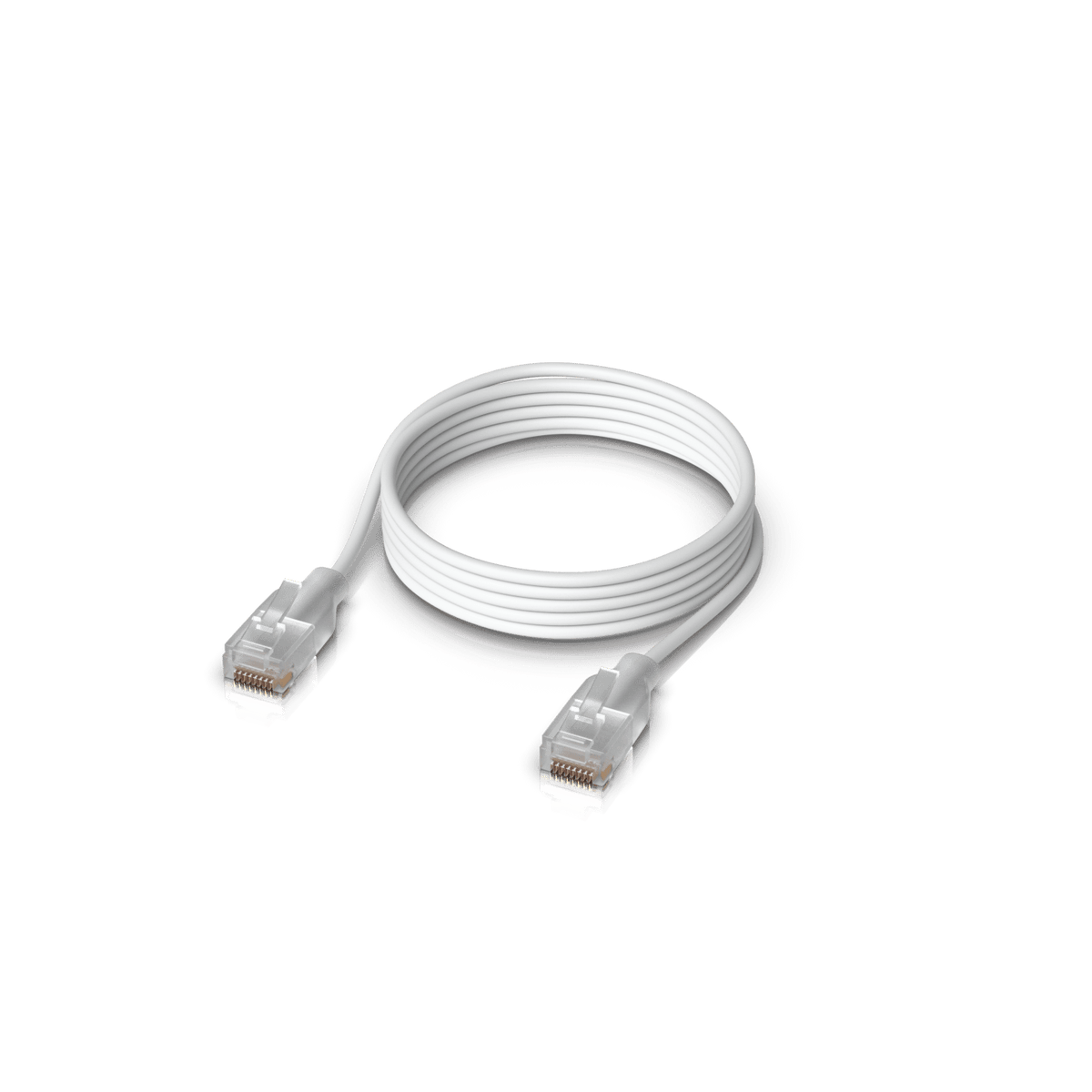

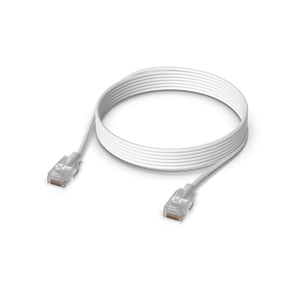

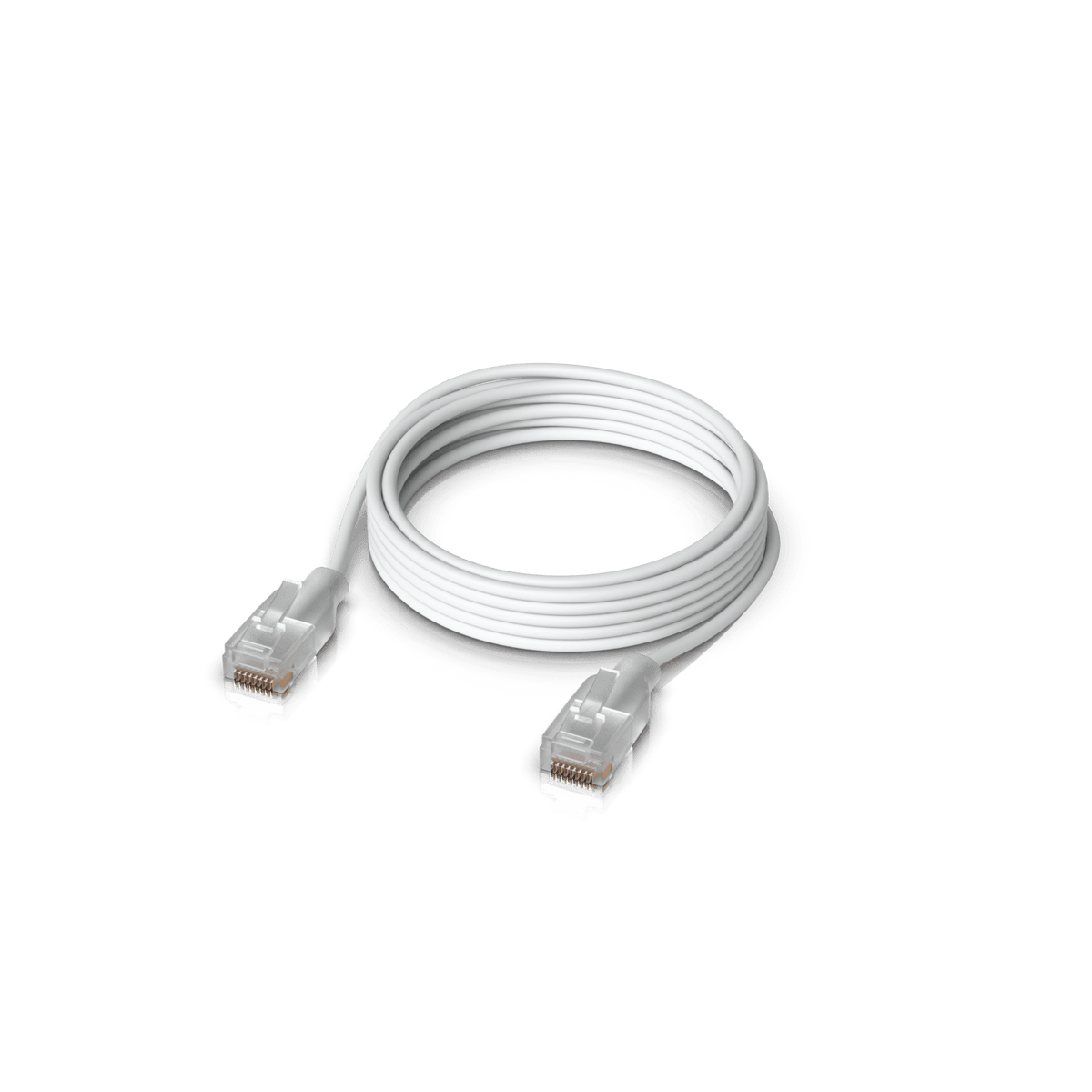

| Single-cable lengths | 0.15M /0.3M /1M /2M /3M /5M /8M /12M /15M |
| Pack options | Single cable; 0.15M 24-Pack |
| Length measurement | End to end |
| Connectivity | |
| Supported data rate | Up to 10GbE |
| Supported PoE type | Up to PoE+++ |
| Connectors | Two translucent-boot RJ45 connectors |
| Operating environment | Indoor |
| Cable Construction | |
| Jacket | Thermoplastic elastomer (TPE) |
| Shielding | UTP |
| Conductor | Stranded copper |
| Jacket diameter | 0.15M to 8M: 2.5mm; 12M and 15M: 2.9mm |
| Conductor wire gauge | 1M to 8M: 34AWG; 12M and 15M: 32AWG |
| Minimum bend radius | 1M to 8M: 21mm; 12M and 15M: 24mm |
| Standards and Conditions | |
| Flame rating | VW-1 (UL1581) |
| Standards | TIA/EIA-568-B.2 /ISO/IEC11801 |
| Installation temperature | -20 to 60°C |
| Operating temperature | -20 to 60°C |
| Storage temperature | -20 to 75°C |
