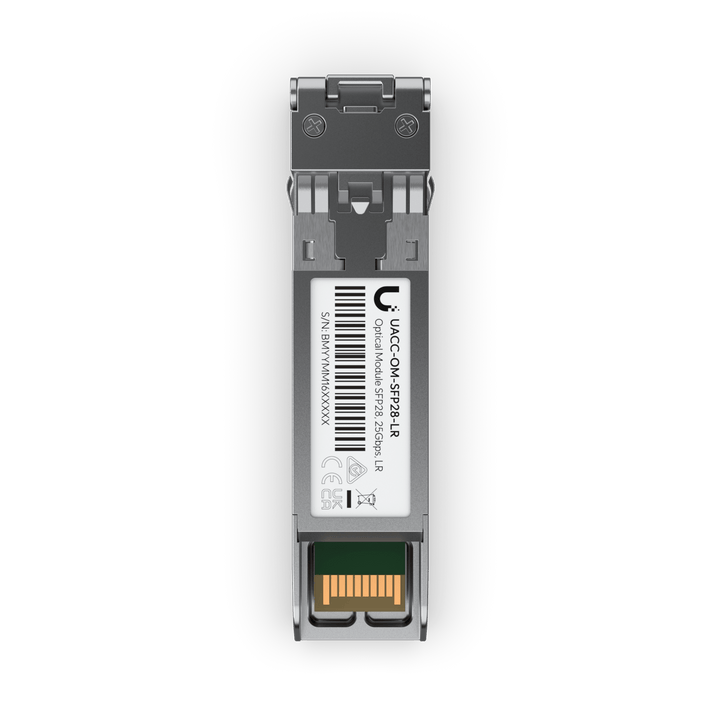

Ubiquiti UACC-OM-SFP28-LR 25G Single-Mode Optical Module
High-Speed 25G SFP28 Single-Mode Optical Module The Ubiquiti UACC-OM-SFP28-LR is a high-performance 25G SFP28 transceiver, designed for long-range fiber-optic networking up to 10 km over...
High-Speed 25G SFP28 Single-Mode Optical Module
The Ubiquiti UACC-OM-SFP28-LR is a high-performance 25G SFP28 transceiver, designed for long-range fiber-optic networking up to 10 km over single-mode fiber. With a duplex LC UPC connector and 1310 nm wavelength, this low-power, high-speed optical module ensures seamless 25G connectivity for data centers, enterprise networks, and high-performance computing environments.
Highlights
- 25 Gbps maximum data rate for ultra-fast optical networking
- Supports up to 10 km fiber connections over single-mode fiber
- Fully compatible with SFP28, SFP+, and SFP interfaces
- Duplex LC UPC connector for reliable data transmission
- Low power consumption (1.3W) for energy-efficient networking
Key Features
Superior Long-Range Connectivity
- Designed for single-mode fiber (SMF) connections
- Supports up to 10 km transmission distance
- Utilizes 1310 nm wavelength for stable performance
High-Speed Data Transmission
- 25G data rate ideal for high-bandwidth applications
- Backward compatibility with 10G and 1G SFP+ interfaces
- Seamless integration with Ubiquiti and third-party networking hardware
Reliable & Power-Efficient Performance
- Low power consumption (1.3W) reduces heat and energy usage
- Duplex LC UPC connector ensures secure, high-speed optical communication
- Class 1 laser compliance (IEC/EN 60825-1:2014) for safety
Enterprise-Grade Durability
- Operating temperature: 0 to 70°C for reliable performance in various conditions
- Ideal for high-speed aggregation, cloud computing, and metro networking
Technical Specifications
| Specification | Details |
|---|---|
| Supported Media | Single-Mode Fiber (SMF) |
| Connector Type | Duplex LC UPC |
| TX Wavelength | 1310 nm (Blue Latch) |
| RX Wavelength | 1310 nm (Blue Latch) |
| Data Rate | 25 Gbps |
| Maximum Distance | 10 km |
| Max Power Consumption | 1.3W |
| Operating Temperature | 0 to 70°C (32 to 158°F) |
| Compatibility | SFP28, SFP+, SFP |
Summary
The Ubiquiti UACC-OM-SFP28-LR is a reliable, long-range 25G optical module that delivers seamless, high-speed data transmission over single-mode fiber. With low power consumption, backward compatibility, and enterprise-grade durability, this SFP28 transceiver is ideal for high-performance networking applications.
Ubiquiti UACC-OM-SFP28-LR 25G Single-Mode Optical Module Specifications
| Specification | Details |
|---|---|
| General | |
| Supported Media | Single-mode fiber |
| Connector Type | (2) LC (Duplex LC UPC) |
| TX Wavelength | 1310 nm (Blue Latch) |
| RX Wavelength | 1310 nm (Blue Latch) |
| Data Rate | 25 Gbps |
| Maximum Cable Distance | 10 km |
| Compatibility | SFP28, SFP+, SFP Interfaces |
| Power & Performance | |
| Max. Power Consumption | 1.3W |
| Environmental Conditions | |
| Ambient Operating Temperature | 0 to 70°C (32 to 158°F) |
| Warning | CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 – Do not look into the ends of the fiber optic cable or SFP module while powered. |
