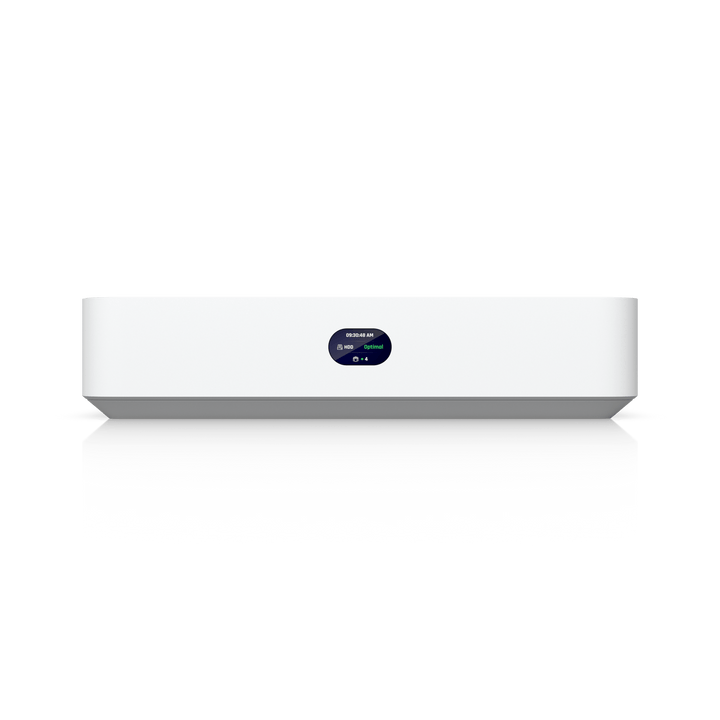

Ubiquiti UNVR-Instant Network Video Recorder Instant

Enterprise-Class Security Made Simple

The Ubiquiti UNVR-Instant delivers professional-grade surveillance in a compact, all-in-one design. Featuring support for a 3.5" HDD, an integrated 6-port PoE switch, and HDMI ViewPort for real-time monitoring, it is engineered for homes, small businesses, and enterprises seeking reliable, cost-effective protection.

Highlights

• Compact All-in-One NVR: Combines HDD storage, PoE switch, and monitoring in one device

• Camera Support: Up to 6× 4K, 8× 2K, or 15× Full HD cameras with UniFi Protect

• Integrated 6-Port PoE Switch: Simplifies deployment with built-in power delivery

• Expandable Storage: 3.5" HDD bay with data protection features for secure recording

• Real-Time Viewing: HDMI ViewPort output for direct live monitoring

• Flexible Mounting: Supports desktop, wall, and DIN rail installation

• Cloud and Local Control: Managed via UniFi Protect with no licensing fees

• Affordable Security: Professional performance at entry-level cost

Key Features

Design and Performance

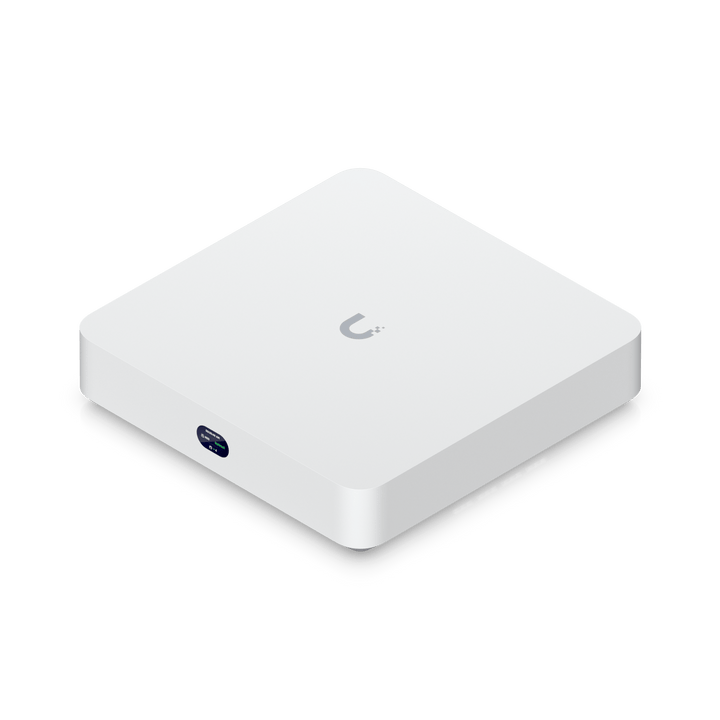

• Form Factor: Compact desktop enclosure with polycarbonate build

• Dimensions: 220 × 220 × 47 mm (8.7 × 8.7 × 1.9 inches)

• Weight: 1.04 kg (2.3 lb)

• Processor and Memory: Quad-core ARM Cortex-A55 at 1.7 GHz with 4 GB RAM

Camera and Storage Capabilities

• Managed Cameras: Supports up to 15 HD, 8 2K, or 6 4K cameras

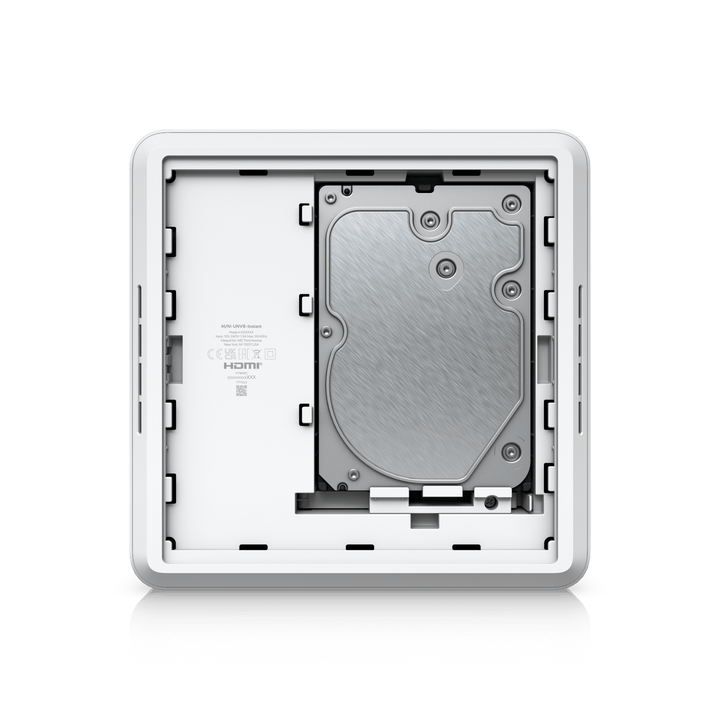

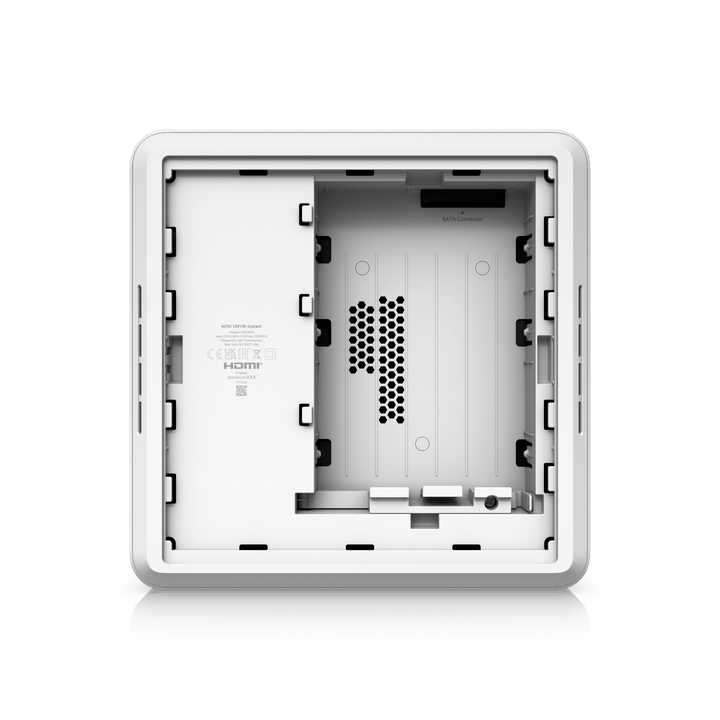

• Storage: Single 3.5" HDD bay, up to 11W drive power budget

• Data Protection: Built-in redundancy and reliability features

Networking and Connectivity

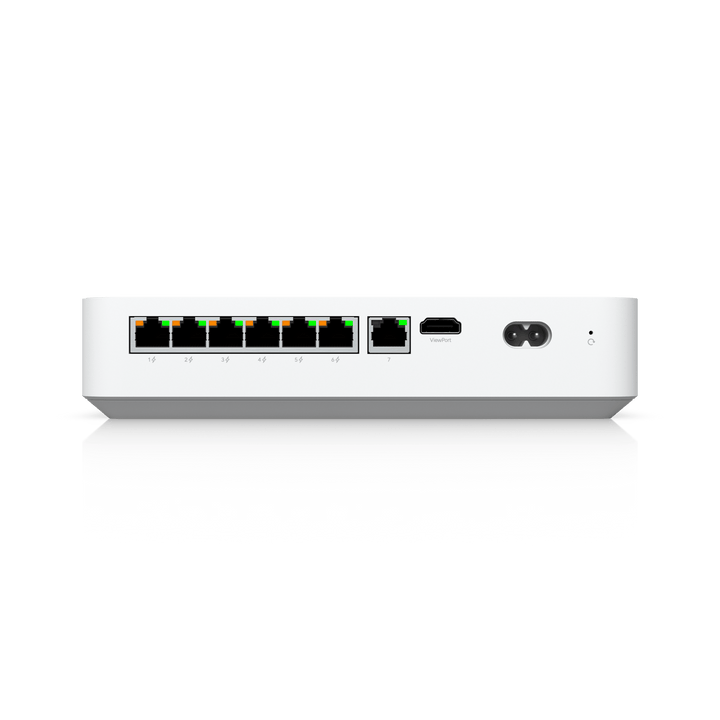

• Interfaces:
  • 1× GbE RJ45 uplink port
  • 6× GbE RJ45 downlink ports with PoE (40W total budget)
  • 1× HDMI port for ViewPort live monitoring

• PoE Output: Up to 15.4W per port, 44–57V range

• Power Supply: Internal 60W AC/DC supply, universal 100–240V AC input

UniFi Integration and Features

• Applications Supported: UniFi Protect, UniFi Access, Vantage Point

• Management: Ethernet and Bluetooth for quick setup

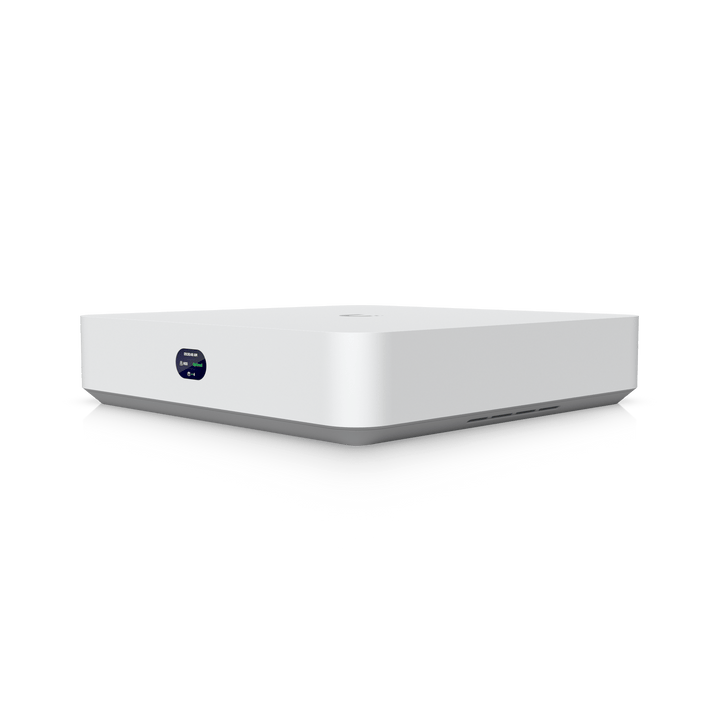

• Local Display: 1.14" screen for system status

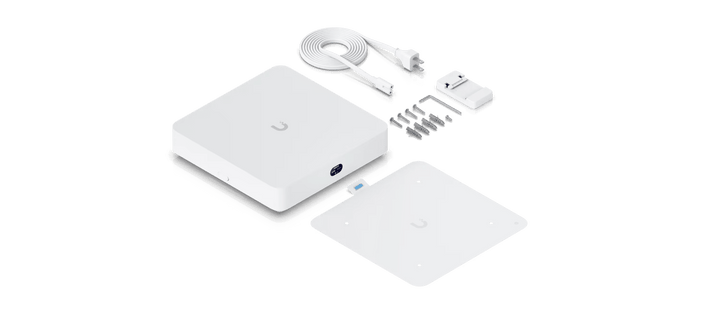

• Mounting: Wall or DIN rail hardware included

Environmental and Compliance

• Operating Conditions: 0 to 40°C, 5–95% non-condensing humidity

• Certifications: FCC, IC, CE, Electrical Safety

• NDAA Compliant: Suitable for government and enterprise deployments

Summary / Conclusion

The Ubiquiti UNVR-Instant makes enterprise-class video security accessible to everyone. With integrated PoE, expandable HDD storage, HDMI ViewPort, and seamless UniFi Protect management, it provides an affordable yet powerful NVR solution for small to mid-sized deployments. Compact, versatile, and easy to set up, the UNVR-Instant is built for reliable security without compromise.

Ubiquiti UNVR-Instant Network Video Recorder Instant

The Ubiquiti UNVR-Instant is a compact, all-in-one UniFi Protect NVR designed for easy deployment in homes, small businesses, and enterprises. Featuring an integrated 6-port PoE switch, HDMI Viewport, and 3.5" HDD support, it delivers seamless recording and monitoring for up to 15 HD, 8 2K, or 6 4K cameras. With versatile mounting options and built-in UniFi application support, it combines power, flexibility, and simplicity in a single device.
