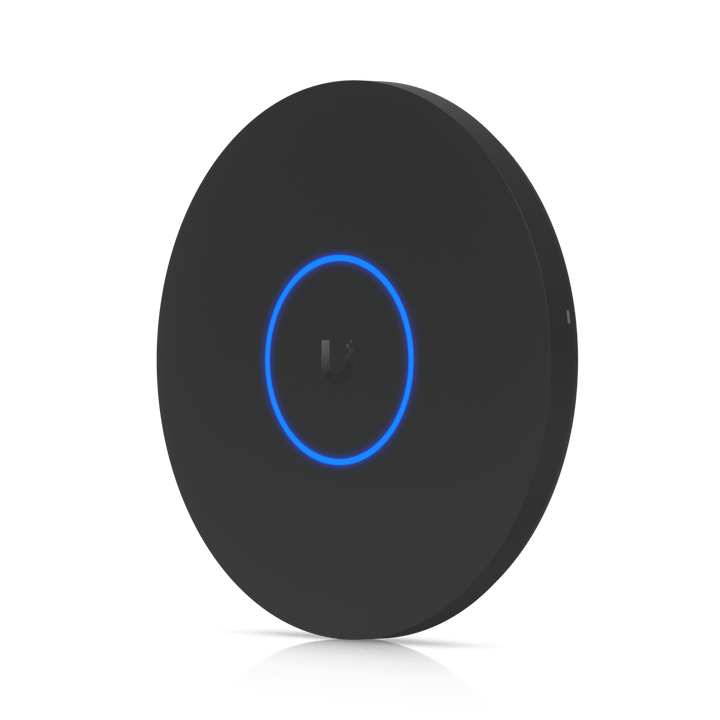

Ubiquiti U7 Pro XG BE10800 10GbE Access Point
Next-Generation WiFi 7 Performance for High-Density Networks The Ubiquiti U7 Pro XG BE10800 is a high-performance WiFi 7 access point designed for modern enterprises demanding...
Frequently Bought Together
Description
Next-Generation WiFi 7 Performance for High-Density Networks
The Ubiquiti U7 Pro XG BE10800 is a high-performance WiFi 7 access point designed for modern enterprises demanding ultra-fast speeds, low-latency connectivity, and high client capacity. With 6-stream MU-MIMO, a 10GbE uplink, and advanced network management features, it delivers unparalleled wireless efficiency in high-density environments.
Highlights
- WiFi 7 Tri-Band (6 GHz, 5 GHz, 2.4 GHz) for maximum performance
- 6-stream MU-MIMO enhances efficiency for high client loads
- 10 GbE uplink for high-speed data transmission
- 300+ client capacity for demanding environments
- Ceiling or wall-mountable for flexible deployment
Key Features
Blazing-Fast WiFi 7 Connectivity
- 6 GHz (2x2 MU-MIMO, 5.8 Gbps) with 320 MHz bandwidth
- 5 GHz (2x2 MU-MIMO, 4.3 Gbps) with 240 MHz bandwidth
- 2.4 GHz (2x2 MU-MIMO, 688 Mbps) with 40 MHz bandwidth
Enterprise-Grade Performance & Coverage
- 140 m² (1,500 ft²) coverage for reliable signal strength
- 10/5/2.5/1 GbE uplink for seamless wired integration
- Max TX Power: 26 dBm (5 GHz), 24 dBm (6 GHz), 23 dBm (2.4 GHz)
- 6 dBi high-gain antennas for extended range
Advanced Wireless Management
- Wireless Meshing for seamless AP-to-AP communication
- Band Steering ensures optimal device connection
- 802.11v BSS Transition Management for smoother handovers
- 802.11r Fast Roaming & 802.11k Radio Resource Management
Enhanced Security & Guest Network Features
- Passpoint (Hotspot 2.0) for seamless guest access
- Captive Portal with Custom Branding
- Private Pre-Shared Key (PPSK) for secure authentication
- WiFi Speed Limiting & Client Isolation
- Dynamic VLANs via RADIUS for enhanced network segmentation
Flexible Deployment & Power Efficiency
- PoE+ Powered for easy installation without extra power cables
- Ceiling & Wall Mountable (Lite Mount included) for versatile placement
- WiFi Scheduling to optimize energy consumption
Technical Specifications
| Specification | Details |
|---|---|
| WiFi Standard | WiFi 7 (802.11be) |
| MIMO Configuration | 2x2 (6 GHz, 5 GHz, 2.4 GHz) |
| Coverage Area | 140 m² (1,500 ft²) |
| Max Client Capacity | 300+ |
| Uplink | 10GbE |
| Mounting Options | Ceiling, Wall (Lite Mount included) |
| Power Method | PoE+ |
| Antenna Gain | 6 GHz: 6 dBi, 5 GHz: 5 dBi, 2.4 GHz: 4 dBi |
| Max TX Power | 6 GHz: 24 dBm, 5 GHz: 26 dBm, 2.4 GHz: 23 dBm |
| BSSIDs | 8 per radio |
| Security Features | PPSK, WPA3, RADIUS over TLS, VLAN Support |
| Guest Network | Captive Portal, Voucher Authentication, Payment-based Authentication |
Summary
The Ubiquiti U7 Pro XG BE10800 is a cutting-edge WiFi 7 access point built for ultra-fast, high-density networking. With multi-gigabit uplink, advanced MU-MIMO capabilities, and enterprise-grade security, it provides seamless connectivity for businesses, campuses, and public spaces demanding next-generation wireless performance.
Specs
Ubiquiti U7 Pro XG BE10800 10GbE Access Point Specifications
| Specification | Details |
|---|---|
| Overview | |
| Dimensions | Ø206 x 32.5 mm (Ø8.1 x 1.3 in) |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 6 |
| Coverage Area | 140 m² (1,500 ft²) |
| Max. Client Count | 300+ |
| Uplink | 10 GbE |
| Mounting | Ceiling, Wall (Lite Mount Included) |
| Power Method | PoE+ |
| Performance | |
| MIMO | |
| 6 GHz | 2x2 (DL/UL MU-MIMO) |
| 5 GHz | 2x2 (DL/UL MU-MIMO) |
| 2.4 GHz | 2x2 (DL/UL MU-MIMO) |
| Max. Data Rate | |
| 6 GHz | 5.8 Gbps (BW320) |
| 5 GHz | 4.3 Gbps (BW240) |
| 2.4 GHz | 688 Mbps (BW40) |
| Antenna Gain | |
| 6 GHz | 6 dBi |
| 5 GHz | 5 dBi |
| 2.4 GHz | 4 dBi |
| Max. TX Power | |
| 6 GHz | 24 dBm |
| 5 GHz | 26 dBm |
| 2.4 GHz | 23 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates | |
| WiFi 7 (802.11be) | 7.3 Mbps - 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240) |
| WiFi 6 (802.11ax) | 7.3 Mbps - 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
| WiFi 5 (802.11ac) | 6.5 Mbps - 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
| WiFi 4 (802.11n) | 6.5 Mbps - 300 Mbps (MCS0 - MCS15, HT 20/40) |
| Features | |
| Wireless Meshing | Yes |
| Band Steering | Yes |
| 802.11v BSS Transition Management | Yes |
| 802.11r Fast Roaming | Yes |
| 802.11k Radio Resource Management (RRM) | Yes |
| Advanced Radio Management | Yes |
| Passpoint (Hotspot 2.0) | Yes |
| Captive Hotspot Portal | |
| Custom Branding Landing Page | Yes |
| Voucher Authentication | Yes |
| Payment-Based Authentication | Yes |
| External Portal Server Support | Yes |
| Password Authentication | Yes |
| Guest Network Isolation | Yes |
| Private Pre-Shared Key (PPSK) | Yes |
| WiFi Speed Limiting | Yes |
| Client Device Isolation | Yes |
| WiFi Schedules | Yes |
| RADIUS over TLS (RadSec) | Yes |
| Dynamic RADIUS-assigned VLAN | Yes |
| Hardware | |
| Max. Power Consumption | 22 W |
| Supported Voltage Range | 42.5 - 57V DC |

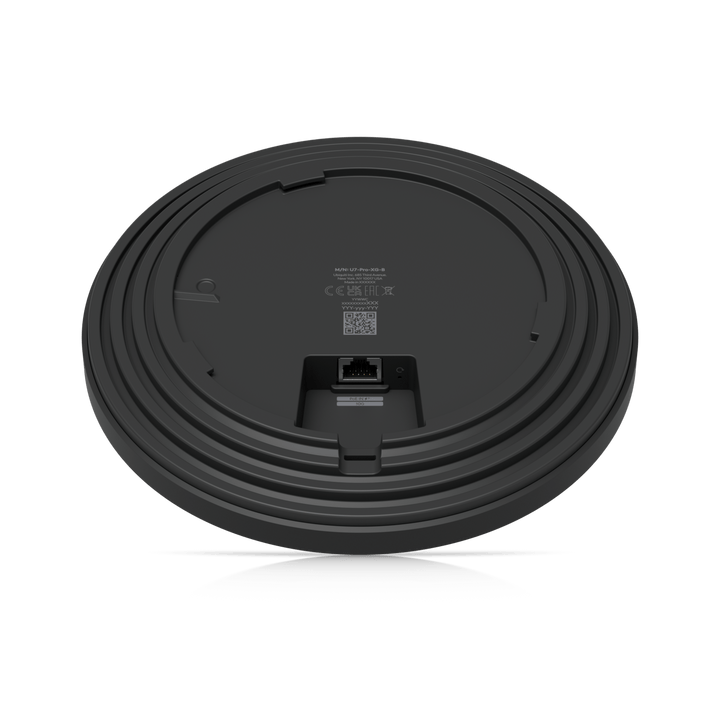

| Networking Interface | 1x 10 GbE RJ45 port |
| Weight | 750 g (1.7 lb) |
| Management | |
| Ethernet | Yes |
| Physical Design | |
| Enclosure Material | UV-stabilized polycarbonate, aluminum alloy |
| Mount Material | Stainless steel (SUS304), galvanized steel (SGCC) |
| LEDs | White/Blue (System) |
| Channel Bandwidth | |
| HT | 20/40 MHz |
| VHT | 20/40/80/160 MHz |
| HE | 20/40/80/160 MHz |
| EHT | 20/40/80/160/240/320 MHz |
| Certifications | CE, FCC, IC |
| Environmental Conditions | |
| Ambient Operating Temperature | -30 to 40°C (-22 to 104°F) |
| Ambient Operating Humidity | 5% to 95% non-condensing |
Additional Information

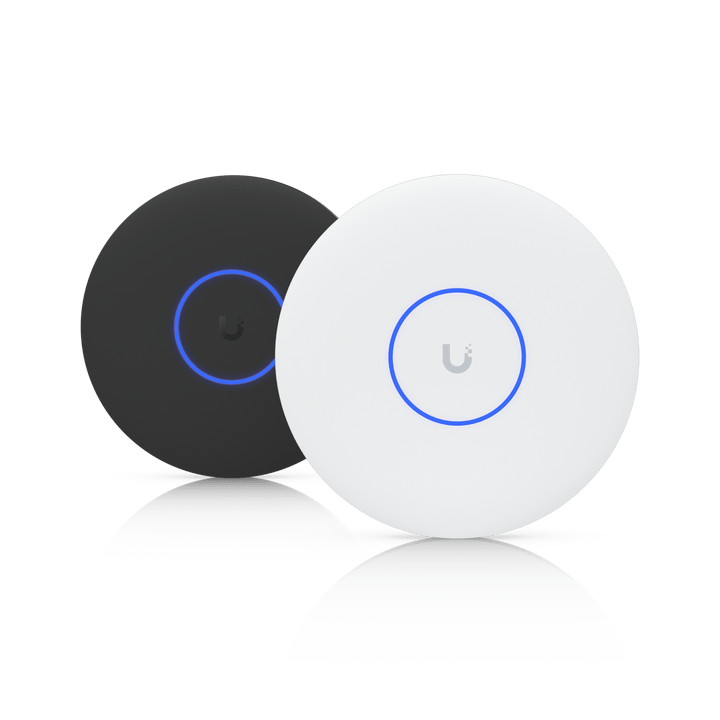

| Color |
White, Black |
|---|
