A Clear View of Visitors through UniFi Protect

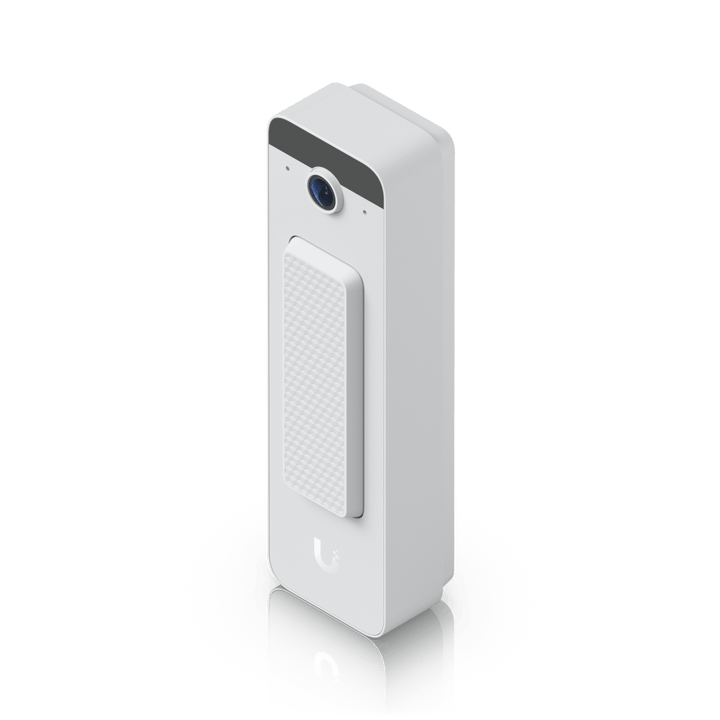

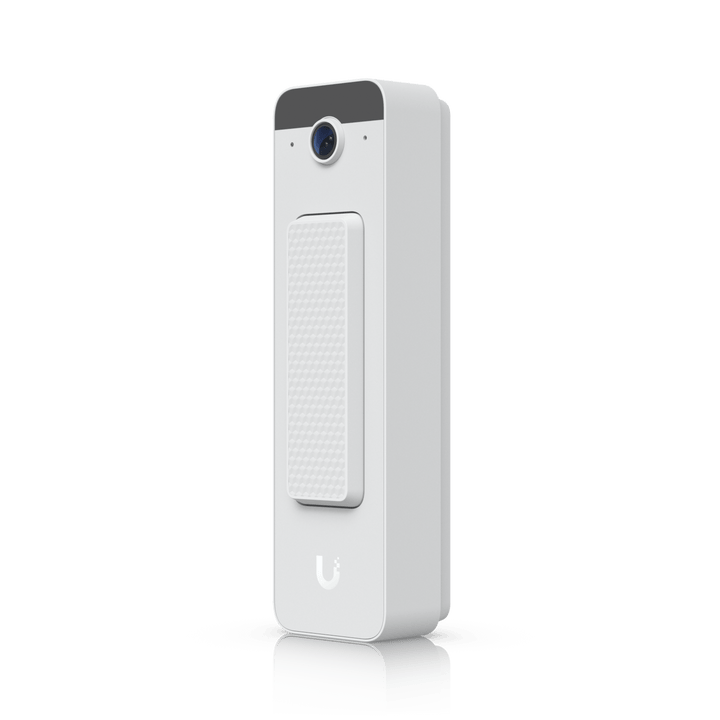

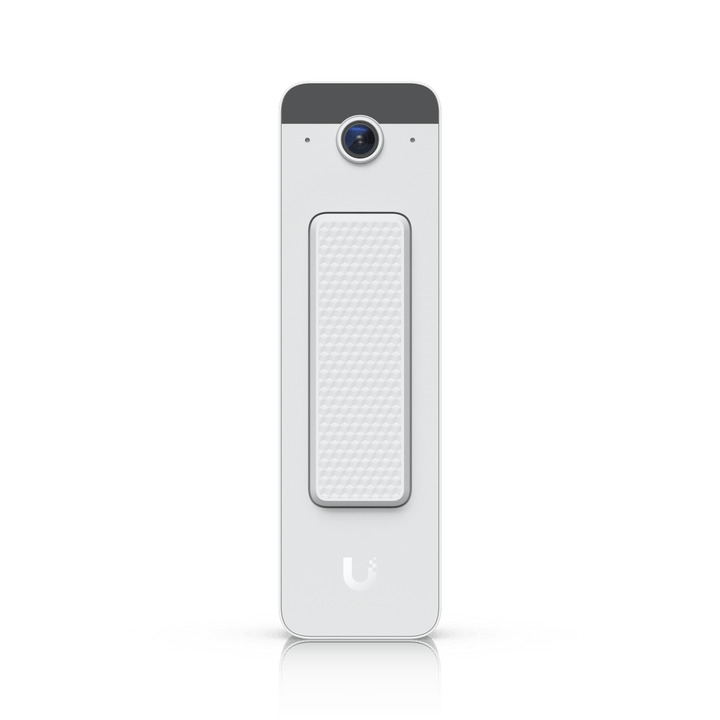

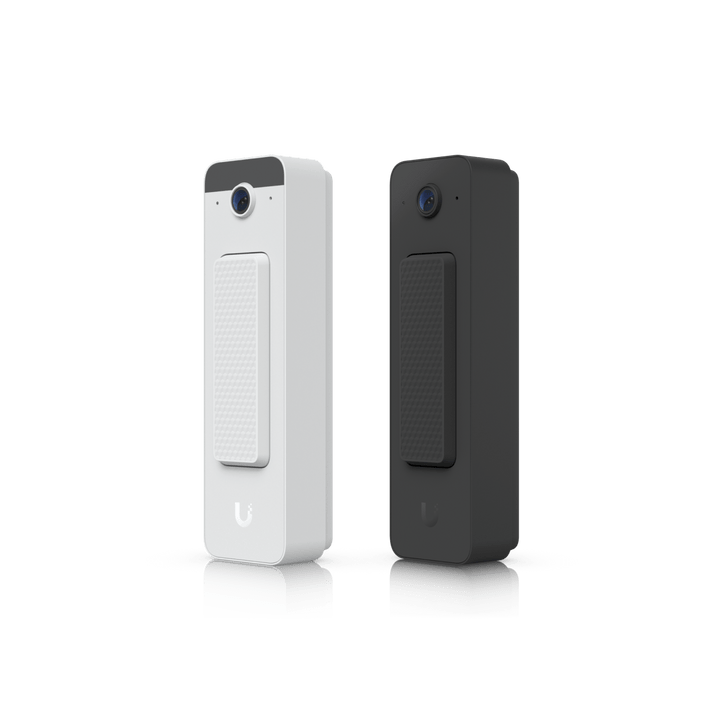

The Ubiquiti Doorbell Lite is a compact 5MP video doorbell with wired PoE networking and two-way audio. Its portrait image helps show the person at the door and the area below the camera. Manage the view, detections and visitor communication through UniFi Protect, with Black and White finishes to suit the entrance.
Highlights
Video and Night Viewing
- 5MP portrait video at 1920 × 2560 and up to 24 FPS.
- Infrared night vision up to 5M.
Audio and Detections
- Two-way audio with noise cancellation.
- Smart detections for people, vehicles and animals.
Wiring and Mounting

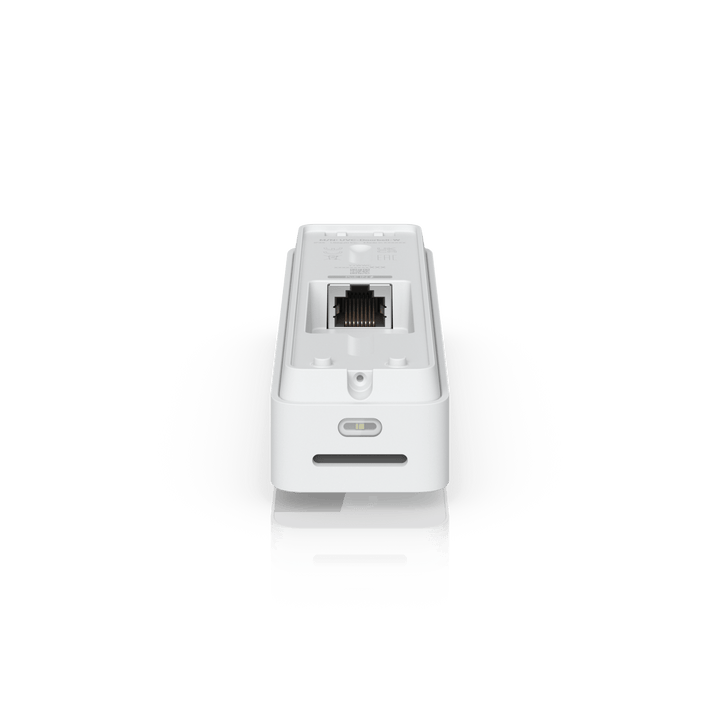

- One Ethernet cable provides wired network access and PoE power.
- IPX5 water resistance with flat wall and 20-degree wedge mounts included.
Key Features
Portrait video for an entrance
The 3:4 image format and 131.2-degree vertical field of view provide useful coverage around a doorway. The camera uses a fixed focal-length lens, with image controls available to suit the installed scene.
Speak with visitors and review activity
Built-in two-way audio supports conversations through UniFi Protect. Smart detections distinguish people, vehicles and animals, while infrared illumination supports viewing when ambient light is low.
Wired PoE and UniFi Protect

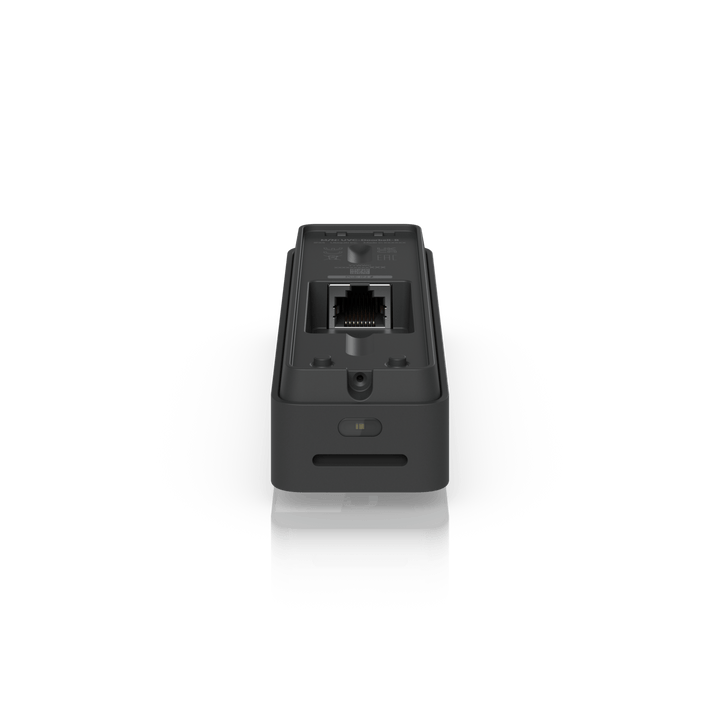

The Doorbell Lite uses a wired 10/100MbE connection and PoE power, with maximum consumption of 8W. Plan an Ethernet cable and a suitable PoE source, plus a compatible UniFi Protect system for management and recording. It does not use a Wi-Fi network connection.
Mounting and weather resistance

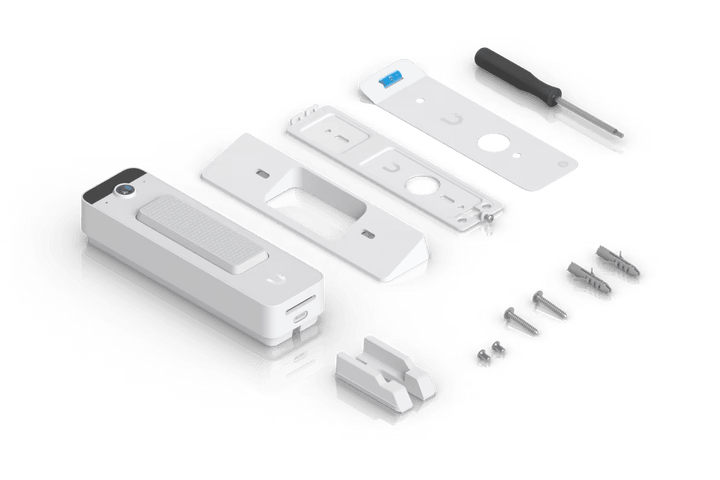

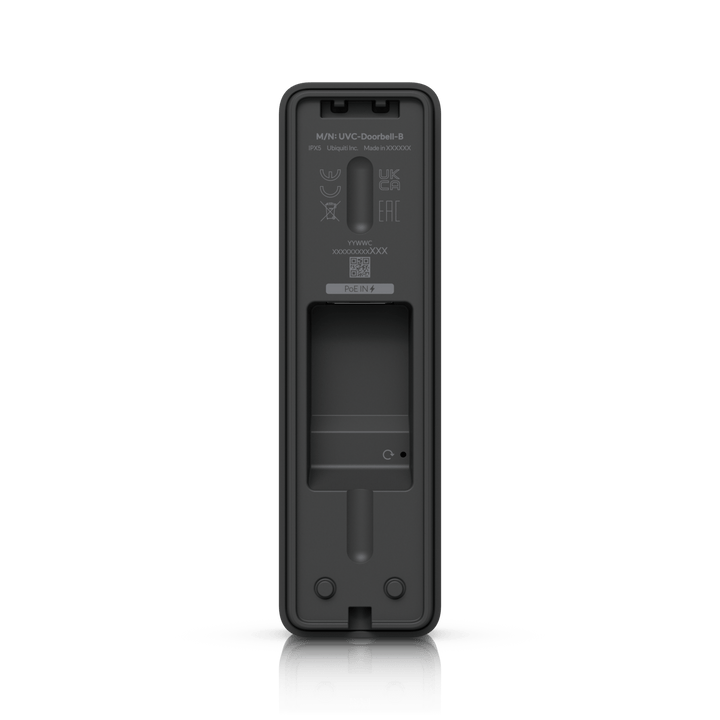

A flat wall mount and a 20-degree wedge are included to help aim the camera. Optional gang-box and junction-box accessories are available separately. The IPX5 rating covers water resistance; the manufacturer does not specify a dust-protection rating.
Summary
Doorbell Lite is a straightforward choice for entrances with Ethernet cabling and a UniFi Protect system. It combines portrait video, visitor audio and night viewing in a slim Black or White enclosure.
Ubiquiti UVC-Doorbell-Lite 5MP PoE Video Doorbell
The Ubiquiti Doorbell Lite is a wired PoE video doorbell managed with UniFi Protect. Its 5MP portrait image and wide vertical field of view help show visitors and the area below the camera. A microphone and speaker support two-way communication with noise cancellation. Infrared illumination reaches up to 5M. The IPX5 rating describes water resistance and does not specify dust protection. Black and White versions include a flat wall mount and a 20-degree wedge.
| Specification | Details |
|---|---|
| Overview | |

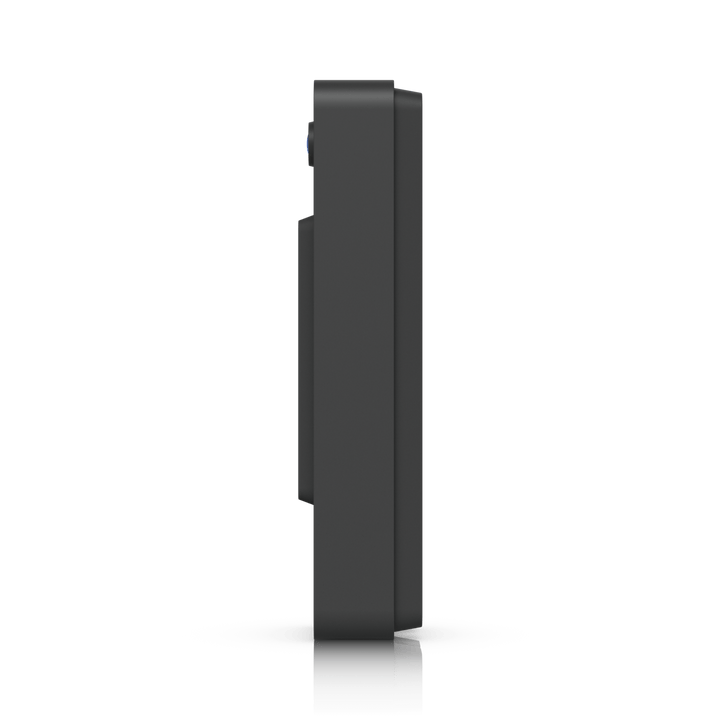

| Dimensions | 137 × 40 × 26.4 mm (5.4 × 1.6 × 1") |
| IR Night Vision | 5M (16 ft) |
| Smart Detections (People, Vehicles, Animals) | Yes |
| Field of View | H: 95.8°, V: 131.2°, D: 175.9° |
| Audio | Two-way audio; With noise cancellation |
| Weatherproofing | IPX5 water resistance; no dust rating specified |
| Mounting | Wall, 20° wedge (Included) Gang box, junction box (Optional) |
| UniFi Application Suite | Protect |
| Performance | |
| Networking Interface | 10/100 MbE port |
| Image Settings | Colour, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| Max. Frame Rate | 24 FPS |
| Resolution | 5MP 1920 × 2560 (3:4) |
| Sensor | 1/2.7" 5MP |
| Lens | Fixed focal length |
| Night Mode | Built-in IR LED illumination and IR cut filter |
| Hardware | |
| Max. Power Consumption | 8W |
| Supported Voltage Range | 37—57V DC |
| Power Method | PoE |
| Processor | Dual-core Arm Cortex-A7 based chip |
| Weight by mounting configuration | Device: 142 g (5 oz) With flat wall mount: 165 g (5.8 oz) With 20° wedge mount: 179 g (6.3 oz) |
| Enclosure Material | Polycarbonate, metal |
| Mount Material | Formed sheet metal |
| Button | (1) Ring button (1) Factory reset |
| Ambient Operating Temperature | -30 to 50°C (-22 to 122° F) |
| Ambient Operating Humidity | 20 to 90% non-condensing |
| NDAA Compliant | Listed as compliant by Ubiquiti |
| Certifications | CE, FCC, IC |
| Color |
Black, White |
|---|
