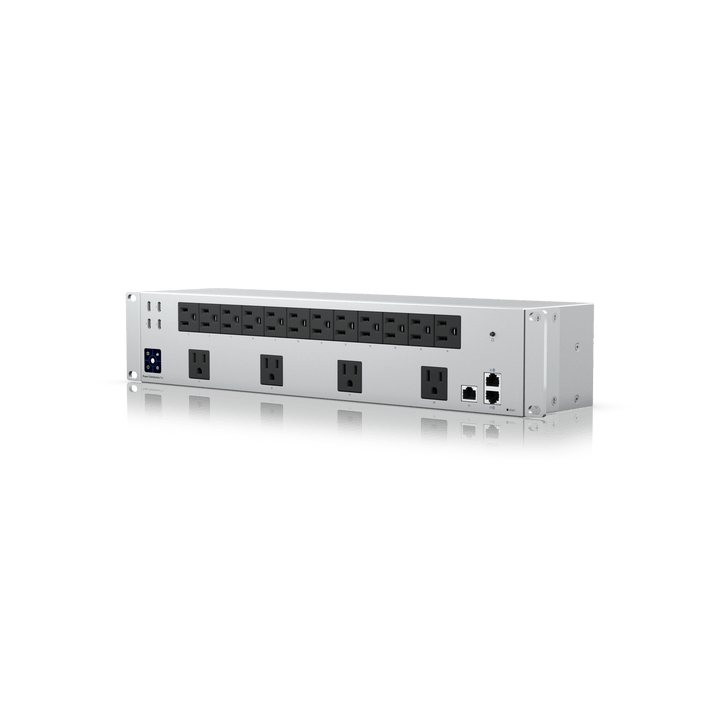

Ubiquiti USP-PDU-Pro Power Distribution Pro 16-Port Managed Rackmount PDU

Intelligent Power Control for UniFi Rack Systems

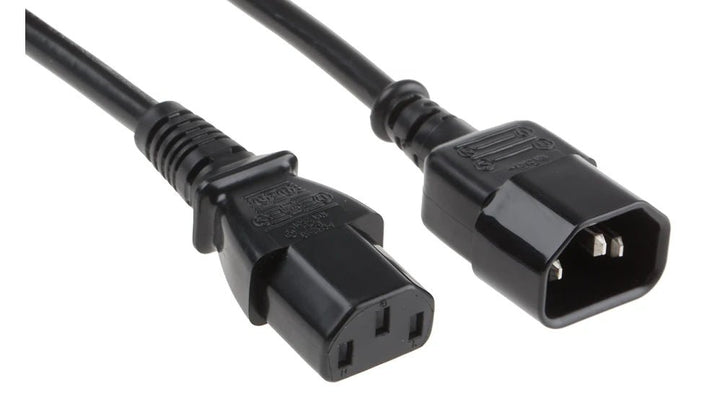

Global Edition: IEC socket and EU/UK adapter for international use.

Streamline and safeguard your rack-mounted infrastructure with the Ubiquiti USP-PDU-Pro, an advanced UniFi-managed Power Distribution Unit (PDU) designed for smart power delivery and remote management. Built for data centers, enterprises, and IT environments, it powers up to 16 rack devices with granular control, monitoring, and automation—all managed through the UniFi Network application.

Highlights

• 16 Managed AC Outlets: Control and monitor power for each connected device individually.

• Smart Power Management: Fully integrated with the UniFi Network Controller for remote configuration and automation.

• High Power Capacity: Supports up to 1,875W total output across all outlets.

• Four USB-C Ports: Delivers up to 20W total power for small devices or accessories.

• Rackmount Design: Compact 1U form factor ideal for network cabinets and server racks.

• Advanced Monitoring Interface: Includes a built-in touchscreen display for quick status checks.

• Future-Ready Redundancy: Virtual Router Redundancy Protocol (VRRP) support coming soon for enhanced reliability.

Key Features

Intelligent Power Distribution

• 16 Controllable AC Outlets: Individually monitor and control each outlet to optimize energy use and protect equipment.

• High Power Throughput: Delivers up to 1,875W at 125V AC, supporting high-load network hardware.

• USB-C Power Outputs: Four USB-C ports (2A Max. each, 20W total) for charging or powering small UniFi devices.

• Automated Scheduling: Configure power cycles and automate shutdowns through UniFi OS.

Advanced Connectivity and Control

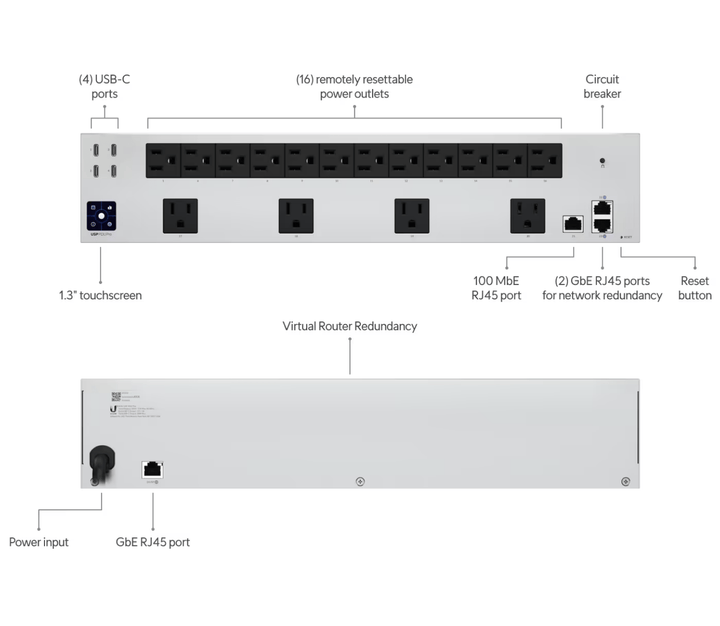

• Ethernet Management Interface: (1) 100 MbE and (3) GbE RJ45 ports for network connectivity and communication.

• UniFi Network Integration: Centralized power monitoring, outlet control, and event logging within the UniFi dashboard.

• Touchscreen Display: 1.3" display shows outlet status, load information, and system diagnostics in real time.

• Future VRRP Support: Enables power redundancy for critical installations (requires multiple UniFi Gateways).

Durable Rackmount Design

• Professional Build Quality: Constructed from SGCC steel for rigidity and electrical safety.

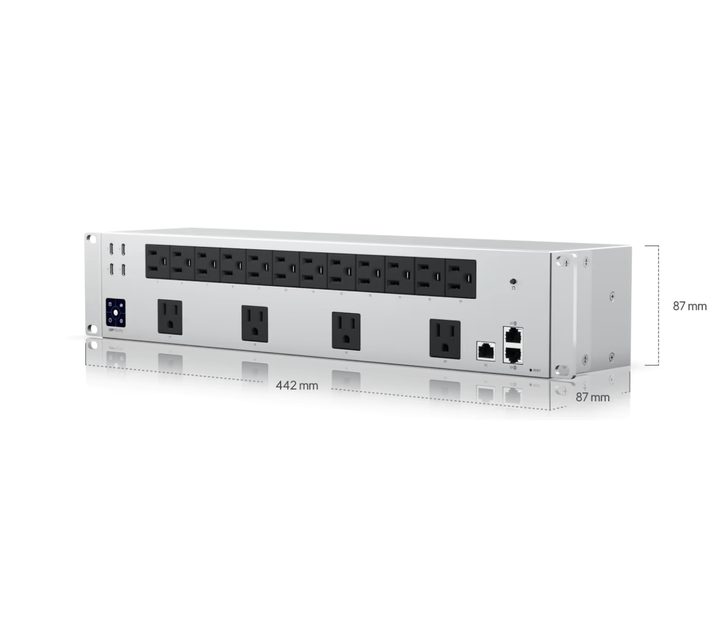

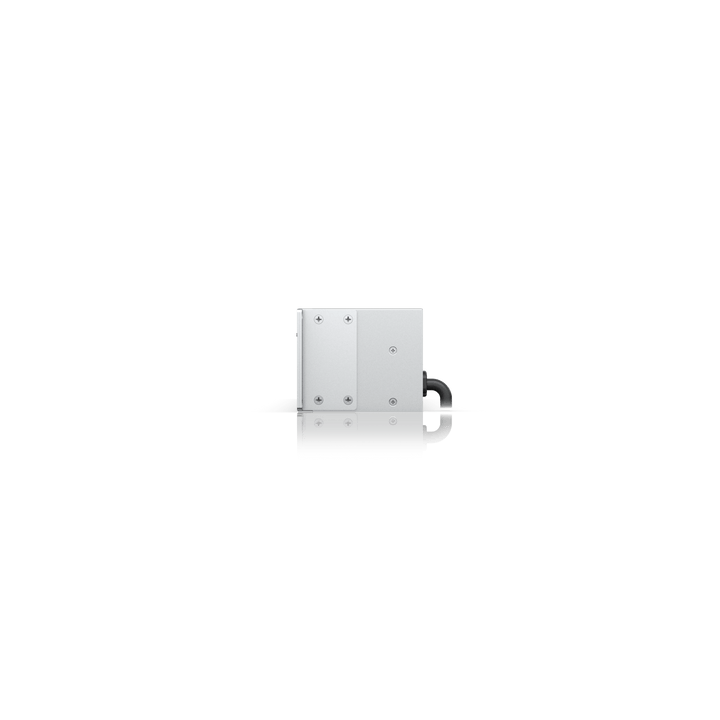

• Compact 1U Form Factor: Measures 442.4 x 87.4 x 106 mm for efficient use of rack space.

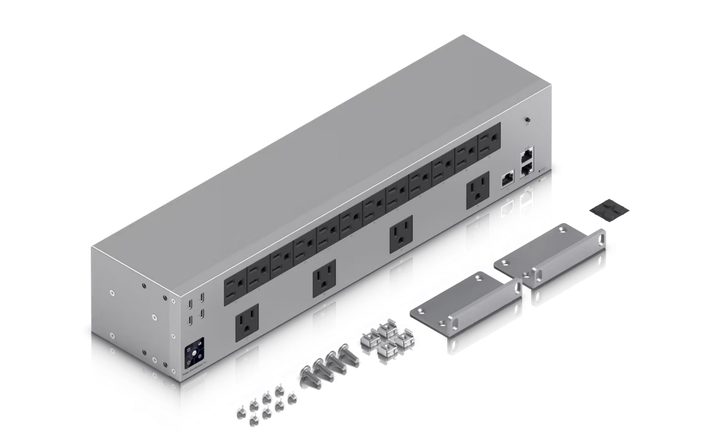

• Easy Installation: Includes mounting hardware for seamless integration into standard racks.

• Protected Circuitry: Built-in 15A circuit breaker safeguards against overload conditions.

Reliable and Compliant Performance

• Operating Range: Performs optimally within 0°C to 40°C and up to 90% noncondensing humidity.

• Internal 40W Power Supply: Ensures efficient power conversion and reliability.

• NDAA Compliant: Approved for secure government and enterprise installations.

• Certifications: Fully certified under FCC and IC standards for safety and performance.

Summary / Conclusion

The Ubiquiti USP-PDU-Pro delivers intelligent, centralized power control for UniFi rack systems. With 16 managed AC outlets, 4 USB-C ports, and seamless UniFi integration, it allows administrators to automate, monitor, and manage power with precision. Built from industrial-grade materials and ready for future redundancy support, the USP-PDU-Pro is the ultimate rackmount PDU for professional network environments.

Ubiquiti USP-PDU-Pro UniFi Rackmount Power Distribution Pro

Global Edition: IEC socket and EU/UK adapter for international use.

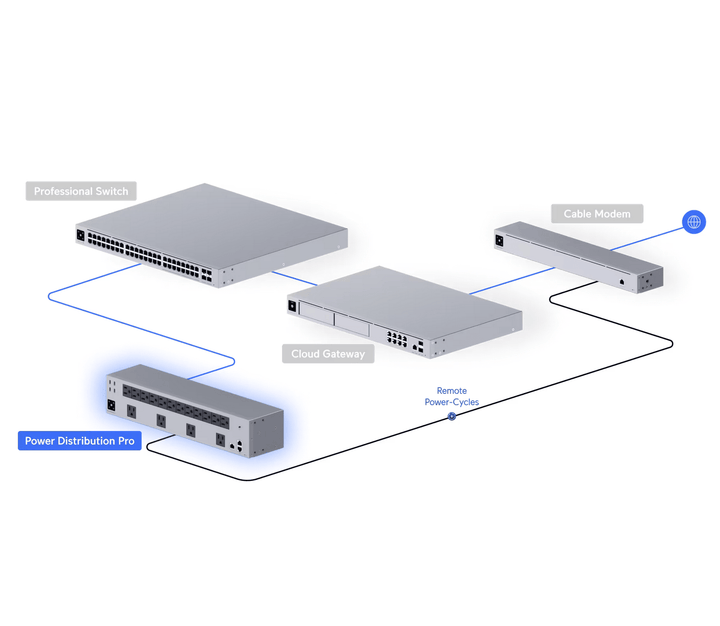

The Ubiquiti UniFi USP-PDU-Pro is a managed rackmount power distribution unit designed to supply, monitor, and control power for an entire UniFi system. With 16 individually managed AC outlets and four USB-C ports, it offers full rack power control through the UniFi Network application. Built with enterprise reliability and real-time monitoring, it integrates seamlessly with UniFi Gateways for automation, remote resets, and redundancy.

Product Specifications
