Ubiquiti UNVR-Instant-Kit Network Video Recorder Instant Kit
Complete Security Made Simple The Ubiquiti UNVR-Instant-Kit delivers enterprise-class video security in a compact, all-in-one bundle. Including a UNVR-Instant NVR, four G5 Turret Ultra cameras,...
Frequently Bought Together
Complete Security Made Simple
The Ubiquiti UNVR-Instant-Kit delivers enterprise-class video security in a compact, all-in-one bundle. Including a UNVR-Instant NVR, four G5 Turret Ultra cameras, and a 1TB HDD, this kit is designed for fast, affordable, and professional-grade surveillance. Ideal for homes, small businesses, and enterprises, it combines powerful performance with effortless deployment.
Highlights
-

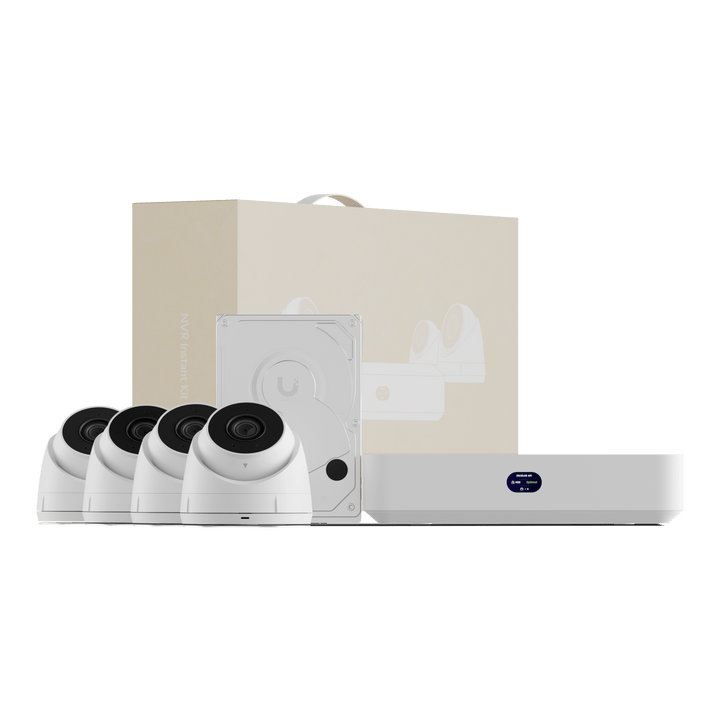

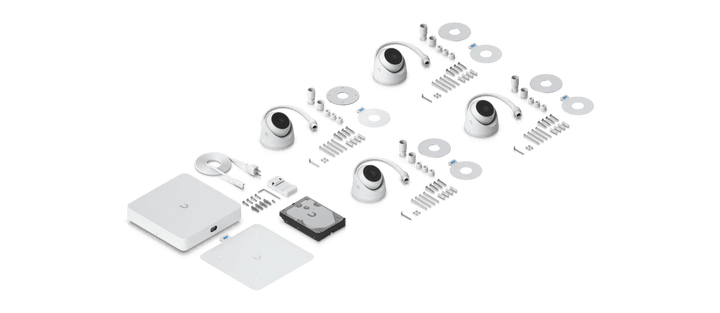

All-in-One Kit: Includes UNVR-Instant NVR, four G5 Turret Ultra cameras, and 1TB HDD
-
Integrated PoE Switch: 6 GbE PoE ports for plug-and-play camera deployment
-
Camera Support: Up to 6× 4K, 8× 2K, or 15× HD cameras with UniFi Protect
-

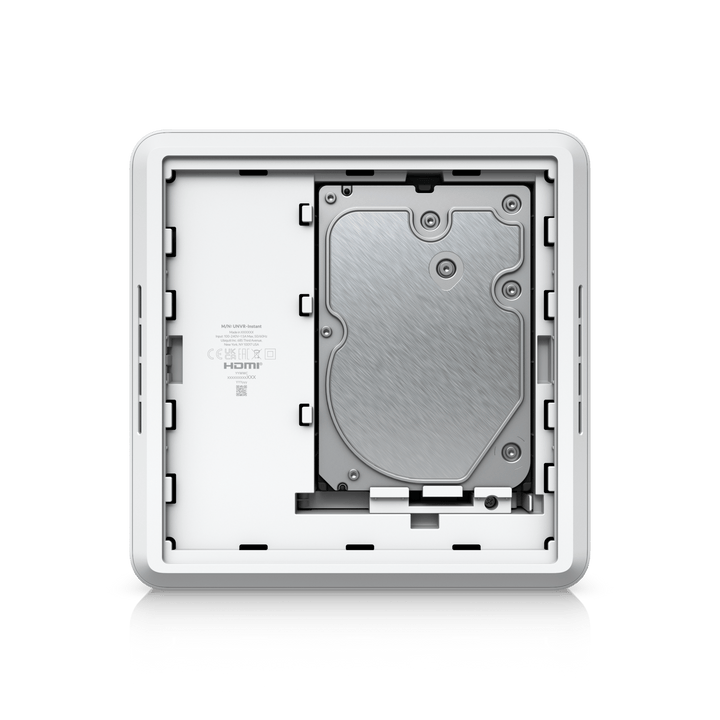

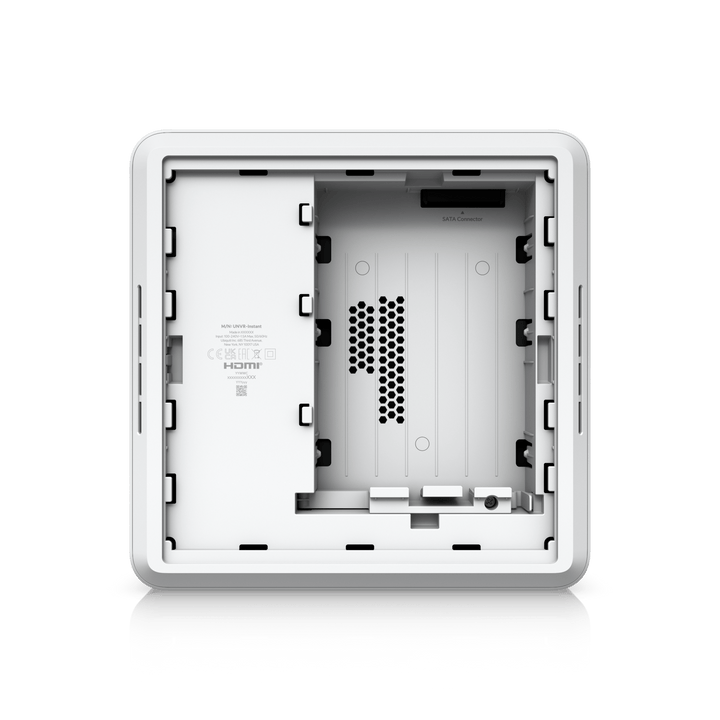

Expandable Storage: 3.5" HDD bay with 1TB pre-installed drive included
-
Live Monitoring: HDMI ViewPort output for real-time viewing
-
Smart Detections: Cameras support AI-based detection of people, vehicles, and animals
-
Weatherproof Cameras: IP66-rated G5 Turret Ultra for indoor and outdoor use
-
Easy Setup: UniFi Protect integration with local and cloud management
Key Features

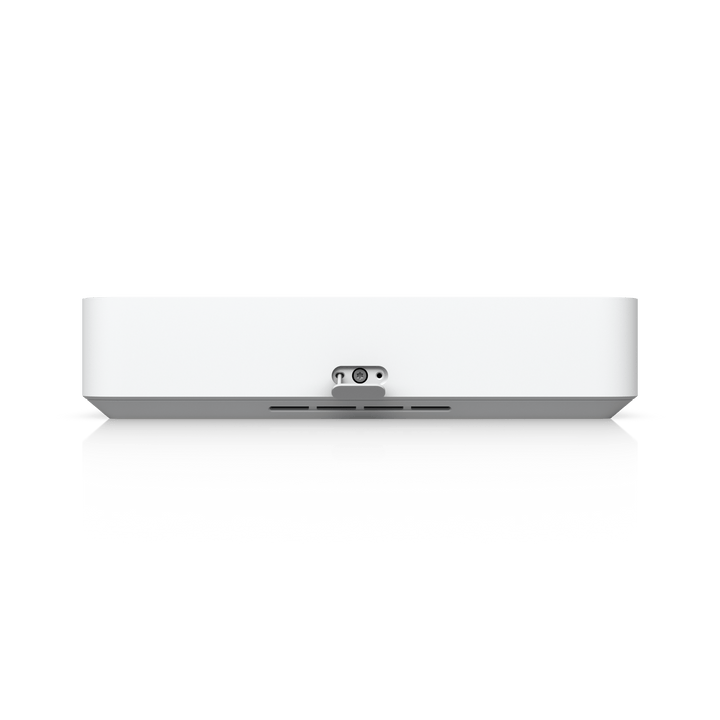

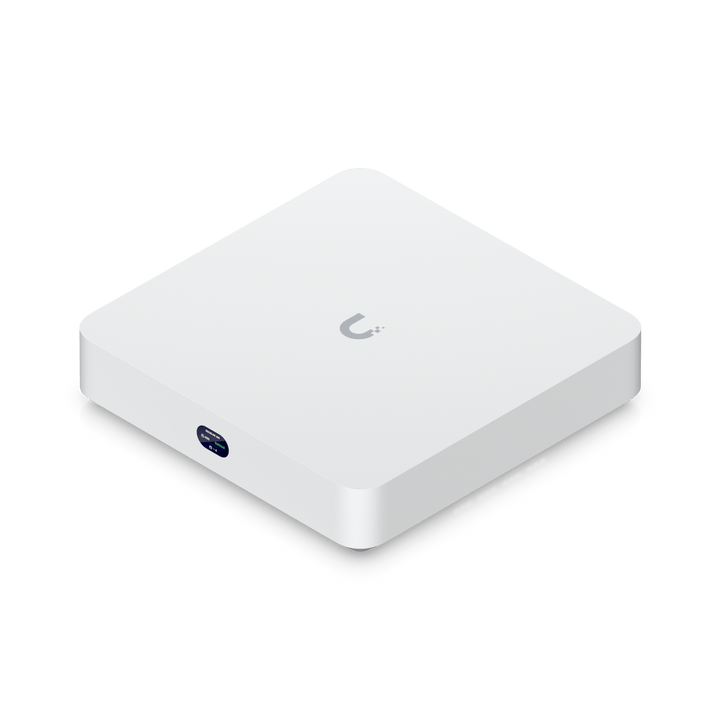

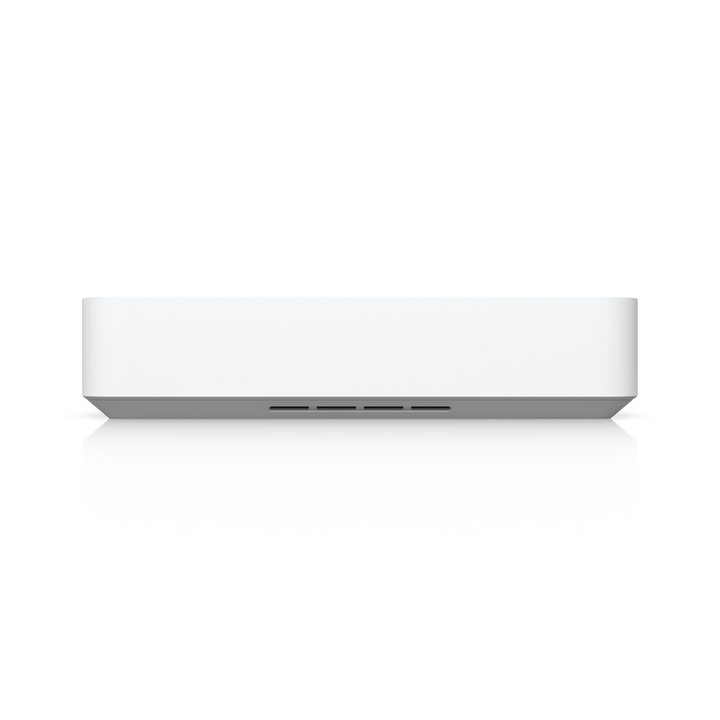

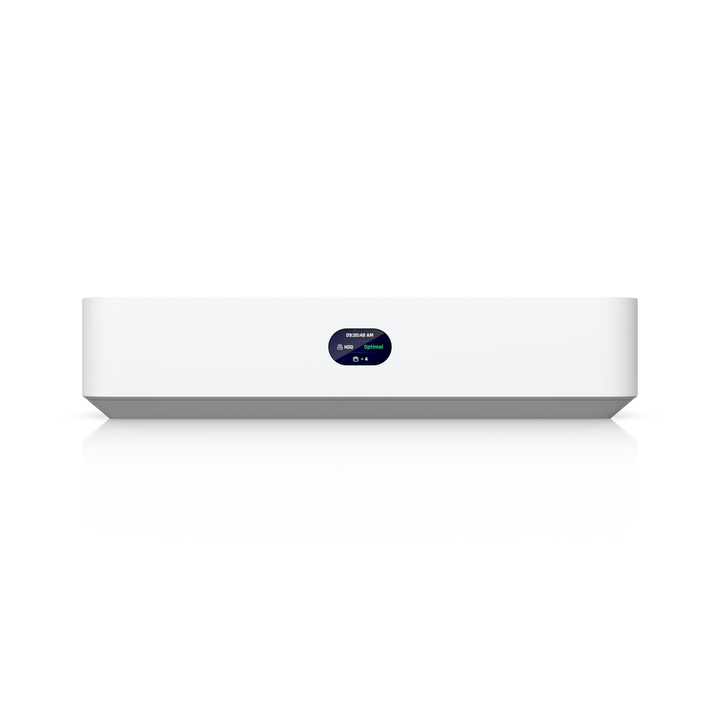

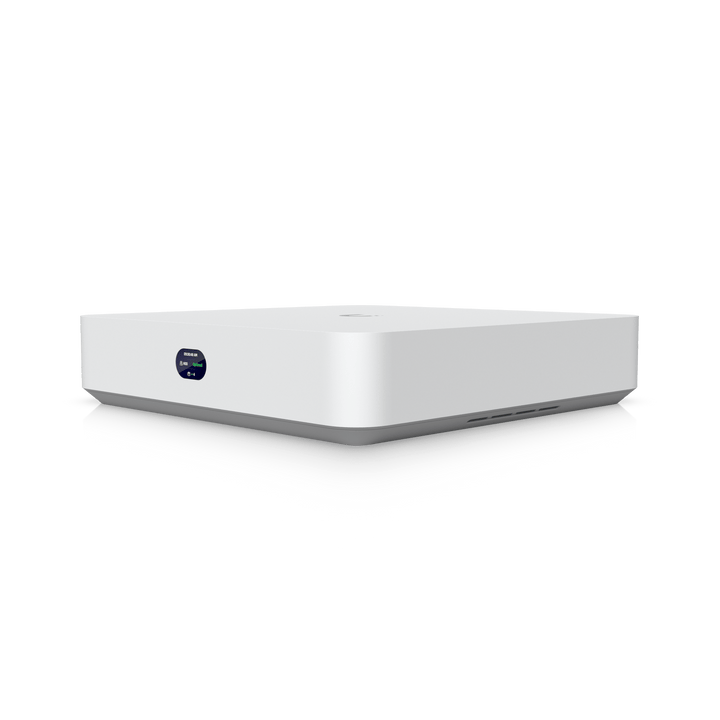

UNVR-Instant
-
Dimensions: 220 × 220 × 47 mm (8.7 × 8.7 × 1.9 inches)
-

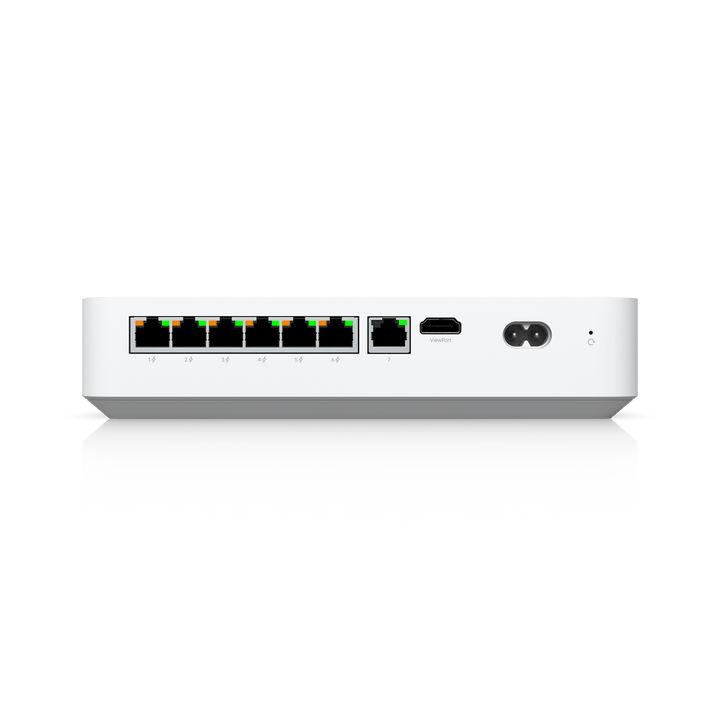

Networking: 1× GbE uplink, 6× GbE PoE downlink, 1× HDMI ViewPort
-
Storage: 1× 3.5" HDD bay, 1TB drive included, expandable up to 11W power budget
-
Performance: Supports 6× 4K, 8× 2K, or 15× HD cameras, powered by a quad-core ARM Cortex-A55 at 1.7 GHz with 4 GB RAM
-
Power: Internal 60W AC/DC PSU, 40W PoE budget, max 9W consumption
-
Mounting: Desktop, wall, or DIN rail (included)

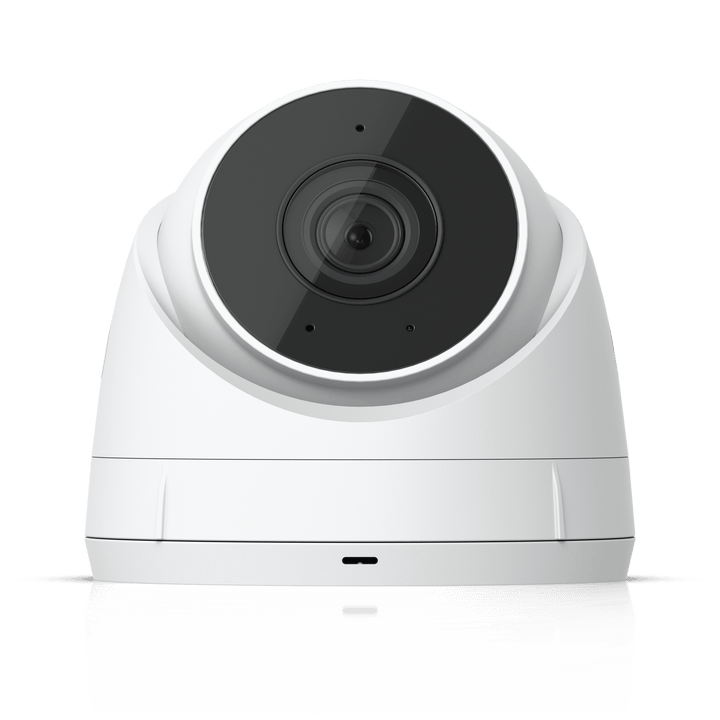

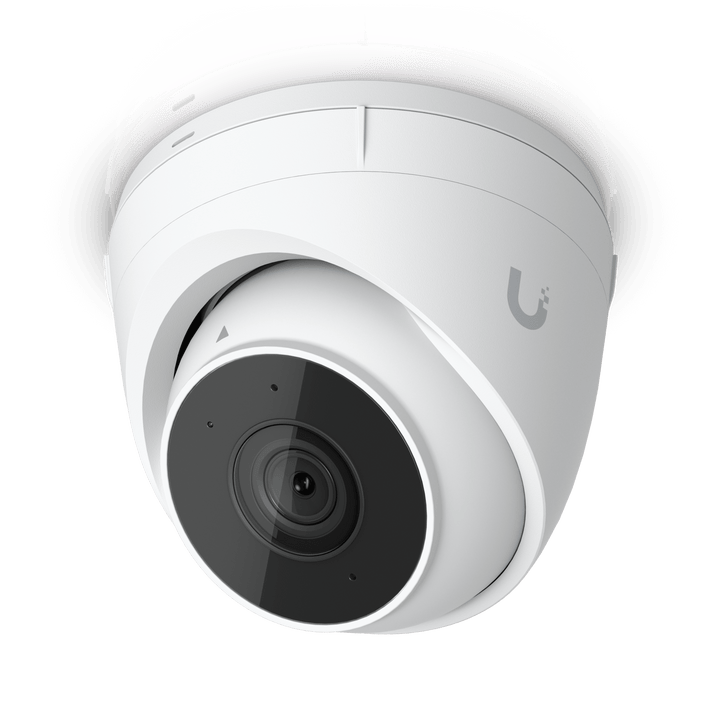

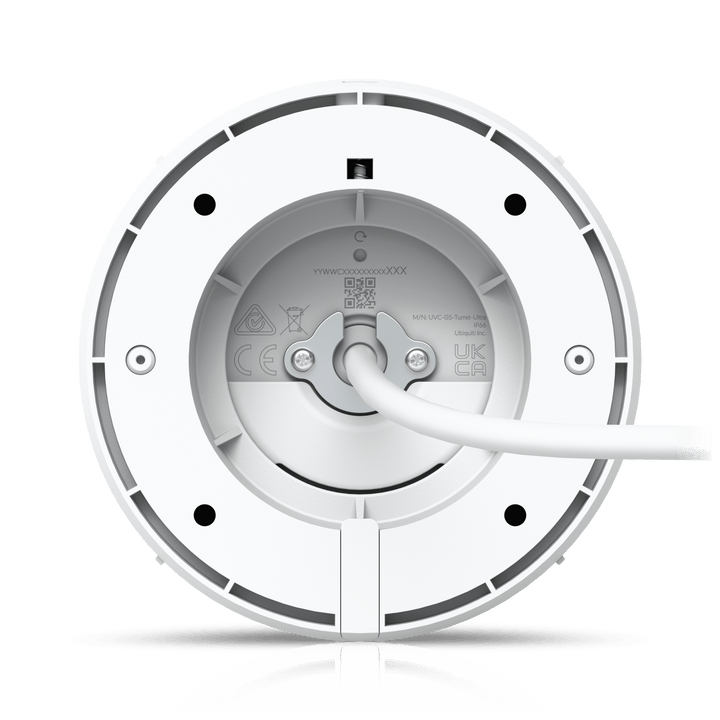

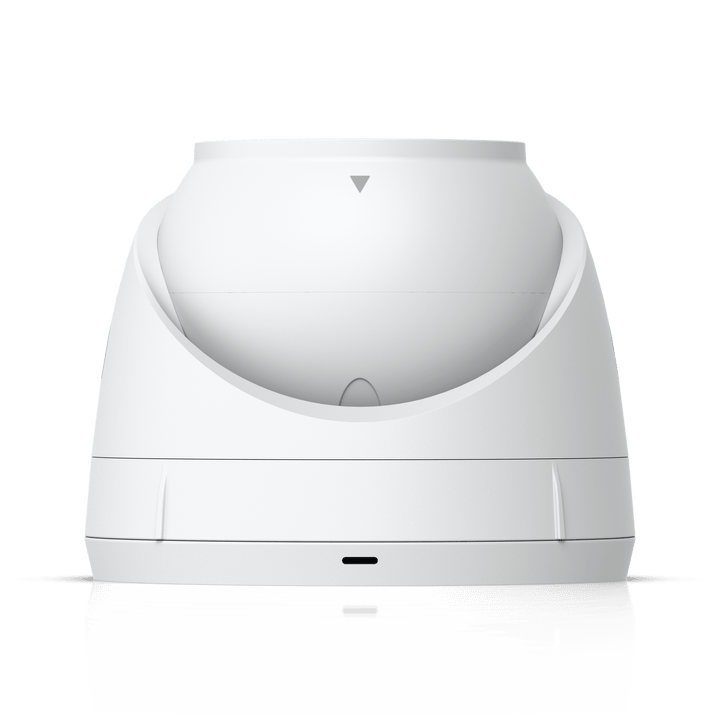

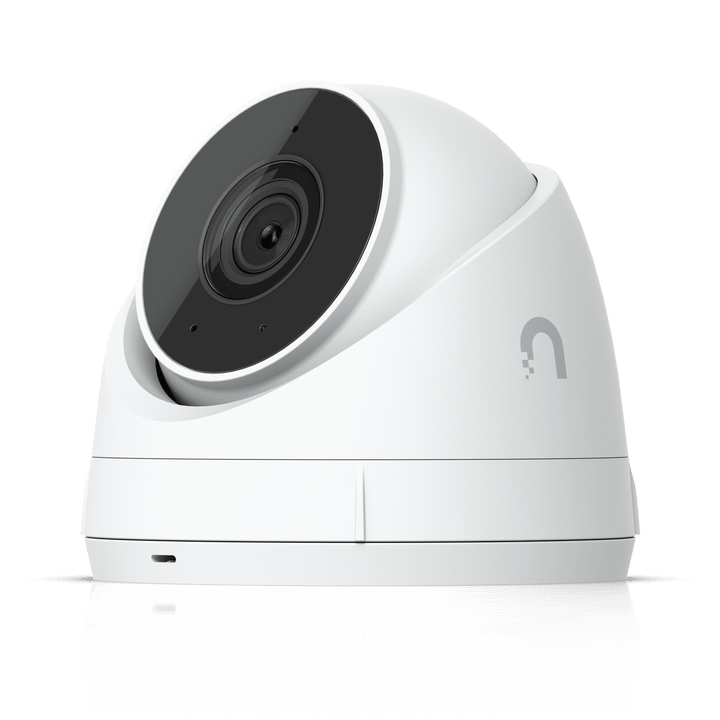

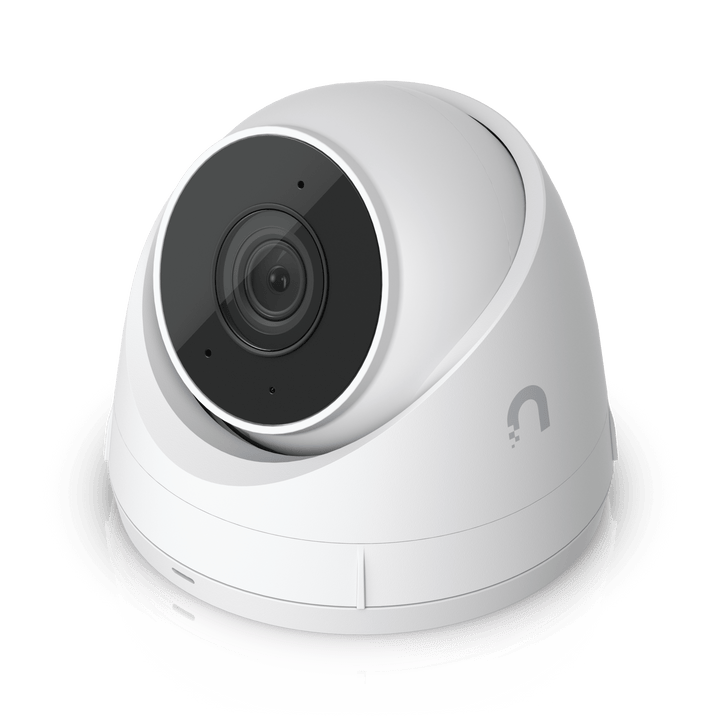

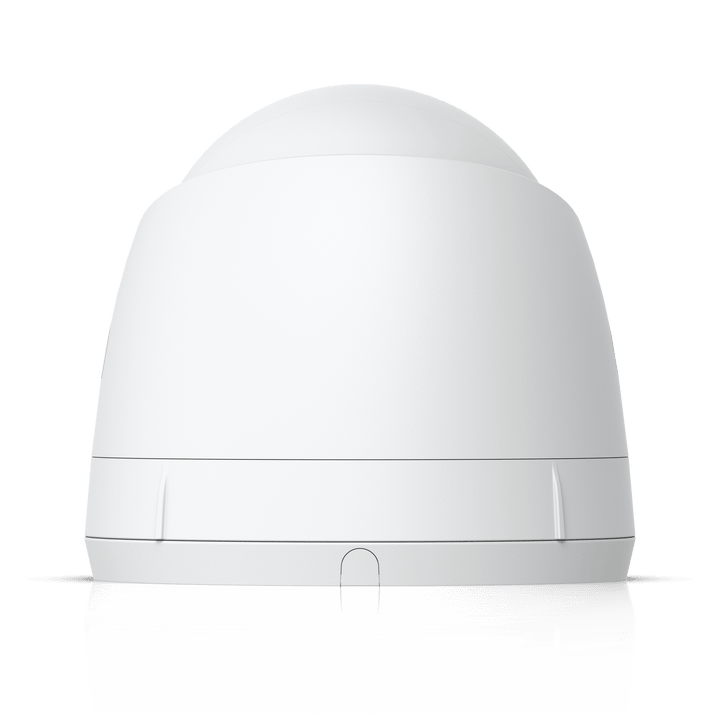

G5 Turret Ultra Cameras (x4)
-
Resolution: 4MP 2688 × 1512 (2K) at 30 FPS
-
Smart Detection: People, vehicles, and animals
-
Night Vision: 30 m (98 ft) IR with built-in IR LED and cut filter
-
Lens: 1/2.4" CMOS sensor, fixed focal length
-
Weatherproofing: IP66 rating, IK04 tamper resistance
-
Networking: 10/100 MbE RJ45, PoE powered, max 4W consumption
-
Dimensions: Ø90 × 71.2 mm (3.5 × 2.8 inches), weight 330 g (11.6 oz)
-
Enclosure: Aluminum alloy with UV-stabilized polycarbonate

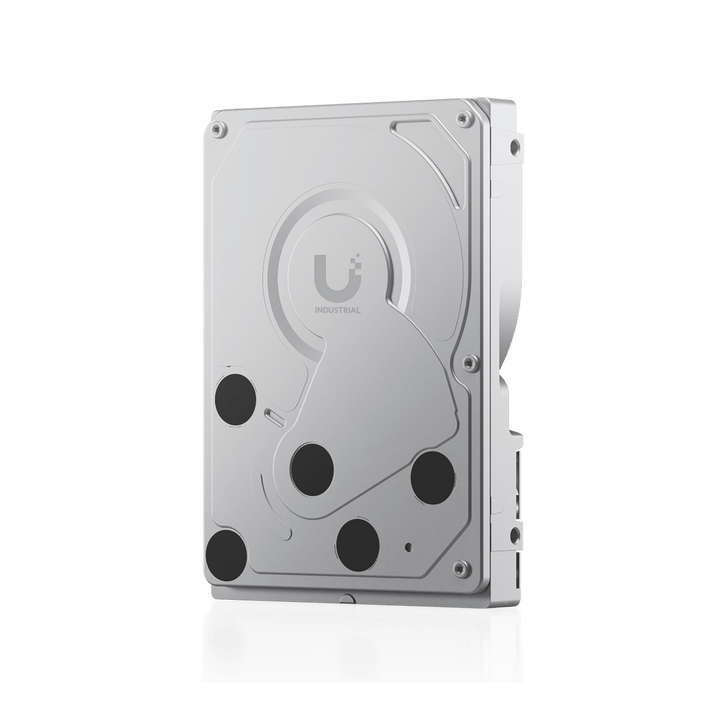

HDD (Included)
-
Capacity: 1TB, 3.5" SATA 6 Gb/s
-
Rotation Speed: 5400 RPM, workload rating of 180 TB/year
-
Reliability: 1,000,000 h MTBF
-
Dimensions: 147 × 101.6 × 26.1 mm (5.75 × 4 × 1 inches), weight 0.45 kg (0.99 lb)
Summary / Conclusion
The Ubiquiti UNVR-Instant-Kit provides a turnkey video surveillance solution with everything you need in one package. Combining the compact UNVR-Instant NVR, four advanced G5 Turret Ultra cameras, and a 1TB HDD, it delivers enterprise-class reliability, intelligent detections, and seamless UniFi Protect integration. Whether for homes, SMBs, or enterprise deployments, this kit offers professional-grade performance at an accessible price.
Ubiquiti UNVR-Instant-Kit Network Video Recorder Instant Kit
The Ubiquiti UNVR-Instant-Kit is a complete, ready-to-deploy UniFi Protect solution that combines the compact UNVR-Instant NVR, a G5 Turret Ultra 2K camera, and a 1TB HDD. Designed for homes and small businesses, it delivers enterprise-grade surveillance with seamless setup, PoE support, and robust storage in one integrated package.
Product Specifications
| Specification | Details |
|---|---|
| NVR Model | UNVR-Instant |
| NVR Dimensions (W×D×H) | 220 × 220 × 47 mm (8.7 × 8.7 × 1.9 in) |
| UniFi Application Suite | • Protect • Access |
| Managed Cameras | • 15× HD • 8× 2K • 6× 4K |
| Storage Capacity | 1× 3.5" drive bay |
| Data Protection | Yes |
| Vantage Point | Yes |
| Networking Interfaces | • 1× GbE RJ45 uplink port • 6× GbE PoE RJ45 downlink ports • 1× HDMI port (Viewport) |
| Form Factor | Compact Desktop |
| Mounting Options | Wall, DIN rail mount (included) |
| Door Access Support | Yes |
| Hard Drive Capacity | 1× 3.5" HDD supported |
| NVR Power | • Max. Drive Power Budget: 11W • Max. Consumption: 9W • Input: 100–240VAC, 50/60 Hz • Internal Power Supply: 60W |
| PoE Budget | 40W, 15.4W per port, 44–57V range |
| Processor (NVR) | Quad-core ARM® Cortex®-A55 at 1.7 GHz |
| Memory (NVR) | 4 GB |
| Management | Ethernet, Bluetooth |
| Display (NVR) | 1.14" screen |
| Weight (NVR) | 1.04 kg (2.3 lb) |
| Enclosure Material | Polycarbonate |
| Operating Temperature (NVR) | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity (NVR) | 5% to 95% RH, non-condensing |
| NDAA Compliant | Yes |
| Certifications (NVR) | FCC, IC, CE, Electrical Safety |
| Camera Model | G5 Turret Ultra |
| Camera Dimensions | Ø90 × 71.2 mm (Ø3.5 × 2.8 in) |
| Camera Resolution | 2K (2688 × 1512, 16:9) |
| Smart Detections | People, Vehicles, Animals |
| Field of View (FOV) | H: 102.4°, V: 54.9°, D: 120.6° |
| Audio | Microphone |
| Night Vision (Camera) | IR, 30 m (98 ft) |
| Camera Networking | 10/100 MbE RJ45 port, PoE |
| Camera Power | Max. 4W, 37–57V DC |
| Camera Processor | Dual-core ARM® Cortex®-A7 |
| Camera Build | Aluminum alloy & UV-stabilized polycarbonate, IP66, IK04 |
| Operating Temperature (Camera) | -30°C to 50°C (-22°F to 122°F) |
| Operating Humidity (Camera) | 0% to 90% RH |
| Camera Certifications | CE, FCC, IC |
| HDD Dimensions | 147 × 101.6 × 26.1 mm (5.75 × 4 × 1 in) |
| HDD Capacity | 1 TB (3.5-inch, SATA 6 Gb/s) |
| HDD Power | 5V/12V input |
| HDD Rotation Speed | 5400 RPM |
| HDD Workload Rating | 180 TB/year |
| HDD MTBF | 1,000,000 h |
| Operating Temperature (HDD) | 0°C to 65°C (32°F to 149°F) |
| Operating Humidity (HDD) | 5% to 95% RH |
| HDD Certifications | FCC, CE, UL, TUV, RCM, KC, BSMI |
