Ubiquiti UC-Display 21.5" FHD PoE++ Touchscreen Interactive Digital Signage
Elevate Engagement with an All-in-One Interactive Display An ultra-bright 21.5" PoE++ touchscreen built for intuitive media playback, responsive web browsing, and Android app integration —...
Frequently Bought Together
Elevate Engagement with an All-in-One Interactive Display
An ultra-bright 21.5" PoE++ touchscreen built for intuitive media playback, responsive web browsing, and Android app integration — perfect for retail counters, corporate lobbies, and education spaces.
Highlights
-
Full HD 21.5" capacitive touchscreen
-
Supports Android apps, layouts, and media playback
-
Interactive web browsing with content scheduling
-
PoE++ powered with multiple mounting options
-
Built-in speaker, microphone, and Bluetooth 4.2
-
No licenses or subscriptions required

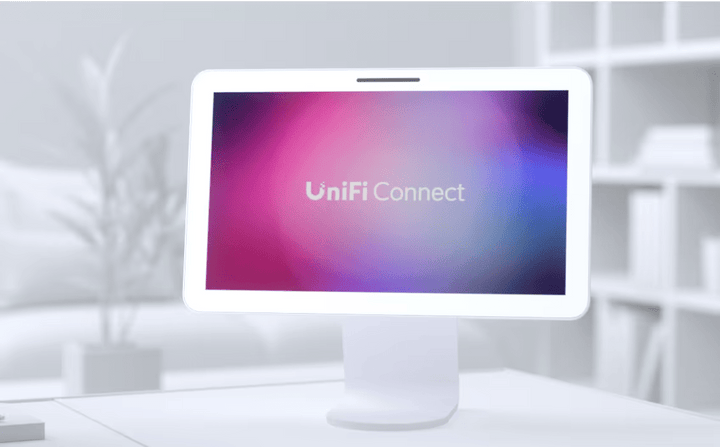

Plug-and-Play Digital Signage with UniFi Connect
Designed for easy deployment using UniFi Connect — Ubiquiti’s Enterprise of Things platform — the UC-Display enables plug-and-play signage for dynamic and managed media experiences. Whether presenting videos, loading websites, or launching Android apps, content is effortlessly controlled and scheduled from a central console.

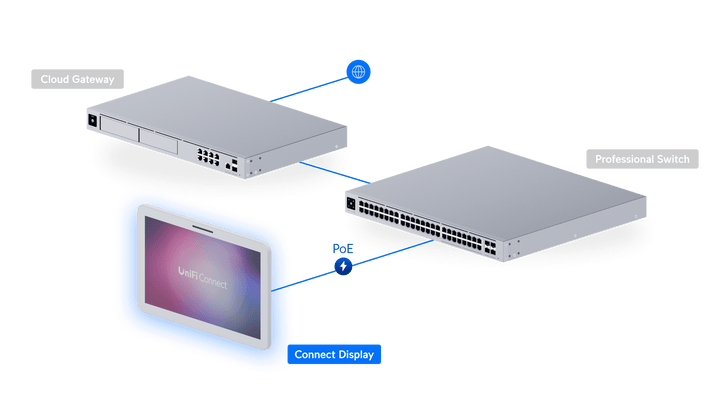

To get started, pair the UC-Display with a compatible UniFi Console such as the Dream Machine Pro, Special Edition, or Cloud Gateway (for setups without UniFi Network). A hard disk drive (HDD) is required to store media content. Power and network connectivity are delivered through a single UniFi PoE++ Switch.
Supported content types include:
-
Images: .jpg, .jpeg, .png, .bmp, .gif
-
Videos: .mp4 (view recommended encoding settings)
-
Web URLs
-
Android App APKs
With UniFi Connect’s Layout Creator, users can:
-
Create playlists combining images and videos
-
Design custom layouts with drag-and-drop widgets, videos, and live content
-
Schedule content to play on specific days, times, or locations
All features are available out-of-the-box with no additional software fees or licensing costs.
Key Features
Deployment
-
Use Case: Standalone interactive digital signage
-

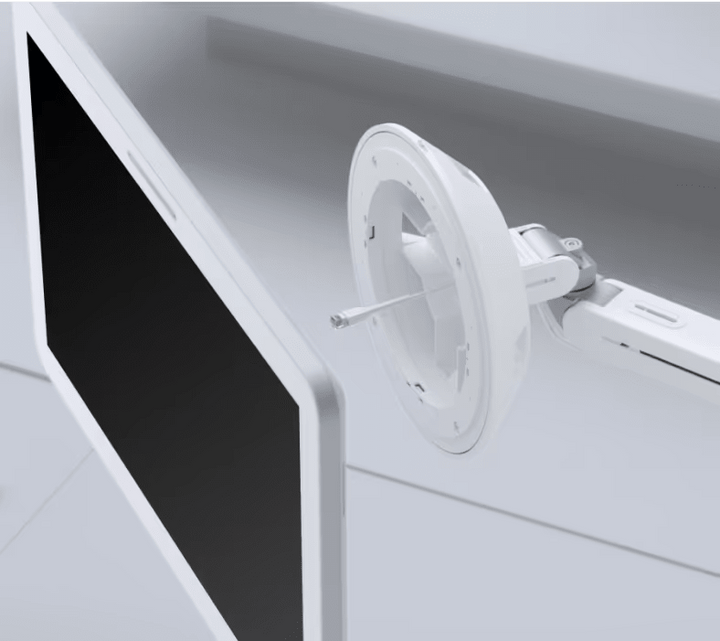

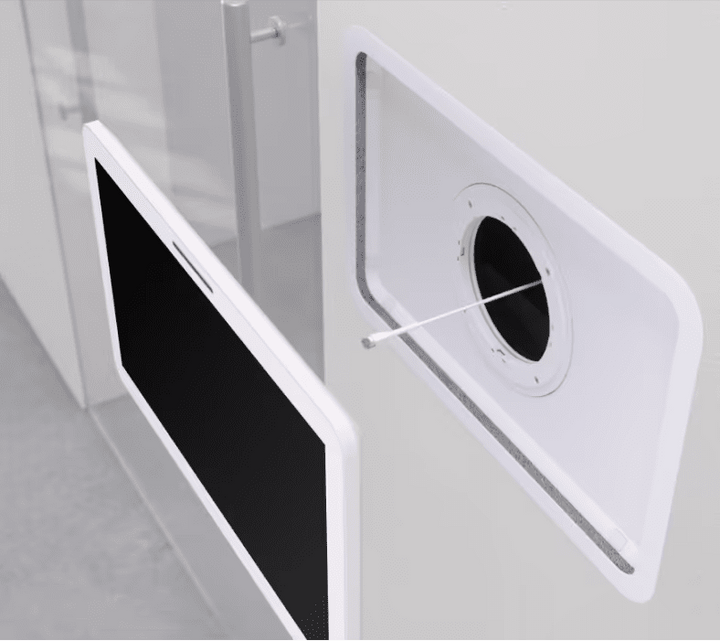

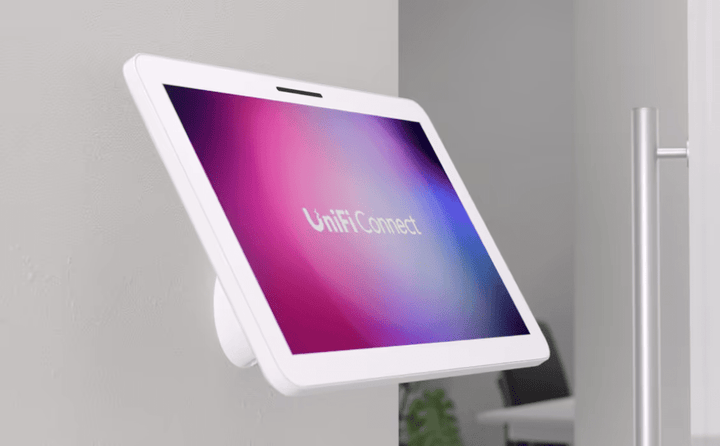

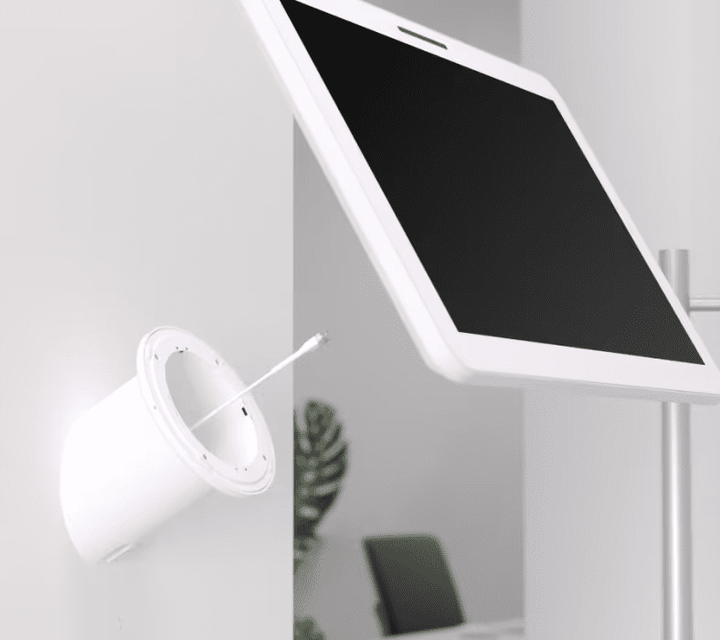

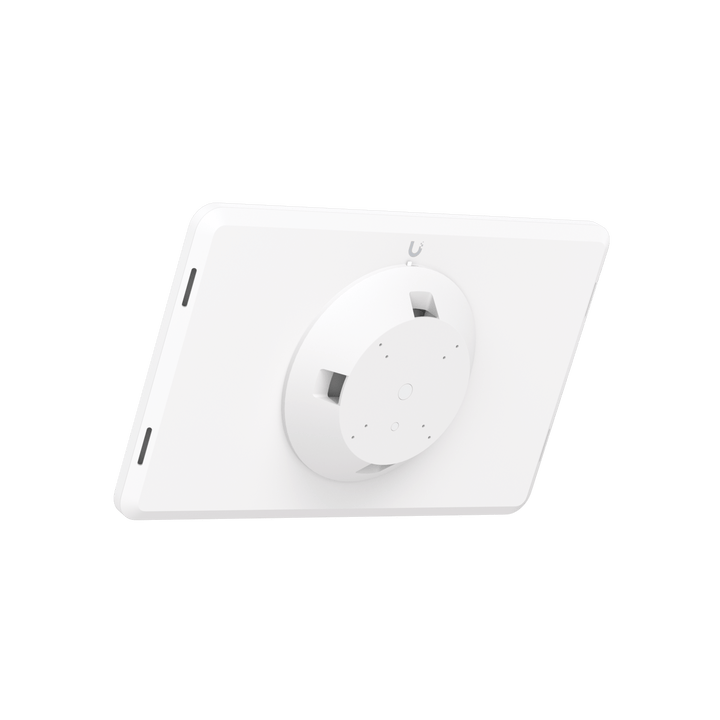

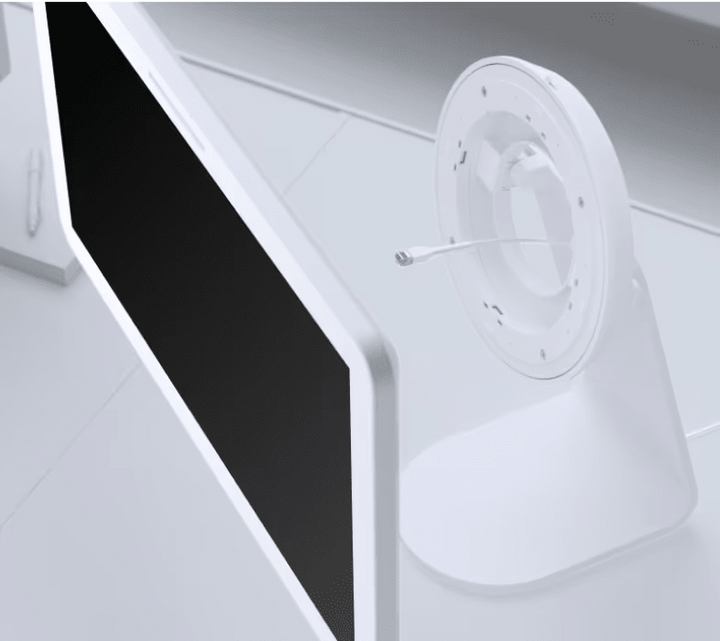

Mounting: VESA mount adapter (included), optional table stand, surface, arm, flush mount

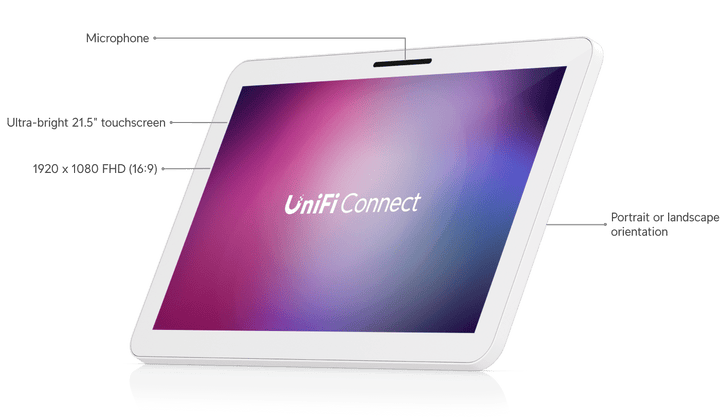

Display & Touch
-
Screen: 21.5" diagonal, 1920 x 1080 FHD (16:9)
-
Brightness: 250 nits (typical)
-
Touch: Capacitive multi-touch, Portrait/Landscape orientation
Hardware
-
Processor: Octa-core ARM Cortex-A53, 2.2 GHz
-
Storage & RAM: 32 GB internal, 3 GB RAM
-
Audio & I/O: Built-in microphone and speaker, USB-C (reserved)
-
Networking: (1) GbE RJ45, Bluetooth 4.2
-
Power: PoE++ input, Max 27W
Product Comparison
Feature | Display Cast Pro | Display Cast | Connect Display |
---|---|---|---|
Deployment | Pair with HDMI display | Pair with HDMI display | Standalone touchscreen display |
Digital Signage Mode | ✔ | ✔ | ✔ |
Video Content Support | Up to 4K / 60 FPS | Up to 4K / 30 FPS | Up to Full HD / 60 FPS |
Web Mode | ✔ | — | ✔ |
YouTube Mode | ✔ | ✔ | ✔ |
Android App Mode | — | — | ✔ |
HDMI CEC | ✔ | ✔ | — |
USB-C Peripheral Support | ✔ | — | — |
Connectivity | UniFi WiFi Auto-Link, Ethernet | Ethernet | Ethernet |
Power Method | PoE, USB-C | PoE, USB-C | PoE++ |
Summary
The UC-Display 21.5" combines interactive digital signage with UniFi’s modern network ecosystem. Featuring FHD visuals, touchscreen control, Android app integration, and full media layout support — all managed through UniFi Connect — it empowers any space to communicate, inform, and engage. With PoE++ simplicity and no licensing fees, it’s built for scale and reliability.
Ubiquiti UC-Display – 21.5" FHD PoE++ Touchscreen Interactive Digital Signage
Designed for modern digital signage and interactive content delivery, the Ubiquiti UC-Display features a vibrant 21.5" Full HD touchscreen with Android app support, media playback, and PoE++ power. Ideal for kiosks, lobbies, and enterprise environments.
Specifications
Specification | Details |
---|---|
Overview | 21.5" Full HD PoE++ touchscreen for digital signage and interactive content |
Touch Screen Technology | Capacitive multi-touch |
Screen Orientation | Portrait / Landscape |
NDAA Compliant | Yes |
Display | |
Resolution | 1920 × 1080 FHD (16:9) |
Size | 546 mm (21.5") diagonal |
Brightness | 250 nits (Typical) |
Mechanical | |
Dimensions | 538.3 × 330 × 37 mm (21.2 × 13 × 1.5") |
Weight | 4.9 kg (10.8 lb) |
Enclosure Material | Polycarbonate, Aluminum |
Mounting Options | • VESA mount adapter (Included) • Table stand, surface, arm, flush mount (Optional) |
Hardware | |
Processor | Octa-core ARM® Cortex®-A53, 2.2 GHz |
Memory | • Storage: 32 GB • RAM: 3 GB |
Power Method | PoE++ |
Max. Power Consumption | 27W |
Connectivity | |
Ports | • (1) GbE RJ45 • (1) USB-C (Reserved for future update) |
Wireless & Audio | • Bluetooth® 4.2 • Microphone • Speaker |
Controls | (1) Factory Reset Button |
Environmental | |
Operating Temperature | 0 to 40° C (32 to 104° F) |
Operating Humidity | 20% to 90% RH, Non-condensing |
Certifications | CE, FCC, IC |
