Ubiquiti UACC-LRE Long-Range Ethernet Repeater

Extend Ethernet and PoE up to 1 km

The Ubiquiti UACC-LRE is a rugged long-range Ethernet repeater designed to extend PoE/PoE+ connections up to 1 km. With built-in surge protection, weatherproofing, and wide temperature tolerance, it ensures reliable performance in demanding outdoor and industrial environments.

Highlights

• Long-Range Extension: Extend Ethernet and PoE connections up to 1 km with repeaters placed every 100 m

• Passthrough PoE Output: Input via PoE/PoE+ with passthrough power for connected devices

• High Surge Protection: 10kA+ discharge protection ensures robust reliability in harsh conditions

• Weatherproof and Durable: IPX5 enclosure with UV-stabilized polycarbonate and stainless steel mounting hardware

• Wide Operating Range: Works in extreme environments from -40 to 80°C

Key Features

Mechanical and Build

• Dimensions: 196.5 × 93.5 × 39 mm (7.7 × 3.7 × 1.5 inches)

• Weight: 350 g (12.3 oz)

• Enclosure Material: UV-stabilized polycarbonate

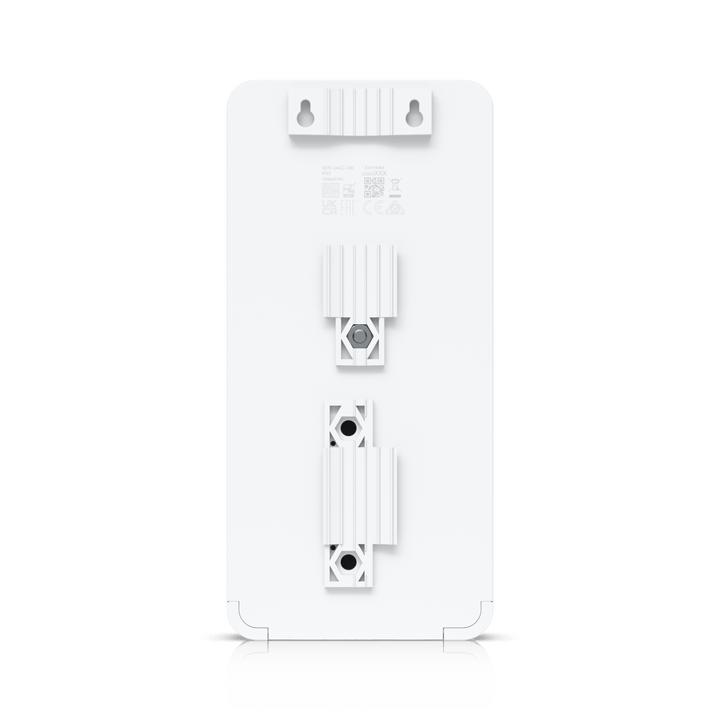

• Mounting: Stainless steel hardware for secure installation

• Weatherproofing: IPX5 protection against water exposure

Hardware and Connectivity

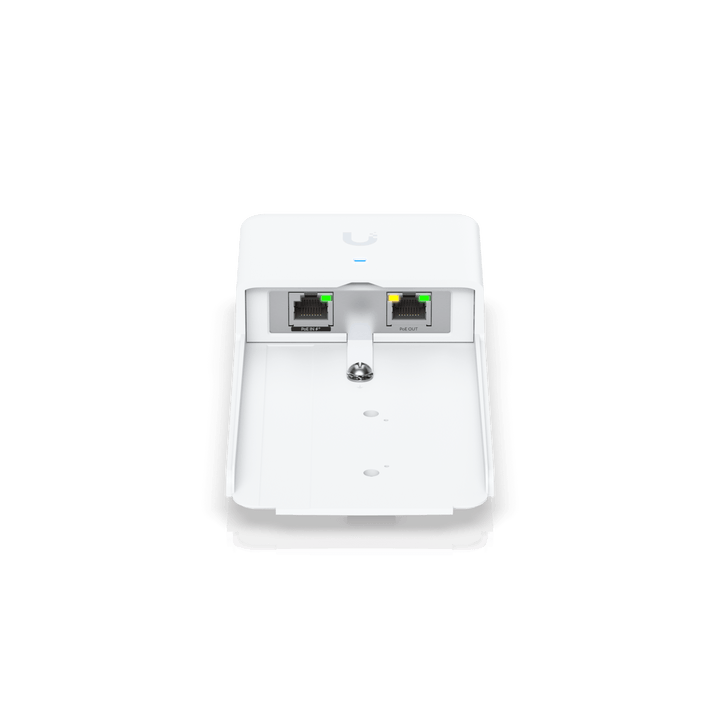

• Ports: 2× GbE RJ45 ports (PoE/PoE+ input, passthrough PoE output)

• PoE Support: 2-pair input and output (pins 1,2+; 3,6-)

• Power Consumption: 1.5W max (excluding PoE output)

• PoE Output: Up to 22.5W passthrough

Performance

• Line Rate: 2 Gbps total non-blocking throughput

• Switching Capacity: 4 Gbps

• Forwarding Rate: 1.488 Mpps

• MTU: 1,500 bytes

Protection and Reliability

• Surge Protection: 10kA+ with DC sparkover voltage at 90V and impulse sparkover up to 700V

• ESD/EMP Protection: ±30kV air/contact

Environmental and Indicators

• Operating Temperature: -40 to 80°C (-40 to 176°F)

• Humidity: 10–95% non-condensing

• LED Indicators:
  • Blue: Power ON
  • Green: Ethernet 1 Gbps
  • Amber: Ethernet 10/100 Mbps
  • Amber: PoE passthrough active

Summary / Conclusion

The Ubiquiti UACC-LRE is a powerful solution for extending Ethernet and PoE connections across long distances using multiple repeaters. With ruggedized surge protection, weatherproof design, and wide operating range, it is built to support industrial, enterprise, and outdoor deployments where network reliability is critical.

Ubiquiti UACC-LRE Long-Range Ethernet Repeater

The Ubiquiti UACC-LRE extends PoE-powered Ethernet connections up to 1 km using repeater chaining. Featuring passthrough PoE output, gigabit connectivity, and 10kA+ surge protection, it is built to withstand extreme environments while ensuring reliable long-distance networking.
