Ubiquiti UA-Intercom-Viewer Intercom Viewer
Advanced Visitor Screening and Remote Access Control The Ubiquiti UA-Intercom-Viewer Intercom Viewer is an essential component for managing visitor access and communication in residential and...
Advanced Visitor Screening and Remote Access Control

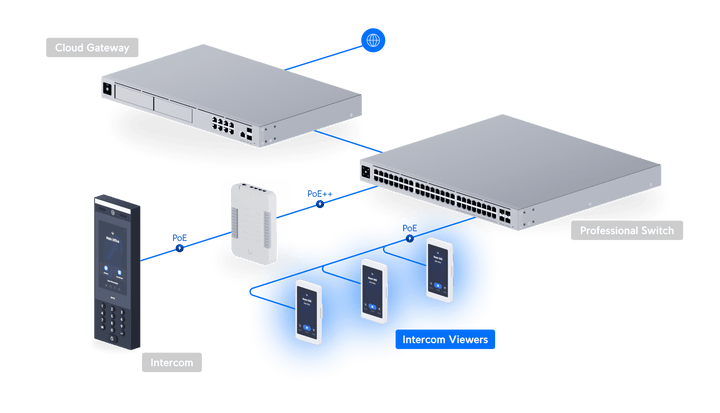

The Ubiquiti UA-Intercom-Viewer Intercom Viewer is an essential component for managing visitor access and communication in residential and commercial buildings. This display pairs seamlessly with the Access Intercom, providing two-way audio, instant live view, and remote access control from multiple locations.
Highlights
- Two-Way Audio: Communicate directly with visitors
- Instant Live View: Monitor entry points in real-time
- 5" Touch Display: Easy-to-use interface for efficient access control
Key Features
-
Enhanced Visitor Management
- Two-Way Audio: Allows clear communication with visitors at entry points
- Instant Live View: Provides real-time monitoring of entry areas
-
User-Friendly Display

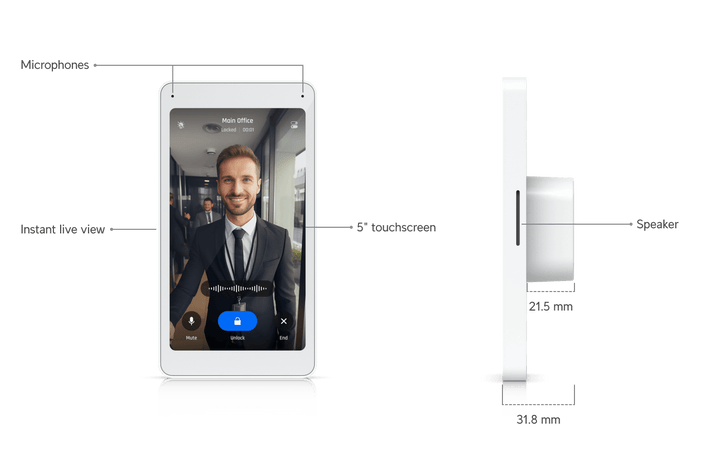

- 5" Capacitive Multi-Touch Screen: Easy navigation and control
- High Resolution: 720 x 1280 (9:16) resolution for clear images
- Bright Display: 300 nits luminance for visibility in various lighting conditions
-
Reliable Connectivity and Power
- Networking Interface: One 10/100 Mbps RJ45 port for stable connectivity
- Power Method: Powered by PoE, simplifying installation
- Wide Voltage Range: Supported voltage range of 44–57V DC
Specifications
| Specification | Details |
|---|---|
| Networking Interface | (1) 10/100 Mbps RJ45 port |
| Management Interface | Ethernet |
| Power Method | PoE |
| Supported Voltage Range | 44–57V DC |
| Max Power Consumption | 5W |
| Display | 127 mm (5") diagonal |
| Resolution | 720 x 1280 (9:16) |
| Display Luminance | 300 nits (typical) |
| Touch Screen Technology | Capacitive multi-touch |
| Screen Orientation | Portrait |
| Microphone | Yes |
| Speaker | Yes |
| Compliance | UL 294 Power-limited Class 2 PSU, UL 60950-1/62368-1 LPS/PS2 PSU |
Summary
The Ubiquiti UA-Intercom-Viewer Intercom Viewer enhances visitor screening and access control by providing a clear, real-time view of entry points and enabling two-way communication. Its 5" capacitive multi-touch display offers an intuitive interface for efficient access management. Powered by PoE, the UA-Intercom-Viewer is easy to install and integrates seamlessly with the Access Intercom system, making it an ideal solution for secure and effective visitor management in various environments.
Ubiquiti UA-Intercom-Viewer Intercom Viewer Specifications
| MECHANICAL | |
|---|---|

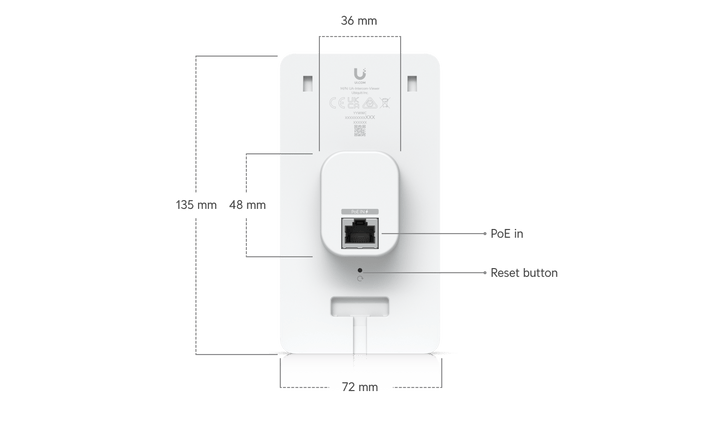

| Dimensions | 135 x 72 x 31.8 mm (5.3 x 2.8 x 1.3") |
| Weight | 168 g (5.9 oz) |
| Enclosure Materials | Glass, polycarbonate |
| Mount Material | Aluminum alloy |

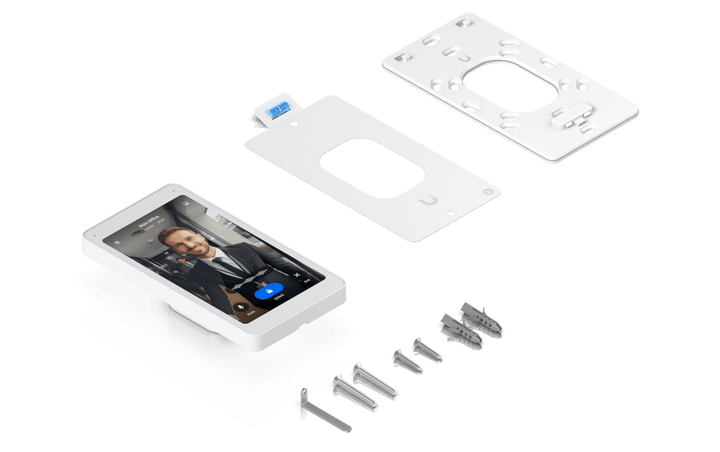

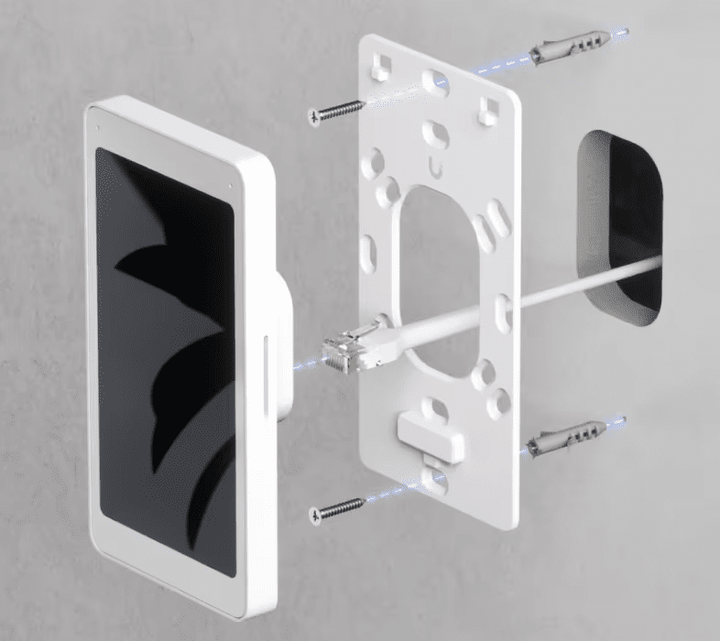

| Mounting | Wall (Included), Gang box mount (Gang box not included) |
| HARDWARE | |
| Networking Interface | (1) 10/100 Mbps RJ45 port |
| Management Interface | Ethernet |
| Power Method | PoE, UL 294 Power-limited Class 2 PSU, UL 60950-1/62368-1 LPS/PS2 PSU |
| Supported Voltage Range | 44–57V DC |
| Max. Power Consumption | 5W |
| Display | 127 mm (5") diagonal, Resolution: 720 x 1280 (9:16), Display luminance: 300 nits (typical), Capacitive multi-touch, Screen orientation: Portrait |
| Microphone | Yes |
| Speaker | Yes |
| Button | Factory reset |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Operating Environment | Indoor use only |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| UL 294 Level | Destructive attack: Level I, Line security: Level I, Endurance: Level I, Standby power: Level I |
| UL 294 Statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| PoE Cabling Requirements | Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm²) for patch cords; 24 AWG (0.21 mm²) for horizontal or riser cable. |
| CAN/ULC-60839-11-1 Grade | Grade assignment: I |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Document Number and Issue Date/Revision Level | UA-Intercom-Viewer, V01 |
| Bundle |
1-Pack, 3-Pack |
|---|
