Ubiquiti UA-Hub-Gate Access Reader Gate Hub
Advanced Access Reader Gate Hub The Ubiquiti UA-Hub-Gate Access Reader Gate Hub is a professional-grade solution for seamless gate access control. Designed for modern security...
Description
Advanced Access Reader Gate Hub
The Ubiquiti UA-Hub-Gate Access Reader Gate Hub is a professional-grade solution for seamless gate access control. Designed for modern security needs, it supports multiple access readers, intercoms, and AI cameras for advanced license plate recognition (LPR) functionality. With robust integration options and reliable PoE++ power delivery, it simplifies gate and side-door access management.
Highlights
- Comprehensive Gate Control: Includes terminals for gate operators, side-door locks, and auxiliary devices.
- License Plate Recognition (LPR): Pair with AI cameras for automatic gate unlocking via license plate detection.
- PoE++ Powered: Streamlines installation with power and data over a single cable.
- UniFi Integration: Connect up to four UniFi Access Readers or UniFi Protect Cameras for entry and exit monitoring.
Key Features
Versatile Output Relays
- Gate Lock Terminals: (2) dry terminals for gate operators.
- Side Door Lock: (1) 12V terminal for secure side-door control.
- AUX Terminal: Connect external devices like sirens or alarms.
Flexible Input Terminals
- Gate Control: Inputs for exit request and gate position monitoring.
- Side Door Control: Inputs for exit request and position monitoring.
- Emergency Input: Supports emergency access overrides for critical situations.
AI-Powered License Plate Recognition
- Optional AI Cameras: Supports Ubiquiti AI cameras, including UVC-AI-Turret, UVC-AI-LPR, UVC-AI-Dome, and more.
- License Plate Unlock: Automatically grants gate access when paired with compatible AI cameras.
PoE++ Connectivity
- PoE Ports: (4) PoE ports to connect access readers, cameras, or intercoms.
- Power Method: PoE++ for reliable power delivery and simplified wiring.
Applications
- Gated Communities: Automate and secure gate access for residents and visitors.
- Commercial Facilities: Manage entry to parking lots and secure areas.
- Industrial Sites: Enhance security with license plate recognition and multi-device connectivity.
Specifications
-
Output Relays:
- (2) Gate lock terminals (dry).
- (1) Side lock terminal (12V).
- (1) AUX terminal.
-
Input Terminals:
- (1) Gate exit request.
- (1) Gate position sensor.
- (1) Side door exit request.
- (1) Side door position sensor.
- (1) Emergency input.
- PoE Ports: (4) PoE for readers and cameras.
- Power Method: PoE++.
Summary
The Ubiquiti UA-Hub-Gate Access Reader Gate Hub is a cutting-edge solution for managing gate and side-door access. With robust relays, flexible inputs, AI-powered LPR capabilities, and seamless UniFi integration, it ensures secure and efficient access control for modern facilities.
Specs
Ubiquiti UA-Hub-Gate Access Reader Gate Hub
| Specification | Details |
|---|---|
| Mechanical | |

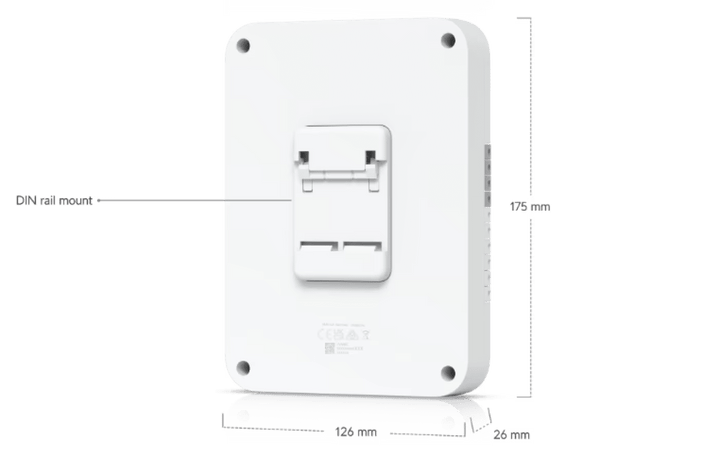

| Dimensions | 175 x 126 x 26 mm (6.9 x 5 x 1") |
| Weight | 460 g (1 lb) |
| Enclosure Material | Polycarbonate |

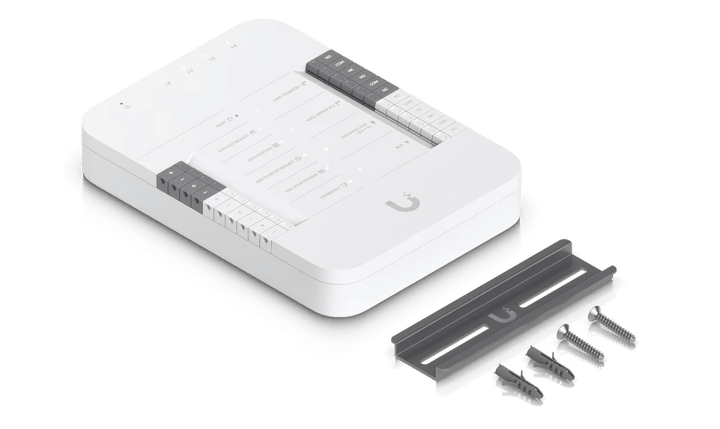

| Mounting | Din-rail (Included) |
| Hardware | |
| Networking Interface | (5) 10/100/1000 Base-T |
| Power Method | PoE++ |
| Max Power Consumption | • Without PoE output: 22W • With PoE output: 50W |
| PoE Input | 50V DC, 1A |
| PoE Output | PoE passthrough, (4) PoE, 50V DC, Max. 28W |
| LEDs | White/blue |
| Buttons | (1) Factory-reset |
| Digital Input | Gate exit request, gate position, side door exit request, side door position, emergency |
| Relay Output (Dry) | • (2) Operator: rated 30V DC, up to 1A • (1) Aux: rated 30V DC, up to 1A |
| Relay Output (Powered) | Side door lock: 12V DC, up to 1A |
| Recommended Cable Length | |
| 18 AWG | UA-Lock-Electric (400mA): 100m (328 ft) UA-Lock-Magnetic-540kg (500mA): 80m (262 ft) |
| 20 AWG | UA-Lock-Electric (400mA): 66m (217 ft) UA-Lock-Magnetic-540kg (500mA): 51m (167 ft) |
| 22 AWG | UA-Lock-Electric (400mA): 42m (138 ft) UA-Lock-Magnetic-540kg (500mA): 32m (105 ft) |
| 24 AWG | UA-Lock-Electric (400mA): 25m (82 ft) UA-Lock-Magnetic-540kg (500mA): 20m (66 ft) |
| Other Locks (1A) | 18 AWG: 36m (118 ft) 20 AWG: 24m (79 ft) 22 AWG: 15m (49 ft) 24 AWG: 9m (30 ft) |
| PoE Cabling Requirements | |
| Cable Type | Minimum: Cat 5e |
| Conductor Gauge | • Patch cords: 26 AWG (0.13 mm²) • Horizontal/riser cable: 24 AWG (0.21 mm²) |
| Operating Environment | • Indoor use only with device • Outdoor use with waterproof junction box |
| Ambient Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| UL 294 Level | Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Document Information | UA-Hub-Gate, V01 |
