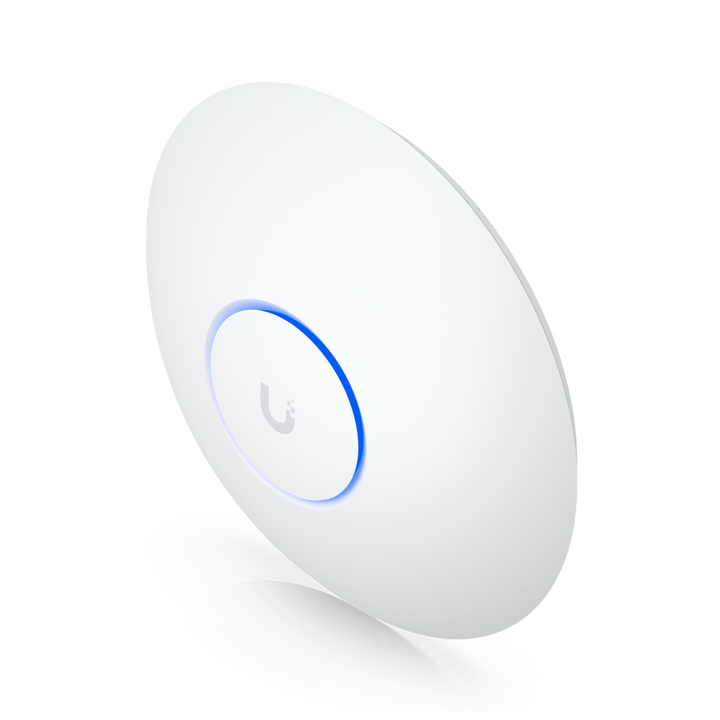

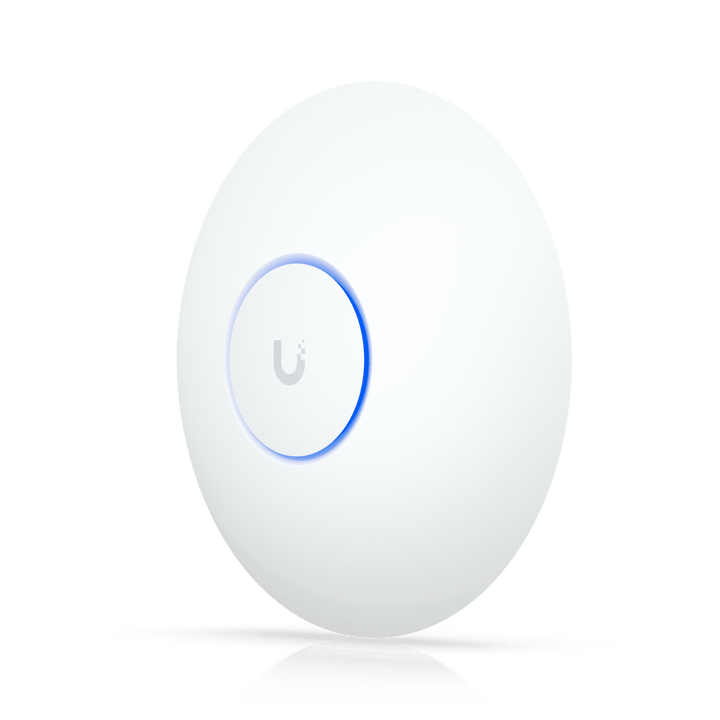

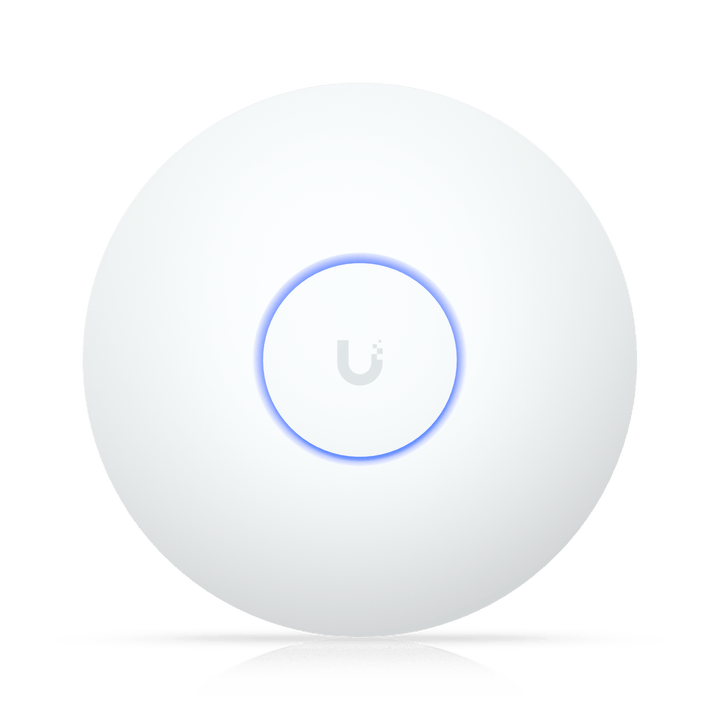

Ubiquiti U7-LR BE5000 U7 Long-Range 2.5GbE Access Point

Next-Level WiFi 7 for Extended Coverage and High Capacity

Unlock powerful, seamless wireless connectivity for busy offices, campuses, and retail environments—WiFi 7 speed, long-range coverage, and robust security in one compact AP.

Highlights

• WiFi 7 with 5 spatial streams for ultra-fast performance

• Covers up to 160 ㎡ (1,750 ft²) and supports 300+ clients

• 2.5 GbE uplink for high-speed backhaul

• Advanced MU-MIMO, wireless meshing, and band steering

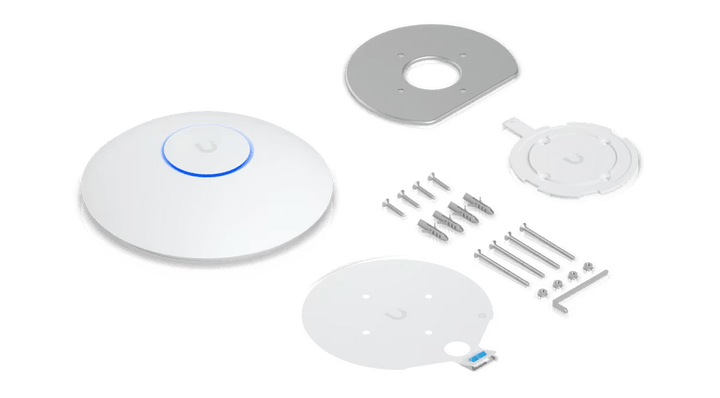

• Flexible ceiling or wall mount, with plastic plate included

• Polycarbonate and aluminum enclosure for durability

• NDAA compliant and certified for business deployment

Key Features

Performance & Radio

• WiFi Standard: WiFi 7 (802.11be), backwards compatible with WiFi 6/5/4

• Spatial Streams: 5

• Max Data Rate: 4.3 Gbps on 5 GHz, 688 Mbps on 2.4 GHz

• 5 GHz: 3x3 DL/UL MU-MIMO, 6 dBi antenna gain, 27 dBm max TX power

• 2.4 GHz: 2x2 DL/UL MU-MIMO, 4 dBi antenna gain, 26 dBm max TX power

• Supported Data Rates: Up to 4.3 Gbps (MCS0-MCS13, EHT 160 MHz)

• Channel Bandwidths: HT/VHT/HE/EHT 20/40/80/160 MHz

Coverage & Capacity

• Coverage Area: Up to 160 ㎡ (1,750 ft²)

• Max Client Count: 300+ concurrent devices

Networking & Power

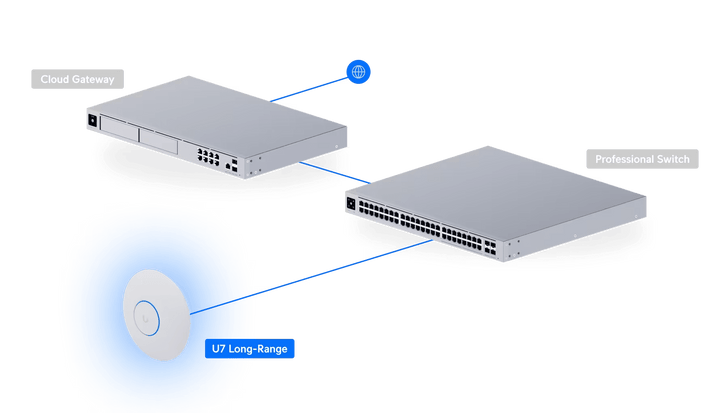

• Uplink: 1× 2.5 GbE RJ45 port

• Power: PoE (42.5–57V DC), max 14W consumption

• PoE Adapter: Not included

Management & Features

• Wireless Meshing, Band Steering, 802.11v/r/k for seamless roaming

• Passpoint (Hotspot 2.0), captive portal with custom branding

• Voucher, payment, and password authentication

• RADIUS over TLS, dynamic VLAN assignment

• WiFi speed limiting, schedules, guest and client isolation

• Private Pre-Shared Key (PPSK) support

Build & Environment

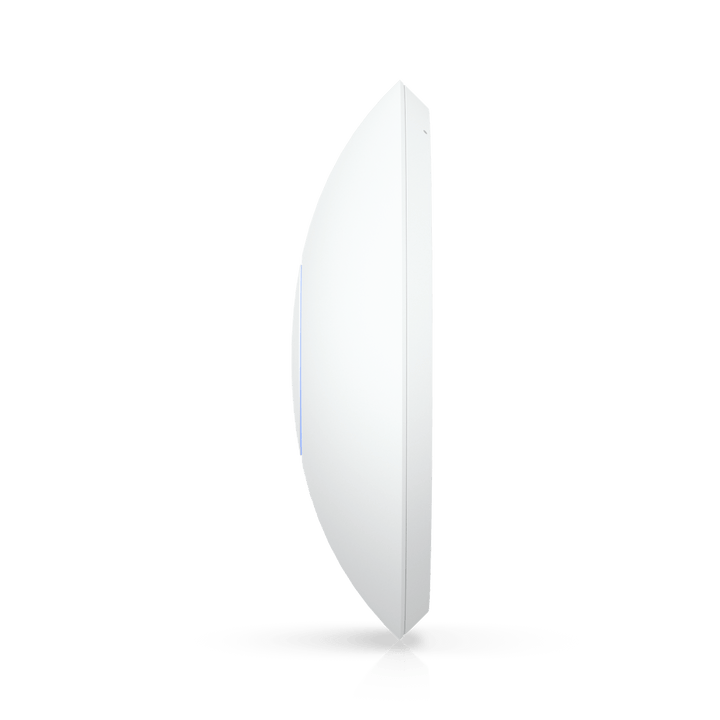

• Dimensions: Ø175.7 × 43 mm (Ø6.9 × 1.7 in)

• Weight: 448 g (15.8 oz)

• Enclosure: Polycarbonate, aluminum alloy

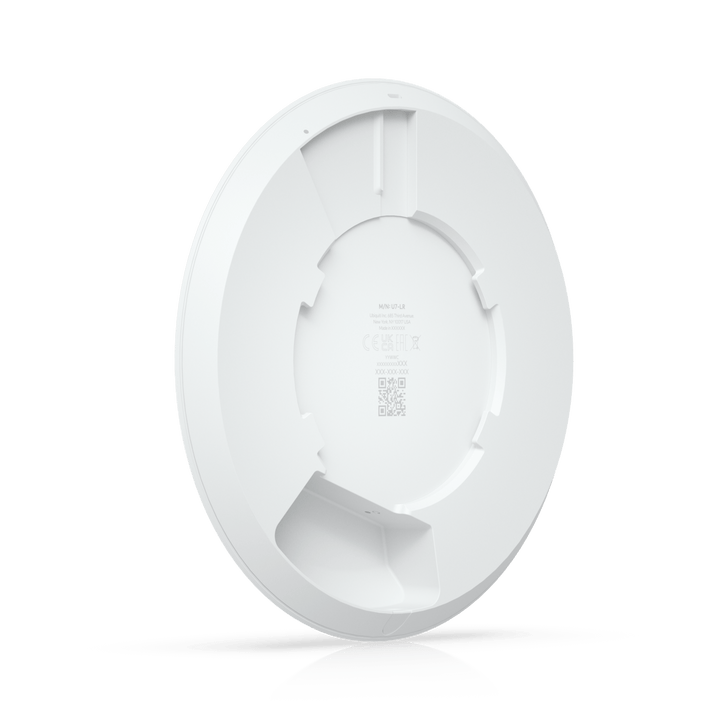

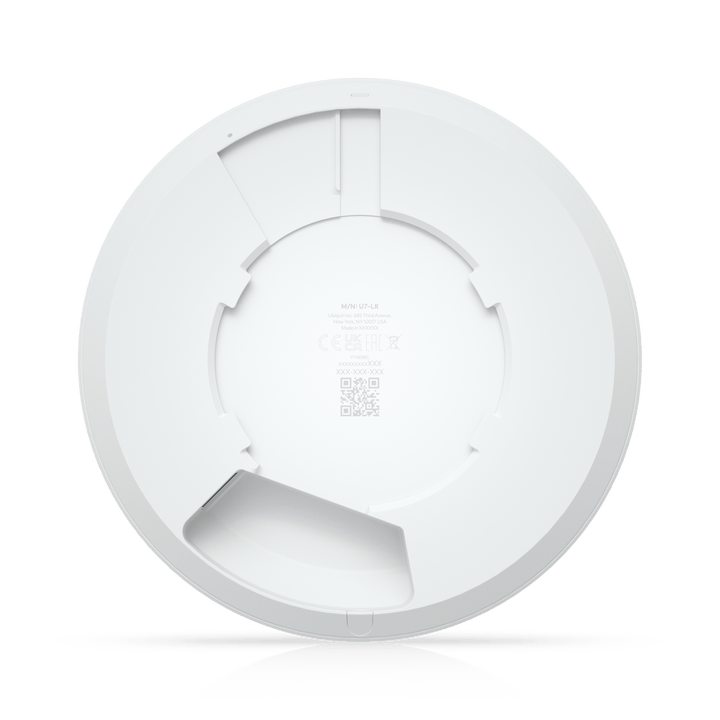

• Mount: Polycarbonate, galvanized steel (SGCC)

• LEDs: System status (white/blue)

• Operating Temp: –30 to 50 °C (–22 to 122 °F)

• Humidity: 5% to 95% non-condensing

• NDAA compliant

• Certifications: CE, FCC, IC

Summary

The Ubiquiti U7-LR BE5000 delivers WiFi 7 speeds, enterprise-grade coverage, and future-ready security for growing networks. Engineered for high density, reliable mesh expansion, and advanced access controls, this ceiling-mount AP is the smart choice for business and public venues demanding seamless, long-range wireless.

Ubiquiti U7-LR BE5000 U7 Long-Range 2.5GbE Access Point

The Ubiquiti U7-LR BE5000 is a compact, ceiling-mount WiFi 7 access point featuring 5 spatial streams, extended coverage, and robust multi-user capabilities for demanding wireless environments. Ideal for offices, campuses, and hospitality.
