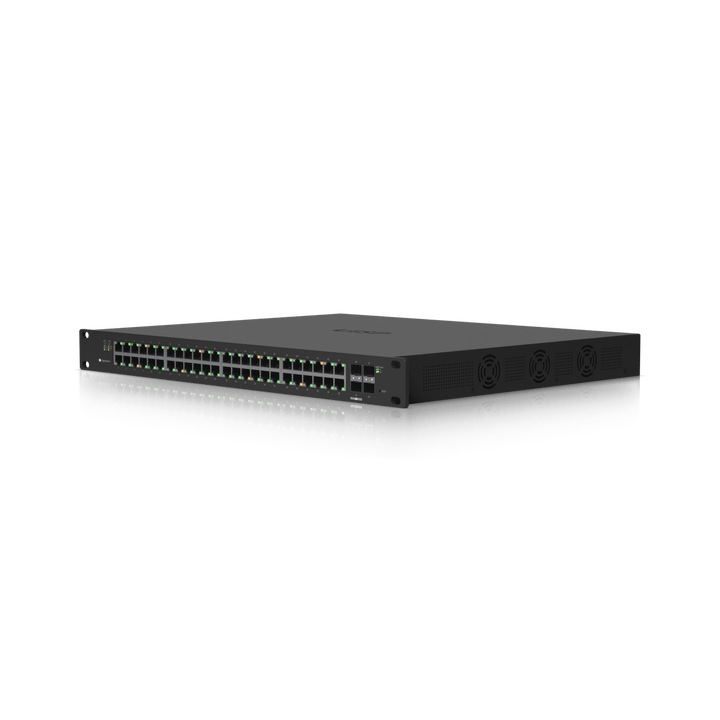

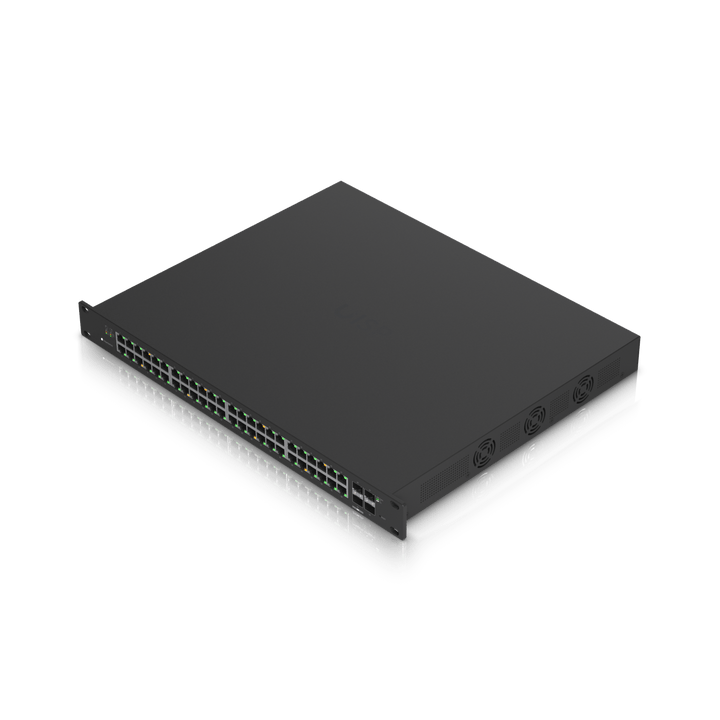

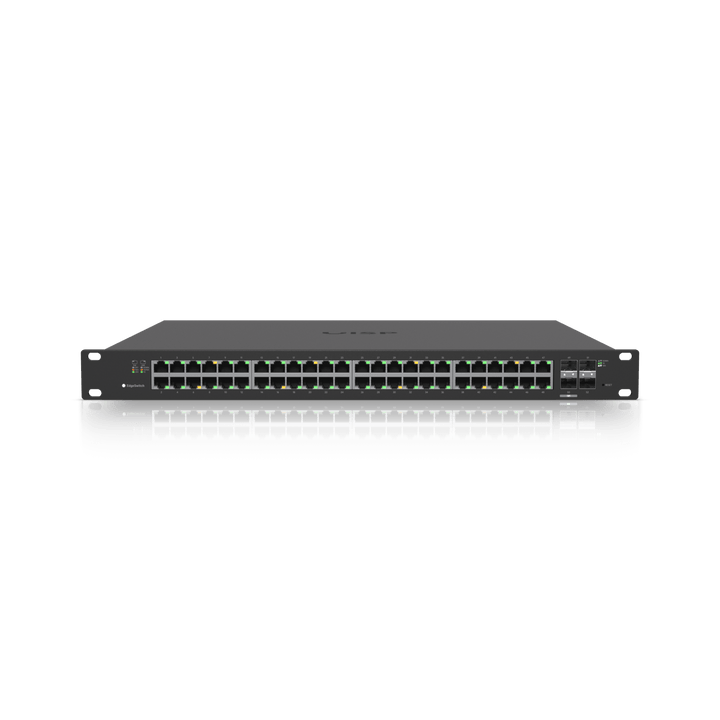

Ubiquiti ES-48-500W EdgeSwitch 48-Port L3 500W PoE Switch
High-Capacity Layer 3 PoE+ Switch for Modern Networks Deliver robust switching, flexible power, and enterprise scalability with 48 Gigabit ports, advanced PoE, and Layer 2/3...
High-Capacity Layer 3 PoE+ Switch for Modern Networks
Deliver robust switching, flexible power, and enterprise scalability with 48 Gigabit ports, advanced PoE, and Layer 2/3 performance for demanding business and campus deployments.
Highlights
-
48 Gigabit PoE+/Passive PoE RJ45 ports for high-density networks
-
2 SFP+ 10G uplinks, 2 SFP 1G uplinks for high-speed backbone
-
500W total PoE power budget, 34.2W max per port (PoE+)
-
70 Gbps non-blocking throughput, 140 Gbps switching capacity
-
Layer 2/3 managed features and serial console access
-
NDAA compliant, rackmount-ready, and robust build quality
Key Features
Performance & Ports
-

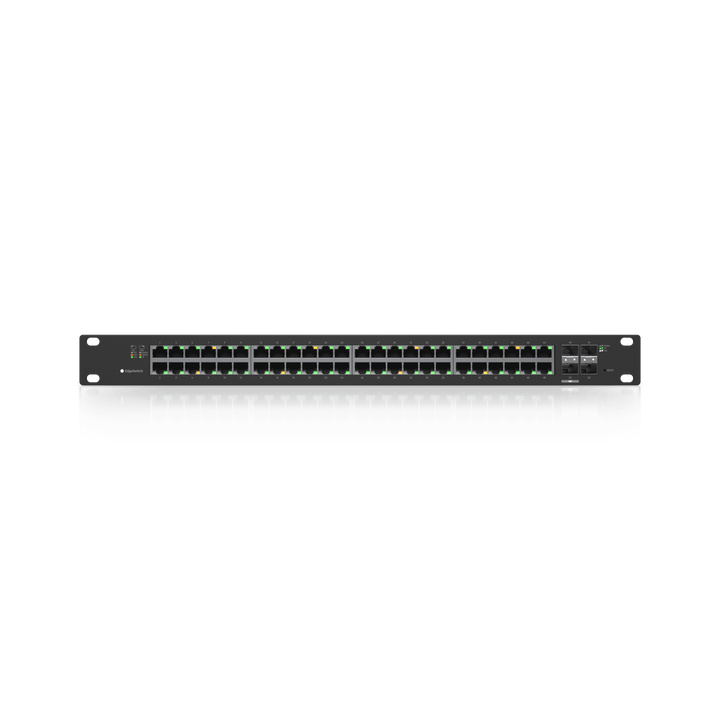

48 x GbE RJ45 ports with PoE+/24V passive PoE
-
2 x 10G SFP+ uplink ports
-
2 x 1G SFP ports
-

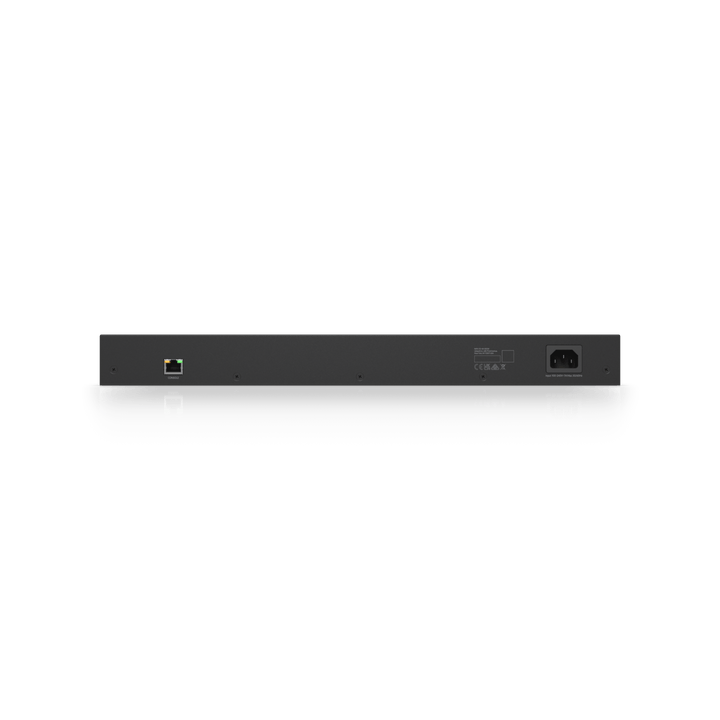

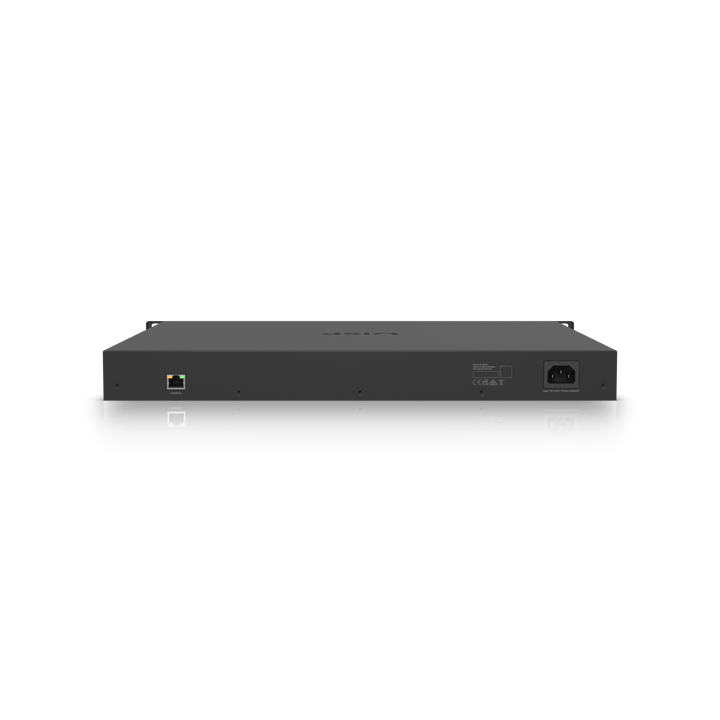

1 x RJ45 serial management interface
-
Total non-blocking throughput: 70 Gbps
-
Switching capacity: 140 Gbps
-
Forwarding rate: 104.16 Mpps
PoE Power & Efficiency
-
Total PoE budget: 500W
-
Max PoE+ per port: 34.2W
-
Max passive PoE per port: 17W
-
Power supply: Internal AC/DC, 100–240V, 500W
-
Power consumption (excluding PoE): 64W
Build & Environmental
-
Dimensions: 485 x 43.7 x 374.6 mm (19.1 x 1.7 x 14.8 in)
-
Weight: 6.1 kg (13.5 lb)
-
1U rackmount, shock and vibration: ETSI300-019-1.4 standard
-
Ambient temp: –5 °C to 40 °C (23 °F to 104 °F)
-
Humidity: 5% to 95% non-condensing
-
ESD/EMP protection: Air/contact ±24 kV
-
Factory reset button
Monitoring & Compliance
-
LEDs for PoE, speed, link/activity on all ports
-
NDAA compliant
-
Certifications: CE, FCC, IC
Summary
The Ubiquiti ES-48-500W EdgeSwitch provides reliable, high-capacity PoE+ power and advanced Layer 3 switching for modern networks. With 48 Gigabit ports, 500W PoE, fast uplinks, and full compliance, it’s ideal for enterprise, campus, and large-scale infrastructure builds.
Ubiquiti ES-48-500W EdgeSwitch 48-Port L3 500W PoE Switch
A high-performance Layer 2/3 PoE+ switch with 48 Gigabit RJ45 ports, SFP/SFP+ uplinks, and 500W total PoE budget—designed for robust enterprise deployments.
Specifications
Specification | Details |
---|---|
Type | Layer 2/3 PoE+ Switch |
Management Interface | • RJ45 serial port • Ethernet In-Band/Out-of-Band |
Networking Interfaces | • 48 x GbE RJ45 ports • 2 x 1/10G SFP+ ports • 2 x 1G SFP ports |
PoE Interfaces | • 48 x PoE/PoE+ 2-pair (Pins 1,2+, 3,6-) • 48 x 24V DC passive PoE 2-pair (Pins 4,5+, 7,8-) |
Total Non-blocking Throughput | 70 Gbps |
Switching Capacity | 140 Gbps |
Forwarding Rate | 104.16 Mpps |
Power Method | 100–240V AC, universal input, 50/60 Hz |
Power Supply | AC/DC, internal, 500W |
Max. Power Consumption | 64W (Excludes PoE output) |
Total PoE Available | 500W |
Max. PoE Wattage per Port | • PoE+: 34.2W • Passive PoE: 17W |
Voltage Range (PoE Mode) | • PoE+: 50–57V • Passive PoE: 20–27V |
Dimensions (W x H x D) | 485 x 43.7 x 374.6 mm 19.1 x 1.7 x 14.8 in |
Weight | 6.1 kg 13.5 lb |
ESD/EMP Protection | Air/contact: ±24 kV |
LEDs | • Ethernet ports: PoE, speed/link/activity • SFP/SFP+ ports: speed/link/activity |
Button | Factory reset |
Rackmount | Yes, 1U |
Shock and Vibration | ETSI300-019-1.4 Standard |
Ambient Operating Temperature | -5 to 40° C 23 to 104° F |
Ambient Operating Humidity | 5 to 95% noncondensing |
Certifications | CE, FCC, IC |
NDAA Compliant | Yes |
