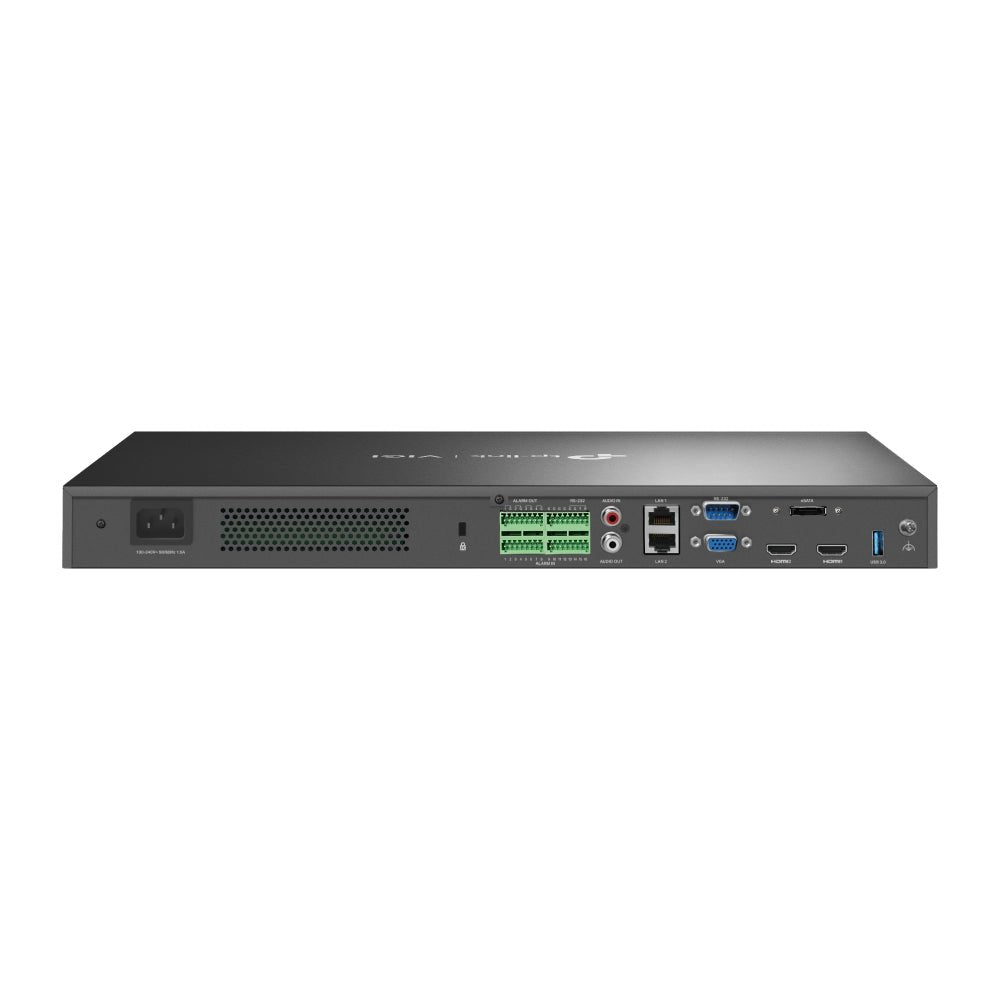

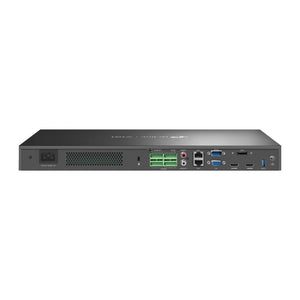

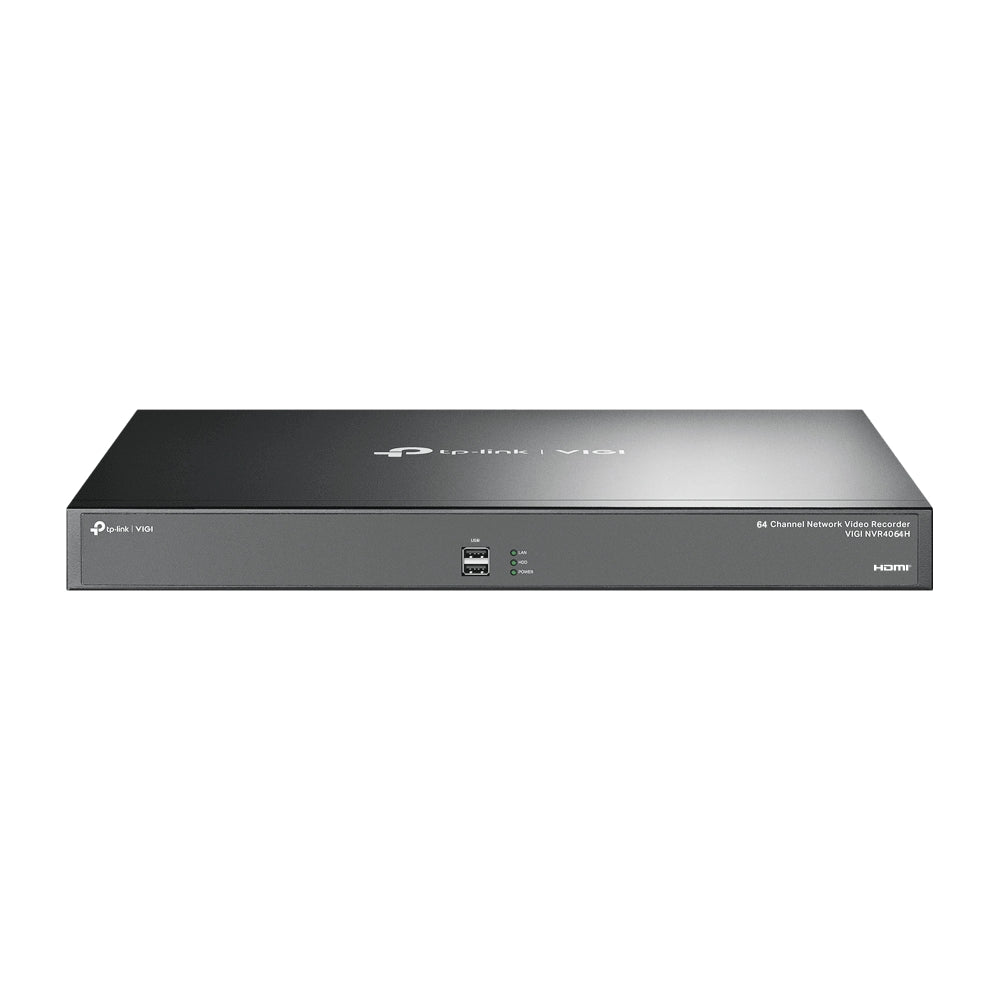

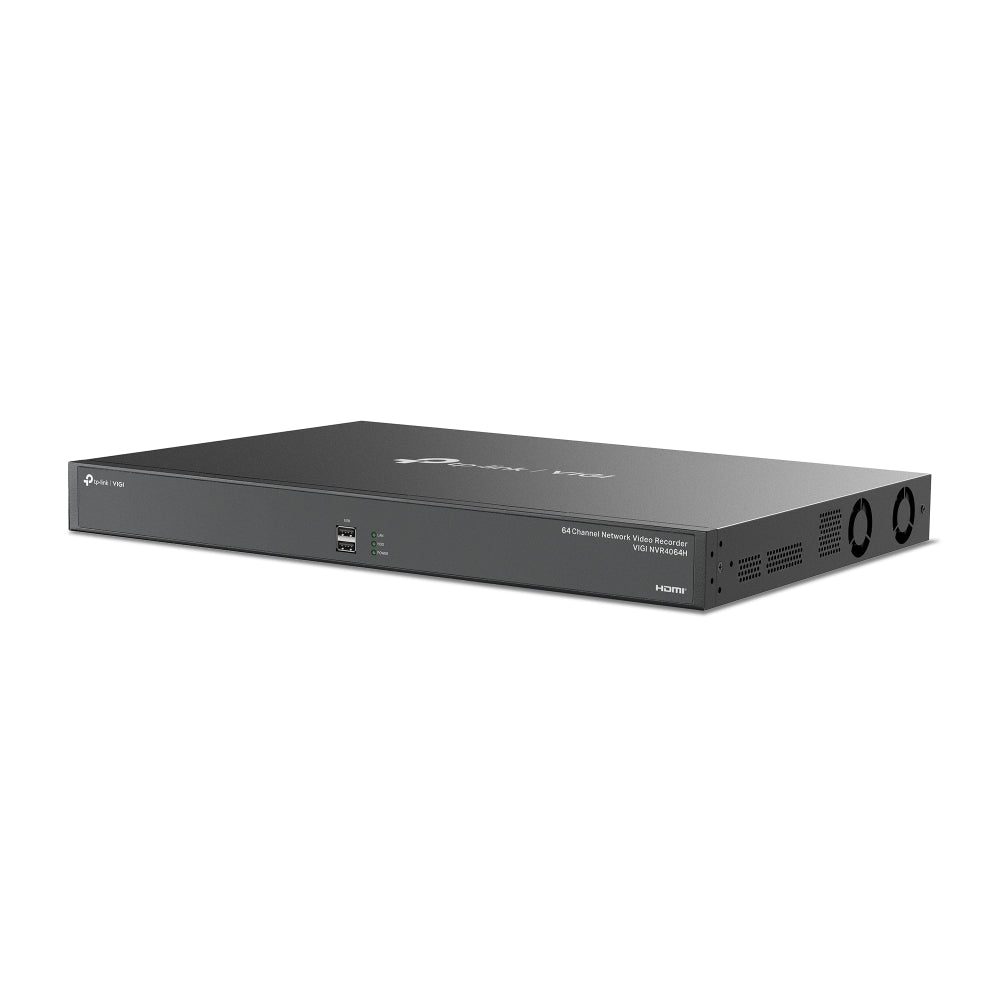

TP-Link VIGI VIGI NVR4064H 64 Channel Network Video Recorder
Ultimate Surveillance Solution with 64-Channel Capacity and 4K Output High-Capacity Monitoring for Large-Scale Security Needs The TP-Link VIGI NVR4064H is built to handle extensive surveillance...
Frequently Bought Together
Description
Ultimate Surveillance Solution with 64-Channel Capacity and 4K Output
High-Capacity Monitoring for Large-Scale Security Needs
The TP-Link VIGI NVR4064H is built to handle extensive surveillance requirements with 64-channel live view support and 4K HDMI output, making it ideal for large-scale environments. Equipped with dual Ethernet ports and advanced H.265+ compression, it efficiently manages bandwidth and storage. With one-click system initialization, this NVR simplifies setup and provides a reliable, high-capacity security solution.
Highlights
- 64-Channel Live View: Monitor up to 64 cameras for comprehensive coverage.
- 4K HDMI Video Output: High-definition output for clear, detailed visuals.
- Dual Ethernet Ports: Enhanced network reliability with port aggregation and fault tolerance.
- 16-Channel Synchronous Playback: View up to 16 channels simultaneously.
- H.265+ Compression: Efficient video compression to save bandwidth and storage.
- 4 SATA Interfaces: Supports up to 16TB of storage for continuous recording.
Key Features
Extensive Monitoring and High-Quality Video
- 64-Channel Live View: Manage up to 64 cameras with smooth playback, supporting up to 16 channels in 2MP (25fps) or 8 channels in 4MP (30fps).
- 4K HDMI and VGA Output: Dual output options enable high-definition visuals on multiple screens for optimal viewing.
Enhanced Network Reliability with Dual Ethernet Ports
-
Dual Ethernet Ports:
- Multi-Address Mode: Configurable with two gateways for flexible network management.
- Network Fault Tolerance: Protects against network failures with backup connectivity.
- Port Aggregation: Ensures smooth data flow by stacking bandwidth and providing redundancy.
Ample Storage and Efficient Compression
- 4 SATA Interfaces: Supports up to 16TB storage, providing extensive recording capacity for high-demand environments.
- H.265+ Compression: Reduces file size without sacrificing quality, saving storage space and optimizing bandwidth.
Simplified Setup and Remote Management
- One-Click System Initialize: Quickly add cameras, initialize HDD, and configure storage with a single click, reducing setup time.
- Remote Access: Allows monitoring from any location via connected devices, ensuring you stay updated from anywhere.
Summary
The TP-Link VIGI NVR4064H is an advanced 64-channel NVR designed for extensive security applications. With 4K output, dual Ethernet ports, ample storage capacity, and efficient H.265+ compression, it provides robust, large-scale surveillance capabilities for SMBs and enterprises seeking comprehensive, reliable security.
Specs
TP-Link VIGI NVR4016H 64-Channel Network Video Recorder Specifications
| FEATURE | DETAILS |
|---|---|
| Video and Audio | |
| IP Video Input | 64-Channel |
| Incoming Bandwidth | Default: 260 Mbps; Extended Bandwidth Mode: 320 Mbps |
| Outgoing Bandwidth | Default: 180 Mbps; Extended Bandwidth Mode: 320 Mbps |
| HDMI Output Resolution | 2 Channels: HDMI1: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz; HDMI2: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| VGA Output Resolution | 1 Channel: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| Video Output Mode | HDMI1/HDMI2 Independent output; HDMI1/VGA Independent output (HDMI2 takes precedence over VGA if both connected) |
| Multi-View Display | 1, 4, 6, 8, 9, 16, 25, 32, 36, 49, 64 views |
| Decoding | |
| Audio Compression | G.711A/G.711U/G.726 |
| Video Compression | H.265+/H.265/H.264+/H.264 |
| Record Resolution | 8MP, 5MP, 4MP, 3MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF |
| Synchronous Playback | 16-Channel |
| Playback Capability | 25fps: 16-ch@2MP, 32-ch@720P, 64-ch@D1; 30fps: 4-ch@8MP, 6-ch@5MP, 8-ch@4MP |
| Record Management | |
| Record Mode | Manual, Scheduling, Motion Detection |
| Playback Mode | Instant, Regular, Tag, Event |
| Backup Mode | Regular, Video Clip |
| Playback Functions | Play, Pause, Stop, Fast Forward/Backward, Frame-by-Frame, Full Screen, Digital Zoom, Audio On/Off |
| Network | |
| Protocol | UPnP, NTP, SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP |
| Mobile Phone Access | Android, iOS |
| Web Browser | Chrome (57+), Firefox (52+), Edge (91+) |
| Interoperability | ONVIF Profile S, CGI |
| External Interface | |
| Network Interface | 2, RJ-45 10/100/1000 Mbps Ethernet Interface |
| USB Interface | 2 Front USB 2.0 Ports, 1 Rear USB 3.0 Port |
| Audio Interface | 1-ch RCA Input; 1-ch RCA Output |
| Alarm In/Out | 16/4 |
| Serial Interface | 1, RS232 |
| Power | 1× AC Jack |
| Reset Button | Yes |
| eSATA | 1 |
| HDMI | 2 |
| VGA | 1 |
| Hard Disk | |
| SATA | 4 SATA Interfaces |
| Capacity | Up to 16 TB per HDD |
| Alarm | |
| General Alarm | Motion Detection, Video Tampering, Scene Change, Line-Crossing, Intrusion, Region Entering/Exiting, Loitering, Object Abandoned/Removal, Vehicle Detection, Human Detection, Abnormal Sound |
| Anomaly Alarm | Video Loss, Offline, IP Conflict, Disk Exception, Login Exception, Fan Exception |
| Alarm Linkage | Recording, White Light Alarm, Buzzer, Log, Audible Alarm |
| General | |
| Storage Temperature | -40–70 °C |
| Storage Humidity | 10%~90% RH Non-Condensing |
| Package Contents | VIGI NVR, Mouse, Installation Guide, Power Cord, HDD Power and Data Cables, Terminal Blocks, Mounting Brackets, Screws, Rubber Feet |
| Working Temperature | NVR: -10–55 °C |
| Working Humidity | 10%~90% RH Non-Condensing |
| Dimensions (W x D x H) | 440 × 330 × 44 mm |
| External Power Supply | 100-240 VAC, 50 to 60HZ, 1.5A |
| Net Weight | 4.0 Kg |
| Gross Weight | 5.0 Kg |
| Power Supply | 100-240 VAC, 50 to 60Hz, 1.5A |
| Power Consumption | 6.95 W (Without Disk); 48.38 W (With Disk) |
| Certifications | CE, NTRA, KC, HDMI, FCC, IC, VCCI, BSMI, ONVIF |
