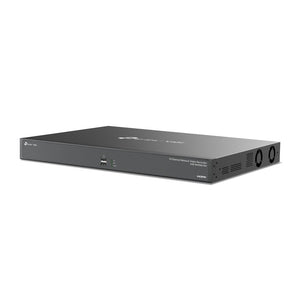

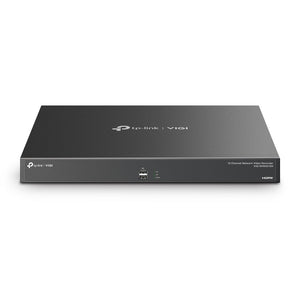

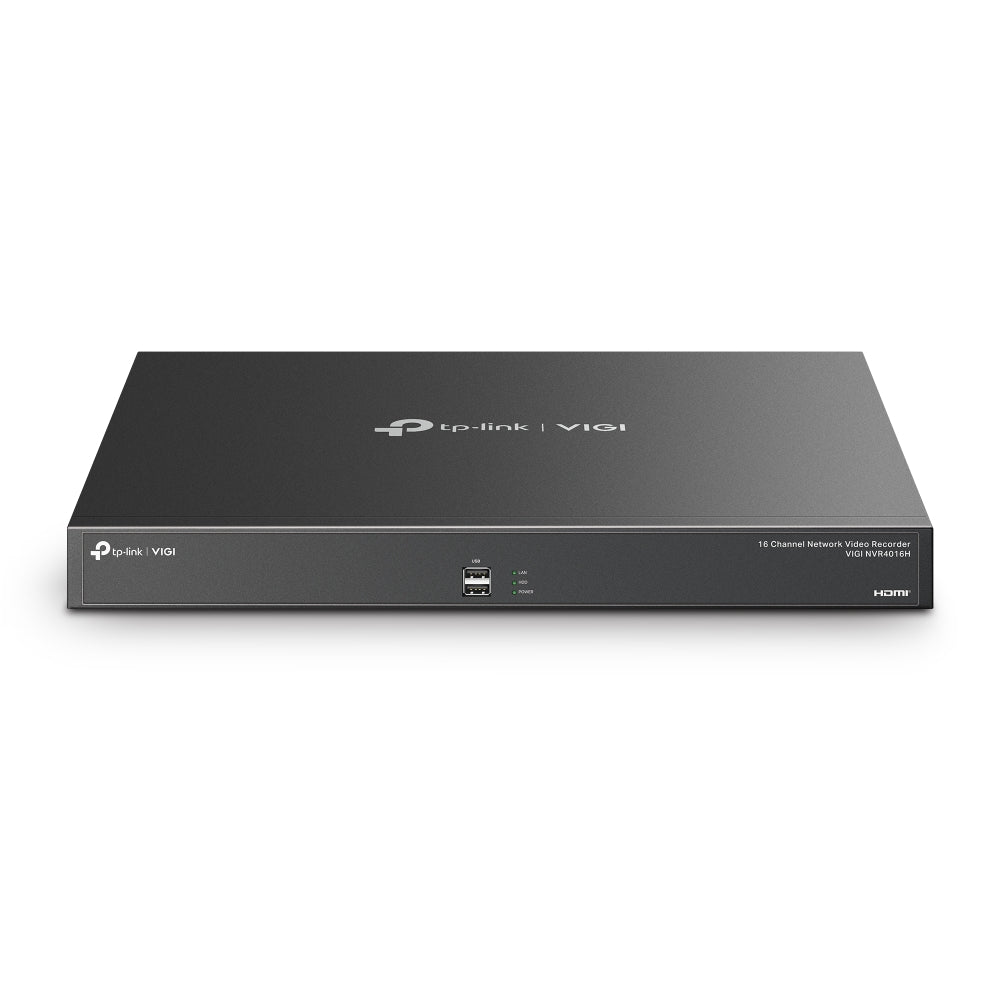

TP-Link VIGI VIGI NVR4016H 16 Channel Network Video Recorder
Comprehensive Surveillance with 4K Output and Dual Ethernet Ports High-Capacity Recording and Superior Image Quality The TP-Link VIGI NVR4016H offers 16-channel recording, high-definition 4K HDMI...
Frequently Bought Together
Description
Comprehensive Surveillance with 4K Output and Dual Ethernet Ports
High-Capacity Recording and Superior Image Quality
The TP-Link VIGI NVR4016H offers 16-channel recording, high-definition 4K HDMI output, and dual Ethernet ports, providing robust, scalable security for larger environments. It supports 16-channel synchronous playback and includes four SATA interfaces for up to 16TB storage, making it an ideal choice for continuous, high-definition monitoring with convenient remote access.
Highlights
- 16-Channel Live View: Seamless monitoring of multiple cameras.
- 4K HDMI Output: Clear, high-definition video output for superior image quality.
- Dual Ethernet Ports: Supports port aggregation and network fault tolerance.
- H.265+ Compression: Efficient compression to maximize storage use.
- Four SATA Interfaces: Supports up to 16TB storage for extended surveillance needs.
- Auto Initialize: Fast configuration for IPC and storage.
Key Features
High-Quality Video and Bandwidth Management
- 16-Channel Synchronous Playback: View and manage up to 16 channels at once in 1080P (25fps), or 10 channels at 3MP for detailed monitoring.
- Dual Output Options: Simultaneous HDMI and VGA output to support multiple display configurations.
Enhanced Network Reliability
-
Dual Ethernet Ports:
- Multi-Address Mode: Configure two gateways for flexible network management.
- Network Fault Tolerance: Provides redundancy to protect against network failures.
- Port Aggregation: Stacks bandwidth to ensure seamless data flow and backup.
Ample Storage and Compression
- Four SATA Interfaces: Supports up to 16TB storage, ideal for high-capacity, continuous recording.
- H.265+ Compression: Reduces storage needs and bandwidth use, maintaining high-quality footage.
Quick Configuration and Remote Monitoring
- Auto Initialize: Simplifies setup with one-click configuration for cameras and hard disks.
- Remote Access: Enables users to monitor and control their security from any location via connected devices.
Summary
The TP-Link VIGI NVR4016H Network Video Recorder is engineered for high-capacity, high-definition surveillance. With 16-channel synchronous playback, dual Ethernet ports, and expansive storage capacity, this NVR is designed to handle extensive security requirements with ease and reliability, making it ideal for SMBs and larger applications.
Specs
TP-Link VIGI NVR4016H 16 Channel Network Video Recorder Specifications
| FEATURE | DETAILS |
|---|---|
| Video and Audio | |
| IP Video Input | 16-Channel |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 320 Mbps |
| HDMI Output Resolution | 2 Channels: HDMI1: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz; HDMI2: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| VGA Output Resolution | 1 Channel: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz |
| Video Output Mode | HDMI1/HDMI2 Independent; HDMI1/VGA Independent (HDMI2 and VGA cannot operate simultaneously; HDMI2 will take precedence) |
| Multi-View Display | 1, 4, 6, 8, 9, 16 views |
| Decoding | |
| Audio Compression | G.711A/G.711U/G.726 |
| Video Compression | H.265+/H.265/H.264+/H.264 |
| Record Resolution | 8MP, 5MP, 4MP, 3MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF |
| Synchronous Playback | 16-Channel |
| Playback Capability | 25fps: 10-ch @ 3MP, 16-ch @ 1080P; 30fps: 4-ch @ 8MP, 6-ch @ 5MP, 8-ch @ 4MP |
| Record Management | |
| Record Mode | Manual, Scheduling, Motion Detection |
| Playback Mode | Instant, Regular, Tag, Event |
| Backup Mode | Regular, Video Clip |
| Playback Functions | Play, Pause, Stop, Fast Forward/Backward, Frame-by-Frame, Full Screen, Digital Zoom, Audio On/Off |
| Network | |
| Protocol | UPnP, NTP, SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP |
| Mobile Phone Access | Android, iOS |
| Web Browser | Chrome (57+), Firefox (52+), Edge (91+) |
| Interoperability | ONVIF Profile S, CGI |

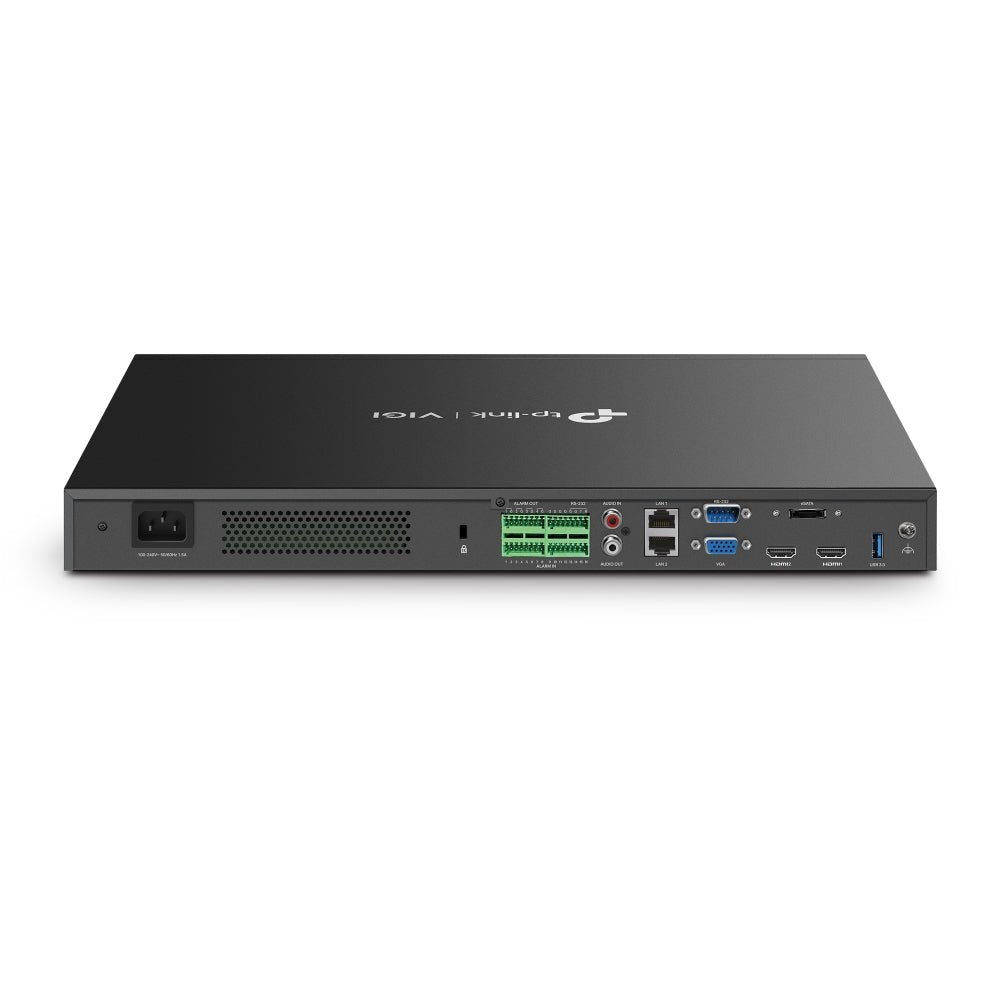

| External Interface | |
| Network Interface | 2, RJ-45 10/100/1000 Mbps Ethernet Interface |
| USB Interface | 2 Front USB 2.0 Ports, 1 Rear USB 3.0 Port |
| Audio Interface | 1-ch RCA Input; 1-ch RCA Output |
| Alarm In/Out | 16/4 |
| Serial Interface | 1, RS232 |
| Power | 1× AC Jack |
| Reset Button | Yes |
| Speaker | N/A |
| eSATA | 1 |
| HDMI | 2 |
| VGA | 1 |
| Hard Disk | |
| SATA | 4 SATA Interfaces |
| Capacity | Up to 16 TB per HDD |
| Alarm | |
| General Alarm | Motion Detection, Video Tampering, Scene Change, Line-Crossing, Intrusion, Region Entering/Exiting, Loitering, Object Abandoned/Removal, Vehicle Detection, Human Detection, Abnormal Sound |
| Anomaly Alarm | Video Loss, Offline, IP Conflict, Disk Exception, Login Exception, Fan Exception |
| Alarm Linkage | Recording, White Light Alarm, Buzzer, Log, Audible Alarm |
| General | |
| Storage Temperature | -40–70 °C |
| Storage Humidity | 10%~90% RH Non-Condensing |
| Package Contents | VIGI Network Video Recorder, Mouse, Installation Guide, Power Cord, HDD Power and Data Cables, Terminal Blocks, Mounting Brackets, Screws, Rubber Feet |
| Working Temperature | NVR: -10–55 °C |
| Working Humidity | 10%~90% RH Non-Condensing |
| Dimensions (W x D x H) | 440 × 330 × 44 mm |
| External Power Supply | 100-240 VAC, 50 to 60HZ, 1.5A |
| Net Weight | 4.0 Kg |
| Gross Weight | 5.0 Kg |
| Power Supply | 100-240 VAC, 50 to 60Hz, 1.5A |
| Power Consumption | 5.5 W (Without Disk); 45 W (With Disk) |
| Certifications | CE, NTRA, KC, HDMI, FCC, IC, VCCI, BSMI, ONVIF |
