TP-Link TL-SL1218MP 16-Port 10/100 Mbps + 2-Port Gigabit with 16-Port 250m Long Range PoE+ Unmanaged Switch
16-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 16-Port PoE+ Empower Your Network with Advanced PoE Capabilities The TP-Link TL-SL1218MP is a high-performance switch...
16-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 16-Port PoE+
Empower Your Network with Advanced PoE Capabilities
The TP-Link TL-SL1218MP is a high-performance switch designed to meet the needs of small to medium-sized businesses, particularly for surveillance systems. It combines Fast Ethernet and Gigabit connectivity with advanced PoE+ support, making it suitable for a wide range of applications.
Key Features
PoE+ Enabled Ports
- 16 PoE+ Ports: Deliver data and power over one cable, compliant with IEEE 802.3af/at standards.
- 250 W PoE Budget: Supports up to 30 W per PoE port, with a total budget of 250 W for all PoE ports.
Extended Transmission Range
- Up to 250m Range: Extend Mode boosts PoE transmission distance, ideal for large-scale surveillance setups.
Priority and Isolation Modes
- Enhanced Security and Performance: Priority Mode for ports 1–8 ensures quality for sensitive applications like video monitoring. Isolation Mode allows one-click client traffic separation.
Easy to Use
- Plug and Play: No configuration needed, suitable for any user.
Intelligent Power Management
- Overload Protection: Manages power effectively to prevent overload, ensuring stability and reliability.

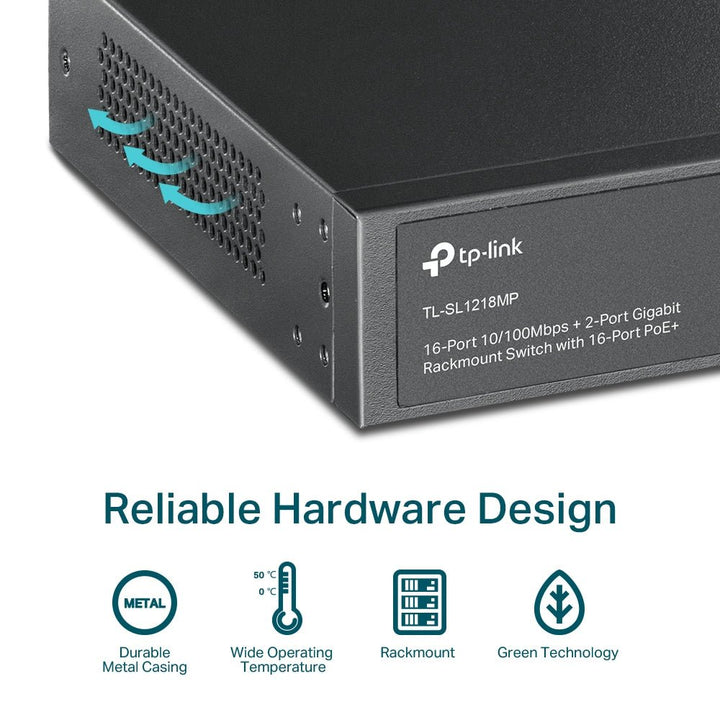

Robust Build
- Metal Casing: Ensures durability and a long product life.
Applications
Ideal for deploying networks with PoE-enabled devices. The TL-SL1218MP is particularly useful for surveillance systems in offices, dormitories, and small businesses, providing both power and data over a single cable for up to sixteen devices.
Summary
The TP-Link TL-SL1218MP offers a practical solution for PoE device deployment, featuring extended range, priority and isolation modes, and intelligent power management. Its plug-and-play design, combined with a durable metal casing, makes it a versatile choice for various networking needs.
| Specification Category | Details |
|---|---|
| HARDWARE FEATURES | |
| Interface | 16 PoE+ 10/100 Mbps RJ45 Ports, 2× 10/100/1000 Mbps RJ45 Ports, 2× Combo Gigabit SFP Slots |
| Network Media | 10BASE-T: UTP cat 3/4/5 (max 100m), 100BASE-TX: UTP cat 5/5e (max 100m), 1000BASE-T: UTP cat 5/5e/6 or above (max 100m), 1000BASE-X MMF/SMF |
| Fan Quantity | 2 Fans |
| Physical Security Lock | Yes |
| Power Supply | 100–240V AC, 50/60 Hz |
| PoE+ Ports(RJ45) | Standard: 802.3at/802.3af compliant, Ports 1–16, Power Budget: 250 W |
| Dimensions (W x D x H) | 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) |
| Max Power Consumption | 15.0 W (no PD connected), 285.8 W (with 250 W PD connected) |
| Max Heat Dissipation | 51.1 BTU/h (no PD connected), 974.6 BTU/h (with 250 W PD connected) |
| PERFORMANCE | |
| Switching Capacity | 7.2 Gbps |
| Packet Forwarding Rate | 5.36 Mpps |
| MAC Address Table | 8K |
| Jumbo Frame | 10 KB |
| SOFTWARE FEATURES | |
| Advanced Features | Compatible with IEEE 802.3at/af PDs, Extend Mode (Up to 250m PoE), Priority Mode, Isolation Mode, Mac Address Auto-Learning/Auto-Aging, IEEE802.3x Flow Control |
| Transmission Method | Store-And-Forward |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | TL-SL1218MP, Power Cable, Installation Guide, Two mounting brackets and fittings |
| Environment | Operating Temperature: 0–50 °C, Storage Temperature: -40–70 °C, Operating Humidity: 10–90% RH non-condensing, Storage Humidity: 5–90% RH non-condensing |
