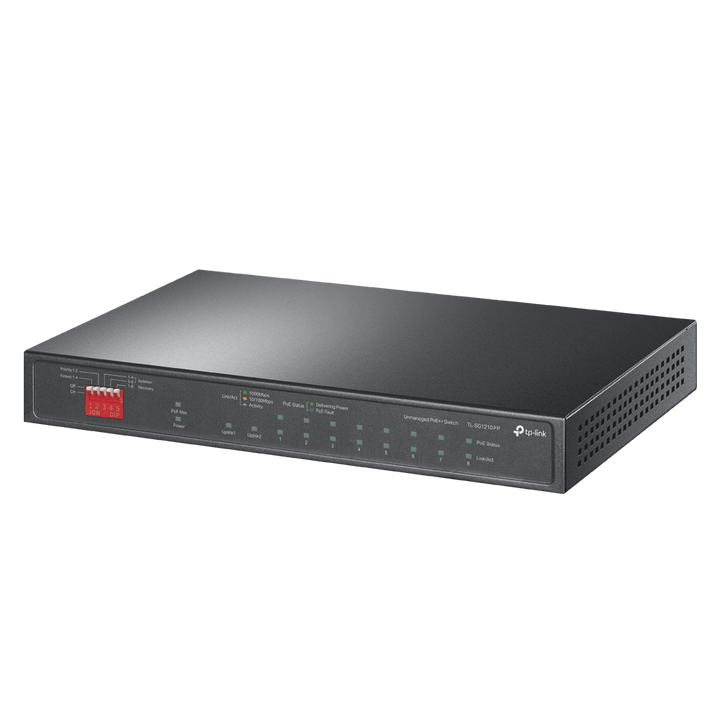

TP-Link TL-SG1210PP 10-Port Gigabit with 6-Port 250m Long Range PoE+ and 2-Port PoE++ Unmanaged Switch
10-Port Gigabit Desktop Switch with Advanced PoE+ and PoE++ Capabilities Elevate Your Network's Efficiency and Power Delivery The TP-Link TL-SG1210PP is a versatile and powerful...
10-Port Gigabit Desktop Switch with Advanced PoE+ and PoE++ Capabilities
Elevate Your Network's Efficiency and Power Delivery
The TP-Link TL-SG1210PP is a versatile and powerful Gigabit PoE switch, designed to cater to a wide range of network demands, especially in environments where both data and power delivery over Ethernet are crucial. It's an ideal choice for businesses and power users who require a mix of standard PoE+ and higher-powered PoE++ ports.
Key Features
Enhanced PoE Support
- 2 PoE++ and 6 PoE+ Ports: Deliver data and power over a single cable. Compatible with IEEE 802.3af/at/bt standards.
- High PoE Power Budget: Up to 30W per PoE+ port and 60W per PoE++ port, with a total budget of 123W.
- Intelligent Power Management: Prevents power overload and optimizes power allocation to connected devices.
High-Speed Connectivity
- 9 Gigabit RJ45 Ports and 1 Gigabit Combo SFP/RJ45 Port: Ensures fast and efficient network connections for a variety of devices.
Advanced Networking Features
- Extend Mode: Increases PoE transmission range up to 250m, ideal for surveillance systems.
- Priority Mode: Prioritizes ports 1–2 for sensitive applications like video monitoring, ensuring quality and reliability.
- Isolation Mode: Enhances network security and performance by segregating traffic on client ports.
User-Friendly and Durable
- Plug and Play: Simple setup without the need for complex configuration.
- PoE Auto Recovery: Automatically reboots unresponsive PoE devices, ensuring continuous operation.
- Durable Design: Built to last and perform reliably in various environments.
Ideal Use Cases
Perfect for powering high-demand devices like PTZ cameras, Wi-Fi 6 access points, and IP phones, while providing robust data connectivity to computers, network storage, and other Ethernet-enabled devices.
Summary
The TP-Link TL-SG1210PP is a comprehensive solution for networks that demand both standard and high-powered PoE capabilities along with Gigabit data speeds. Its advanced features, combined with ease of use and robust construction, make it a top choice for businesses and power users.
| Specification Category | Details |
|---|---|
| HARDWARE FEATURES | |

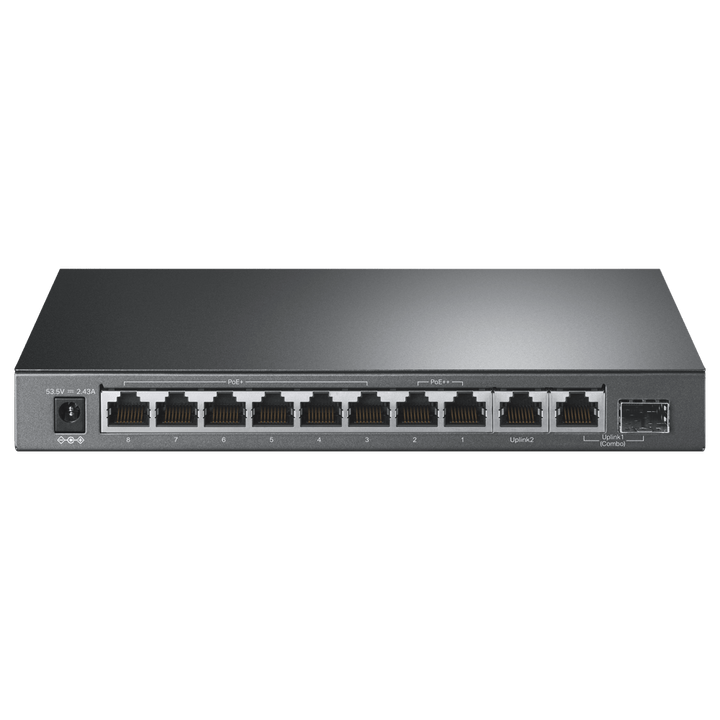

| Interface | 9× 10/100/1000Mbps RJ45 Ports, 1× 1000Mbps Combo SFP/RJ45 Port, AUTO Negotiation, AUTO MDI/MDIX |
| Network Media | 10BASE-T: UTP cat 3/4/5 (max 100m), 100BASE-TX: UTP cat 5/5e (max 100m), 1000BASE-T: UTP cat 5/5e/6 or above (max 100m) |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output: 53.5 VDC / 2.43 A) |
| Packet Forwarding Rate | 14.88 Mpps |
| PoE Ports (RJ45) | Port 1-2: 802.3af/at/bt; Ports 3-8: 802.3af/at, Power Supply: 123 W |
| Mac Address Table | 4K |
| Switching Capacity | 20 Gbps |
| Dimensions (W x D x H) | 8.2 x 5.0 x 1.0 in (209 x 126 x 26 mm) |
| Max Power Consumption | 8.7 W (no PD connected), 144.1 W (with 123 W PD connected) |
| Max Heat Dissipation | 29.67 BTU/h (no PD connected), 491.38 BTU/h (with 123 W PD connected) |
| SOFTWARE FEATURES | |
| Advanced Functions | Compatible with IEEE 802.3af/at/bt PDs, Mac Address Auto-Learning and Auto-Aging, IEEE 802.3x Flow Control, 802.1p/DSCP QoS, IGMP Snooping, Extend Mode, PoE Auto Recovery, Isolation Mode, Priority Mode |
| Transfer Method | Store-And-Forward |
| OTHERS | |
| Certification | FCC, CE, RoHS |
| Package Contents | TL-SG1210PP, Power Adapter, Installation Guide |
| Environment | Operating Temperature: 0–40 ℃, Storage Temperature: -40–70 ℃, Operating Humidity: 10–90% RH non-condensing, Storage Humidity: 5–90% RH non-condensing |
