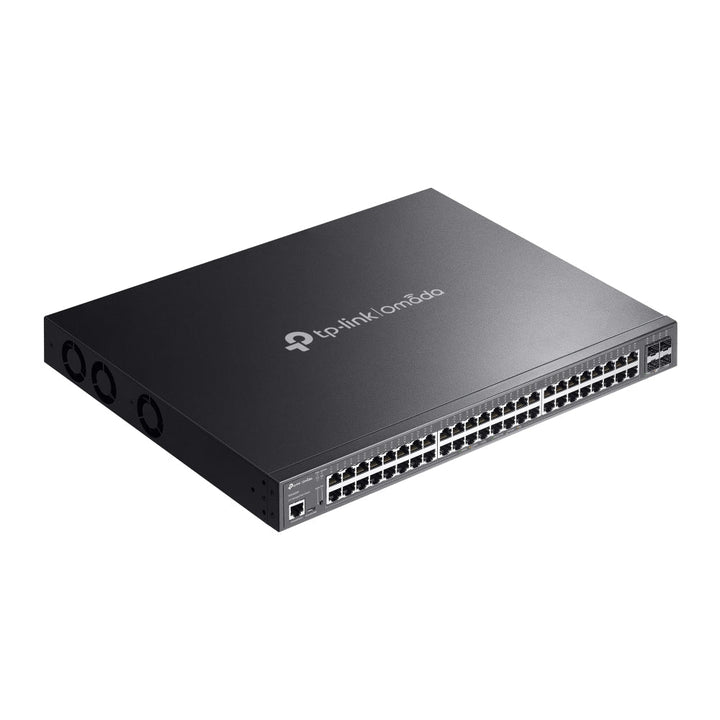

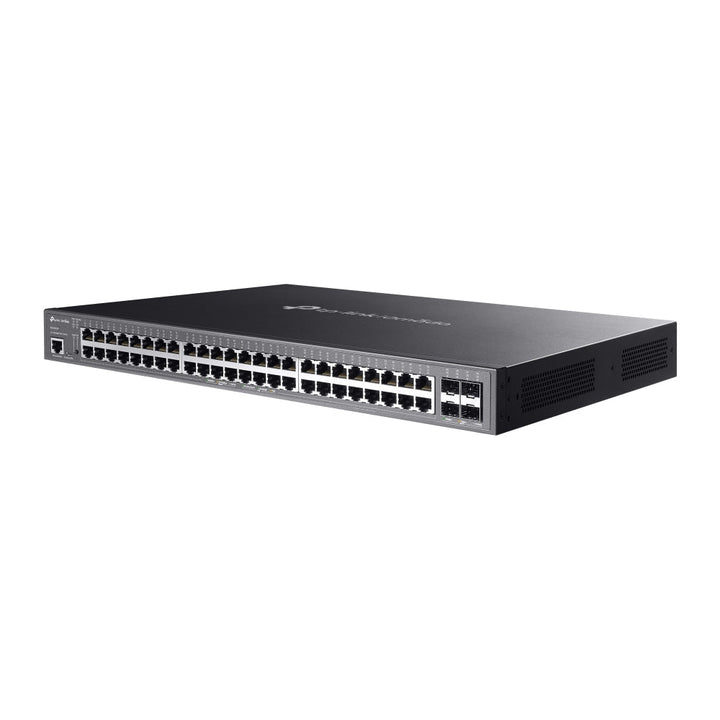

TP-Link SG3452XMPP Omada 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 40-Port PoE+ & 8-Port PoE++
Power and Performance for Advanced Networks The TP-Link SG3452XMPP Omada 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch is a robust and versatile solution...
Description
Power and Performance for Advanced Networks
The TP-Link SG3452XMPP Omada 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch is a robust and versatile solution designed to meet the demands of high-performance networks. With extensive PoE support and centralized management, this switch is ideal for businesses looking to enhance their network infrastructure.
Highlights
- Extensive PoE Support: 40 PoE+ ports and 8 PoE++ ports with a total PoE budget of 750W
- High-Speed Connectivity: 4× 10 Gbps SFP+ slots for lightning-fast data transfer
- Centralized Management: Manage via web, CLI, SNMP, RMON, and the Omada app
Key Features
-
Powerful PoE Capabilities
- 8 PoE++ Ports: Each port supports up to 90W, perfect for high-power devices like PTZ HD IP cameras with heaters and smart building lighting
- 40 PoE+ Ports: Each port supports up to 30W, suitable for access points, thin clients, and more
- 750W Total PoE Budget: Ample power for all connected devices
-
Advanced Networking Features
- Static Routing: Efficiently routes internal traffic for enhanced network performance
- VLAN, ACL, QoS, IGMP Snooping: Comprehensive network management and security features
- ERPS Support: Provides rapid protection and recovery in a ring topology
-
Flexible Management Options
- Centralized Cloud Management: Easily manage multiple sites through a single interface via the web or Omada app
- Standalone Management: Options include web interface, CLI, SNMP, and RMON
-
Durable and Versatile Design
- Metal Casing: Ensures durability and long-lasting performance
- Rack-Mountable: Easy to integrate into existing network infrastructure
Specifications
| Specification | Details |
|---|---|
| Ports | 48× Gigabit RJ45 Ports (8× PoE++, 40× PoE+) |
| 4× 10 Gbps SFP+ Slots | |
| PoE Budget | 750W Total PoE Budget |
| PoE++ Port Budget | Max 90W per PoE++ Port |
| PoE+ Port Budget | Max 30W per PoE+ Port |
| Standards Compliance | IEEE 802.3af/at/bt, IEEE 802.3an, IEEE 802.3ae, IEEE 802.3aq |
| Management Options | Centralized cloud management, standalone management via web, CLI, SNMP, RMON |
| Advanced Features | Static Routing, VLAN, ACL, QoS, IGMP Snooping, OAM, DDM, ERPS |
| Construction | Durable metal casing, rack-mountable design |
| Dimensions | To be specified based on product dimensions |
| Certifications | FCC, CE, RoHS |
Summary
The TP-Link SG3452XMPP Omada 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch is designed to provide high power and performance for advanced network setups. With a substantial PoE budget, high-speed connectivity, and flexible management options, this switch is perfect for businesses looking to enhance their network infrastructure with robust, scalable, and efficient solutions.
Specs
TP-Link SG3452XMPP Omada 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 40-Port PoE+ & 8-Port PoE++ Specifications
| HARDWARE FEATURES | |
|---|---|
| Interface | 48× 10/100/1000 Mbps RJ45 Ports (8× PoE++, 40× PoE+), 4× 10G SFP+ Slots, 1× RJ45 Console Port, 1× Micro-USB Console Port |
| Fan Quantity | 3 |
| Physical Security Lock | √ |
| Power Supply | 100-240 V AC~50/60 Hz |
| PoE Ports (RJ45) | Standard: 802.3at/af compliant, PoE+ Ports: 48 Ports (up to 30 W PoE Output per Port), Power Budget: 750 W* |
| Dimensions (W x D x H) | 17.3×13.0×1.7 in (440×330×44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | 913.4 W (110V/60Hz) (with 750 W PD connected) |
| Max Heat Dissipation | 3114.69 BTU/hr (110 V/60 Hz) (with 750 W PD connected) |
| PERFORMANCE | |
| Switching Capacity | 176 Gbps |
| Packet Forwarding Rate | 130.9 Mpps |
| MAC Address Table | 16 K |
| Packet Buffer Memory | 12 Mbit |
| Jumbo Frame | 9 KB |
| SOFTWARE FEATURES | |
| Quality of Service | 8 priority queues, 802.1p CoS/DSCP priority, Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR, Bandwidth Control: Port/Flow-based Rating Limiting, Smoother Performance, Action for Flows: QoS remark (802.1P Remark, DSCP Remark) |
| L2 and L2+ Features | 128 IP Interfaces: Support IPv4/IPv6 Interface, Static Routing: 48 IPv4/IPv6 Static Routes, Static ARP: 128 static entries, 512 ARP Entries, Proxy ARP, Gratuitous ARP, DHCP Server, DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay, DHCP L2 Relay, Link Aggregation, Spanning Tree Protocol, Loopback Detection, 802.3x Flow Control, Mirroring |
| L2 Multicast | Supports 1000 (IPv4, IPv6) IGMP groups, IGMP Snooping, IGMP Authentication, Multicast VLAN Registration (MVR), MLD Snooping, Multicast Filtering: 256 profiles and 16 entries per profile |
| Advanced Features | Automatic Device Discovery†, Batch Configuration†, Batch Firmware Upgrading†, Intelligent Network Monitoring†, Abnormal Event Warnings†, Unified Configuration†, Reboot Schedule†, ISP Features: L2PT (Layer 2 Protocol Tunneling), Device Link Detect Protocol (DLDP), PPPoE ID Insertion, ERPS, 802.3ah Ethernet Link OAM, DDM, sFlow |
| VLAN | VLAN Group: Max 4K VLAN Groups, 802.1q Tagged VLAN, MAC VLAN: 30 Entries, Protocol VLAN: Protocol Template 16, Protocol VLAN 16, Private VLAN, GVRP, VLAN VPN: VLAN Mapping, VLAN Replace, Voice VLAN |
| Access Control List | Time-based ACL, MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type, IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS, Combined ACL, Packet Content ACL, IPv6 ACL, Policy: Mirroring, Redirect, Rate Limit, QoS Remark, ACL applies to Port/VLAN |
| Security | IP-MAC-Port Binding: 512 Entries, DHCP Snooping, ARP Inspection, IPv4 Source Guard: 100 Entries, IPv6-MAC-Port Binding: 512 Entries, DHCPv6 Snooping, ND Detection, ND Snooping, IPv6 Source Guard: 100 Entries, DoS Defend, DHCP Filter, Static/Dynamic Port Security: Up to 64 MAC addresses per port, Broadcast/Multicast/Unicast Storm Control: kbps/ratio/pps control mode, 802.1X: Port-based authentication, Mac-base authentication, VLAN Assignment, MAB, Guest VLAN, Radius authentication and accountability support, AAA (including TACACS+), Port Isolation, Secure web management through HTTPS with SSLv3/TLS 1.2, Secure Command Line Interface (CLI) management with SSHv1/SSHv2, IP/Port/MAC-based access control |
| IPv6 | IPv6 Dual IPv4/IPv6, Multicast Listener Discovery (MLD) Snooping, IPv6 ACL, IPv6 Interface, Static IPv6 Routing, IPv6 neighbor discovery (ND), Path maximum transmission unit (MTU) discovery, Internet Control Message Protocol (ICMP) version 6, TCPv6/UDPv6, IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP |
| MIBs | MIB II (RFC1213), Interface MIB (RFC2233), Ethernet Interface MIB (RFC1643), Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674), RMON MIB (RFC2819), RMON2 MIB (RFC2021), Radius Accounting Client MIB (RFC2620), Radius Authentication Client MIB (RFC2618), Remote Ping, Traceroute MIB (RFC2925), Support TP-Link private MIB |
| MANAGEMENT | |
| Omada App | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Centralized Management | Omada Cloud-Based Controller, Omada Hardware Controller, Omada Software Controller |
| Cloud Access | Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| Management Features | Web-based GUI, Command Line Interface (CLI) through console port, telnet, SNMPv1/v2c/v3: Trap/Inform, RMON (1, 2, 3, 9 groups), SDM Template, DHCP/BOOTP Client, 802.1ab LLDP/LLDP-MED, DHCP AutoInstall, Dual Image, Dual Configuration, CPU Monitoring, Cable Diagnostics, EEE, Password Recovery, SNTP, System Log |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | SG3452XMPP Switch, Power Cord, Quick Installation Guide, Rackmount Kit, Rubber Feet |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment | Operating Temperature: 0–40 ℃ (32–104 ℉), Storage Temperature: -40–70 ℃ (-40–158 ℉), Operating Humidity: 10–90% RH non-condensing, Storage Humidity: 5–90% RH non-condensing |
