TP-Link SG2206MP Omada Access 6-Port Gigabit Switch with 4-Port PoE+
Silent, Powerful PoE+ Switch for Smart SMB Networks Empower your access points, IP cameras, and smart offices with quiet, fanless Gigabit PoE+—managed from anywhere for...
Silent, Powerful PoE+ Switch for Smart SMB Networks
Empower your access points, IP cameras, and smart offices with quiet, fanless Gigabit PoE+—managed from anywhere for ultimate flexibility and efficiency.
Highlights
-
5× Gigabit RJ45 ports, 4 with PoE+ support
-
1× Gigabit SFP uplink for fiber connectivity
-
63W total PoE power budget, up to 30W per PoE+ port
-
Fanless, metal design for silent desktop or wall mounting
-
Centralized cloud management via Omada SDN, app, or web
-
Supports static routing, VLAN, ACL, QoS, and IGMP snooping
-
Standalone management via web, CLI, SNMP, and RMON
Key Features
Ports & Power
-
5× Gigabit RJ45 ports (4× PoE+, IEEE 802.3af/at)
-
1× Gigabit SFP slot for fiber uplink
-
63W total PoE+ budget; max 30W per PoE+ port
-
Compatible with PoE and non-PoE devices (APs, IP cams, phones, PCs)
Management & Security
-
Centralized cloud management via Omada SDN or Omada app
-
Standalone management: web, CLI, SNMP, RMON
-
Static routing for efficient internal traffic management
-
VLAN for traffic separation, ACL for access control, QoS for prioritization, IGMP snooping for multicast optimization
Build & Deployment
-
Durable metal casing for reliability
-
Fanless design for silent operation
-

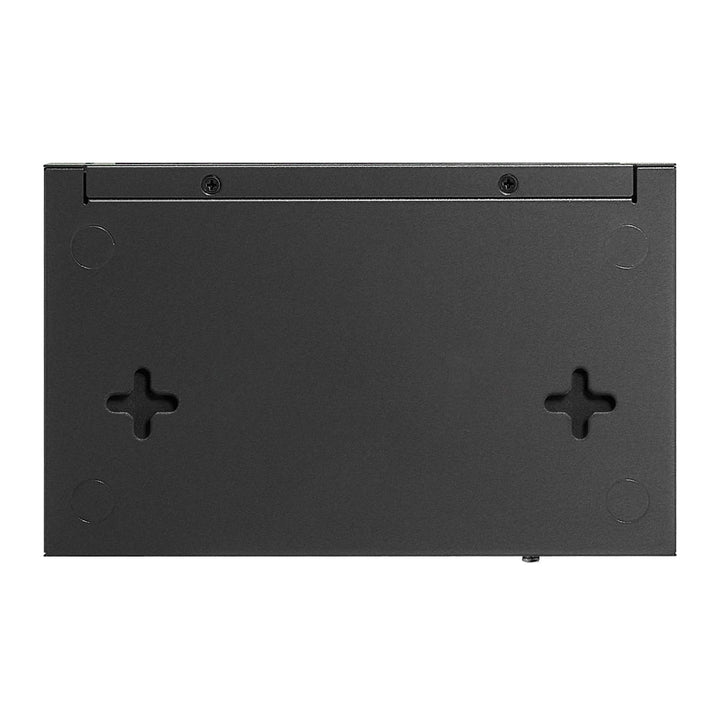

Desktop or wall-mounting options
-
Ideal for APs, IP cameras, IP phones, and wired clients in SMB networks
Summary
The TP-Link SG2206MP Omada Access Switch delivers powerful PoE+, quiet operation, and flexible management for smart SMB deployments. Perfect for powering APs, cameras, and phones, it features cloud or standalone control, static routing, and robust security—all in a silent, durable metal chassis.
TP-Link SG2206MP Omada Access 6-Port Gigabit Switch with 4-Port PoE+
Compact, smart-managed PoE+ switch designed for Omada SDN environments. Delivers reliable power, flexible deployment, and advanced Layer 2+ management for small business and edge networks.
Specifications
| Specification | Details |
|---|---|
| Interfaces | • 4 × 10/100/1000 Mbps PoE+ RJ45 • 1 × 10/100/1000 Mbps RJ45 • 1 × 1G SFP slot |
| PoE Standard | 802.3at/af compliant |
| PoE+ Ports | 4 Ports |
| PoE Power Budget | 63W |
| PoE Features | • Fast PoE • Perpetual PoE |
| Power Supply | 53.5V DC / 1.31A |
| Max. Power Consumption | 73.7W (with 63W PD connected) |
| Max. Heat Dissipation | 250.4 BTU/hr (with 63W PD connected) |
| Mounting | Desktop / Wall |

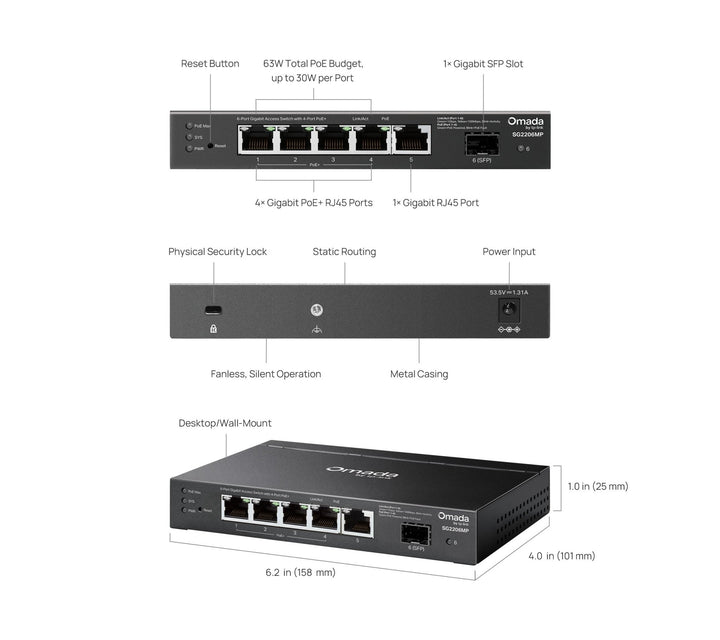

| Dimensions (W x D x H) | 158 × 100.7 × 25.4 mm (6.2 × 4.0 × 1.0 in) |
| Switching Capacity | 12 Gbps |
| Packet Forwarding Rate | 8.93 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1 Mbit |
| Jumbo Frame | 9 KB |
| Physical Security Lock | Supported |
| Performance Features | • L2/L2+ (VLAN, STP, LLDP, Link Aggregation, Static Routing) • IGMP/MVR Multicast |
| QoS | • 8 priority queues • Bandwidth/Storm control • 802.1p CoS/DSCP |
| ACL & Security | • MAC/IP/IPv6/Time-based ACL • 802.1X, RADIUS, ARP/ND/DHCP Snooping • Port Isolation |
| Management | • Web GUI • CLI (Telnet/SSH) • SNMPv1/v2c/v3 • Omada app (requires controller) |
| Centralised Management | • Omada Cloud/Hardware/Software Controller • Zero-Touch Provisioning |
| Cloud Access | Supported (Omada Controller required) |
| Dual Image/Dual Config | Yes |
| LEDs | Per port status, Power |
| Operating Temperature | -5 to 40 ℃ (23 to 104 ℉) |
| Storage Temperature | -40 to 70 ℃ (-40 to 158 ℉) |
| Operating Humidity | 10 to 90% RH, non-condensing |
| Storage Humidity | 5 to 90% RH, non-condensing |
| Certifications | CE, FCC, RoHS |

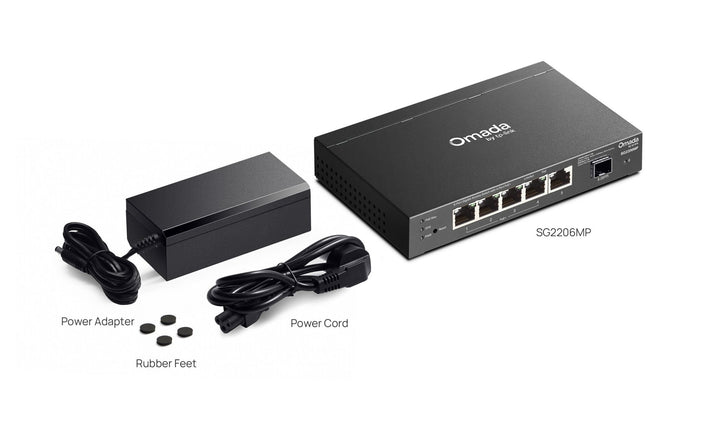

| Package Contents | • SG2206MP Switch • Power Adapter • Power Cord • Rackmount Kit • Rubber Feet • Installation Guide |
| System Requirements | Windows® 98SE/NT/2000/XP/Vista/7/8/10/11, Mac® OS, NetWare®, UNIX®, Linux |
