TP-Link InSight S355 VIGI 5MP Outdoor Full-Color Bullet Network Camera
Sharper Vision, Smarter Protection with 5MP Clarity The TP-Link InSight S355 VIGI delivers powerful 5MP full-color video surveillance 24 hours a day. Designed for outdoor...
Description
Sharper Vision, Smarter Protection with 5MP Clarity
The TP-Link InSight S355 VIGI delivers powerful 5MP full-color video surveillance 24 hours a day. Designed for outdoor deployments, this bullet-style IP camera features AI-powered analytics, smart video enhancements, active defense, and two-way audio for reliable security and proactive protection in all weather conditions.
Highlights
- 5MP super-high definition imaging for sharper detail
- Full-color recording day and night for true visibility
- AI-driven people and vehicle analytics for smart filtering
- Human and vehicle classification for reduced false alarms
- Active defense with flashing lights and siren for real-time deterrence
- Two-way audio for direct communication
- IP67 weatherproof durability for harsh environments
- H.265+ compression reduces bandwidth and storage usage
Key Features
5MP Full-Color Surveillance, Day and Night
- Capture vivid, high-resolution video with fine detail
- Full-color visibility maintained 24 hours a day
- Ideal for identifying people, vehicles, clothing, and license plates
AI-Based People and Vehicle Analytics
- Search and filter by person or vehicle attributes
- Reduce review time during investigations
- Advanced filters help identify key moments more efficiently
Human and Vehicle Classification
- Filters out irrelevant motion like animals, trees, and shadows
- Increases alert precision and monitoring efficiency
- Enhances automation and reduces false positives
Smart Video Enhancement Technology
- True WDR balances light and shadow in difficult lighting
- Smart IR dynamically adjusts illumination distance
- 3D DNR reduces noise for clearer night and low-light images
- White Balance maintains natural color tones
Proactive Active Defense
- Visual and audio warnings help prevent incidents
- Spotlight and siren activate on smart detection events
- Strengthens perimeter control in real time
Two-Way Audio
- Integrated microphone and speaker enable direct conversations
- Useful for entry points, warnings, or visitor communications
- Supports remote audio monitoring via app or NVR
Rugged Outdoor Build
- IP67 rating protects against rain, dust, and extreme environments
- Designed for stable and long-term deployment in outdoor locations
- Resists tampering and environmental wear
Advanced Compression with H.265+
- Reduces video file sizes while maintaining image quality
- Saves up to 57 percent storage compared to H.264
- Lower network strain during remote access or cloud recording
Specs
TP-Link InSight S355 VIGI 5MP Outdoor Full-Color Bullet Network Camera
| Specification | Details |
|---|---|
| Camera | |
| Image Sensor | 1/2.7” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux, 0 Lux with IR or White light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified, Scheduled, Auto |
| Lens | |
| Type | Fixed Focal Lens |
| Focal Length | 2.8 mm, 4 mm, 6 mm |
| Aperture | F1.6 |
| FOV | • 2.8 mm: Horizontal 111.4°, Vertical 58.8°, Diagonal 134° • 4 mm: Horizontal 88°, Vertical 46°, Diagonal 105.4° • 6 mm: Horizontal 57.3°, Vertical 31.3°, Diagonal 67.2° |
| Lens Mount | M12*P 0.5 |
| DORI Distance | • 2.8 mm: Detect 64 m (210 ft), Observe 27 m (89 ft), Recognize 13 m (43 ft), Identify 6 m (20 ft) • 4 mm: Detect 80 m (262 ft), Observe 33 m (108 ft), Recognize 16 m (52 ft), Identify 8 m (26 ft) • 6 mm: Detect 120 m (394 ft), Observe 50 m (164 ft), Recognize 24 m (79 ft), Identify 12 m (39 ft) |
| Angle Adjustment | Pan 0–360°, Tilt 0–90°, Rotation 0–360° |
| Illuminator | |
| IR LED | 2 pcs, Range 30 m, Wavelength 850 nm |
| White LED | 2 pcs, Range 30 m |
| Illuminator On/Off Control | Auto, Scheduled, Always on, Always off |
| Video | |
| Max. Resolution | 2880 × 1620 |
| Main Stream | • Frame Rate: 50Hz – 1/5/10/15/20/25 fps, 60Hz – 1/5/10/15/20/25/30 fps • Resolution: 2880x1620, 2688x1520, 2304x1296, 2048x1280, 1920x1080, 1280x720 • Note: Up to 20 fps if image rotated 90°/270° |
| Sub-Stream | • Frame Rate: 50Hz – 1/5/10/15/20/25 fps, 60Hz – 1/5/10/15/20/25/30 fps • Resolution: 848x480, 704x576, 640x480, 640x360, 352x288, 320x240 • Note: Up to 20 fps if image rotated 90°/270° |
| Bit Rate Control | CBR, VBR |
| Video Compression | • Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.265 Type | Main Profile |
| Video Bit Rate | • Main Stream: 256 Kbps to 6 Mbps • Sub-Stream: 64 Kbps to 512 Kbps |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software |
| Image Enhancement | BLC, 3D DNR, HLC, SmartIR |
| Wide Dynamic Range | 120 dB |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| Audio | |
| Audio Communication | Two-Way Audio |
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Yes |
| Audio Sampling Rate | 8 KHz |
| Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
| Network | |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| ONVIF | Yes |
| API | ONVIF Profile S, T, G |
| Simultaneous Live View | 3 Main Streams, 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS |
| Web Browser | Google Chrome 57+, Firefox 52+, Safari 11+, Microsoft Edge 91+ |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| Alarm & Event Management | |
| Smart Event | Intrusion, Line-Crossing, Region Entering, Region Exiting, Object Abandoned/Removed, Loitering, People, Vehicle, Abnormal Sound, Scene Change Detection |
| Basic Event | Motion Detection with Human & Vehicle Classification, Video Tampering, Illegal Login Exception |
| Alarm Linkage | Memory Card Recording, Message Push, Audible Warning, White Light Flashing |
| People & Vehicle Analytics | Attribute-based search and filtering |
| Interfaces | |
| Network Interface | 1 x RJ45 10/100M Ethernet Port, PoE |
| Alarm | N/A |
| Reset Button | Yes |
| Power | DC Power Port |
| On-board Storage | MicroSD Card Slot, up to 512 GB |
| Built-in Microphone | Yes, records within 15 ft (4.6 m) radius |
| Built-in Speaker | Yes |
| Audio | N/A |
| General | |
| Operating Temperature | -30°C to 60°C |
| Storage Temperature | -40°C to 60°C |
| Operating Humidity | ≤ 95% (Non-Condensing) |
| Storage Humidity | ≤ 95% (Non-Condensing) |

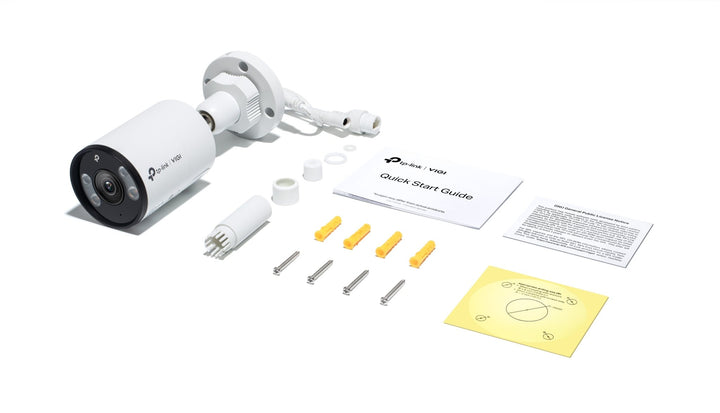

| Package Contents | VIGI Camera, Quick Start Guide, Waterproof Cable Attachments, Mounting Accessories |
| Material | Metal |
| Net Weight | 0.525 kg |
| Power Supply | 12V DC ±5%, Max. 9.7W, 5.5 mm plug; PoE 802.3af/at, Max. 10.7W |
| Protection | IP67 |
| Product Dimensions (L x W x H) | 7.2 × 2.9 × 2.9 in (184 × 74 × 74 mm) |
| Certifications | CE, NTRA, VCCI, KC, BSMI, FCC, IC |
