TP-Link InSight S345 VIGI 4MP Outdoor Full-Color Bullet Network Camera
Sharper Vision, Smarter Protection All Day and Night The TP-Link InSight S345 VIGI is a powerful 4MP outdoor full-color bullet camera designed for high-clarity surveillance,...
Description
Sharper Vision, Smarter Protection All Day and Night
The TP-Link InSight S345 VIGI is a powerful 4MP outdoor full-color bullet camera designed for high-clarity surveillance, even in low-light environments. Featuring AI-powered people and vehicle analytics, smart detection, active defense, and two-way audio, the S345 is ideal for proactive security in commercial and industrial settings.
Highlights
- 4MP super-high definition for clear, detailed imagery
- Full-color surveillance 24 hours a day
- AI-based people and vehicle analytics for smarter search and alerts
- Human and vehicle classification for accurate motion detection
- Active defense with lights and siren for real-time deterrence
- Two-way audio for communication and response
- IP67 waterproof for reliable outdoor use
- H.265+ compression saves storage and bandwidth
Key Features
Ultra-Clear Full-Color Surveillance
- Capture rich detail with 4MP clarity
- Full-color imaging enhances recognition at night
- White light illuminates scenes for vivid recordings 24/7
People and Vehicle Analytics
- Quickly filter and search events by characteristics like clothing color or vehicle type
- Speeds up post-event investigations and incident reviews
- Helps pinpoint relevant footage across hours of recordings
AI-Powered Classification
- Accurately identifies humans and vehicles
- Minimizes false alerts caused by irrelevant motion
- Enhances alert precision and reduces monitoring fatigue
Smart Video Enhancement
- True WDR balances lighting in high-contrast scenes
- Smart IR auto-adjusts brightness to prevent glare or overexposure
- 3D DNR removes video noise while preserving key image detail
- White balance delivers realistic color accuracy in any light condition
Proactive Security with Active Defense
- Built-in spotlight and siren deter intruders in real time
- Supports audio warnings and alarm triggers via smart detection
- Strengthens perimeter security and safety response
Built-in Two-Way Audio
- Speak and listen directly through the camera
- Enables remote intervention and communication
- Useful for visitor management, intruder warnings, or intercom-style use
Rugged Outdoor Performance
- IP67-rated enclosure for protection against water, dust, and harsh weather
- Designed for professional-grade installation in exposed environments
- Reliable in rain, heat, or freezing conditions
Space-Saving H.265+ Compression
- Up to 57 percent smaller video files compared to H.264
- More efficient storage without sacrificing quality
- Reduced network strain for remote viewing
Summary
The TP-Link InSight S345 VIGI 4MP Outdoor Full-Color Bullet Camera offers proactive protection, crystal-clear 24-hour recording, and AI-powered insights. Whether it’s guarding perimeters, deterring threats, or supporting investigations, this camera is built to deliver reliable, high-performance surveillance.
Specs
TP-Link InSight S345 VIGI 4MP Outdoor Full-Color Bullet Network Camera
| Specification | Details |
|---|---|
| Camera | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux, 0 Lux with IR/White Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified, Scheduled, Auto |
| Lens | |
| Type | Fixed Focal Lens |
| Focal Length Options | 2.8 mm, 4 mm, 6 mm |
| Aperture | F1.6 |
| Field of View (2.8 mm) | • Horizontal: 100° • Vertical: 54° • Diagonal: 118° |
| Field of View (4 mm) | • Horizontal: 80.4° • Vertical: 41.8° • Diagonal: 98.7° |
| Field of View (6 mm) | • Horizontal: 52.7° • Vertical: 29° • Diagonal: 60.8° |
| Lens Mount | M12 *P 0.5 |
| DORI Distance (2.8 mm) | • Detect: 64 m (210 ft) • Observe: 27 m (89 ft) • Recognize: 13 m (43 ft) • Identify: 6 m (20 ft) |
| DORI Distance (4 mm) | • Detect: 80 m (262 ft) • Observe: 33 m (108 ft) • Recognize: 16 m (52 ft) • Identify: 8 m (26 ft) |
| DORI Distance (6 mm) | • Detect: 120 m (394 ft) • Observe: 50 m (164 ft) • Recognize: 24 m (79 ft) • Identify: 12 m (39 ft) |
| Angle Adjustment (Manual) | Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360° |
| Illuminator | |
| IR LED | 2 LEDs, 850 nm wavelength, 30 m range |
| White LED | 2 LEDs, 30 m range |
| Illuminator Control | Auto, Scheduled, Always On, Always Off |
| Video | |
| Max Resolution | 2688 × 1520 |
| Main Stream Frame Rate | 1–30 fps (60Hz), 1–25 fps (50Hz), max 20 fps if rotated 90°/270° |
| Main Stream Resolutions | 2688×1520, 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720 |
| Sub-Stream Frame Rate | Same as main stream |
| Sub-Stream Resolutions | 704×576, 640×480, 352×288, 320×240 |
| Bit Rate Control | CBR, VBR |
| Video Compression | • Main: H.265+, H.265, H.264+, H.264 • Sub: H.265, H.264 |
| H.264/H.265 Profiles | High (H.264), Main (H.265) |
| Video Bit Rate | • Main: 256 Kbps – 6 Mbps • Sub: 64 Kbps – 512 Kbps |
| Image | |
| Settings | • Mirror • Brightness • Contrast • Saturation • Sharpness • Exposure • WDR • White Balance • Prevent IR Overexposure • HLC Adjustment |
| Enhancements | BLC, 3D DNR, HLC, Smart IR |
| Wide Dynamic Range | 120 dB (DWDR only when People & Vehicle Analytics is enabled) |
| SNR | ≥ 52 dB |
| Image Parameter Switch | Yes |
| Privacy Mask | Up to 4 masks |
| ROI | 1 region |
| OSD | Yes |
| Audio | |
| Audio Communication | Two-Way Audio |
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Yes |
| Sampling Rate | 8 KHz |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
| Noise Filtering | Yes |
| Network | |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, FTP/SFTP, RTP, IPv4/IPv6, ARP, SSL/TLS |
| ONVIF | Yes (Profiles S/T/G) |
| API | Open Network Video Interface |
| Live View | 3 Main Streams & 3 Sub-Streams |
| Clients | VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS |
| Browser Support | Chrome 57+, Firefox 52+, Safari 11+, Edge 91+ |
| Cloud Support | Yes |
| Security | Password Protection, HTTPS Encryption, IP Filter, Digest Authentication |
| Alarm & Event Management | |
| Smart Events | • Intrusion, Line-Crossing, Region Entry/Exit • Object Abandonment/Removal • Loitering, People, Vehicle, Abnormal Sound, Scene Change |
| Basic Events | • Motion Detection (Human/Vehicle Enhanced) • Video Tampering • Illegal Login |
| Alarm Linkage | • SD Recording • Message Push • Audible Warning • White Light Flashing |
| Linkage Method | Not Applicable |
| Output Notification | Message Push |
| Deep Learning Function | People & Vehicle Analytics (search and filter by attributes) |
| Interfaces | |
| Network Interface | 1× RJ45 10/100M Ethernet Port (PoE) |
| Alarm | Not Available |
| Reset Button | Yes |
| Power Port | DC 12V |
| On-board Storage | MicroSD Card Slot (Up to 512 GB) |
| Built-in Microphone | Yes (15 ft / 4.6 m radius coverage) |
| Built-in Speaker | Yes |
| General | |
| Operating Temperature | -30°C to 60°C |
| Storage Temperature | -40°C to 60°C |
| Operating/Storage Humidity | ≤ 95% RH (Non-condensing) |
| Material | Metal |
| Net Weight | 0.525 kg |
| Power Supply | • 12V DC ± 5%, Max. 9.7 W • PoE: 802.3af/at, Class 0, Max. 10.7 W |
| Protection | IP67 Waterproof |

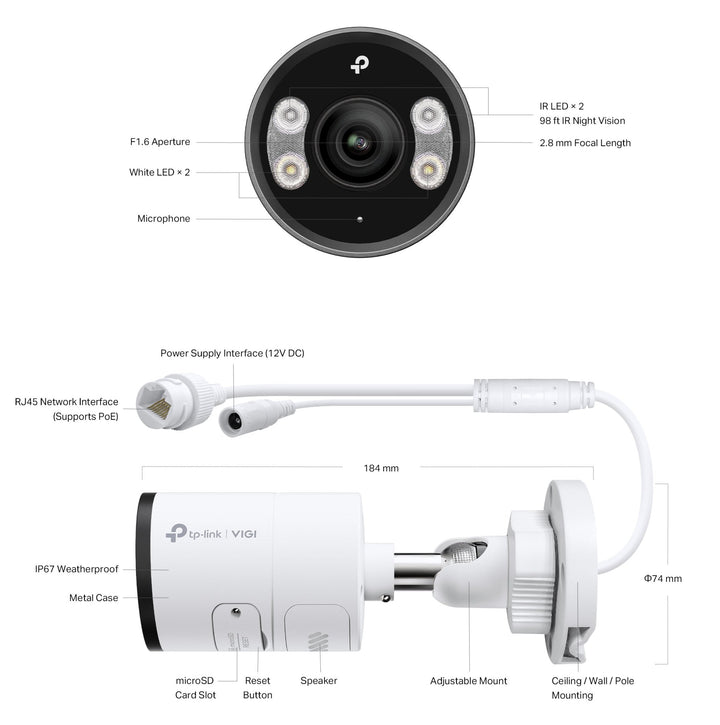

| Dimensions (L x W x H) | 184 × 74 × 74 mm (7.2 × 2.9 × 2.9 in) |
| Certifications | CE, NTRA, VCCI, KC, BSMI, FCC, IC |

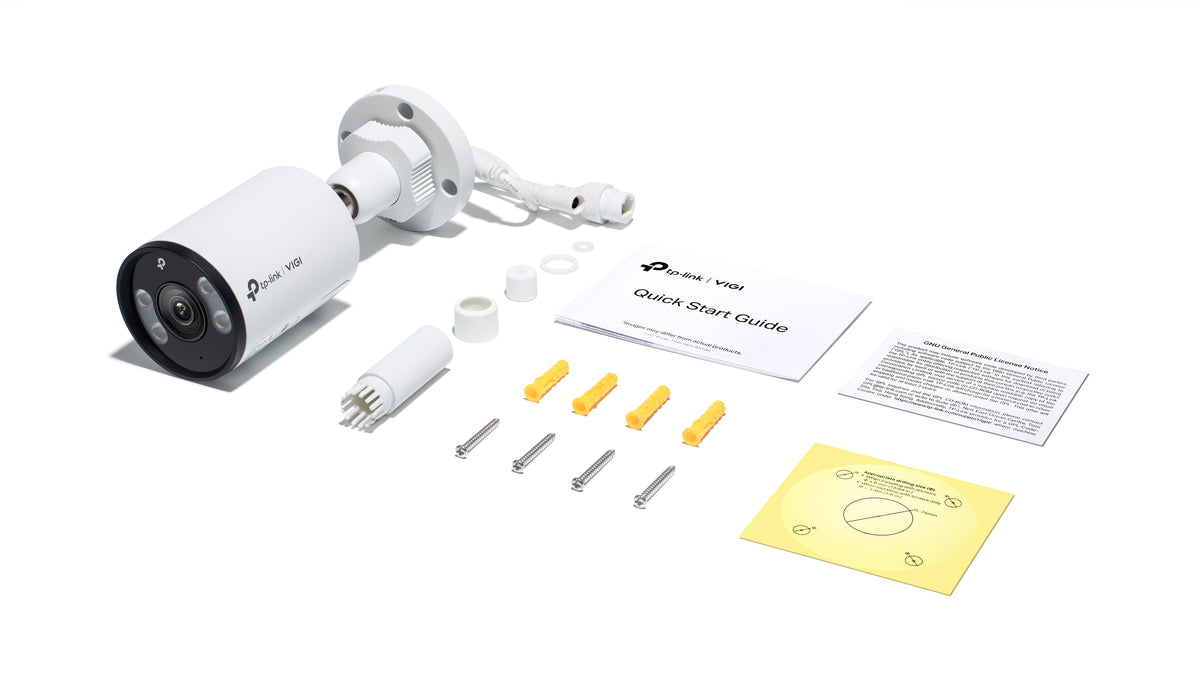

| Package Contents | • VIGI Network Camera • Quick Start Guide • Waterproof Cable Attachments • Mounting Accessories |
