TP-Link InSight S345-4G VIGI 4MP Outdoor Full-Color 4G Bullet Network Camera
Description
4G-Ready Security, Full-Color Clarity All Day
The TP-Link InSight S345-4G VIGI Camera is an all-in-one outdoor surveillance solution combining 4MP resolution, 4G mobile connectivity, and full-color day/night imaging. With three built-in LAN ports for downstream devices and cutting-edge smart detection, it’s the ideal choice for remote areas, solar-powered systems, or installations with limited cabling access.
Highlights
- 4MP Super-High Definition with 24/7 full-color video
- 4G mobile networking for flexible remote deployment
- Three LAN ports for connecting additional cameras or devices
- Advanced AI-powered human and vehicle classification
- Smart detection with real-time alerts
- Built-in active defense and two-way audio
- IP66-rated weatherproof casing
- Efficient H.265+ video compression for optimized storage
Key Features

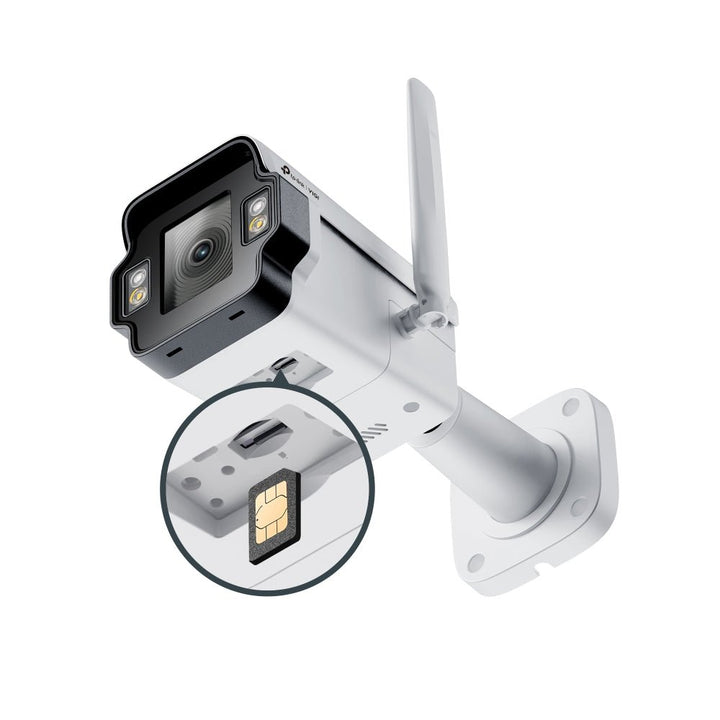

Hassle-Free 4G Connectivity
- Integrated 4G LTE module eliminates the need for wired internet
- Perfect for remote, rural, or solar-powered surveillance setups
Three Built-In LAN Ports
- Supports up to three downstream devices such as additional cameras
- Ideal for 360° full area coverage without the need for switches
LightPro Night Vision Technology
- Intelligent switching between IR and white light for optimal visibility
- Automatically switches to full-color night vision when people or vehicles are detected
- Reduces light pollution and power consumption
Smart Detection and AI Analytics
- Human and vehicle classification to reduce false alerts
- Instant event notifications via the VIGI app
- Advanced video analytics powered by VIGI AI
Enhanced Video Quality
- True WDR for balanced lighting in high-contrast environments
- Smart IR dynamically adjusts for glare-free night footage
- 3D DNR reduces video noise and enhances clarity
- Auto white balance ensures natural color tone
Rugged Build
- IP66 weatherproof rating for outdoor durability
- Full metal casing to withstand harsh environments
- Compatible with VIGI solar power systems
Efficient Storage
- H.265+ compression saves 57.5% more space than H.264
- Maintains high video quality while reducing bandwidth
Summary
The TP-Link InSight S345-4G is designed for sites where wiring is difficult, but clarity, intelligence, and flexibility are essential. With its industry-first three LAN ports, adaptive night vision, and 4G connectivity, it’s perfect for farms, construction zones, remote warehouses, and solar-powered security systems.
Specs
TP-Link InSight S345-4G VIGI 4MP Outdoor Full-Color 4G Bullet Network Camera
| Specification | Details |
|---|---|
| Camera | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux, 0 Lux with IR/White Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified, Scheduled, Auto |
| Lens | |
| Type | Fixed Focal Lens |
| Focal Length | 4 mm |
| Aperture | F1.6 |
| Field of View | • Horizontal: 80.4° • Vertical: 41.8° • Diagonal: 98.7° |
| Lens Mount | M12 |
| DORI Distance | • Detect: 80 m (262 ft) • Observe: 33 m (109 ft) • Recognize: 16 m (52 ft) • Identify: 8 m (26 ft) |
| Angle Adjustment (Manual) | Pan: 0°–360°, Tilt: 0°–90°, Rotate: 0°–360° |
| Illuminator | |
| IR LED | 2 LEDs, 850 nm wavelength, 50 m range |
| White LED | 2 LEDs, 30 m range |
| Illuminator Control | Auto, Scheduled, Always On, Always Off |
| Video | |
| Max Resolution | 2688 × 1520 |
| Main Stream Frame Rate | 1–30 fps (50/60Hz, capped at 20 fps if rotated 90°/270°) |
| Sub-Stream Frame Rate | 1–30 fps (50/60Hz, capped at 20 fps if rotated 90°/270°) |
| Main Stream Resolutions | 2688×1520, 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720 |
| Sub-Stream Resolutions | 848×480, 704×576, 640×480, 640×360, 352×288, 320×240 |
| Bit Rate Control | CBR, VBR |
| Video Compression | • Main: H.265+, H.265, H.264+, H.264 • Sub: H.265, H.264 |
| H.264/H.265 Profiles | High (H.264), Main (H.265) |
| Video Bit Rate | • Main: 256 Kbps – 6 Mbps • Sub: 64 Kbps – 512 Kbps |
| Image | |
| Settings | • Mirror • Brightness • Contrast • Saturation • Sharpness • Exposure • WDR • White Balance • Prevent IR Overexposure |
| Enhancements | BLC, 3D DNR, HLC, SmartIR |
| Wide Dynamic Range | 120 dB |
| Image Parameter Switch | Yes |
| Privacy Mask | Up to 4 masks |
| ROI | 1 region |
| OSD | Yes |
| Audio | |
| Audio Communication | Two-Way Audio |
| Audio Input | Built-in Microphone |
| Audio Output | Built-in Speaker |
| Audio Compression | Yes |
| Sampling Rate | 8 KHz |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
| Noise Filtering | Yes |
| Network | |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, FTP/SFTP, RTP, IPv4/IPv6, ARP, SSL/TLS |
| ONVIF | Yes (Profiles S/G/T) |
| API | Open Network Video Interface |
| Live View | 3 Main Streams & 3 Sub-Streams |
| Clients | VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS |
| Browser Support | Chrome 57+, Firefox 52+, Safari 11+, Edge 91+ |
| Cloud Support | Yes |
| Security | Password Protection, HTTPS Encryption, IP Filter, Digest Authentication |
| 4G | |
| Standard | LTE-TDD, LTE-FDD, WCDMA |
| SIM Type | Nano SIM (1 slot) |
| Category | 4 |
| Frequency | • LTE-FDD: B1/3/5/7/8/20/28 • LTE-TDD: B38/40/41 • WCDMA: B1/5/8 |
| Alarm & Event Management | |
| Smart Events | • Intrusion, Line-Crossing, Region Entry/Exit • Object Abandonment/Removal • Loitering, People, Vehicle, Abnormal Sound, Scene Change |
| Basic Events | • Motion Detection (Human/Vehicle Enhanced) • Tampering • Illegal Login |
| Alarm Linkage | • SD Recording • Message Push • White Light Flashing • Sound Warning • FTP Upload • Alarm Server |
| Interfaces | |
| Network Interface | 3× RJ45 10/100M LAN Ports |
| Alarm | Not Available |
| Reset Button | Yes |
| Power Port | DC 12V |
| On-board Storage | MicroSD Card Slot (Up to 512 GB) |
| SIM Card Slot | 1× Built-in Nano SIM Slot |
| General | |
| Operating Temperature | -30°C to 60°C |
| Storage Temperature | -40°C to 60°C |
| Operating/Storage Humidity | ≤ 95% RH (Non-condensing) |
| Material | Metal |
| Net Weight | 1.09 kg |
| Power Supply | 12V DC ± 5%, Max. 10.59 W, 5.5 mm Coaxial Plug |
| Antenna | |
| Quantity | 2 |
| Type | Dipole Omni-Directional (690–960 MHz & 1710–2690 MHz) |
| Gain | • Ant1: 0.84 dBi @ 690–960 MHz, 2.85 dBi @ 1710–2690 MHz • Ant2: 0.74 dBi @ 690–960 MHz, 3.06 dBi @ 1710–2690 MHz |
| Protection | IP66 Weatherproof |
| Dimensions (L x W x H) | 256 × 122 × 101 mm (10 × 4.8 × 4.0 in) (excluding antennas) |
| Certifications | WPS, WHQL, Energy Star, RoHS, CE, NCC, NTRA, KC, RCM, ONVIF, IP66 |
| Package Contents | • VIGI Network Camera • Quick Start Guide • Waterproof Cable Attachments • Mounting Accessories • Power Adapter |
