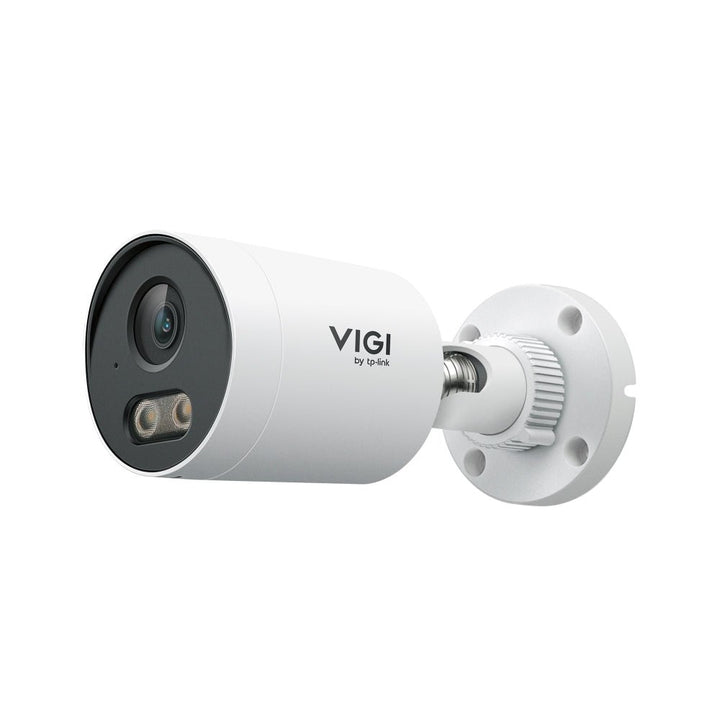

TP-Link InSight S325 VIGI 2MP Outdoor Full-Color Bullet Network Camera
Full-Color Surveillance, Day and Night in Any Weather The TP-Link InSight S325 VIGI delivers dependable 2MP video with 24-hour full-color imaging, AI-powered human and vehicle...
Description
Full-Color Surveillance, Day and Night in Any Weather
The TP-Link InSight S325 VIGI delivers dependable 2MP video with 24-hour full-color imaging, AI-powered human and vehicle classification, and enhanced clarity through advanced video technologies. Designed for durability with IP67 weatherproof protection, it’s ideal for outdoor security in commercial, residential, and industrial applications.
Highlights
- 2MP high-definition imaging with vivid full-color at night
- LightPro Night Vision intelligently toggles between IR and full-color
- Human and vehicle classification for smart, accurate alerts
- Built-in microphone for audio recording
- IP67 weatherproof housing for outdoor reliability
- Smart IR, WDR, and DNR for enhanced image quality
- Space-saving H.265+ compression technology
Key Features
Always-On Full-Color Video
- 24-hour full-color surveillance delivers clearer visuals than traditional IR
- Captures accurate details in poorly lit environments
- Ideal for areas requiring positive identification
AI Human and Vehicle Classification
- Reduces false alarms by filtering out irrelevant motion
- Sends precise alerts only when people or vehicles are detected
- Improves efficiency in event monitoring and playback
LightPro Night Vision Technology
- Detects vehicles or people and switches from IR to white light
- Maximizes image detail while reducing unnecessary light pollution
- Adapts dynamically to your environment for smarter lighting
Smart Video Enhancement
- Smart IR prevents overexposed close-up images
- 3D DNR removes video noise for clean footage
- True WDR balances bright and dark areas for optimal contrast
- White balance ensures color accuracy in any lighting
Outdoor-Ready and Durable
- IP67-rated protection withstands rain, dust, and extreme temperatures
- Rugged bullet design deters tampering and ensures longevity
- Designed for professional-grade deployment in any outdoor setting
Audio Surveillance
- Built-in microphone records environmental sound
- Enhances situational awareness in security footage
Efficient Storage with H.265+
- Advanced compression saves bandwidth and storage
- Up to 57 percent more efficient than standard H.264
- Maintains high image quality with reduced file size
Summary
The TP-Link InSight S325 VIGI 2MP Outdoor Bullet Camera delivers essential full-color clarity, AI intelligence, and durability for reliable surveillance. With 24-hour vivid recording and efficient performance, it’s the smart choice for perimeter security and remote monitoring.
Specs
TP-Link InSight S325 VIGI 2MP Outdoor Full-Color Bullet Network Camera
| Specification | Details |
|---|---|
| Camera | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.2 Lux, 0 Lux with IR/White Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified, Scheduled, Auto |
| Lens | |
| Type | Fixed Focal Lens |
| Focal Length Options | 2.8 mm, 4 mm, 6 mm |
| Aperture | F2.0 |
| Field of View (2.8 mm) | • Horizontal: 98.8° • Vertical: 53.5° • Diagonal: 117° |
| Field of View (4 mm) | • Horizontal: 75.2° • Vertical: 40.8° • Diagonal: 88.3° |
| Field of View (6 mm) | • Horizontal: 59.8° • Vertical: 27.6° • Diagonal: 57.7° |
| Lens Mount | M12 *P 0.5 |
| DORI Distance (2.8 mm) | • Detect: 47 m (154.2 ft) • Observe: 19 m (62.3 ft) • Recognize: 9 m (29.5 ft) • Identify: 5 m (16.4 ft) |
| DORI Distance (4 mm) | • Detect: 59 m (193.6 ft) • Observe: 25 m (82 ft) • Recognize: 12 m (39.4 ft) • Identify: 6 m (19.7 ft) |
| DORI Distance (6 mm) | • Detect: 89 m (292 ft) • Observe: 37 m (121.4 ft) • Recognize: 18 m (59.1 ft) • Identify: 9 m (29.5 ft) |
| Angle Adjustment (Manual) | Pan: 0°–360°, Tilt: 0°–90°, Rotation: 0°–360° |
| Illuminator | |
| IR/White LED | 2 integrated LEDs |
| IR Range / White LED Range | 30 m (98 ft) |
| IR Wavelength | 850 nm |
| Illuminator Control | Auto, Scheduled, Always On, Always Off |
| Video | |
| Max Resolution | 1920 × 1080 |
| Main Stream Frame Rate | 1–30 fps (60Hz), 1–25 fps (50Hz), max 20 fps if rotated 90° |
| Main Stream Resolutions | 1920×1080, 1280×960, 1280×720 |
| Sub-Stream Frame Rate | Same as main stream |
| Sub-Stream Resolutions | 848×480, 704×576, 640×480, 640×360, 352×288, 320×240 |
| Bit Rate Control | CBR, VBR |
| Video Compression | • Main: H.265+, H.265, H.264+, H.264 • Sub: H.265, H.264 |
| H.264/H.265 Profiles | High (H.264), Main (H.265) |
| Video Bit Rate | • Main: 256 Kbps – 4 Mbps • Sub: 64 Kbps – 512 Kbps |
| Image | |
| Settings | • Mirror • Brightness • Contrast • Saturation • Sharpness • Exposure • WDR • White Balance • Prevent IR Overexposure • HLC Adjustment |
| Enhancements | BLC, 3D DNR, HLC, Smart IR |
| Wide Dynamic Range | DWDR |
| SNR | ≥ 52 dB |
| Image Parameter Switch | Yes |
| Privacy Mask | Up to 4 masks |
| ROI | 1 region |
| OSD | Yes |
| Audio | |
| Audio Communication | Not Available |
| Audio Input | Yes (Built-in Microphone) |
| Audio Output | Not Available |
| Audio Compression | Yes |
| Sampling Rate | 8 KHz |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
| Noise Filtering | Yes |
| Network | |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS |
| ONVIF | Yes (Profiles S/T) |
| API | Open Network Video Interface |
| Live View | 3 Main Streams & 3 Sub-Streams |
| Clients | VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool |
| Browser Support | Chrome 57+, Firefox 52+, Safari 11+, Edge 91+ |
| Cloud Support | Yes |
| Security | Password Protection, HTTPS Encryption, IP Filter, Digest Authentication |
| Alarm & Event Management | |
| Smart Events | • Intrusion, Line-Crossing, Region Entry/Exit • People, Vehicle Detection |
| Basic Events | • Motion Detection (Human/Vehicle Enhanced) • Video Tampering • Illegal Login |
| Alarm Linkage | • Email Alert • Push Notification • FTP Upload • Alarm Server |
| Deep Learning Function | Not Available |
| Interfaces | |
| Network Interface | 1× RJ45 10/100M Ethernet Port (PoE) |
| Alarm | Not Available |
| Reset Button | Not Available |
| Power Port | DC 12V |
| On-board Storage | Not Available |
| Built-in Microphone | Yes (within 4.6 m / 15 ft radius) |
| Built-in Speaker | Not Available |
| General | |
| Operating Temperature | -30°C to 60°C |
| Storage Temperature | -40°C to 60°C |
| Operating/Storage Humidity | ≤ 95% RH (Non-condensing) |
| Material | Metal |
| Net Weight | 0.353 kg |
| Power Supply | • 12V DC ± 5%, Max. 7.4 W • PoE: 802.3af/at, Class 0, Max. 8 W |
| Protection | IP67 Waterproof |

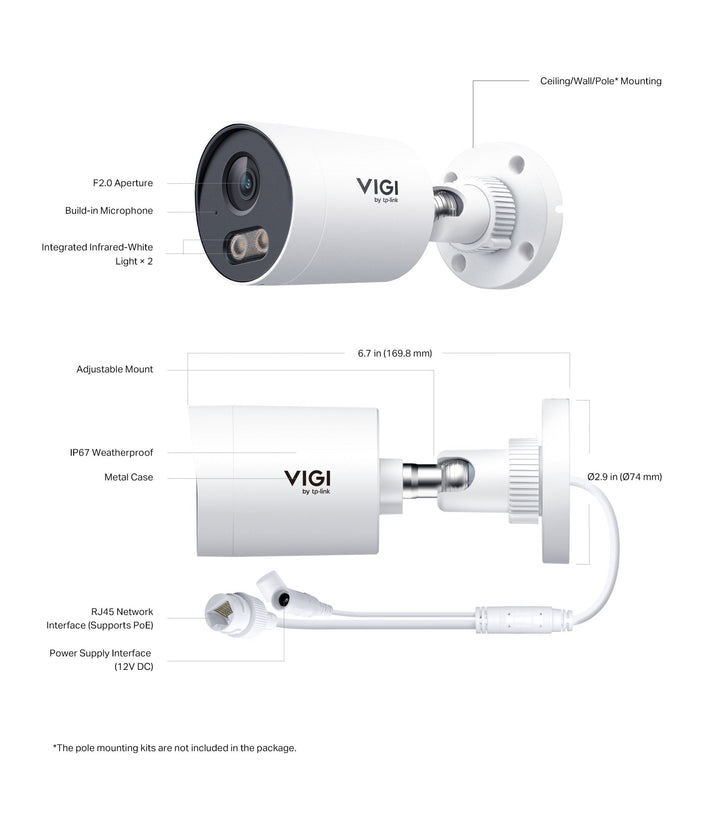

| Dimensions (L x W x H) | 169.8 × 74 × 74 mm (6.7 × 2.9 × 2.9 in) |
| Certifications | CE, FCC, BSMI, VCCI, KC, NTRA |

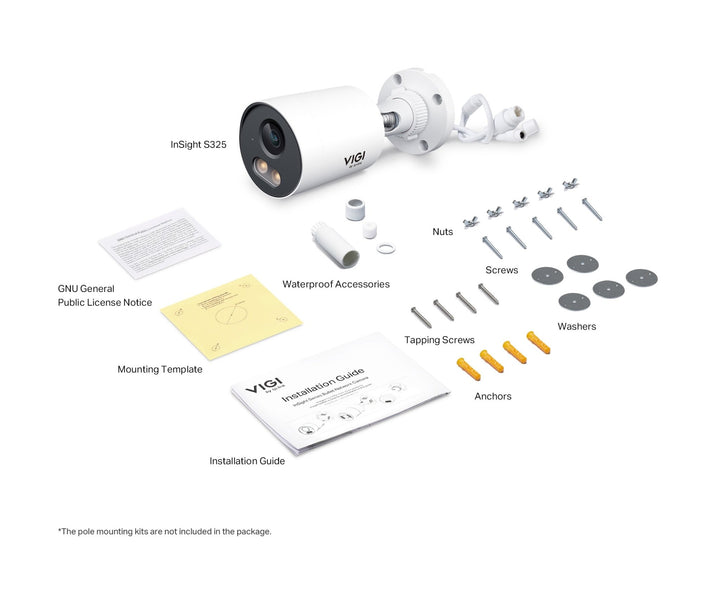

| Package Contents | • VIGI Network Camera • Quick Start Guide • Waterproof Cable Attachments • Mounting Accessories |
