TP-Link ES228GMP Omada 28-Port Gigabit Easy Managed 250m Long Range POE Switch with 24-Port PoE+
High-Power Long-Range PoE Switch for Surveillance and SMB Networks The TP-Link ES228GMP Omada 28-Port Gigabit Easy Managed Switch offers 24 PoE+ ports with extended 250m...
High-Power Long-Range PoE Switch for Surveillance and SMB Networks
The TP-Link ES228GMP Omada 28-Port Gigabit Easy Managed Switch offers 24 PoE+ ports with extended 250m PoE transmission, high total power output, and seamless Omada Cloud SDN management. Built for IP surveillance, access point deployment, and wired client access, it combines plug-and-play ease with robust features like PoE Auto Recovery, traffic prioritization, and port isolation — all in a rack-mountable metal chassis designed for professional environments.
Highlights
-

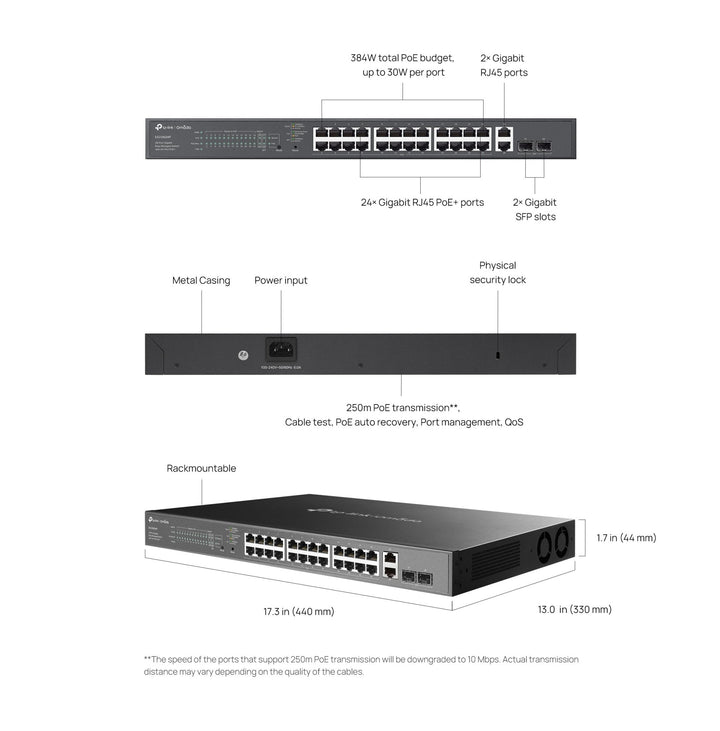

28 Gigabit Ports: 24× PoE+ ports, 2× RJ45 uplinks, and 2× SFP slots
-
384W PoE Budget: Supports up to 30W per port for high-power devices
-
250m PoE Range: Ideal for long-distance IP camera and AP deployments**
-
Plug-and-Play + Smart Management: Auto functions with optional centralized configuration
-
Omada Cloud Support: Free lifetime cloud-based control via web or app†
Key Features
Long-Range and High-Power PoE Deployment
-
24× 802.3af/at PoE+ Ports: Support cameras, access points, and VoIP phones
-
PoE Budget: Up to 384W total, with 30W max per port
-
250m PoE Transmission: Extended reach for outdoor or remote devices**
-
PoE Auto Recovery: Automatically detects and reboots non-responsive PoE devices‡
Smart and Secure Switching
-
Port Isolation: Enhances network security by separating traffic
-
VLAN & IGMP Snooping: Efficient multicast traffic control for video streams
-
QoS (Quality of Service): Prioritizes latency-sensitive traffic like video and voice△
-
Automatic Loop Prevention: Protects against network loops with self-healing
Scalable and Centralized Management
-
Omada Cloud Essentials:
-
Free for life, no controller hardware or license required
-
Web or Omada app-based management
-
Multi-site support, ZTP, and remote provisioning
-
-
Easy Deployment: Supports web browser, app login, and TP-Link ID integration
Professional Hardware Design
-
Rack-Mountable Metal Casing: Built for enterprise-grade installation
-
Fanless Design: Silent operation, ideal for office or surveillance closets
-
Flexible Uplink Options: 2× SFP ports for fiber uplinks or network extension
Summary
The TP-Link ES228GMP is a feature-packed 28-port Gigabit PoE+ switch engineered for surveillance and SMB networks requiring long-distance PoE, high power, and easy cloud-based control. With 384W power budget, advanced switching features, and Omada Cloud Essentials compatibility, it delivers scalable, secure, and efficient network infrastructure deployment — all from a single, silent, and robust switch.
TP-Link ES228GMP Omada 28-Port Gigabit Easy Managed 250m Long Range POE Switch with 24-Port PoE+
Specification | Details |
---|---|
Interface | • 24 × 10/100/1000 Mbps PoE+ RJ45 Ports (802.3af/802.3at) • 2 × 10/100/1000 Mbps RJ45 Ports • 2 × Gigabit SFP Slots |
Fan Quantity | 2 |
Installation | Rackmountable |
Physical Security Lock | Supported |
Power Supply | 100–240V AC, 50/60Hz |
PoE Specifications | • 24 PoE+ ports • 384W PoE power budget • 30W max per port • Supports Fast PoE, Perpetual PoE, and Auto Recovery • Up to 250m PoE transmission distance |
Dimensions (W x D x H) | 440 × 330 × 44 mm (17.3 × 13.0 × 1.7 in) |
Surge Protection | ±6kV |
Switching Capacity | 56 Gbps |
Packet Forwarding Rate | 29.76 Mpps |
MAC Address Table | 8K |
Packet Buffer Memory | 4 Mbit |
Jumbo Frame | 15 KB |
Quality of Service | • Port-based, 802.1p, DSCP QoS • 8 Priority Queues • WRR Scheduling • Queue Weight Config • Port-Based Rate Limiting • Storm Control with kbps/pps modes |
L2 Features | • Static Link Aggregation • Loop Prevention / Loopback Detection • 802.3x Flow Control • Port Mirroring (One-to-One, Many-to-One, Ingress/Egress/Both) • Port Statistics • 802.1ab LLDP |
L2 Multicast | • IGMP v1/v2/v3 Snooping • Fast Leave |
VLAN Support | • MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN • Max 32 VLAN Groups • 4K VID |
Transmission Method | Store-And-Forward |
Omada App Support | Supported (Requires Omada Controller) |
Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
Cloud Access | Supported (Requires Omada Controller) |
Zero-Touch Provisioning | Supported (Requires Omada Cloud-Based Controller) |
Management Features | • Web GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Unified Configuration |
Certification | FCC, CE, RoHS |

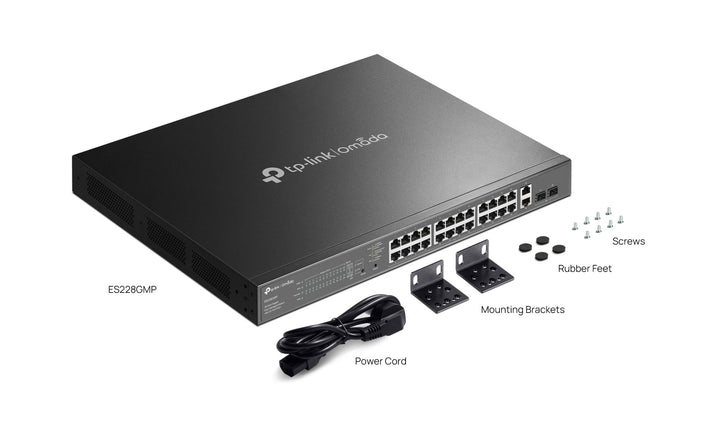

Package Contents | • ES228GMP • Power Cord • Mounting Brackets • Rubber Feet • Screws • Installation Guide |
Operating Temperature | -5°C to 45°C (23°F to 113°F) |
Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
Operating Humidity | 10% to 90% non-condensing |
Storage Humidity | 5% to 90% non-condensing |
