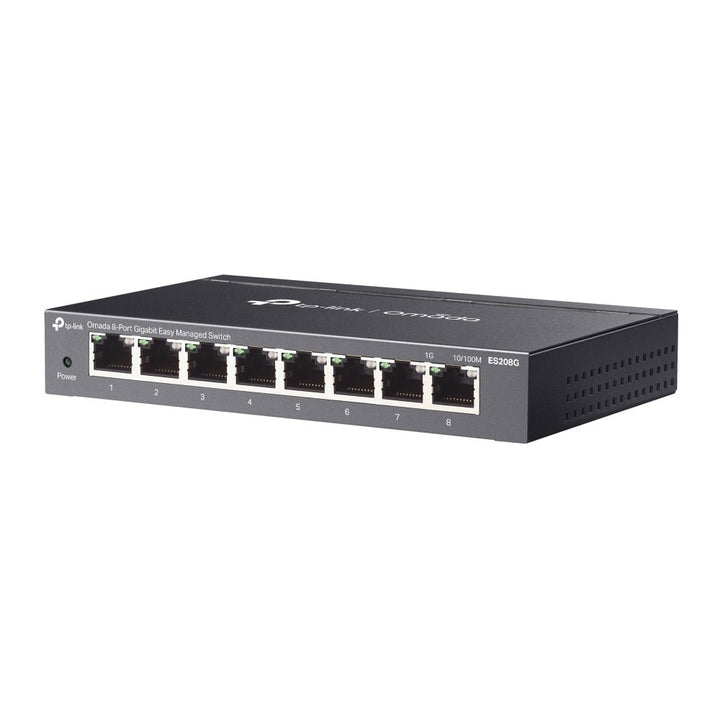

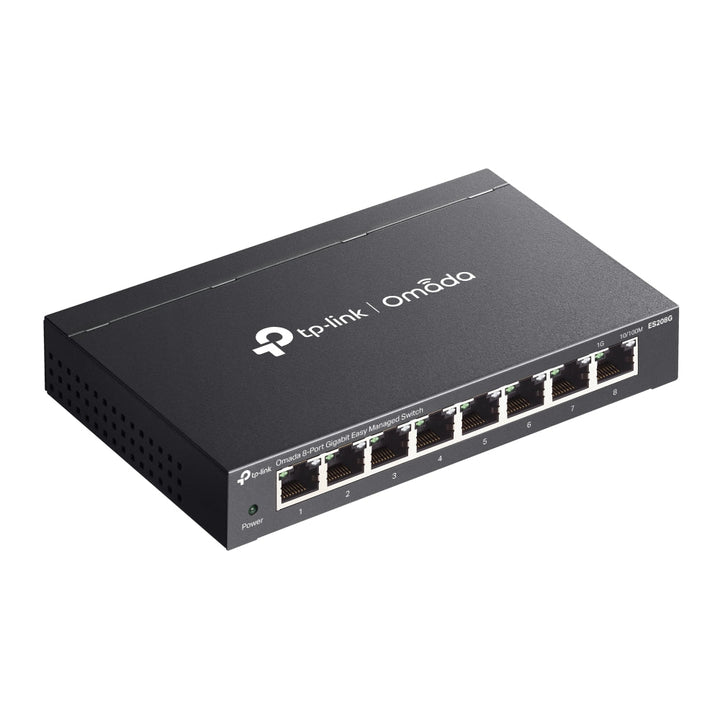

TP-Link ES208G Omada 8-Port Gigabit Easy Managed Switch
Simplified and Reliable Gigabit Networking for Small Businesses The TP-Link ES208G Omada 8-Port Gigabit Easy Managed Switch provides plug-and-play connectivity with centralized cloud management, making...
Description
Simplified and Reliable Gigabit Networking for Small Businesses
The TP-Link ES208G Omada 8-Port Gigabit Easy Managed Switch provides plug-and-play connectivity with centralized cloud management, making it the ideal solution for surveillance networks, small businesses, and home offices. With a silent fanless design, traffic management features, and Omada Cloud Essentials support, this switch ensures a secure, efficient, and easy-to-manage networking experience.
Highlights
- 8× Gigabit Ports: High-speed 10/100/1000 Mbps connectivity for seamless data transfers.
- Plug-and-Play Simplicity: Easy setup with no complex configuration required.
- Omada Cloud Management: Control the switch remotely via the web or Omada app.†
- Advanced Traffic Control: VLAN, Port Isolation, IGMP Snooping, and QoS for optimized network performance.△
- Loop Prevention and Cable Test: Prevents network disruptions and simplifies troubleshooting.△
- Durable Metal Casing: Compact, desktop or wall-mountable design with fanless silent operation.
Key Features
High-Speed Gigabit Connectivity
- 8× 10/100/1000 Mbps RJ45 Ports: Supports high-speed wired networking for various devices.
- Plug-and-Play: Simply connect devices and start using the switch instantly.
- Optimized for Surveillance: Ideal for IP cameras, access points, and business networks.
Omada Cloud Essentials for Easy Management
- Lifetime Free Cloud Management: No additional fees for centralized cloud-based control.
- Zero-Touch Provisioning (ZTP): Configure and deploy the switch remotely without unboxing.
- Multiple Site Management: Control and monitor multiple networks from a single interface.
- Access Anytime: Manage via web browser or the Omada app from anywhere.
Enhanced Network Security and Traffic Optimization
- VLAN Support: Separates traffic for improved security and network efficiency.
- Port Isolation: Secures surveillance cameras and other critical devices from unauthorized access.
- QoS (Quality of Service): Prioritizes video and voice traffic for smooth streaming and calls.△
- Automatic Loop Prevention: Detects and stops network loops before they cause disruptions.
- Cable Test Feature: Quickly identify and diagnose faulty Ethernet cables.△

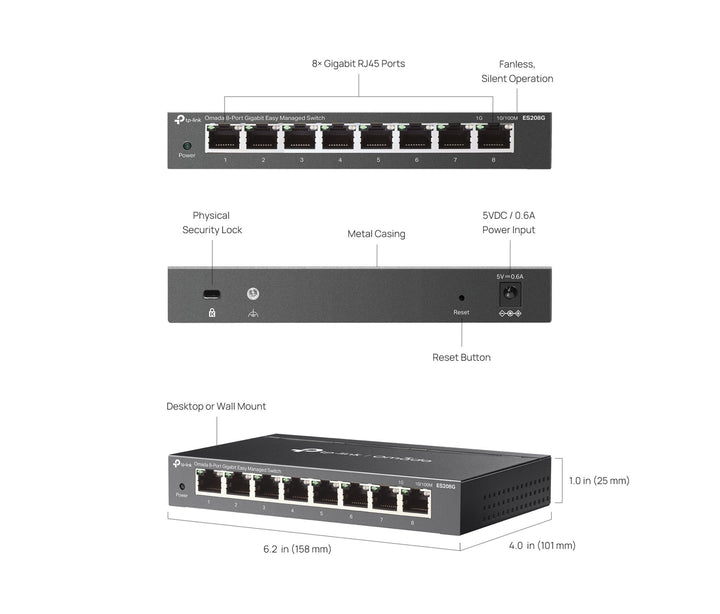

Compact and Durable Design
- Silent Fanless Operation: Eliminates noise while ensuring efficient heat dissipation.
- Sturdy Metal Casing: Provides long-term durability for various environments.
- Flexible Installation: Supports desktop or wall mounting for space-saving deployment.
Summary
The TP-Link ES208G Omada 8-Port Gigabit Easy Managed Switch is designed for businesses, surveillance systems, and small-scale networking needs. With plug-and-play functionality, Omada Cloud Essentials support, VLAN and QoS management, and a durable fanless design, it offers high-speed connectivity, reliable security, and effortless cloud-based control. Whether deployed in a business office, retail store, or security setup, the ES208G ensures stable and efficient networking with minimal maintenance.
Specs
TP-Link ES208G Omada 8-Port Gigabit Easy Managed Switch
| Specification | Details |
|---|---|
| Hardware Features | |
| Interface | • 8× 10/100/1000 Mbps RJ45 Ports • Auto-Negotiation/Auto MDI/MDIX |
| Fan Quantity | Fanless |
| Installation | • Desktop • Wall Mount |
| Physical Security Lock | Yes |
| Power Supply | DC Power Adapter (Output: 5VDC / 0.6A) |
| Dimensions (W x D x H) | 6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm) |
| Surge Protection | ±6kV |
| Performance | |
| Switching Capacity | 16 Gbps |
| Packet Forwarding Rate | 11.9 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4 Mbit |
| Jumbo Frame | 15 KB |
| Software Features | |
| Quality of Service (QoS) | • Port-based / 802.1p / DSCP QoS • 8 Priority Queues • Priority Schedule Mode: WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control: Port-Based Rating Limit • Storm Control: Multiple Control Modes (kbps/pps), Broadcast/Multicast/Unknown-Unicast Control |
| L2 Features | • Static Link Aggregation • Loop Prevention / Loopback Detection • Flow Control: 802.3x Flow Control • Mirroring: Port Mirroring (One-to-One, Many-to-One, Ingress/Egress/Both) • Port Statistics: Port Mirror Status, Traffic Statistics • 802.1ab LLDP |
| L2 Multicast | • IGMP Snooping: IGMP v1/v2/v3 Snooping, Fast Leave |
| VLAN | • MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN (Max 32 VLAN Groups, 4K VID) |
| Transmission Method | Store-and-Forward |
| Management | |
| Omada App | Yes (Requires Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller) |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes (Requires Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller) |
| Zero-Touch Provisioning | Yes (Requires Omada Cloud-Based Controller) |
| Management Features | • Web-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery • Batch Configuration • Batch Firmware Upgrading • Unified Configuration |
| Others | |
| Certification | FCC, CE, RoHS |

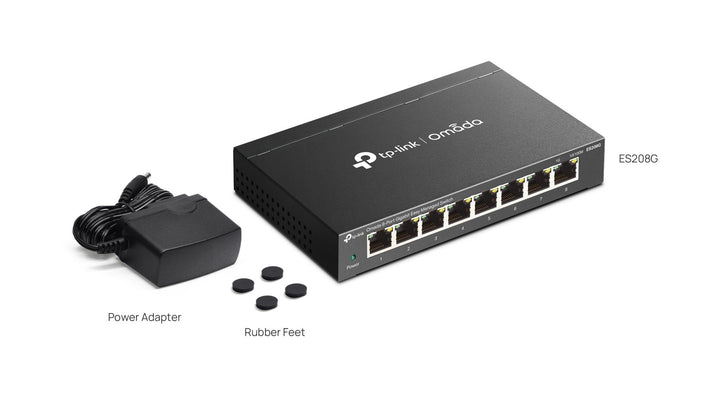

| Package Contents | • ES208G • Power Adapter • Rubber Feet • Installation Guide |
| Environment | • Operating Temperature: -5℃ to 45℃ (23℉ to 113℉) • Storage Temperature: -40℃ to 70℃ (-40℉ to 158℉) • Operating Humidity: 10% to 90% non-condensing • Storage Humidity: 5% to 90% non-condensing |
