TP-Link EAP787 BE15000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
Ultra-Fast, Tri-Band WiFi 7 with Dedicated RF Intelligence Experience next-level performance, capacity, and reliability—future-proofed for enterprise, campus, and dense business environments with real-time spectrum monitoring...
Ultra-Fast, Tri-Band WiFi 7 with Dedicated RF Intelligence
Experience next-level performance, capacity, and reliability—future-proofed for enterprise, campus, and dense business environments with real-time spectrum monitoring and multi-gigabit power.
Highlights
-
Tri-band 8-stream WiFi 7 delivers up to 15 Gbps total throughput
-
Real-time dedicated RF scanning with dynamic interference avoidance
-
Maximized 6 GHz coverage with AFC for robust signals and wider range
-
1× 10G/2.5G Ethernet port for high-speed backbone
-
Supports 510+ concurrent clients and up to 190 ㎡ (2050 ft²) coverage
-
Flexible 802.3bt PoE++ or DC power options
-
Omada SDN cloud management, Mesh, and seamless roaming
-
320 MHz bandwidth, MLO, Multi-RUs, and 4K-QAM for high performance
-
Advanced security: WPA3, rogue AP detection, SMS login, up to 24 SSIDs
Key Features
Wireless Performance
-
WiFi 7 tri-band: 6 GHz (5765 Mbps), 5 GHz (8648 Mbps), 2.4 GHz (688 Mbps)
-
8 spatial streams with 320 MHz ultra-wide bandwidth
-
4096-QAM modulation for higher data rates and efficiency
-
Multi-Link Operation (MLO) for low latency and smart traffic handling
RF Scanning & Optimization
-
Dedicated spectral analyzer radio for real-time tri-band scanning
-
Continuous spectrum analysis without interrupting data traffic
-
Interference detection, over-the-air packet capture, source identification
Wired & Power Options
-
1× 10G/2.5G Ethernet uplink for fast wired connectivity
-
Power: 802.3bt/at PoE++ or DC supply for flexible installation
-
Fanless, silent ceiling-mount design
Management & Security
-
Centralized cloud or local management with Omada SDN, web, or app
-
Mesh networking, seamless roaming, and fast setup
-
Up to 510+ concurrent clients, 24 SSIDs, and advanced guest controls
-
WPA3 encryption, rogue AP detection, secure VLAN, and SMS authentication
Physical & Environmental
-
Coverage: up to 190 ㎡ (2050 ft²)
-
Ambient temp: standard enterprise range (spec on request)
-
Elegant, low-profile ceiling-mount design
Summary
The TP-Link EAP787 BE15000 brings cutting-edge WiFi 7, dedicated RF analytics, and true multi-gigabit performance to enterprise and campus networks. Power up to 510 devices, eliminate interference, and manage everything centrally—future-ready for the busiest environments.
TP-Link EAP787 BE15000 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
Ultra-fast WiFi 7 access point with tri-band connectivity, designed for dense environments and seamless enterprise deployment.
Specifications
| Specification | Details |
|---|---|
| Interface | 1 × 10G/2.5G Ethernet Port |
| Button | Reset |
| Power Supply | • 802.3bt/at PoE • 12V/2.5A DC |
| Max. Power Consumption | • 29 W (PoE) • 24.5W (DC) |
| Dimensions (W x D x H) | 220 × 220 × 38.8 mm (8.7 × 8.7 × 1.5 in) |
| Antenna | • 2.4 GHz: 2 × 4.0 dBi • 5 GHz: 4 × 5.0 dBi • 6 GHz: 2 × 5.0 dBi |
| Bluetooth | 1 × 5 dBi (internal module, peak gain) |
| Mounting | Ceiling, Wall, Junction Box (Kits Included) |
| Coverage | 190 m² (2050 ft²) |
| Concurrent Clients | 510+ |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 2.4 GHz, 5 GHz, 6 GHz |
| Signal Rate | • 2.4 GHz: 688 Mbps • 5 GHz: 8648 Mbps • 6 GHz: 5765 Mbps |
| Wireless Functions | • 320 MHz Bandwidth • MLO • 4K-QAM • Multi-RUs • Seamless Roaming (802.11k/v/r) • MU-MIMO • Mesh • BSS Coloring • OFDMA • Load Balance • Band Steering • Beamforming • Airtime Fairness • Multiple SSIDs: 24 (8 per band) • Wireless Schedule • Reboot Schedule • QoS (WMM) • Rate Limit • Static IP/Dynamic IP • RADIUS Accounting • MAC Authentication |
| Wireless Security | • Captive Portal Authentication • Access Control • MAC Filter • Client Isolation • VLAN • Rogue AP Detection • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | • 2.4 GHz: 4–25 dBm • 5 GHz (U-NII-1 & 3): 7–29 dBm • 5 GHz (U-NII-2A): 7–26 dBm • 5 GHz (U-NII-2C): 7–24 dBm • 6 GHz: 4–23 dBm |
| Omada App | Supported |
| Centralized Management | • Omada Central (Cloud-Based) • Omada Hardware/Software Controller |
| Cloud Access | Yes (Omada Controller required) |
| SNMP | v1, v2c, v3 |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access | Yes |
| System Logging | Local/Remote Syslog |
| Web-based Management | Yes |
| Certification | CE, FCC, RoHS, IC |

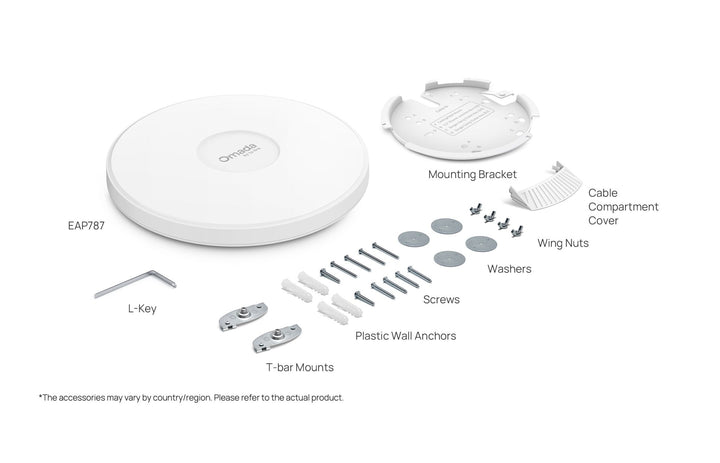

| Package Contents | • EAP787 Access Point • Installation Guide • Ceiling/Wall/Junction Box Mounting Kit (Power adapter NOT included) |
| Operating Temperature | 0–40°C (32–104°F) |
| Storage Temperature | -40–70°C (-40–158°F) |
| Operating Humidity | 10–90% RH (non-condensing) |
| Storage Humidity | 5–90% RH (non-condensing) |
