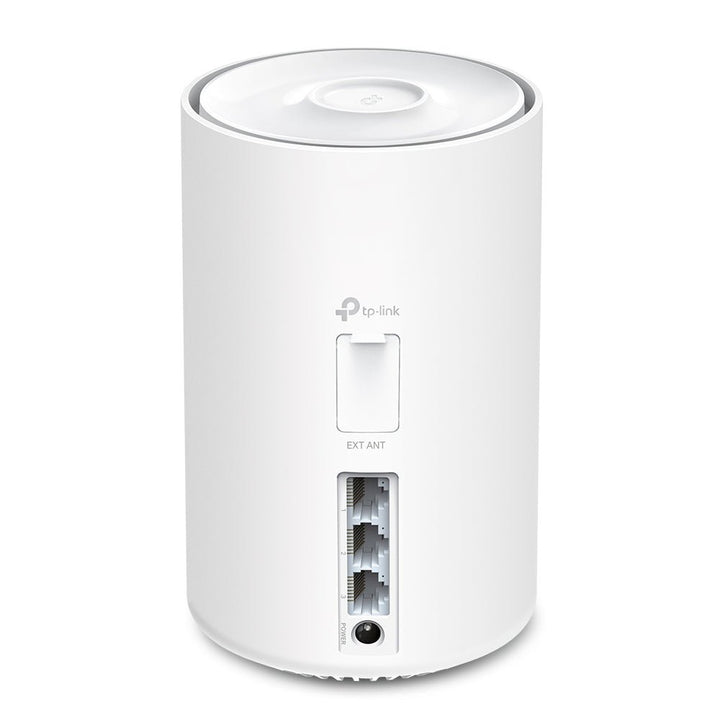

TP-Link Deco X20-4G 4G+ AX1800 Whole Home Mesh WiFi 6 Gateway
Unleashing the Power of Mesh Wi-Fi 6 with 4G+ Connectivity Experience Ultimate Internet Freedom and Superior Wi-Fi Performance The TP-Link Deco X20-4G 4G+ AX1800 Whole...
Specs
| Category | Details |
|---|---|
| Security | |
| Network Security | SPI Firewall, Access Control |
| HomeShield Security | Real-Time IoT Protection, Malicious Site Blocker, Intrusion Prevention System, DDoS Attack Prevention, Home Network Scanner |
| Guest Network | 1× 5 GHz Guest Network, 1× 2.4 GHz Guest Network |
| WiFi Encryption | WPA-Personal, WPA2-Personal, WPA3-Personal |
| Wireless | |
| Standards | Wi-Fi 6, IEEE 802.11ax/ac/n/a 5 GHz, IEEE 802.11ax/n/b/g 2.4 GHz |
| WiFi Speeds | AX1800, 5 GHz: 1201 Mbps (802.11ax), 2.4 GHz: 574 Mbps (802.11ax) |
| WiFi Range | 1-3 Bedroom Houses (1-pack), TP-Link Mesh Technology, Optional Ethernet backhaul, 2 LTE antennas, 2 Wi-Fi antennas (Internal), Beamforming |
| WiFi Capacity | High, Dual-Band, MU-MIMO, OFDMA, 4 Streams |
| Working Modes | 3G/4G, Router, Access Point |
| Hardware | |

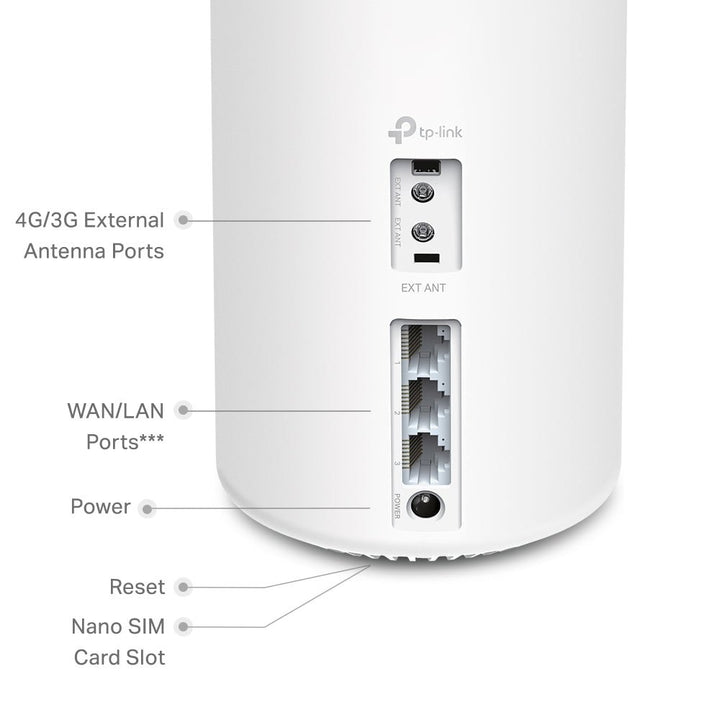

| Ethernet Ports | 3× Gigabit Ports, Supports WAN/LAN auto-sensing |
| USB Support | 12 V ⎓ 1.5 A |
| Buttons | RESET Button |
| Ports and Connections | 2 × 3G/4G External Antenna Ports |
| Compatibility | 4G: FDD-LTE, TDD-LTE; 3G: DC-HSPA+/HSPA/UMTS |
| Software | |
| Protocols | IPv4, IPv6 |
| Service Kit | HomeShield |
| WAN Types | Dynamic IP, Static IP, PPPoE, L2TP, PPTP |
| Quality of Service | HomeShield QoS, QoS by Device |
| Cloud Service | OTA Firmware Upgrade, TP-Link ID, DDNS |
| NAT Forwarding | Port Forwarding, UPnP |
| IPTV | IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN |
| DHCP | Address Reservation, DHCP Client List, Server |
| DDNS | TP-Link |
| Management | Deco App |
| Test Data | |
| WiFi Transmission Power | CE: ≤20 dBm (2.4GHz), ≤23 dBm (5GHz) |
| Physical | |
| Dimensions (W×D×H) | 4.13 × 4.13 × 6.57 in (105 × 105 × 167mm) |
| Package Contents | 1-pack, 2-pack, 3-pack options with respective components |
| Others | |
| Certification | CE, RoHS |
| Box Dimensions (W X D X H) | 4.13 × 4.13 × 6.57 in (105 × 105 × 167mm) |
TP-Link Deco X20-4G 4G+ AX1800 Whole Home Mesh WiFi 6 Gateway
