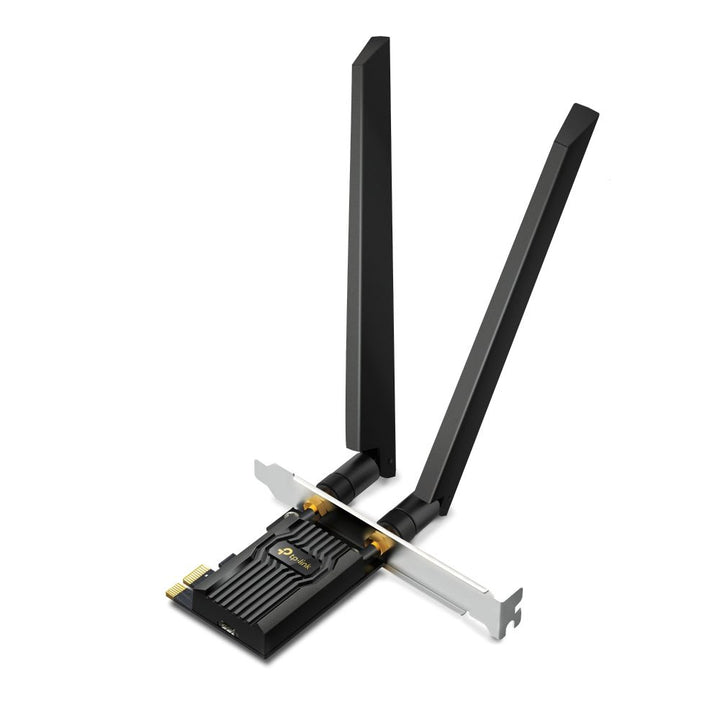

TP-Link Archer TXE72E AXE5400 Wi-Fi 6E Bluetooth 5.3 PCIe Adapter
Experience the Power of Wi-Fi 6E & Bluetooth 5.3 Next-Level Wireless Connectivity The TP-Link Archer TXE72E AXE5400 is a groundbreaking Wi-Fi 6E and Bluetooth 5.3...
Experience the Power of Wi-Fi 6E & Bluetooth 5.3
Next-Level Wireless Connectivity
The TP-Link Archer TXE72E AXE5400 is a groundbreaking Wi-Fi 6E and Bluetooth 5.3 PCIe Adapter, crafted to elevate your PC's wireless capabilities to new heights. This adapter is an essential upgrade for users demanding the fastest, most reliable internet connection for gaming, streaming, and beyond.
Key Features
-
Tri-Band Speed: Outstanding speeds up to 2402 Mbps (6 GHz) + 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz).
- Expands bandwidth and speeds with the new 6 GHz band
-
Wi-Fi 6E Standard: Utilizes the clearer, broader 6 GHz band for enhanced bandwidth and speed.
- Note: 6 GHz band support currently available on Windows 11 only
- Intel® Wi-Fi 6E Chipset: Reduced latency and improved reliability, maximizing your Wi-Fi 6E router's potential.
- Wider Signal Coverage: Two multi-directional antennas designed for optimal reception.
- Bluetooth 5.3 Technology: Latest Bluetooth standard for faster speeds and broader coverage.
- Enhanced Security: WPA3 provides advanced protection for personal password safety.
- Reliable Engineering: Specialized heatsink and gold plating for superior performance in various conditions.
- Backward Compatibility: Full support for 802.11ax/ac/a/b/g/n Wi-Fi standards.
Advanced Technologies
- WiFi 6E: Opens up the 6 GHz band for less congestion and higher capacity, ideal for AR/VR, 8K streaming, and more.

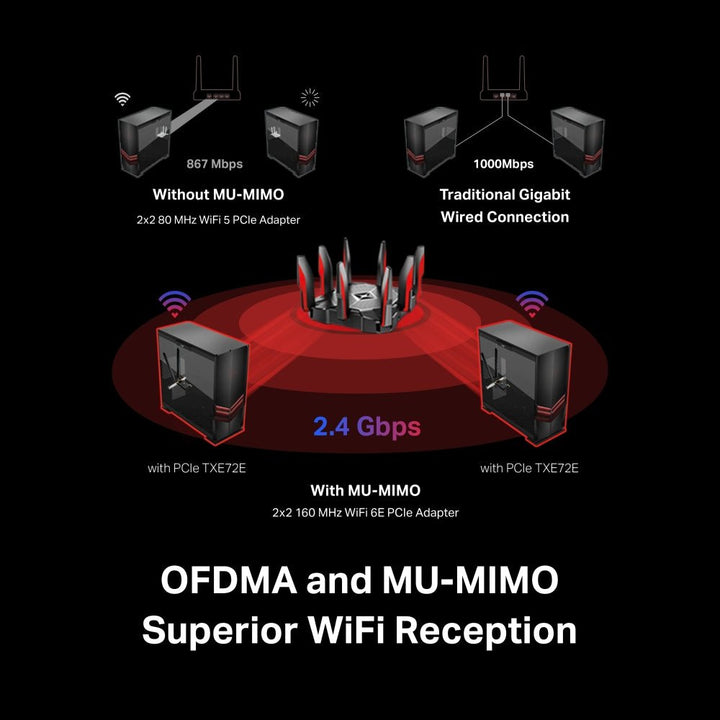

- OFDMA and MU-MIMO: Ensures efficient Wi-Fi connectivity, allowing simultaneous communication with multiple devices.
- Reduced Latency: Up to 75% lower latency with the Intel® Wi-Fi 6E chipset for seamless real-time applications.
Summary
The TP-Link Archer TXE72E AXE5400 Wi-Fi 6E and Bluetooth 5.3 PCIe Adapter represents the pinnacle of wireless technology, offering unparalleled speeds, reduced latency, and broader coverage. Whether for immersive gaming, high-definition streaming, or general high-speed internet use, this adapter is a game-changer for any advanced PC setup.
| Specification Title | Detail |
|---|---|
| Hardware Features | |
| Dimensions | 4.72 x 3.09 x 0.82 inches (120 x 78.5 x 21 mm) |
| Antenna Type | 2× High-Gain Tri-Band Antennas |
| Wireless Features | |
| Wireless Standards | IEEE 802.11a/b/g/n/ac/ax |
| WLAN Signal Rate | 6 GHz: 11ax: Up to 2402Mbps, 5 GHz: 11ax: Up to 2402 Mbps (dynamic), 11ac: Up to 1732 Mbps (dynamic), 11n: Up to 300 Mbps (dynamic), 11a: Up to 54 Mbps (dynamic), 2.4 GHz: 11ax: Up to 574 Mbps (dynamic), 11n: Up to 400 Mbps (dynamic), 11g: Up to 54 Mbps (dynamic), 11b: Up to 11 Mbps (dynamic) |
| WLAN Reception Sensitivity | 6 GHz: 11ax HE160 MCS0: -86, 11ax HE160 MCS11: -56, 5 GHz: 11ax HE80 MCS0: -90 dBm, 11ax HE80 MCS11: -59 dBm, 11a 54Mbps: -77 dBm, 11ac VHT80 MCS0: -92dBm, 11ac VHT80 MCS9: -64dBm, 2.4 GHz: 11ax HE40 MCS0: -91 dBm, 11ax HE40 MCS11: -60 dBm, 11g 54Mbps: -76 dBm, 11n HT40 MCS7: -72dBm |
| WLAN Transmit Power | 5 GHz: 20dBm(FCC) /15dBm(CE) (EIRP), 2.4 GHz: 20dBm(FCC) / 16dBm(CE) (EIRP), 6 GHz: 12dBm(FCC) |
| WLAN Modes | Infrastructure mode |
| Wireless Security | WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK |
| Others | |
| Certification | FCC, CE, RoHS |
| Package Contents | Archer TXE72E, 2× High-Gain Antennas, Low-Profile Bracket, Bluetooth Header Cable, Quick Installation Guide, Resource CD |
| System Requirements | Supported operating systems include Windows 10, 11(64-bit). Currently, 6 GHz Band only supported on Windows 11. |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉), Operating Humidity: 10%~90% non-condensing, Storage Humidity: 5%~90% non-condensing |
| Accessories Specifications | |
| Bluetooth Header Cable Length | 0.3m |
