TP-Link Archer BE550 Pro BE9700 Tri-Band Wi-Fi 7 Router
Next-Generation Wi-Fi for the Ultimate Home Experience The TP-Link Archer BE550 Pro BE9700 delivers blazing-fast 9.7 Gbps Wi-Fi 7 speeds with advanced features like Multi-Link...
Next-Generation Wi-Fi for the Ultimate Home Experience
The TP-Link Archer BE550 Pro BE9700 delivers blazing-fast 9.7 Gbps Wi-Fi 7 speeds with advanced features like Multi-Link Operation, 320 MHz channels, and 4K-QAM technology. Designed for high-performance households, it provides ultra-low latency, reliable multi-device connectivity, and advanced network security to handle everything from 8K streaming and VR gaming to smart home integration.
Highlights
-
Tri-Band Wi-Fi 7: Up to 9.7 Gbps across 6 GHz, 5 GHz, and 2.4 GHz bands
-
Multi-Link Operation (MLO): Transmit across multiple bands simultaneously for boosted speed and reduced latency
-
Low Latency Performance: 4× lower latency than Wi-Fi 6/6E for gaming, VR/AR, and video calls
-
10 Gbps Connectivity: 1× 10 Gbps WAN port, 4× 2.5 Gbps LAN ports, and 1× USB 3.0 port for multi-gig internet and device support
-
6 High-Performance Antennas: Internal antennas with beamforming deliver extended coverage and stronger signals
-
EasyMesh-Compatible: Expand coverage seamlessly with TP-Link EasyMesh routers and extenders
-
TP-Link HomeShield: Advanced security, parental controls, and IoT network protection
-
VPN Support: Built-in VPN client and server for secure, flexible connections
Key Features
Ultra-Fast Wi-Fi 7 Technology
-
9.7 Gbps Speeds: Powered by 320 MHz channels and 4K-QAM for maximum bandwidth
-
Future-Proof Connectivity: Designed for 8K streaming, high-speed downloads, and heavy smart home usage
Multi-Link Operation (MLO)
-
Simultaneous Transmission: Uses multiple bands (6 GHz, 5 GHz, 2.4 GHz) to increase throughput and reduce latency
-
Improved Reliability: Consistent connections for high-demand applications
Multi-Gig Wired and Wireless
-
10 Gbps WAN Port: Supports internet plans up to 10 Gbps
-
4× 2.5 Gbps LAN Ports: Delivers stable high-speed connections for PCs, gaming consoles, and smart TVs
-
USB 3.0 Port: Enables fast file sharing and external storage access
Expanded Coverage with Beamforming
-

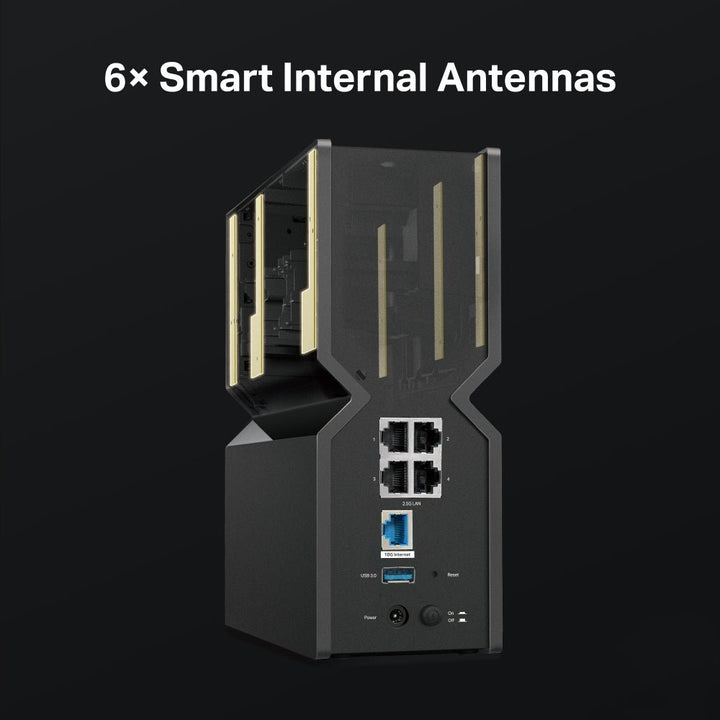

6 Smart Antennas: Internal antennas optimized for broad coverage
-
Beamforming Technology: Directs Wi-Fi signals to devices for improved strength in hard-to-reach areas
Mesh Wi-Fi with EasyMesh
-
Whole-Home Coverage: Add EasyMesh routers or extenders for seamless Wi-Fi across your home
-
One Wi-Fi Name: No switching networks while moving around
-
Smart Roaming: Continuous streaming without drops
Security and Control with HomeShield
-
Network Scanner: Detects potential threats in real-time
-
Parental Controls: Manage online time and content access for family members
-
Quality of Service (QoS): Prioritize bandwidth for important devices
-
IoT Security: Separate IoT network with WPA3 encryption for enhanced safety
VPN Flexibility
-
Dual VPN and Internet: Run VPN and standard connections simultaneously for secure and flexible access
Summary / Conclusion
The TP-Link Archer BE550 Pro BE9700 Wi-Fi 7 router sets a new standard for home networking with ultra-fast tri-band speeds, reduced latency, and intelligent multi-band operations. Offering powerful wired and wireless connectivity, seamless mesh expansion, and robust security via HomeShield, it is ideal for streaming, gaming, smart homes, and remote work. Designed for users who demand top performance, it ensures a future-proof home network experience.
TP-Link Archer BE550 Pro BE9700 Tri-Band Wi-Fi 7 Router
The TP-Link Archer BE550 Pro unlocks Wi-Fi 7 performance with blazing-fast BE9700 speeds, tri-band connectivity, and advanced Multi-Link Operation (MLO). Designed for 4-bedroom homes, it delivers wide coverage with 6 high-gain antennas, advanced security with HomeShield, and flexible network management for modern smart homes.
Product Specifications
Specification | Details |
---|---|
Wi-Fi Speeds | BE9700 |
Wi-Fi Range | 4-Bedroom Houses • 6× Optimally Positioned Antennas • Beamforming Technology • High-Power FEM for stronger coverage |
Wi-Fi Capacity | High • Tri-Band • OFDMA • Airtime Fairness • DFS |
Working Modes | • Router Mode • Access Point Mode |
Advanced Features | • Multi-Link Operation (MLO) • 320 MHz Channel • 4K-QAM • Multi-RUs • EasyMesh-Compatible • Works with Alexa & Google Assistant • IoT Network |
Network Security | • SPI Firewall • Access Control • IP & MAC Binding • Application Layer Gateway HomeShield Security • Real-Time IoT Protection • Malicious Site Blocker • Intrusion Prevention System • DDoS Attack Prevention • Home Network Scanner |
Guest Network | • 1× 6 GHz Guest Network • 1× 5 GHz Guest Network • 1× 2.4 GHz Guest Network |
VPN Server | • OpenVPN • PPTP • L2TP • WireGuard |
VPN Client | • OpenVPN • PPTP • L2TP • WireGuard |
Wi-Fi Encryption | WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x) |

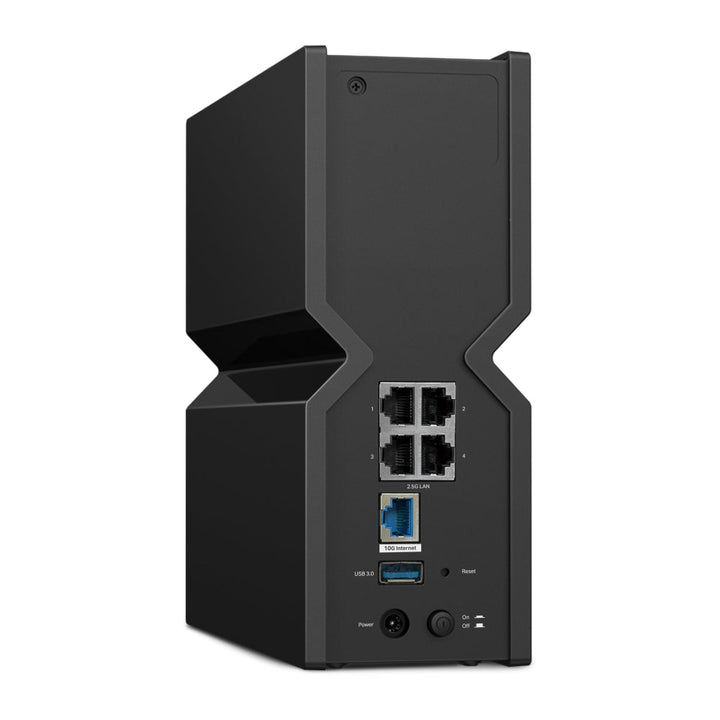

Ethernet Ports | • 1× 10 Gbps WAN • 4× 2.5 Gbps LAN |
USB Support | 1× USB 3.0 • Partition Formats: NTFS, exFAT, HFS+, FAT32 • Functions: FTP Server, Media Server, Samba Server |
Buttons | • Power On/Off • Wi-Fi On/Off • LED • WPS • Reset |
Power | 12 V ⎓ 3.3 A |
Protocols | IPv4, IPv6 |
Service Kit | HomeShield |
EasyMesh | Yes |
Parental Controls | • Custom Profiles • Professional Content Filter Library • Family Time, Bedtime, Off Time • Time Rewards • Family Online Time Ranking • Pause Internet • Weekly & Monthly Reports |
WAN Types | Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
Quality of Service | QoS by Device |
Cloud Services | Auto Firmware Upgrade, TP-Link ID, DDNS |
NAT Forwarding | Port Forwarding, Port Triggering, DMZ, UPnP |
IPTV | IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN |
DHCP | Address Reservation, DHCP Client List, Server |
DDNS | TP-Link, NO-IP, DynDNS |
Management Features | Tether App, Webpage |
System Requirements | • Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+ • Cable or DSL Modem (if needed) • ISP Subscription Required |
Certifications | CE, FCC, RoHS |
Operating Temperature | 0°C to 40°C (32°F to 104°F) |
Operating Humidity | 10% to 90% RH, non-condensing |
Dimensions (W×D×H) | 76 × 231.7 × 203 mm (3.0 × 9.1 × 8.0 inches) |
Package Contents | • Archer BE550 Pro Wi-Fi 7 Router • Power Adapter • RJ45 Ethernet Cable • Quick Installation Guide |
