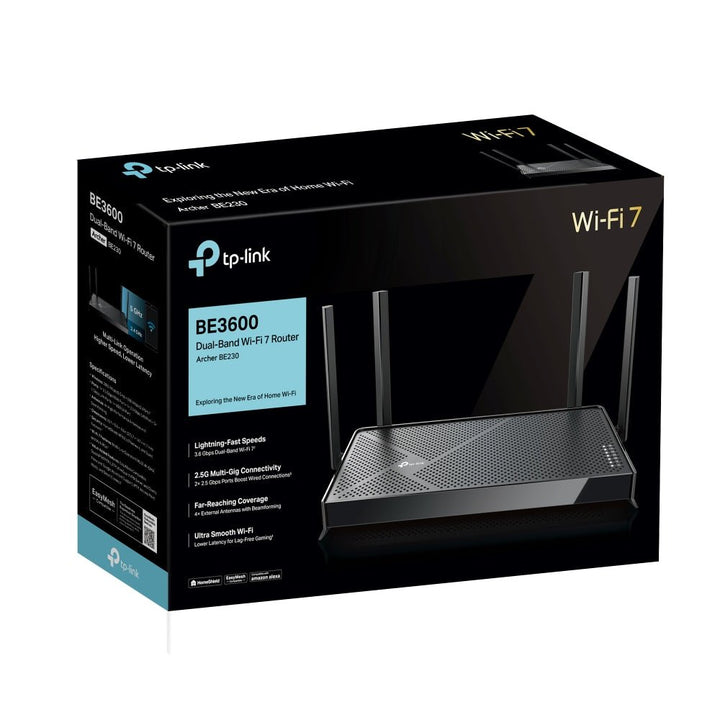

TP-Link Archer BE230 BE3600 Dual-Band Wi-Fi 7 Router
Compact Dual-Band Wi-Fi 7 with Multi-Gig Performance The TP-Link Archer BE230 BE3600 delivers next-generation Wi-Fi 7 speeds of up to 3.6 Gbps, ensuring smooth 4K/8K...
Compact Dual-Band Wi-Fi 7 with Multi-Gig Performance
The TP-Link Archer BE230 BE3600 delivers next-generation Wi-Fi 7 speeds of up to 3.6 Gbps, ensuring smooth 4K/8K streaming, immersive gaming, and faster downloads. With dual 2.5G multi-gig ports, advanced HomeShield security, and EasyMesh compatibility, it offers an affordable yet powerful upgrade for modern households.
Highlights
-
Dual-Band Wi-Fi 7: Up to 3.6 Gbps (5 GHz: 2882 Mbps, 2.4 GHz: 688 Mbps)
-
Dual 2.5G Multi-Gig Ports: 1× 2.5G WAN and 1× 2.5G LAN with 3× Gigabit LAN ports
-
USB 3.0 Support: Share files or create personal cloud storage with external drives
-
4 External Antennas: Beamforming technology ensures stronger coverage and reliability
-
EasyMesh-Compatible: Seamless expansion for whole-home Wi-Fi coverage
-
TP-Link HomeShield: Built-in cybersecurity, parental controls, and QoS
-
VPN Support: Acts as both VPN client and server for secure connectivity
-
Tether App Management: Quick setup and intuitive control via smartphone
Key Features
High-Speed Wi-Fi 7 Performance
-
3.6 Gbps Total Bandwidth: Provides faster speeds for multi-device households
-
4K-QAM: Packs 20% more data per transmission for higher efficiency
-
Multi-Link Operation: Uses multiple bands simultaneously to improve speed and reduce latency
-
Multi-RUs: Optimizes channel usage for higher throughput
Wired Multi-Gig Connectivity
-

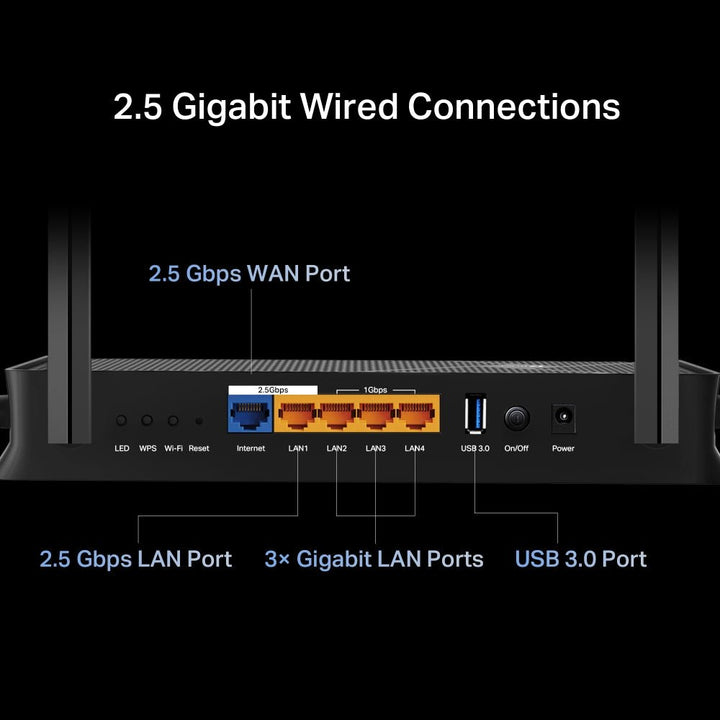

Dual 2.5G Ports: One WAN and one LAN to support multi-gig broadband connections
-
3× Gigabit LAN Ports: For stable connections to PCs, TVs, or consoles
-
USB 3.0 Port: Enables external drive sharing and secure remote access
Enhanced Coverage and Mesh Support
-
4 External Antennas: Deliver reliable coverage throughout your home
-
Beamforming Technology: Focuses signals directly to connected devices
-
EasyMesh Expansion: Integrates with compatible routers and extenders for seamless whole-home Wi-Fi
Advanced Security and Controls
-
HomeShield Protection: Includes real-time network scanner, parental controls, and IoT security
-
Quality of Service (QoS): Prioritize devices for optimal performance
-
Private IoT Network: Protects smart home devices with WPA3 encryption
VPN Support
-
VPN Client and Server: Provides flexible secure connections for remote work and streaming
-
Dual Operation: Runs VPN and standard connections simultaneously
Summary / Conclusion
The TP-Link Archer BE230 BE3600 combines powerful Wi-Fi 7 speeds, dual 2.5G multi-gig ports, and robust security features in a compact design. With advanced technologies like MLO, 4K-QAM, and Beamforming, it ensures smooth streaming, gaming, and smart home connectivity. EasyMesh support and the Tether app make it simple to expand and manage, while HomeShield and VPN functionality ensure both security and flexibility for today’s connected lifestyle.
TP-Link Archer BE230 BE3600 Dual-Band Wi-Fi 7 Router
The TP-Link Archer BE230 is an affordable Wi-Fi 7 router delivering BE3600 speeds with dual-band connectivity. Designed for 3-bedroom homes, it combines advanced features like Multi-Link Operation (MLO), 4K-QAM, and EasyMesh compatibility, ensuring smooth performance for streaming, gaming, and smart devices.
Product Specifications
| Specification | Details |
|---|---|
| Wi-Fi Speeds | BE3600 • 5 GHz: 2882 Mbps (802.11be) • 2.4 GHz: 688 Mbps (802.11be) |
| Wi-Fi Range | 3-Bedroom Houses • 4× External Antennas • Beamforming Technology |
| Wi-Fi Capacity | High • Dual-Band • 2×2 MU-MIMO • OFDMA • Airtime Fairness • DFS • 4 Streams |
| Wireless Modes | • Router Mode • Access Point Mode |
| Advanced Features | • Multi-Link Operation (MLO) • 4K-QAM • Multi-RUs • EasyMesh-Compatible • Works with Alexa & Google Assistant • IoT Network |
| Network Security | • SPI Firewall • Access Control • IP & MAC Binding • Application Layer Gateway HomeShield Security • Real-Time IoT Protection • Malicious Site Blocker • Intrusion Prevention System • DDoS Attack Prevention • Home Network Scanner |
| Guest Network | • 1× 5 GHz Guest Network • 1× 2.4 GHz Guest Network |
| VPN Server | OpenVPN, PPTP, L2TP, WireGuard |
| VPN Client | OpenVPN, PPTP, L2TP, WireGuard |
| Wi-Fi Encryption | WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x) |

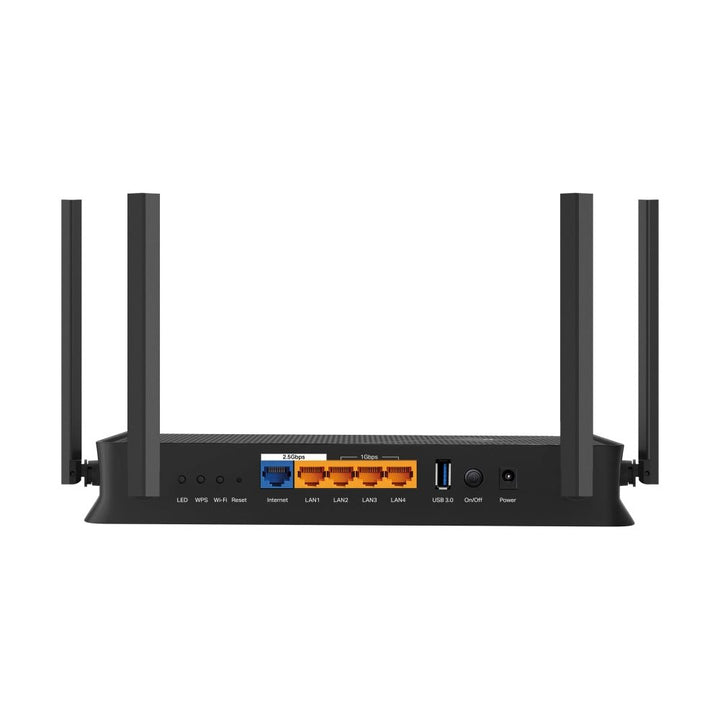

| Ethernet Ports | • 1× 2.5 Gbps WAN • 1× 2.5 Gbps LAN • 3× 1 Gbps LAN |
| USB Support | 1× USB 3.0 • Partition Formats: NTFS, exFAT, HFS+, FAT32 • Functions: FTP Server, Media Server, Samba Server |
| Buttons | Power On/Off, Wi-Fi On/Off, LED, WPS, Reset |
| Power | 12 V ⎓ 2 A (US) 12 V ⎓ 1.5 A (EU) |
| Dimensions (W×D×H) | 176 × 59 × 200 mm |
| Protocols | IPv4, IPv6 |
| Service Kit | HomeShield |
| Parental Controls | • Custom Profiles • Professional Content Filter Library • Family Time, Bedtime, Off Time • Time Rewards • Family Online Time Ranking • Pause Internet • Weekly & Monthly Reports |
| WAN Types | Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
| Quality of Service | QoS by Device |
| Cloud Services | Auto Firmware Upgrade, TP-Link ID, DDNS |
| NAT Forwarding | Port Forwarding, Port Triggering, DMZ, UPnP |
| IPTV | IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN |
| DHCP | Address Reservation, DHCP Client List, Server |
| DDNS | TP-Link, NO-IP, DynDNS |
| Management Features | Tether App, Webpage |
| System Requirements | • Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+ • Cable/DSL Modem (if needed) • ISP subscription required |
| Certifications | CE, FCC, RoHS |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 10% to 90% RH, non-condensing |
