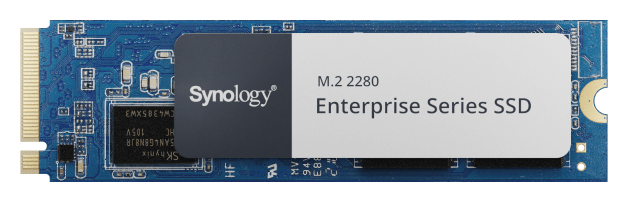

Synology SNV5420 Enterprise Series M.2 NVMe SSD
NVMe performance for compatible Synology NAS Synology SNV5420 Enterprise Series SSDs add M.2 NVMe flash storage to supported Synology systems. Choose 400GB, 800GB or 1.6TB...
NVMe performance for compatible Synology NAS
Synology SNV5420 Enterprise Series SSDs add M.2 NVMe flash storage to supported Synology systems. Choose 400GB, 800GB or 1.6TB for compatible SSD caching or supported M.2 storage pools, with sustained performance and power loss protection.
Highlights
Capacity and interface
- 400GB / 800GB / 1.6TB
- M.2 2280 form factor
- NVMe PCIe 3.0 x4 interface
Performance
- Up to 3,000MB/s sustained sequential read
- Capacity-specific random read performance up to 660,000 IOPS
- Write speed and endurance vary by capacity
Synology integration
- Power loss protection
- DSM drive-health monitoring and supported firmware updates
- 5-year limited manufacturer warranty
Key Features
Choose the supported storage role
SNV5420 can serve as SSD cache or an M.2 storage pool where the NAS and DSM version support that role. Drive compatibility alone does not establish storage-pool support.
Capacity-specific performance
Sequential read reaches up to 3,000MB/s across all capacities. Sequential write reaches up to 650MB/s for 400GB and 1,000MB/s for 800GB and 1.6TB. Actual throughput depends on the host and workload.
Protect data in transit
Power loss protection helps preserve data during a power interruption, while health monitoring supports maintenance planning.
Fit the right system
All three SNV5420 capacities are supported in DS1825+, RS1226+ and RS1226RP+. Confirm the supported storage role and installation method before ordering. Contact ACE for help with other NAS models or adapter-card installations.
Summary
Choose SNV5420 capacity and endurance according to your NAS workload. Its M.2 design, power loss protection and integrated monitoring suit supported Synology flash configurations.
Synology SNV5420 Enterprise Series M.2 NVMe SSD
Synology SNV5420 SSDs use an M.2 2280 form factor and NVMe PCIe 3.0 x4 interface. This listing contains three SNV5420 capacities with different write, random-I/O and endurance ratings. The values below describe sustained drive performance under manufacturer test conditions rather than guaranteed NAS throughput. Host compatibility, DSM version and the installation method determine whether SSD caching or an M.2 storage pool is supported. Confirm those requirements before installation.
| Specification | Details |
|---|---|
| Design | |
| Capacities | 400GB / 800GB / 1.6TB |
| Form factor | M.2 2280 |
| Interface | NVMe PCIe 3.0 x4 |
| Sustained performance | |
| Sequential read | All capacities: up to 3,000MB/s |
| Sequential write | 400GB: 650MB/s; 800GB and 1.6TB: 1,000MB/s |
| Random read | 400GB: 225,000 IOPS; 800GB: 400,000 IOPS; 1.6TB: 660,000 IOPS |
| Random write | 400GB: 45,000 IOPS; 800GB: 70,000 IOPS; 1.6TB: 120,000 IOPS |
| Test conditions | Sequential: 128KB QD32; random: 4KB QD256; manufacturer steady-state tests |
| Endurance | 400GB: >700TBW; 800GB: >1,400TBW; 1.6TB: >2,900TBW |
| Protection and operating conditions | |
| Power loss protection | Supported |
| Typical read / write power | 5W / 5.5W |
| Idle power | 2.5W |
| Operating temperature | 0°C to 85°C |
| Storage temperature | -40°C to 85°C |
| Warranty | 5-year limited manufacturer warranty; manufacturer terms apply |
| Compatibility | |
| Verified NAS examples | DS1825+ / RS1226+ / RS1226RP+ for all three SNV5420 capacities |
| Storage role | Cache or storage-pool support depends on the host model and DSM version |
| Adapter installations | Exact SSD, adapter and NAS combination must be supported; contact ACE for configuration advice |
| Size |
400GB, 800GB, 1600G |
|---|
