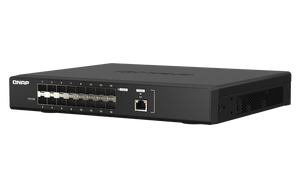

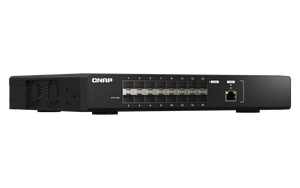

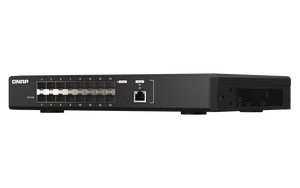

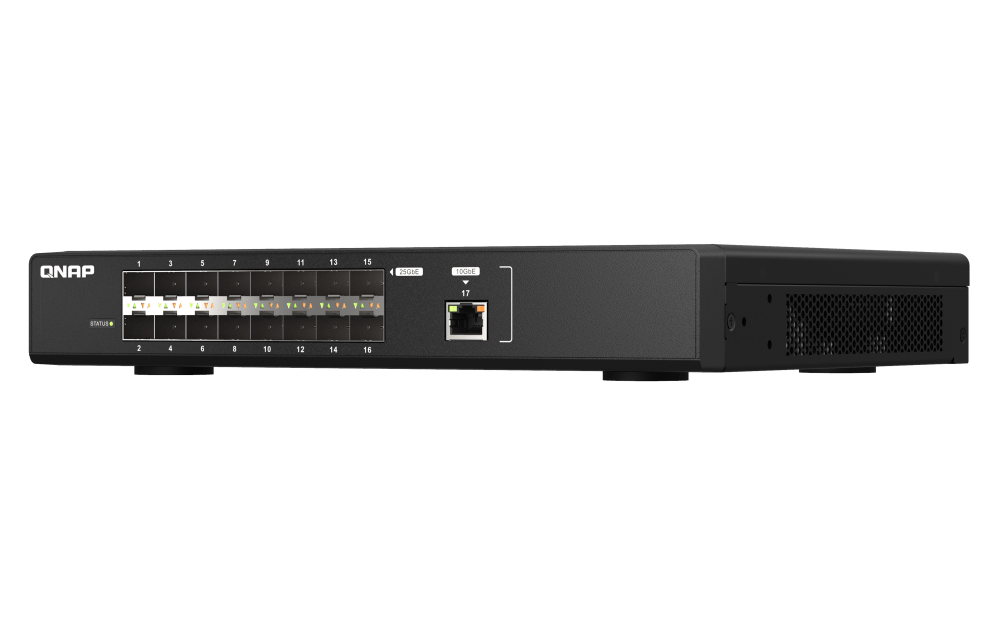

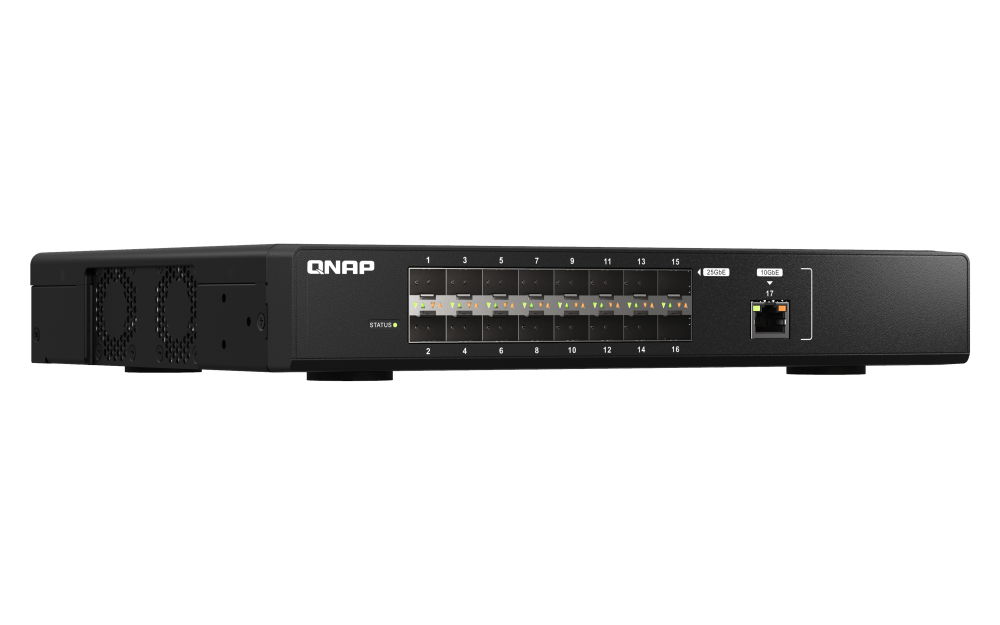

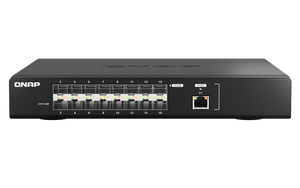

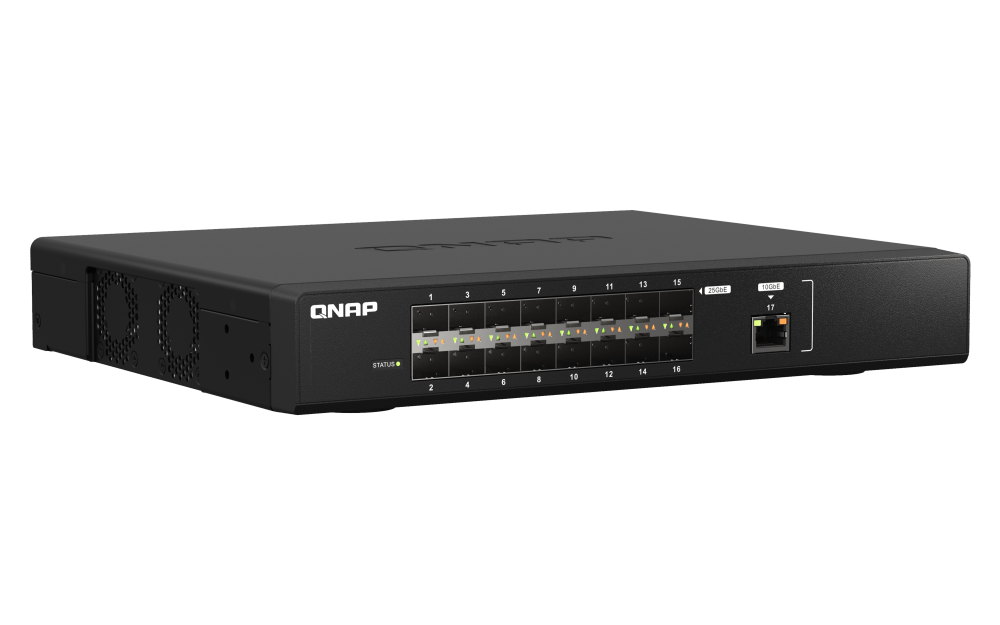

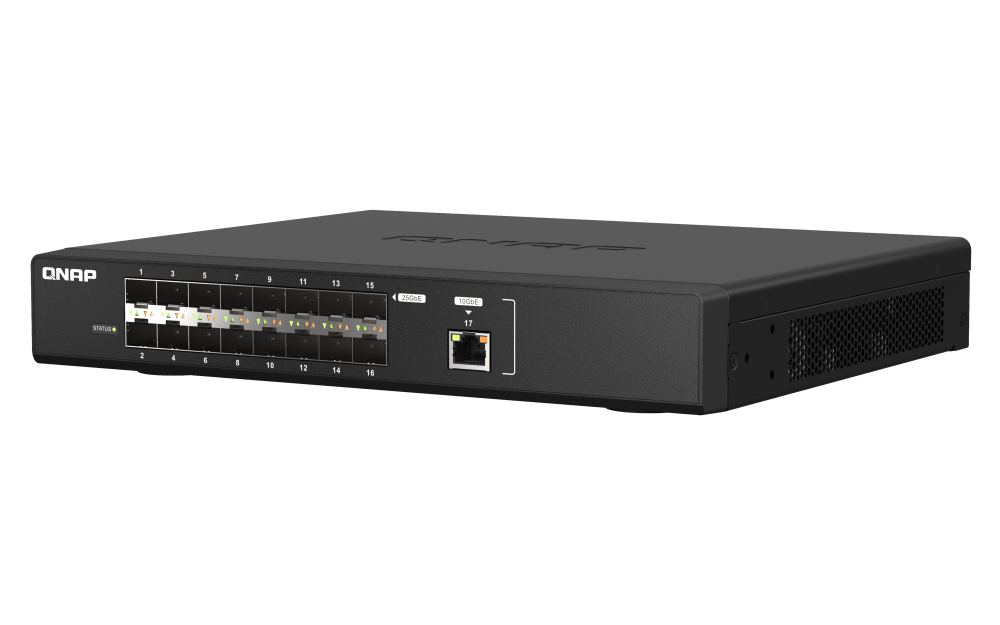

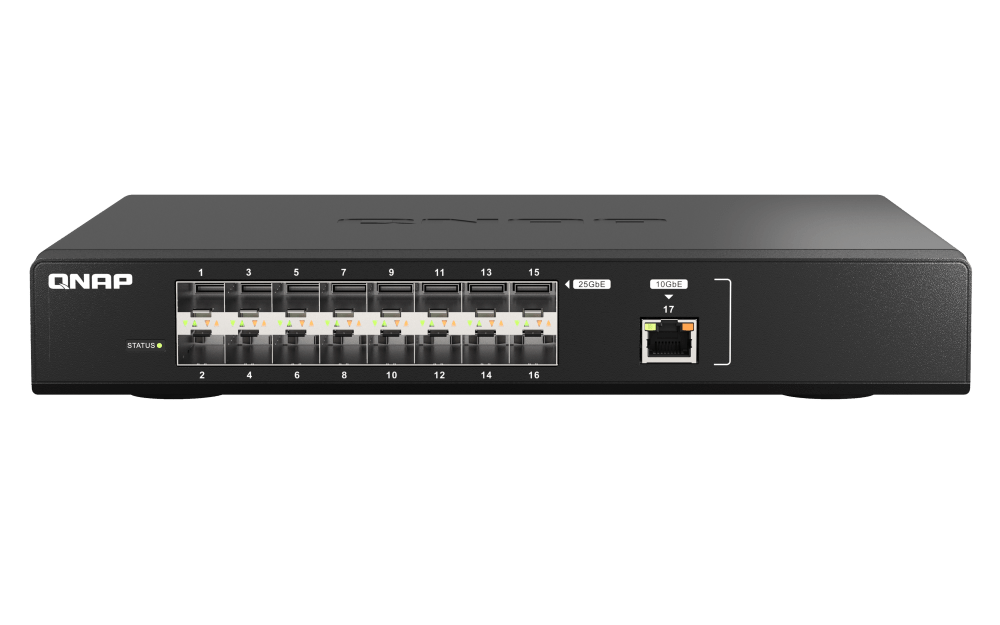

QNAP QSW-M5216-1T 17-Port 10/25Gbe Switch
High-Speed 25GbE Fiber Managed Switch Elevating Network Performance for SMBs and Enterprises The QNAP QSW-M5216-1T is a state-of-the-art 16-Port 25GbE SFP28 fiber Managed Switch, featuring...
High-Speed 25GbE Fiber Managed Switch
Elevating Network Performance for SMBs and Enterprises
The QNAP QSW-M5216-1T is a state-of-the-art 16-Port 25GbE SFP28 fiber Managed Switch, featuring an additional 10GbE NBASE-T port. It's designed to enhance the network infrastructure of small businesses and enterprises by providing ultra-high 25GbE speeds and a robust backbone switching capacity.
Key Features
- 25GbE Fiber Connectivity: Equipped with sixteen 25GbE SFP28 fiber ports, offering a backbone switching capacity of 820Gbps. Ideal for uplinking server rooms and facilitating high-speed connections.
- 10GbE Hybrid Networking: The switch includes a 10GbE NBASE-T port, enabling hybrid high-speed network deployment.
- User-Friendly Management Interface: Features a web UI, the QNAP Switch System (QSS), providing an overview dashboard, port management, and setting guide for intuitive network management.
- Layer 2 Network Management: Offers Layer 2 management features like LACP, VLAN, ACL, and LLDP for efficient bandwidth control and security enhancement.
- RSTP Protocol Support: Incorporates Rapid Spanning Tree Protocol for efficient deployment of small to medium-scale networks with expansion, redundancy, and loop prevention capabilities.
- Flow Control: Adheres to IEEE802.3x Flow Control in full-duplex mode to prevent packet loss.
Advantages of 25GbE Technology
- High-Speed Storage and AI Applications: Ideal for bandwidth-intensive tasks in storage, virtualization, and AI.
- Backward Compatibility: 25GbE SFP28 ports are backward compatible with 10GbE SFP+/1GbE SFP, and can connect to 50GbE/100GbE using Breakout DAC.
- Cost-Effective: Offers significantly faster speeds than 10GbE at a marginally higher cost, making it suitable for backbone network upgrades.
Exceptional Switching Capacity
- 820Gbps Backbone Capacity: Ensures the full potential of each port, suitable as a core switch for linking to 25G/100G servers and NAS in server rooms or connecting to 25G/10G edge fiber switches.
Flexible Deployment
- Multiple Port Options: Combines 25GbE SFP28 fiber ports with a 10GBASE-T port for versatile network configurations.
- Broad Compatibility: Supports direct connection to NAS, network cards, and switches using various interface types.
QSS: Intuitive Network Management Software
- User-Centric Design: Simplifies setup and management with a clear GUI, matching on-screen display with physical ports.
- Comprehensive Management Tools: Includes an overview dashboard, port management, and a setting guide for efficient control of Layer 2 networks.
Optimizing Network Performance
- Bandwidth and Packet Control: Features like LACP, VLAN, QoS, and IGMP Snooping to enhance network performance through efficient IP grouping and bandwidth management.
- Robust Security and System Functions: Includes ACL, LLDP, RSTP, and Flow Control for reliable network operations with enhanced security measures.
Conclusion
The QNAP QSW-M5216-1T is an exceptional choice for businesses looking to upgrade to a high-speed, efficient, and versatile network infrastructure. Its combination of ultra-high-speed fiber connectivity, user-friendly management, and robust security features make it an ideal core switch for modern network environments.
Specification Category | Details |
---|---|
Management Type | Web Managed |
Number of Ports | 17 |
25GbE SFP28 | 16 |
10GbE BASE-T (RJ45) | 1 |

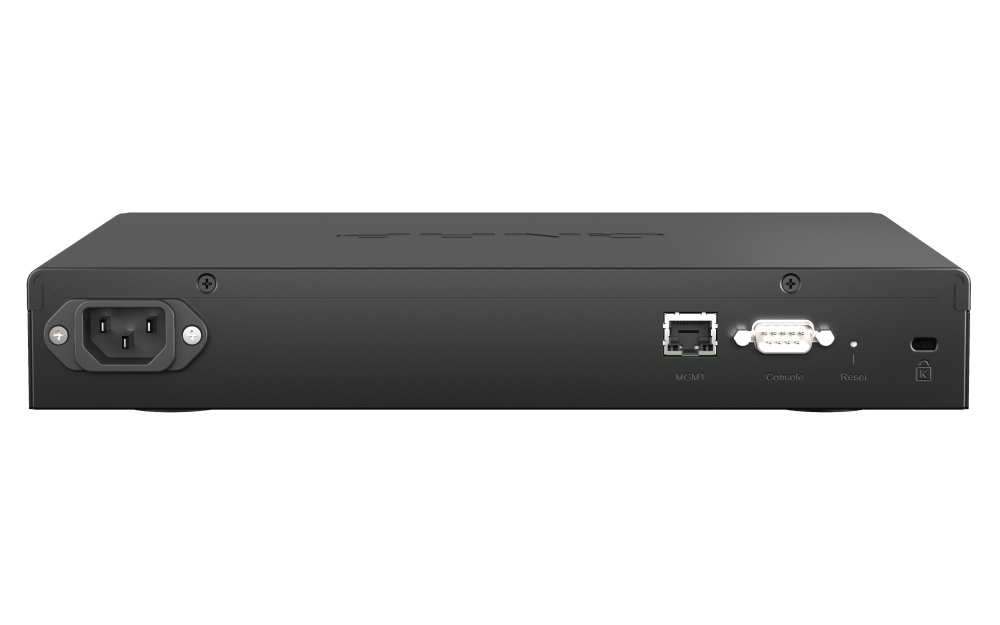

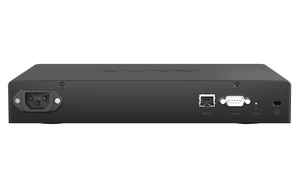

Management Port | 1 x 1GbE RJ45 |
Power Supply Description | Internal Power Supply Unit |
Max. Power Consumption | 80W |
Input Power Type | AC |
Input Voltage Range | 100-240VAC, 50/60Hz |
MAC Address Table | 32K |
Total Non-Blocking Throughput | 410Gbps |
Switching Capacity | 820Gbps |
Management Interface | Web |
Console | RS232 |
Fan | Yes |
Supported Standards | IEEE 802.3 Ethernet, IEEE 802.3u 100BASE-T, IEEE 802.3ab 1000BASE-T, IEEE 802.3bz 2.5G/5GBase-T, IEEE 802.3an 10G BASE-T, IEEE 802.3z 1000BASE-SX/LX, IEEE 802.3ae 10G Fiber, IEEE 802.3x Full-Duplex Flow Control, IEEE 802.3by 25 Gigabit Ethernet, IEEE 802.1Q VLAN Tagging, IEEE 802.1w RSTP, IEEE 802.3ad LACP, IEEE 802.1AB LLDP, IEEE 802.1p Class of Service |
Form Factor | Rackmount |
LED Indicators | Per Port: Speed/Link/Activity; System: Power/Status |
Buttons | Reset button |
Dimensions (HxWxD) | 43.5 x 285 x 237.7 mm |
Weight (Net) | 2.15 kg |
Weight (Gross) | 2.85 kg |
Operating Temperature | 0˚C to 40°C (32°F to 104°F) |
Relative Humidity | 5~95% Non-condensing |
Certifications | CE, FCC, VCCI, BSMI |
Electromagnetic Compliance | Class A |
Jumbo Frames | 9K |
Warranty | 2 Years |
Port Management | Port status, Port statistics, Port configuration, Jumbo frame support, IEEE 802.3x flow control, Auto-negotiation |
QoS | Port-based QoS, IEEE 802.1p CoS, IPv4 DSCP-based QoS, IPv4 ToS-based QoS |
VLAN | VLAN configuration, IEEE 802.1Q-based VLAN |
Layer 2 Features | LACP groups, IGMP snooping v2 |
Security | Access Control Lists (ACL) by IP address/MAC |
Firmware Management | Firmware Live Update, Firmware Manual Update |
Other Features | LLDP, Web UI, SNTP, DNS, DHCP client |
RSTP | IEEE802.1w Rapid Spanning Tree |
