Foscam PD15 PoE Ethernet Splitter 25W Output
Deliver Power and Data Over a Single Cable The Foscam PD15 PoE Splitter lets you power non-PoE IP devices (such as older cameras) using a...
Deliver Power and Data Over a Single Cable
The Foscam PD15 PoE Splitter lets you power non-PoE IP devices (such as older cameras) using a single Ethernet cable. It cleanly splits the combined power + data feed into separate outputs (voltage + data), simplifying deployments and reducing cabling complexity.
Highlights
-
Fully IEEE 802.3af / 802.3at compliant, supporting up to 25.4 W output power
-
Compatible with 5 V / 12 V / 24 V DC output options
-
Plug-and-play design, no configuration required
-
Enables non-PoE devices to receive power over Ethernet
-
Compact form factor, easy to integrate into camera installations
Key Features
Power & Compliance
-
IEEE 802.3af / 802.3at Support: Automatically negotiate with PoE source (PSE) to draw appropriate energy.
-
Up to 25.4 W PoE Output: Allows powering more demanding cameras or devices.
-
Selectable Output Voltages: Switch between 5 V, 12 V, or 24 V depending on device requirement.
-
Protection Mechanisms: Built-in safeguards for overcurrent, short circuit, and thermal protection (typical for such splitters)
Data & Signal Handling
-
Ethernet Data Pass-Through: Data and power travel on the same cable; split at the device end
-
Supports Standard Cable Runs: Works over typical Cat5e / Cat6 runs (up to 100 m for data)
-
No Configuration Required: Just connect, no software or settings needed
Installation & Compatibility
-
Compact Design: Minimal footprint, fits into junction boxes or camera enclosures
-
Flexible Integration: Ideal for retrofitting non-PoE cameras or devices
-
Works with Broad Range Devices: Though branded by Foscam, works with any device compatible with selected output voltage
Summary / Conclusion
The Foscam PD15 PoE Ethernet Splitter is a smart, cost-efficient solution to power non-PoE devices using your existing Ethernet infrastructure. By supporting up to 25.4 W output and selectable voltages, it provides flexibility for various camera models. Its plug-and-play simplicity, compliance with IEEE PoE standards, and protective features make it a reliable add-on for surveillance or network deployments where power outlets are scarce. Use it to reduce wiring complexity, extend reach, and modernize legacy devices effortlessly.

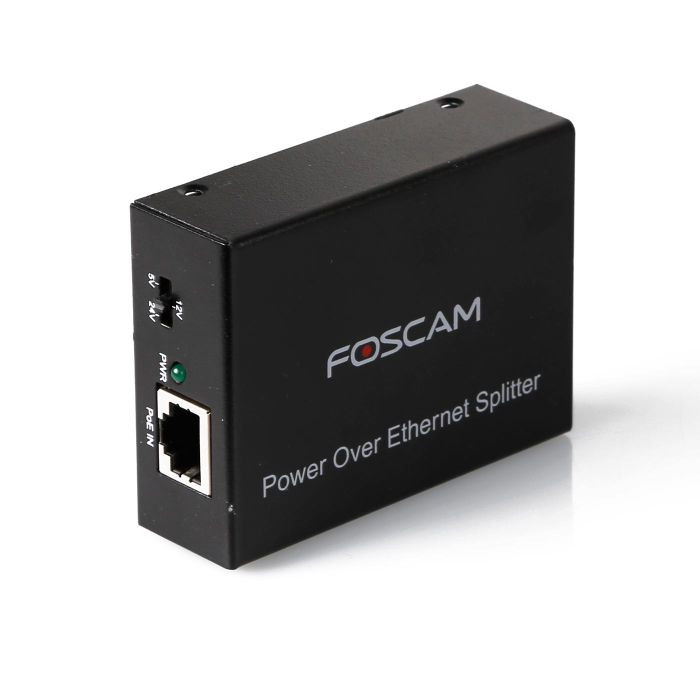

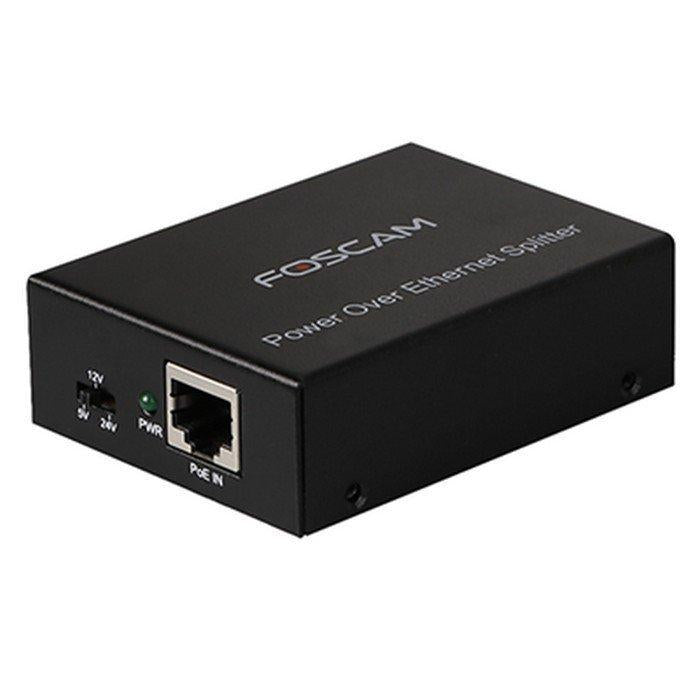

Foscam PD15 PoE Ethernet Splitter
The Foscam PD15 is a plug-and-play PoE splitter designed for IP cameras and other network devices without native PoE support. It separates power and data over a single Ethernet cable, delivering power to the attached device and simplifying deployment with minimal wiring.
Product Specifications
Specification | Details |
---|---|
Standards & Compliance | Fully IEEE 802.3af / IEEE 802.3at compliant |
Maximum PoE Power | Up to 25.4 W (PoE output) |
Selectable Output Voltages | 5 V / 12 V / 24 V |
Operating Mode | Plug & Play, no configuration required |
Input Interface | 1× RJ45 (PoE-powered) |
Data Interface (Output) | 1× RJ45 (Data pass-through) |
Power Output (DC) | 5 V / 12 V / 24 V (depending on selection) |
Cable Distance / Limit | Standard Ethernet distance applies (100 m) for data path (unless extended by repeaters) |
Compatibility Notes | Works with Foscam IP cameras and other non-PoE devices that accept 5 V, 12 V, or 24 V input |
