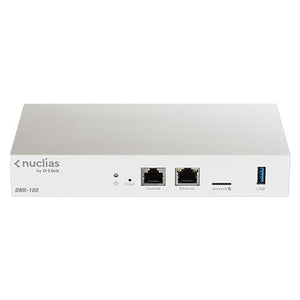

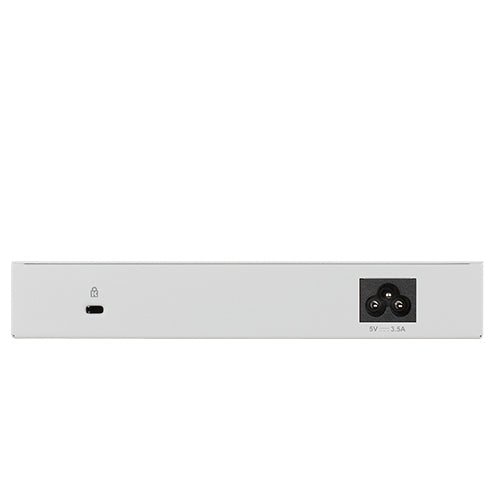

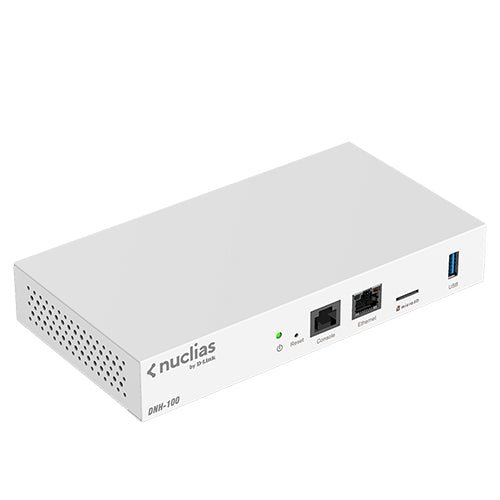

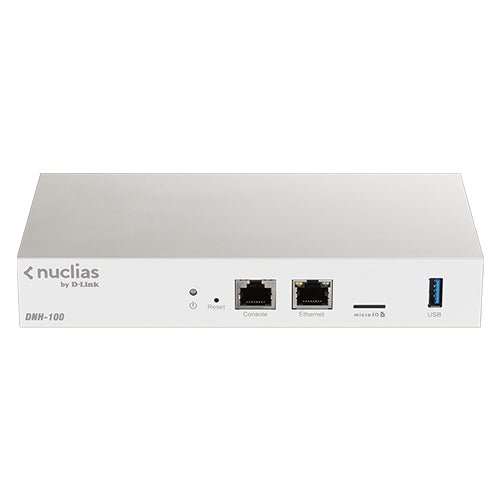

D-Link DNH-100 Nuclias Connect Wireless Controller
The Heart of Nuclias Connect Solution Purpose-Built for SMB Networks The D-Link DNH-100 serves as a pivotal component in the Nuclias Connect management solution, tailored...
Description
The Heart of Nuclias Connect Solution
Purpose-Built for SMB Networks
The D-Link DNH-100 serves as a pivotal component in the Nuclias Connect management solution, tailored explicitly for small to medium-sized business (SMB) networks. This wireless LAN controller has been designed with a primary focus on SMB IT infrastructure, ensuring a seamless and efficient networking experience.
Pre-installed with the Nuclias Connect network management software, the DNH-100 becomes an invaluable asset for businesses where IT resources might be constrained by budgetary or other limitations.
Centralized Management and Remote Deployment
This wireless controller facilitates centralized and automated task management, making it an optimal choice for remote installations. Whether there's a lack of dedicated onsite personnel or if deploying other devices like servers or PCs isn't feasible, the DNH-100 steps up to the challenge.
Key Features
- Efficient AP Management: Capable of managing up to 100 Wireless Access Points (APs), either collectively or on an individual basis.
- Connectivity and Ports: Comes fitted with a 1000Base-T Ethernet Port, a USB 3.0 Port, and a Micro SD Slot, ensuring diverse connectivity options.
- Centralized Control: D-Link's Nuclias Connect provides a unified platform for easy and streamlined management of your wireless infrastructure.
- Optimized Coverage: Features auto-managed frequency bands and L2/L3 AP discovery, ensuring that connected devices always receive optimal coverage.
- Enhanced Network Management: Supports multiple VLANs, offering improved network handling, and allows diverse SSID setups for granular control.
- Seamless Integration: Adherence to IEEE 802.3ab/u/x standards guarantees flawless interoperability with existing systems.
- User-Friendly Access: The Single Sign-On feature eliminates repetitive login processes, providing quicker and more efficient user access.
- Command Line Management: For those who prefer it, there's support for Command Line Interface (CLI) management.
- Multi-Site Management: With NAT Passthrough support, managing multiple sites becomes a breeze.
Specs
| Feature | Specification |
|---|---|
| 10/100/1000Base-T | ✔️ |
| Optional 10G Uplink Module | N/A |
| Combo 10/100/1000Base-T/SFP | N/A |
| Console Port | RJ-45 |
| USB Port (2.0) | 1 (3.0) |
| Maximum Access Points per unit (default/ upgrade)* | 100 |
| Maximum Access Points per cluster (default/ upgrade)* | 100 |
| AP Auto Discovery | ✔️ |
| AP Monitoring | ✔️ |
| AP Authentication by Local Database | ✔️ |
| AP Authentication by External RADIUS | ✔️ |
| Auto Channel Management | ✔️ |
| Auto Power Management | ✔️ |
| Centralized Firmware Upgrade | ✔️ |
| Remote AP Reboot | ✔️ |
| Visualization Management | ✔️ |
| Connection mode between controller and AP | Bridge |
| Multi-tenant | ✔️ |
| NAT pass through (Controller can manage APs behind NAT) | ✔️ |
| Device Clustering | No |
| Device Clustering per Group | No |
| Configuration Push within Group | ✔️ |
| 802.3af PoE | N/A |
| 802.3at PoE | N/A |
| PoE Power budget | N/A |
| PoE Power budget with RPS | N/A |
| 802.3at (Per Port) | N/A |
| Captive Portal | ✔️ |
| External User Database - RADIUS | ✔️ |
| External User Database - POP3 | ✔️ |
| External User Database - LDAP | ✔️ |
| Local User Database | ✔️ |
| TACACS+ | No |
| 802.1X | ✔️ |
| Client Classification | ✔️ |
| Client Monitoring | ✔️ |
| Ad-hoc Client Monitoring | No |
| Location Tracking | No |
| L2 Fast Roaming | No |
| L3 Fast Roaming | No |
| TKIP/AES Encryption | ✔️ |
| WPA/WPA2-Personal | ✔️ |
| WPA/WPA2-Enterprise | ✔️ |
| Rouge AP Detection & Mitigation | No |
| Rouge Client Detection & Mitigation | No |
| WLAN MAC Filtering | ✔️ |
| Hidden SSID | ✔️ |
| AP Classification | ✔️ |
| AP Station Isolation | ✔️ |
| WIDS | No |
| Wireless Multimedia (WMM) | ✔️ |
| 802.1p Priority Queues | No |
| CoS-based QoS | No |
| Per-flow Bandwidth Control | No |
| Per-port Traffic Shaping | N/A |
| Per-queue Minimum Bandwidth Guarantee | No |
| 802.1Q VLAN Tagging | ✔️ |
| 802.1V Subnet-based VLAN | No |
| MAC-based VLAN | No |
| Port-based VLAN | N/A |
| GVRP | N/A |
| Voice VLAN | N/A |
| Static VLAN | ✔️ |
| VLAN Numbers | N/A |
| Dynamic VLAN | ✔️ |
| Double VLAN (Q-in-Q) | N/A |
| Switching Capacity | N/A |
| Max. Packet Forwarding Rate | N/A |
| MAC Address Table Size | N/A |
| Packet Buffer Size | N/A |
| Telnet Client | No |
| Telnet Server | ✔️ |
| TFTP Server | No |
| TFTP Client | No |
| SNMP (v1,v2c,v3) | No |
| SNTP | No |
| NTP | ✔️ |
| sFlow | No |
| Multiple Configuration Files | ✔️ |
| Dual Images | ✔️ |
| RMONv1 | No |
| DHCP / BootP Client | No |
| DHCP Server | No |
| DHCP Relay | No |
| SYSLOG | ✔️ |
| SSH | ✔️ |
| HTTP | No |
| HTTPS | ✔️ |
| Command Line Interface (CLI) | ✔️ |
| 802.1D Spanning Tree (STP) | N/A |
| 802.1w Rapid Spanning Tree (RSTP) | N/A |
| 802.1s Multiple Spanning Tree (MSTP) | N/A |
| IGMP Snooping | N/A |
| LLDP-MED | N/A |
| Many-to-One Mirroring | N/A |
| One-to-One Mirroring | N/A |
| MLD Snooping | N/A |
| Maximum Jumbo Frame (KB) | N/A |
| IPv6 Static Route | N/A |
| IPv4 Static Route | N/A |
| Routing Table Size | N/A |
| ARP Proxy | N/A |
| OSPF | N/A |
| RIP v1/ v2 | N/A |
| LAN MAC Filtering | N/A |
| Broadcast Storm Control | N/A |
| DHCP Filtering | N/A |
| DHCP Snooping | N/A |
| Dynamic ARP Inspection ( DAI ) | N/A |
| 802.3ad Link Aggregation | N/A |
| Link Aggregation Group Per Device | N/A |
| Max Port Per Link Aggregation Group | N/A |
| VRRP | N/A |
| WAN Fail-over | No |
| Firewall Policy | No |
| Numbers of Firewall Policy | N/A |
| Policy-based route | No |
| NAT, PAT | No |
| Outbound Load Balancing | No |
| Dynamic DNS | No |
| IPSec VPN Tunnel | No |
| PPTP / L2TP VPN Tunnel | No |
| IPSec Nat Traversal | No |
| Dead Peer Detection | No |
| VPN Tunnel Keep Alive | No |
| Hub and Spoke | No |
| SSL VPN Tunnel | No |
| Encryption Methods (DES/3DES/AES/Twofish/Blowfish/CAST-128/Null) | No |
| IP Encapsulating Security Payload (ESP) | No |
| IP Authentication Header(AH) | No |
| SSL Encryption Methods (DES/3DES/AES) | No |
| SSL Message Integrity (MD5/SHA1) | No |
| Static Web Content Filtering - Key word / URL | No |
| Dynamic Web Content Filtering ( Category) | No |
| Rackmount | 19 inch |
| Dimension | 190 x 100 x 31mm |
| Weight | 529g |
| Operation Temperature | 0 ~ 40 °C |
| Storage Temperature | - 20 ~ 70 °C |
| Operation Humidity | 10% ~ 90% RH |
| Storage Humidity | 5% ~ 95% RH |
| Power Supply | AC：100 ~ 240 V, 50/60 Hz |
| Power Consumption | 6.5 W |
| Redundant Power Supply Support | No |
| Redundant Power Supply Module | No |
| Heat Dispassion | N/A |
| Acoustic | 0 dB (fanless) |
| MTBF | 260,000 hrs |
| FCC | Class B |
| CE | ✔️ |
| VCCI | ✔️ |
| C-Tick | ✔️ |
| BSMI | ✔️ |
| ICES-003 | N/A |
| EN 60601-1-2 | No |
| Safety Certifications (cUL) | ✔️ |
| Safety Certifications (CB) | ✔️ |
| Safety Certifications (LVD (En60950-1) ) | ✔️ |
| AP License Upgrade | N/A |
| Advanced Feature Lincense Upgrade | N/A |
