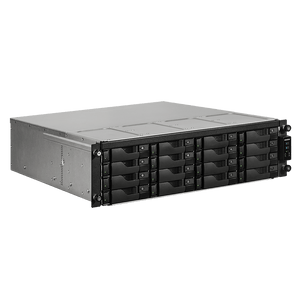

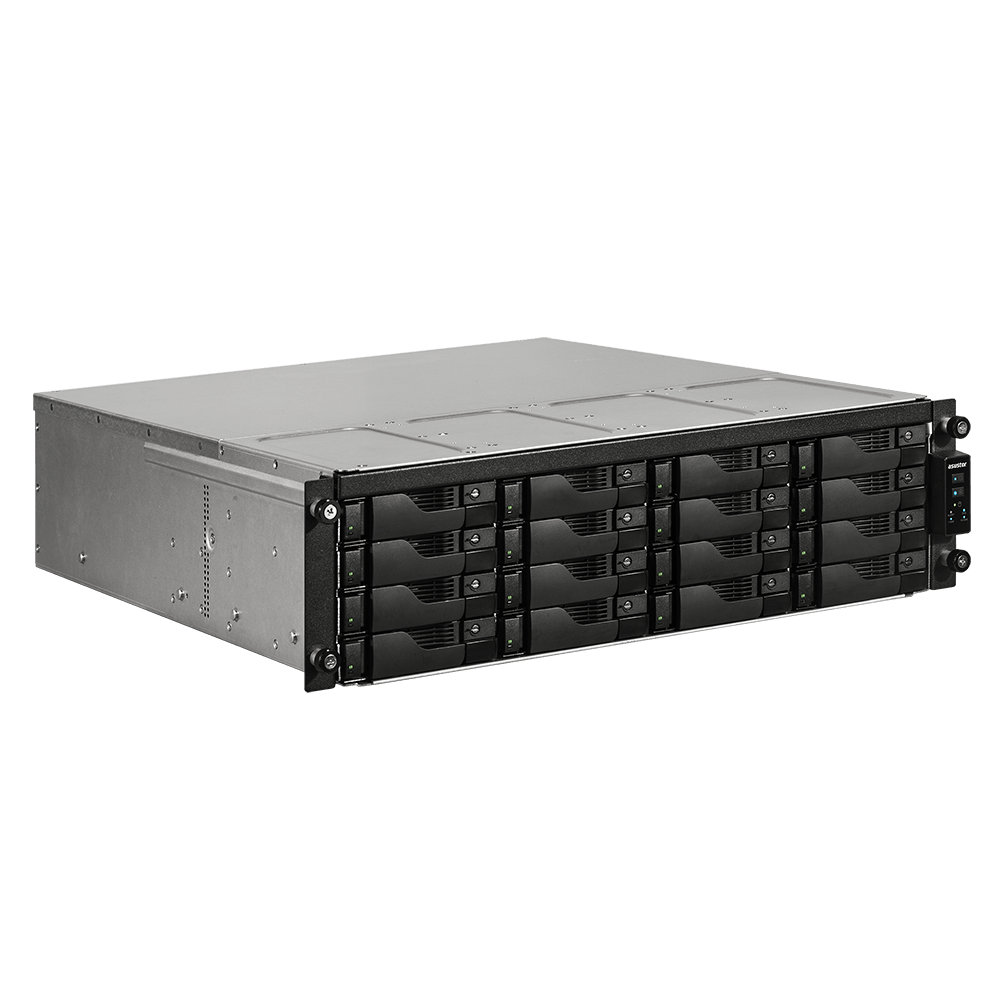

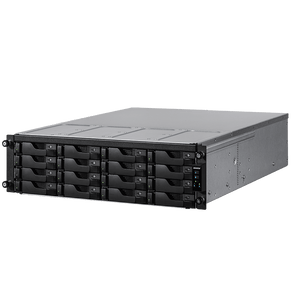

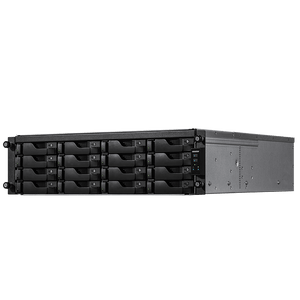

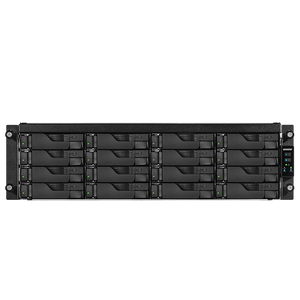

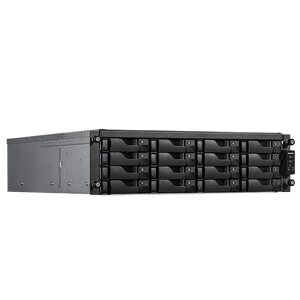

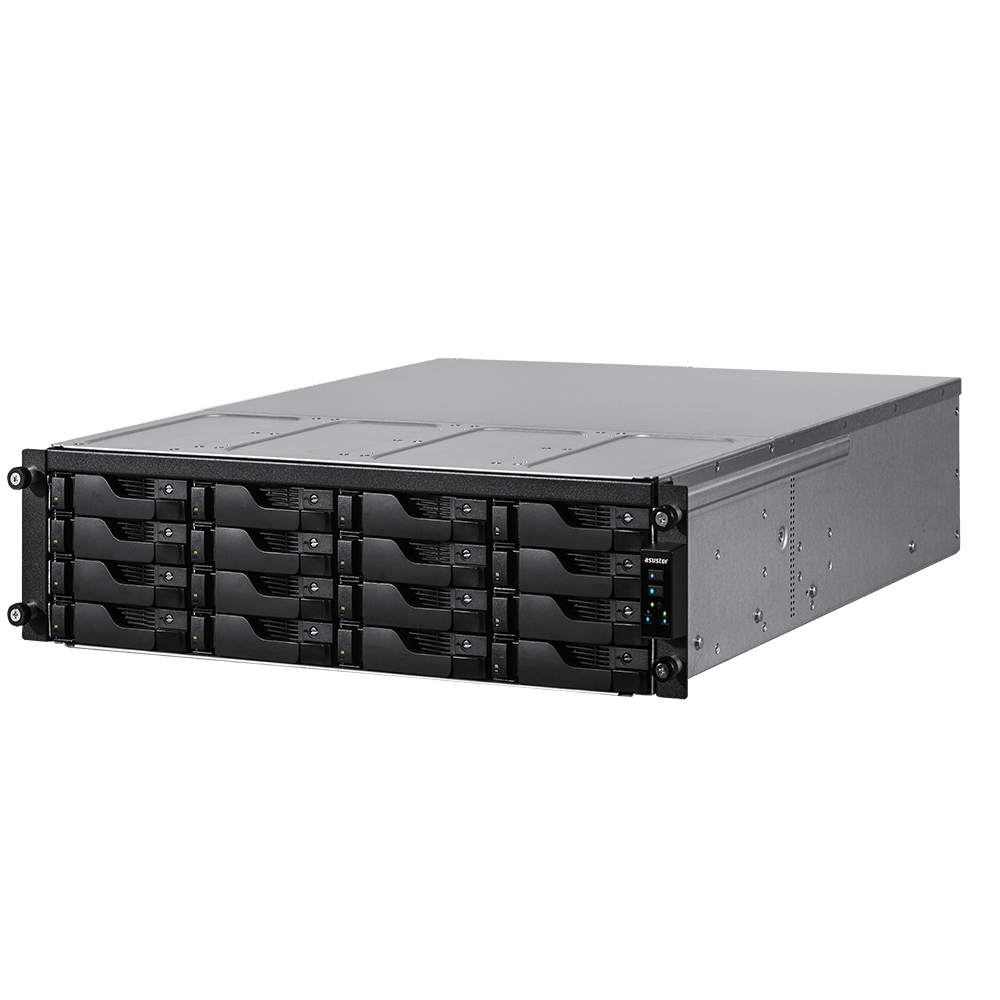

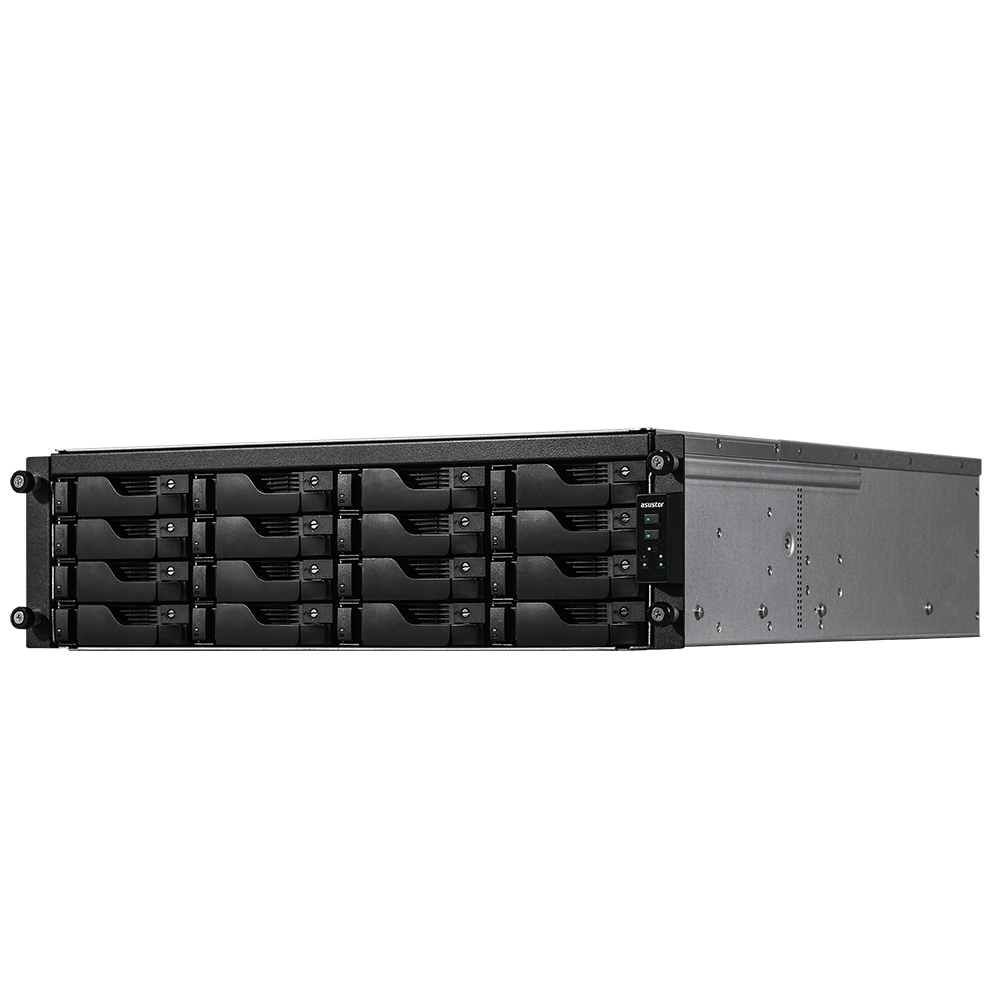

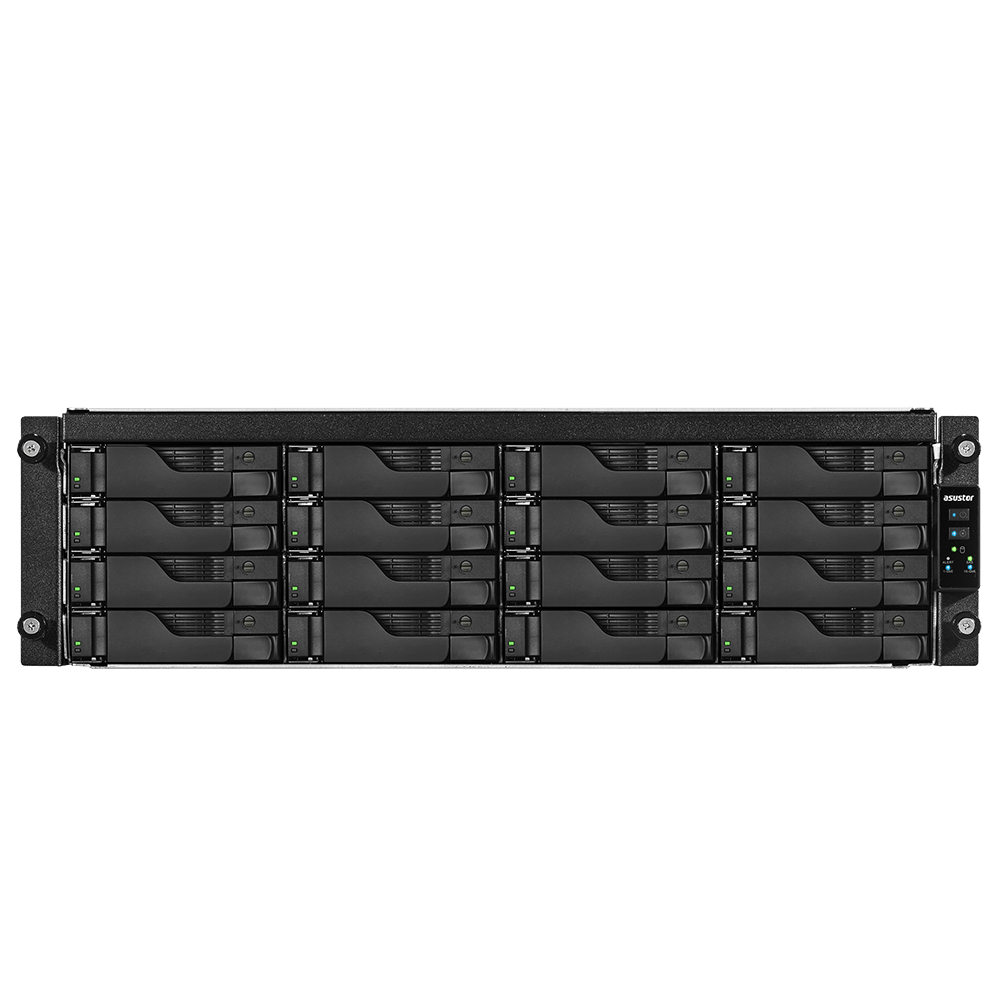

Asustor AS7116RDX LockerStor 16R Pro 16-Bay Rackmount NAS
Enterprise-Class 16-Bay NAS for Virtualization, Backup, and Scalability The Asustor AS7116RDX LockerStor 16R Pro is a powerful 3U rackmount NAS built for high-performance enterprise workloads,...
Frequently Bought Together
Enterprise-Class 16-Bay NAS for Virtualization, Backup, and Scalability
The Asustor AS7116RDX LockerStor 16R Pro is a powerful 3U rackmount NAS built for high-performance enterprise workloads, virtualization, and scalable storage. Powered by a 9th Gen Intel Xeon Quad-Core CPU and ECC memory, it’s optimized for 24/7 reliability, flexible network expansion, and secure backup operations.
Highlights
-
Intel Xeon 9th Gen Quad-Core CPU with ECC memory (8GB DDR4 ECC, expandable to 128GB)
-
3U rackmount with 16-bay SATA drive support and dual M.2 NVMe SSD cache slots
-
Dual PCIe slots support 10/25/40/50 GbE or SAS card expansion
-
Redundant 80 PLUS Platinum power supplies for energy-efficient reliability
-
Supports VMware, Citrix, Hyper-V, Docker, and VirtualBox environments
Key Features

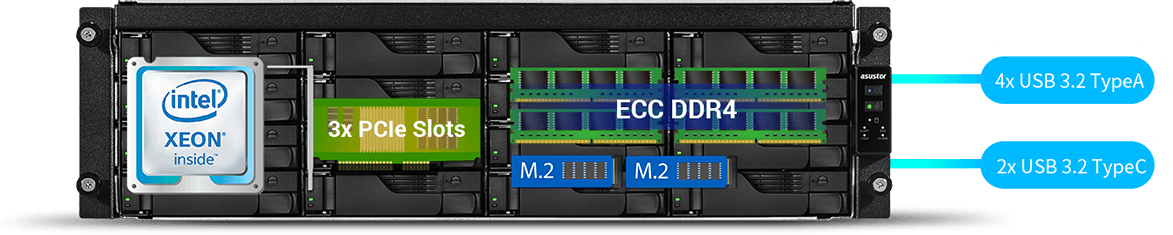

Performance & Scalability
-
CPU: Intel Xeon 9th Gen Quad-Core processor
-
Memory: 8GB DDR4-2666 ECC (up to 128GB)
-
Storage:
• 16 x SATA bays (3.5"/2.5" compatible)
• 2 x M.2 NVMe SSD slots for cache -
Expansion:
• 2 x PCIe x4
• 1 x PCIe x8
• SAS expansion card support
Virtualization & Application Hosting
-
Full support for VMware, Citrix, Hyper-V
-
Supports Docker and Linux-based container deployments
-
VirtualBox and Linux Center for multi-OS testing and virtual app hosting
-
Portainer UI for advanced Docker app management

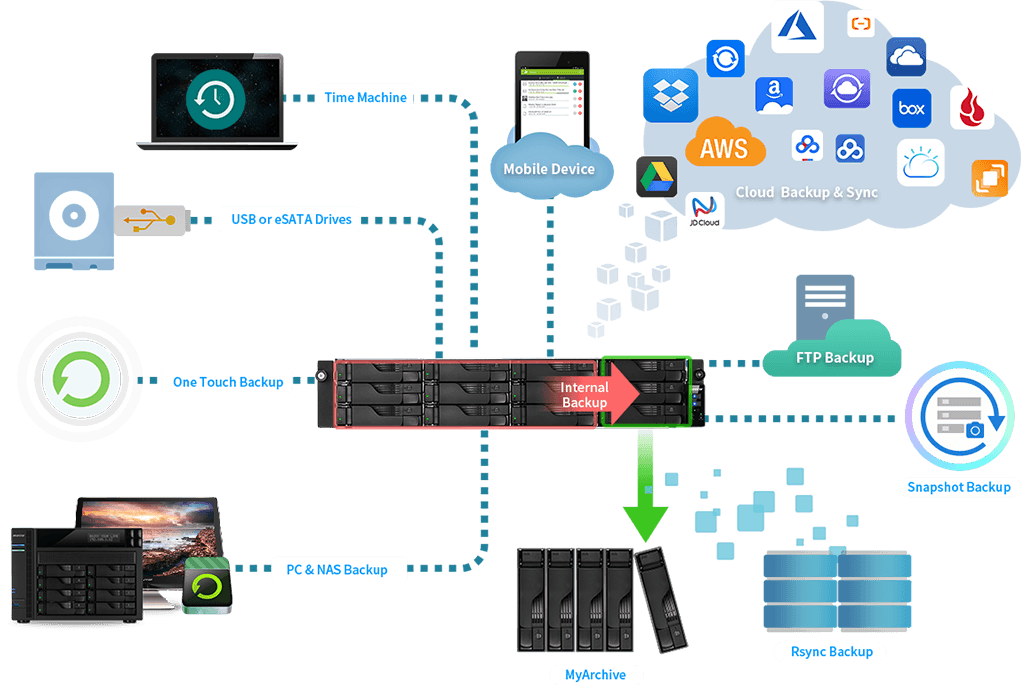

Backup & Data Protection
-

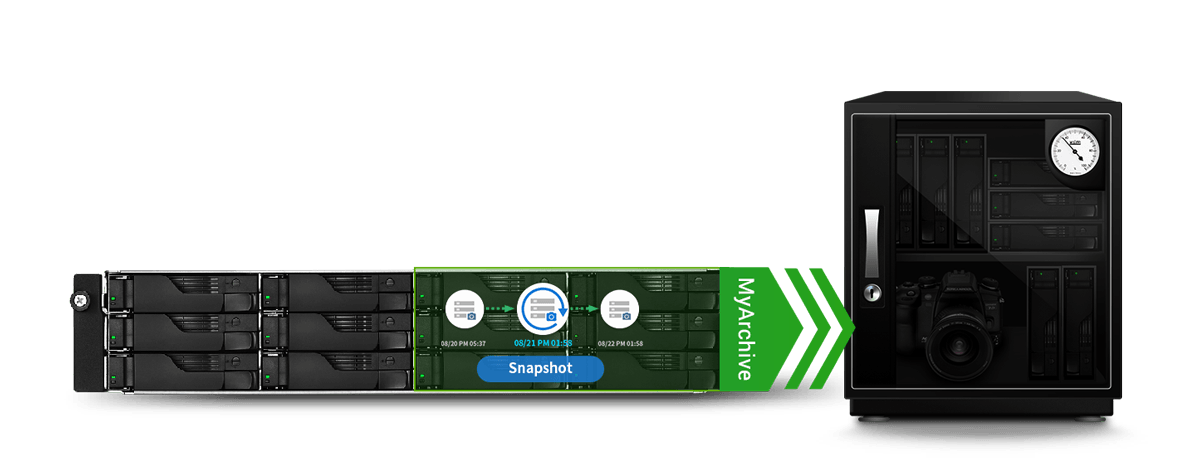

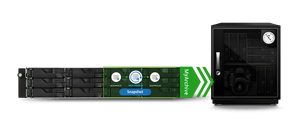

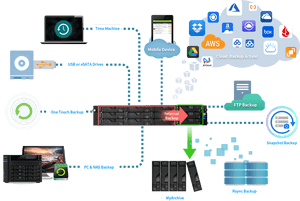

Integrated 360° backup solution including MyArchive cold storage
-
Cloud Backup Center: Amazon S3, Backblaze B2, Microsoft Azure, Dropbox, Google Drive, and more
-
Snapshot Center with Btrfs support for versioned, fast restore backups
-
Secure AES-256 folder encryption, firewall, ADM Defender, antivirus, and VPN support
Energy Efficiency & Reliability
-

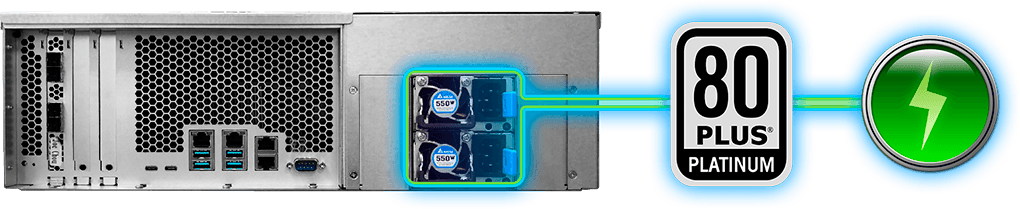

Redundant 80 PLUS Platinum PSUs: 94% efficiency at 50% load
-
Power consumption:
• 51.5W in drive hibernation
• 121.7W in normal operation -
Designed for 24/7 use with extensive durability testing
-

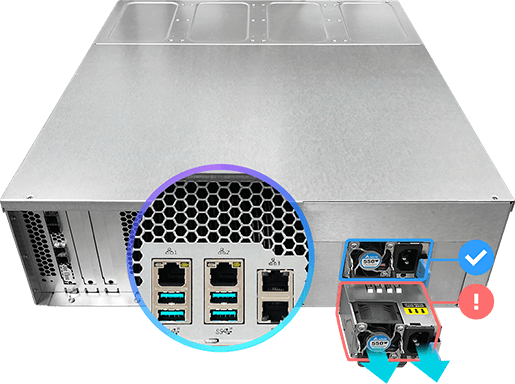

Hardware-level failover for power supplies and network ports
Surveillance & Security
-
Up to 100 IP camera channels (4 free)
-
5-step setup wizard with Surveillance Center and AiSecure app
-
Live stream from iOS/Android anywhere
Productivity & Collaboration
-
Compatible with Adobe Creative Cloud
-
EZ Sync for folder sync and version control
-
OnlyOffice & Nextcloud support for private office collaboration
-
ASUSTOR App Central with 200+ apps for business, development, and media
Management & Usability
-

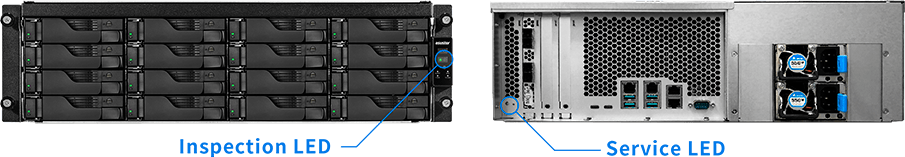

ADM OS with redesigned UI, off-peak control, Find Me light & buzzer for rack rooms
-
Central dashboard for all backup, sync, surveillance, and container operations
-
Compatible with Windows ACL, AD, and enhanced access control
Summary
The Asustor AS7116RDX LockerStor 16R Pro delivers uncompromising performance for growing businesses and creative professionals. With a robust Xeon CPU, ECC memory, redundant power, and hybrid SSD caching, it’s ready for virtualization, backup, collaboration, and multi-layered protection. Whether you're running critical infrastructure or building a private cloud, this 16-bay rackmount NAS is engineered to exceed expectations.
Asustor AS7116RDX LockerStor 16R Pro 16-Bay Rackmount NAS
Enterprise-grade performance meets massive capacity with the Asustor AS7116RDX. Featuring an Intel Xeon CPU, ECC memory support, and up to 128GB RAM, this 16-bay rackmount NAS is built for demanding business environments, with redundant power, 10GbE/25GbE upgradability, and comprehensive RAID capabilities.
Specifications
Specification | Details |
---|---|
CPU | |
CPU Model | Intel Xeon E-2224 |
CPU Architecture | x64 64-bit |
CPU Frequency | Quad-Core 3.4 GHz (up to 4.6 GHz) |
Memory | |
Memory | 8 GB DDR4-2666 ECC UDIMM |
Memory Module Installed | 8 GB (1 × 8 GB) |
Total Memory Slots | 4 |
Max Memory Capacity | 128 GB (4 × 32 GB), mixed capacity supported |
Flash Memory | 8 GB USB DOM |
Storage | |
Drive Bays | 16 |
Max Drive Bays (Expansion) | 28 |
M.2 Drive Slots | 2 |
Supported Drive Types | • 3.5" SATA HDD • 2.5" SATA HDD • 2.5" SATA SSD • M.2 2242/2260/2280 SATA 3 • M.2 2280/22110 NVMe (PCIe 3.0 x4) |
Hot Swappable Drives | Yes |
External Ports | |
USB Ports | • 4 × USB 3.2 Gen 2 Type-A • 2 × USB 3.2 Gen 2 Type-C |

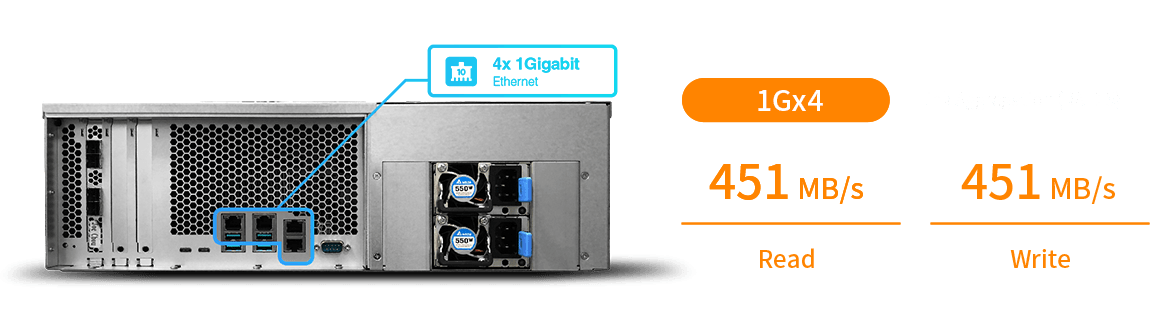

LAN Ports | 4 × 1GbE RJ45 |
PCIe Expansion | |

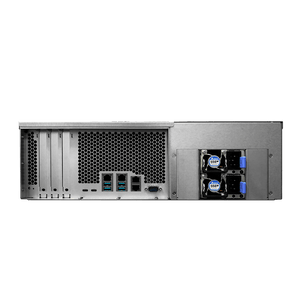

Slots | • 2 × PCIe Gen3 x4 (x4 link) • 1 × PCIe Gen3 x8 (x8 link) |
Supported Cards | Optional 10/25/40/50 GbE and SAS cards |
Cooling & Power | |
System Fans | 3 × 60 mm |
Power Supply | 2 × 550 W (Redundant) |
Input Voltage | 100 – 240V AC |
Operation | |
Power Consumption | • Operation: 121.7 W • Disk Hibernation: 51.5 W • Sleep Mode: 7.55 W |
Operating Temperature | 0°C to 40°C (32°F to 104°F) |
Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
Humidity | 5% to 95% RH |
Dimensions & Weight | |
Dimensions (H × W × D) | 132 × 439 × 535 mm |
Weight | 15.3 kg (33.7 lb) |
Certification | FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS |
Warranty | 5 Years |
Software Support | |
Supported OS | Windows 10/11, Server 2016/2019/2022, macOS, UNIX, Linux, BSD |
Supported Browsers | Firefox, Chrome, Safari, Microsoft Edge |
Languages | Multi-language (21+ supported) |
Network Protocols | CIFS/SMB, AFP, NFS, FTP, TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI, HTTP/HTTPS, SNMP, Syslog |
Network Features | • IPv4 & IPv6 • 802.3ad, Load Balancing, Failover • VLAN, Jumbo Frame • WOL, DDNS, EZ-Router |
File Management | |
File Systems | • Internal: EXT4, Btrfs • External: FAT32, NTFS, EXT3/4, HFS+, exFAT |
File Features | Web File Manager, ISO Mount, Share Links, Thumbnails, Video Playback, Recycle Bin, Scheduled Emptying, Filtering |
RAID Support | |
RAID Levels | Single, JBOD, RAID 0/1/5/6/10 |
RAID Migration | Single → RAID 1/5/6/10, RAID 1 → RAID 5/6/10, RAID 5 → RAID 6 |
RAID Expansion (HDD Replace) | RAID 1, 5, 6, 10 |
RAID Expansion (Add HDD) | RAID 5, 6, 10 |
Hot Spare Support | RAID 1, 5, 6, 10 |
