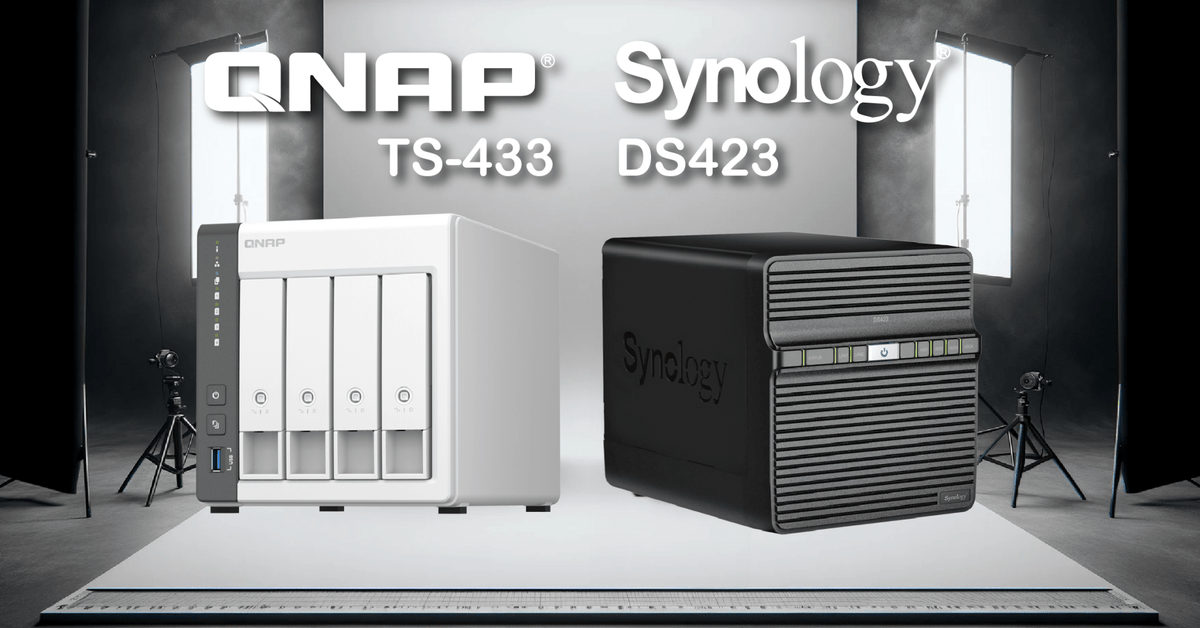

QNAP TS-433 vs Synology DS423: Four Bays, Networking and Photos
Four bays do not make two NAS systems equivalent. Compare the wired connection, photo workflow, fixed memory and recovery plan before choosing.
Choose the TS-433 for its built-in 2.5GbE path and QNAP workflow; choose the DS423 when Synology’s file, photo and backup tools fit your routine. Both are four-bay ARM NAS systems with fixed onboard memory. Neither should be chosen from an “AI” badge or an inflated maximum-capacity figure alone.
A family photo library and a small office share the same first problem: files are scattered across phones, computers and external drives. These models bring them together, but the everyday experience depends on how you upload, find, share and recover those files.
The Hardware Differences That Matter
Four drive bays, a 2.5GbE port and a separate Gigabit port, with QTS and supported photo-management applications.
Four drive bays and two Gigabit ports, with DSM, Synology Photos and supported Btrfs snapshot features.
| Decision | QNAP TS-433 | Synology DS423 |
|---|---|---|
| Processor class | Four-core ARM Cortex-A55, 2.0 GHz | Realtek RTD1619B, four-core ARM, 1.7 GHz |
| Memory | 4 GB onboard; not expandable | 2 GB DDR4 onboard; not expandable |
| Built-in network | 1 × 2.5GbE + 1 × 1GbE | 2 × 1GbE |
| Drive bays | 4 SATA bays | 4 SATA bays |
| System | QTS | DSM |
| Useful starting question | Will 2.5GbE and the QNAP photo workflow help? | Do the DSM file and recovery tools fit? |
A clock speed or core count does not rank complete NAS systems. Background indexing, encryption, disk layout, application support and the client can all change responsiveness. Keep either unit’s fixed-memory ceiling in mind before adding many simultaneous tasks.
Will 2.5GbE Change Your Working Day?
Fast Access and Safe Recovery
Solve the connection and the recovery problem separately.
01 The useful file path
Every stage has to fitOne Gigabit stage can remain the limit on a faster NAS path.
02 The recoverable library
Test a file restoreRAID, snapshots and an independent backup protect different failures.
The TS-433 has a direct way to connect to a 2.5GbE network without adding a NAS network card. The client and switch still need an appropriate path. A Gigabit laptop connection remains a Gigabit connection even when the NAS is faster.
Two Gigabit ports on the DS423 can serve supported failover or multi-client arrangements. They do not automatically create a 2Gb/s connection for every application. Use a supported configuration and assess the actual workload; link aggregation is not a universal single-file speed multiplier.
For routine document access, the difference may be less noticeable than it is for repeated large media transfers. If the existing installation is slow, use the NAS transfer troubleshooting guide to identify the busy stage first.
Photo Organisation: Test the Search You Actually Need
The TS-433 includes an NPU used by supported QNAP photo-recognition functions. That does not make it a general-purpose AI server. The useful test is whether the current QuMagie version can organise and retrieve your own library in the way you expect.
Synology Photos offers its own backup, browsing and sharing workflow. Recognition capabilities depend on the NAS model and application release. Do not assume that every DSM NAS exposes every feature from a higher-end model.
- Upload a representative group of phone pictures and camera files.
- Check duplicate handling, dates, permissions and the people or subject search you need.
- Try a shared album from a recipient’s device, then check how to withdraw access.
- Delete a test file and recover it using the planned recovery method.
This small workflow test says more than a claim that one processor is “advanced” while the other is “basic”. For a deeper comparison of finding a library, see Synology Photos and QNAP QuMagie.
Four Bays: Capacity, Protection and Room to Grow
Four 12 TB drives provide 48 TB of raw labelled capacity. A conventional equal-drive RAID 5 layout has about 36 TB before formatting and system overhead; RAID 6 has about 24 TB. Displayed binary capacity is lower still. These are planning calculations, not a measured available-space result.
Use the RAID capacity calculator to explore a suitable layout. Confirm the exact drives and supported expansion accessories separately. A large published expansion total must not be mistaken for the capacity of the four internal bays, and supported USB backup or expansion does not automatically mean a single enlarged internal RAID pool.
Keep a second, versioned recovery copy outside the working NAS. RAID protects against some disk failures; it does not undo every deletion, ransomware incident or enclosure loss.
Which One Makes More Sense?
Choose TS-433 when you will use its 2.5GbE connection and supported QNAP tools. Choose DS423 when DSM’s photo, sharing and recovery workflow is the stronger fit. If you already need expandable memory, many containers or a faster add-in network interface, compare a higher platform class before buying either.
Frequently Asked Questions
Does the DS423 have 2.5GbE?
Its built-in network interfaces are two Gigabit Ethernet ports. Do not confuse DS423 with a different Plus-series model.
Can I upgrade the memory?
Both models use fixed onboard memory. The TS-433 has 4 GB and the DS423 has 2 GB; plan concurrent applications accordingly.
Does the TS-433 NPU run any AI application?
No. It accelerates supported functions in the software stack. It is not a general GPU or a promise of compatibility with local language-model software.
Will RAID 5 give me all four drives’ capacity?
No. With equal drives, RAID 5 reserves the equivalent of one drive for parity. Formatting, system use and snapshots also affect usable space.
Can I use it without buying a faster switch?
Yes. Check the negotiated speed and current client connections. A faster NAS interface is useful only where the rest of the route can benefit.
Should an existing owner replace the NAS immediately?
First check support, security updates, health, capacity and the actual bottleneck. A working backup and a planned migration are more useful than replacing equipment solely because it is older.
