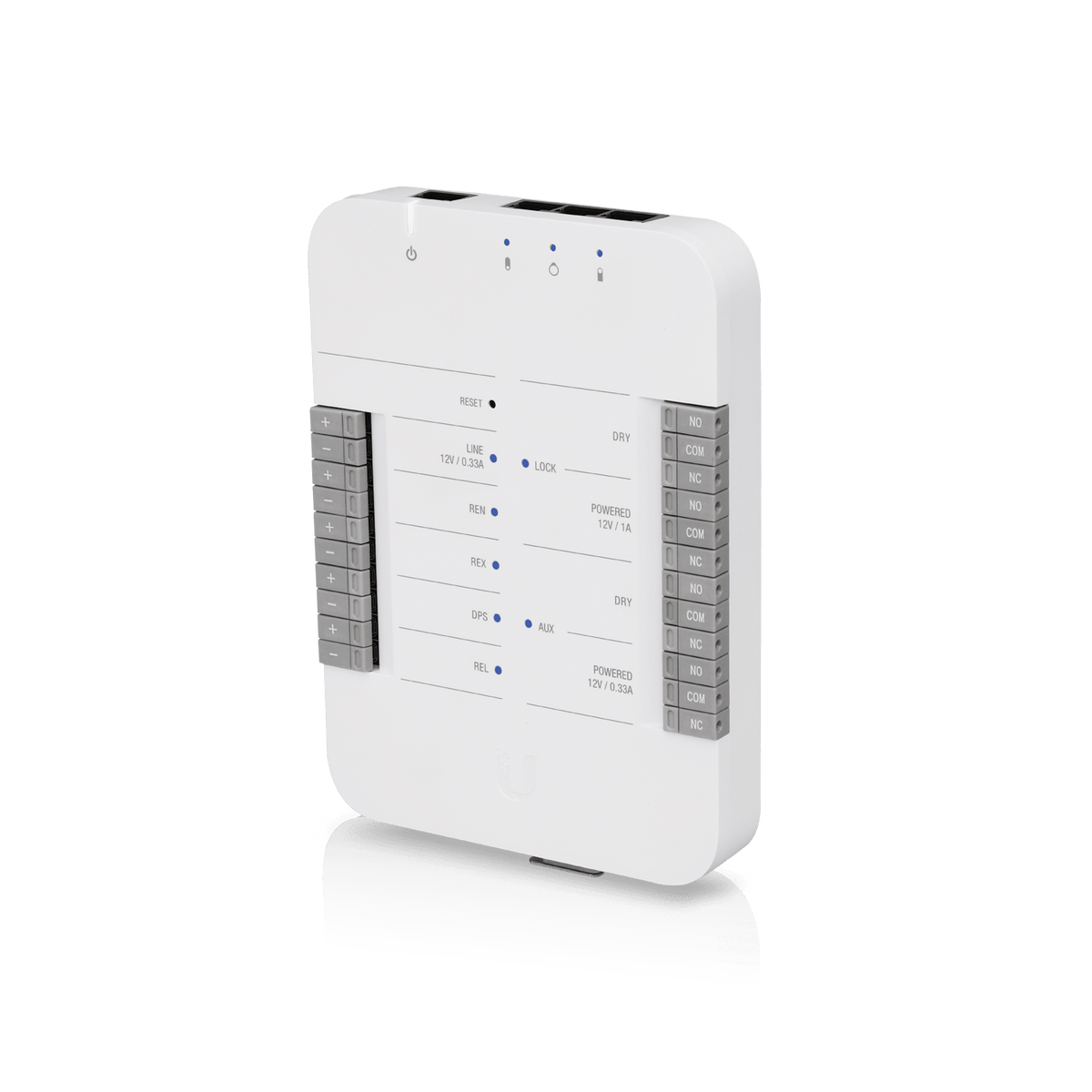

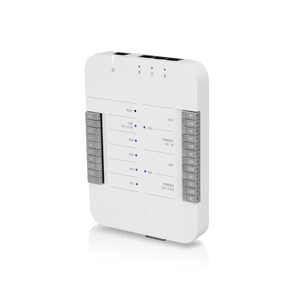

Ubiquiti UA-Hub Access Hub
Comprehensive Entry and Exit Control The Ubiquiti UA-Hub Access Hub is a single-door mechanism that provides complete entry and exit control via connected Access Readers....
Specs
Ubiquiti UA-Hub Access Hub Specifications
| MECHANICAL | |
|---|---|
| Dimensions | 190 x 126 x 30.5 mm (7.5 x 5 x 1.2") |
| Weight | 457 g (1 lb) |

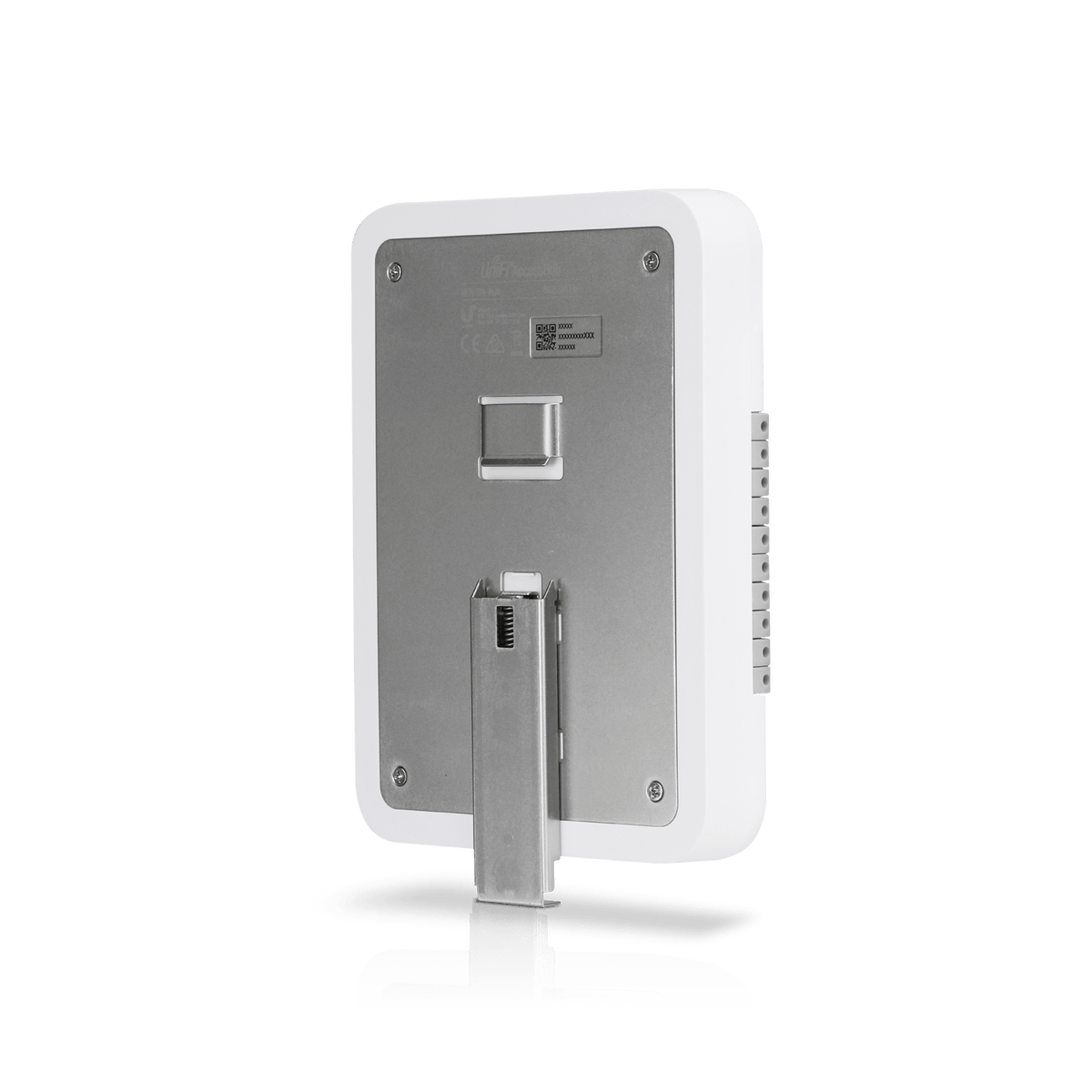

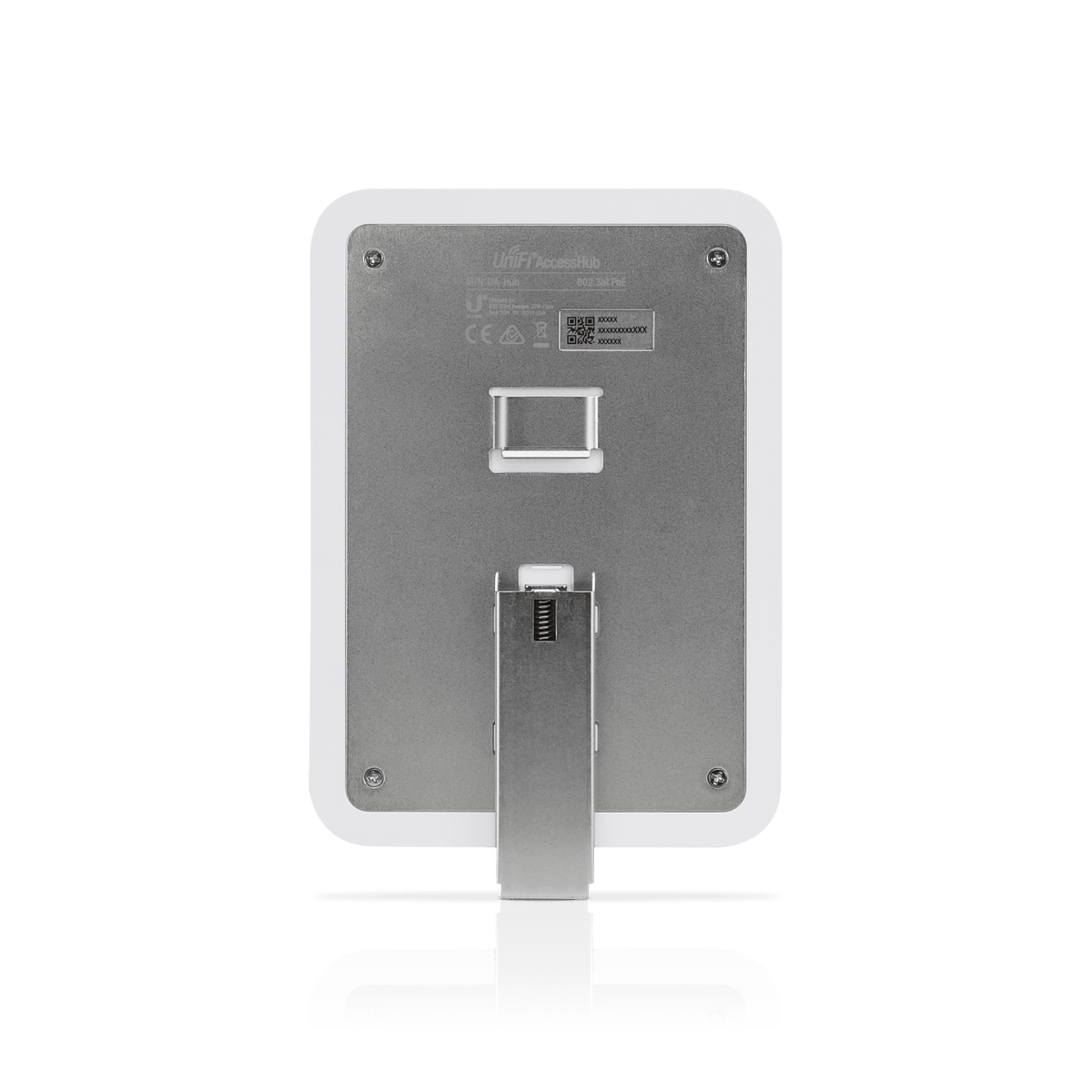

| Enclosure Material | Plastic enclosure with metal mount plate |

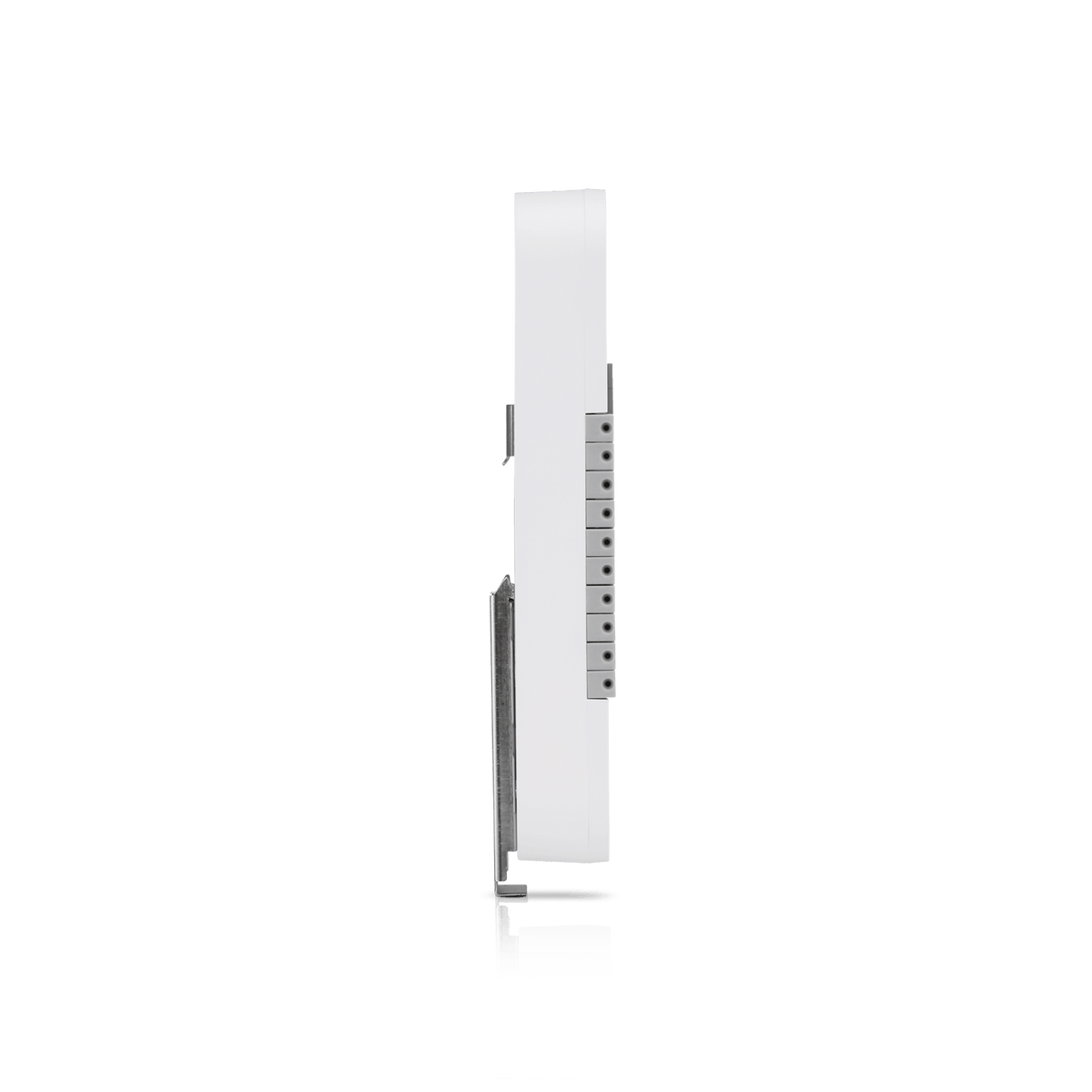

| Mounting Options | DIN rail |
| HARDWARE | |

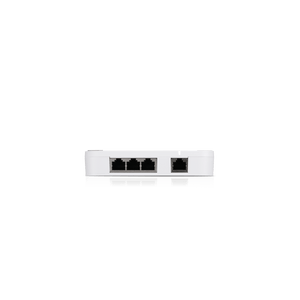

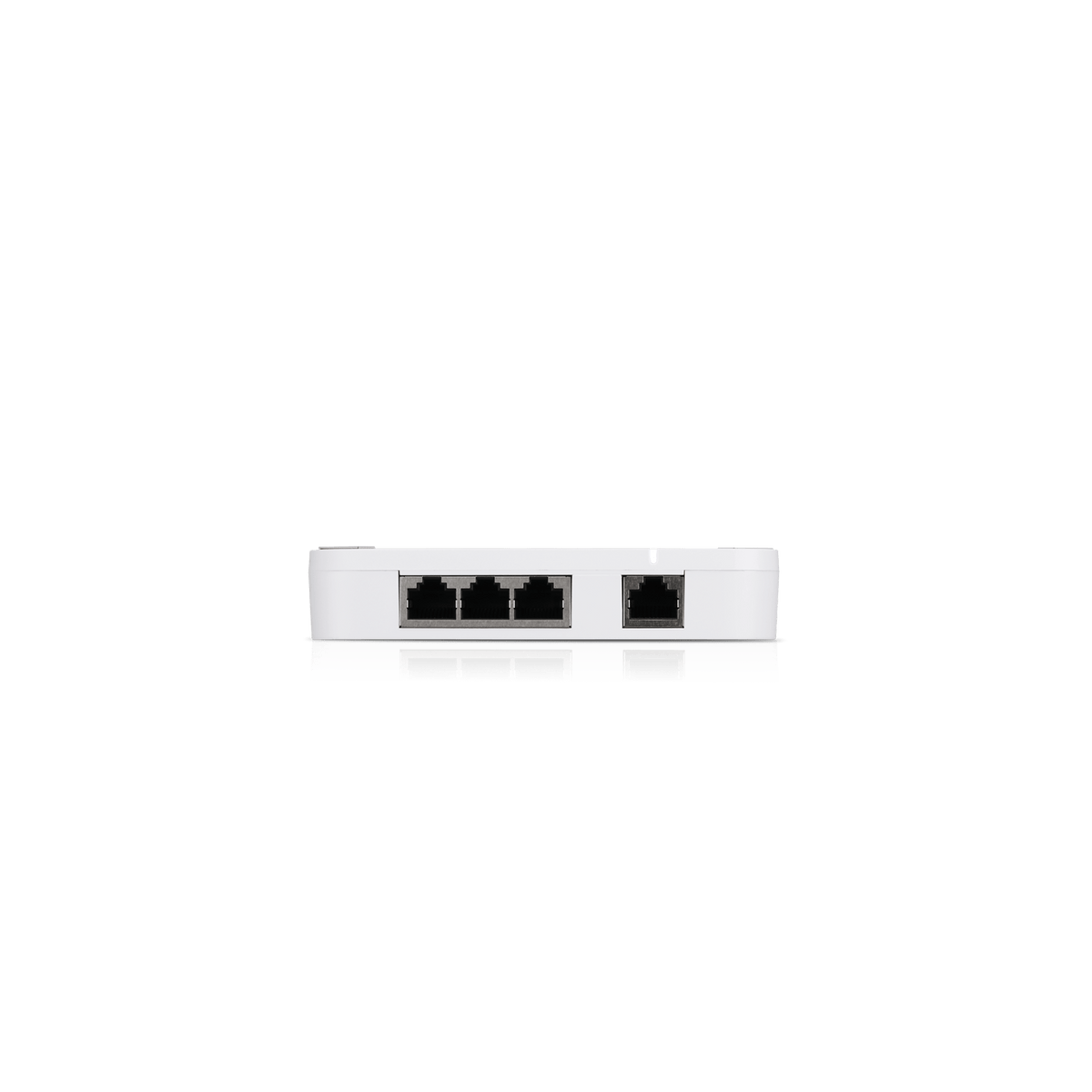

| Networking Interface | (4) 1 GbE |
| PoE Interface | (3) PoE (Pins 1, 2+; 3, 6-) |
| Power Method | PoE++, UL 294 Power-limited Class 2 PSU, UL 60950-1/62368-1 LPS/PS2 PSU |
| Supported Voltage Range | 48V DC |
| Max. Power Consumption | 51W |
| Total Available PoE | 60W |
| Max. PoE Wattage per Port | 15.4W |
| Voltage Range PoE Mode | 44–57V DC |

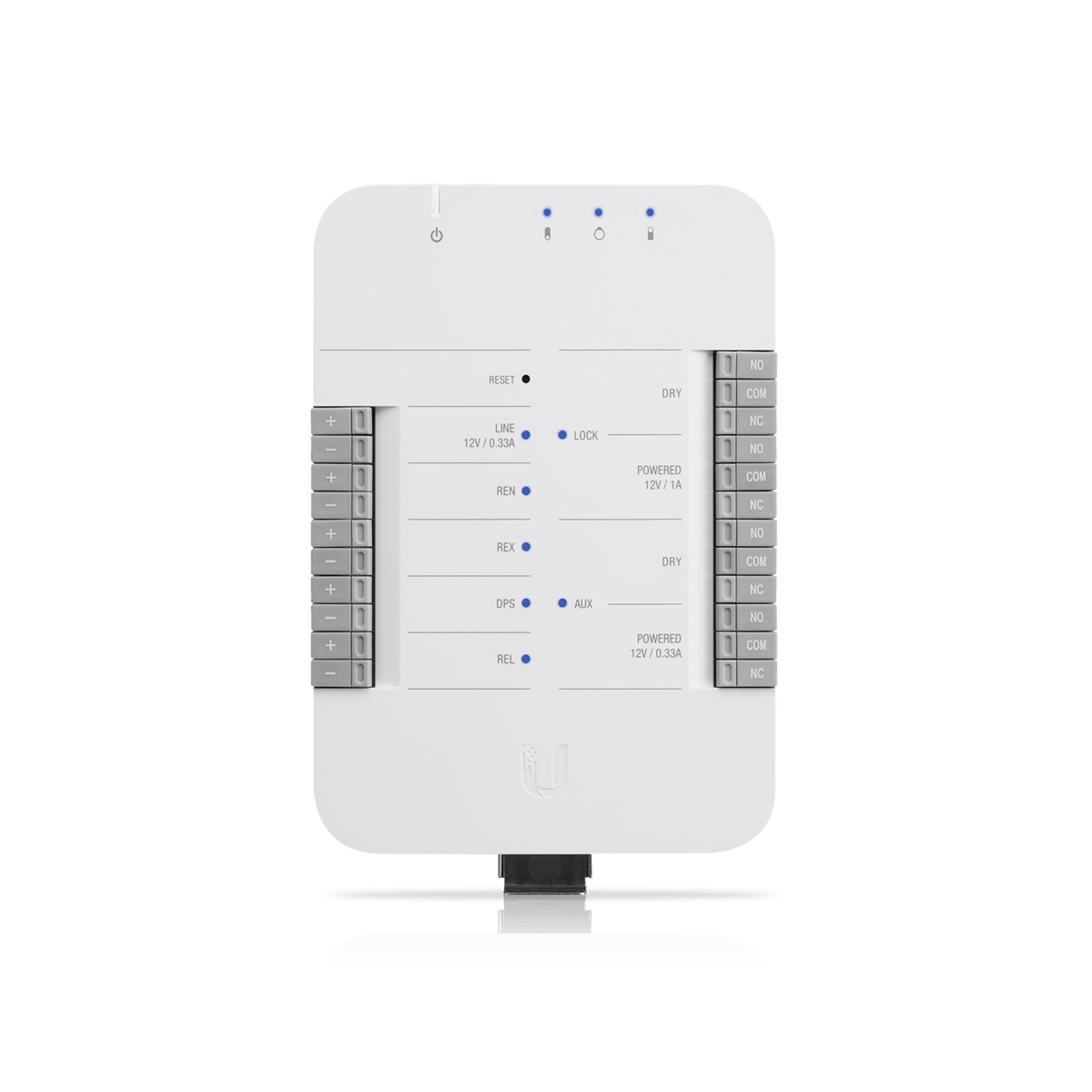

| Input Terminals | REX: request to exit, REN: request to enter, REL: remote release, DPS: door position sensor |
| Dry Output Relay | Lock: rated 30V DC, up to 1A, Aux: rated 30V DC, up to 1A |
| Powered Output Relay | Lock: 12V DC, up to 1A, Aux: 12V DC, up to 0.33A, Line: 12V DC, up to 0.33A |
| Button | (1) Factory reset |
| Recommended Max. Cable Length | 18 AWG |
| UACC-Cable-DoorLockRelay Length | |
| 18 AWG Length | 100 m (328 ft) |
| 20 AWG Length | 66 m (217 ft) |
| 22 AWG Length | 42 m (138 ft) |
| 24 AWG Length | 25 m (82 ft) |
| UA-Lock-Electric (400mA) | 100 m (328 ft), 66 m (217 ft), 42 m (138 ft), 25 m (82 ft) |
| UA-Lock-Magnetic-270kg (800mA) | 46 m (151 ft), 30 m (98 ft), 20 m (66 ft), 12 m (39 ft) |
| UA-Lock-Magnetic-540kg (500mA) | 80 m (262 ft), 51 m (167 ft), 32 m (105 ft), 20 m (66 ft) |
| Other Locks (1A) | 36 m (118 ft), 24 m (79 ft), 15 m (49 ft), 9 m (30 ft) |
| Operating Environment | Indoor use only |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| UL 294 Level | Destructive attack: Level I, Line security: Level I, Endurance: Level I, Standby power: Level I |
| UL 294 Statement | Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits. |
| PoE Cabling Requirements | Cable 5e cabling is the minimum performance category recommended. The performance category utilized should match |
