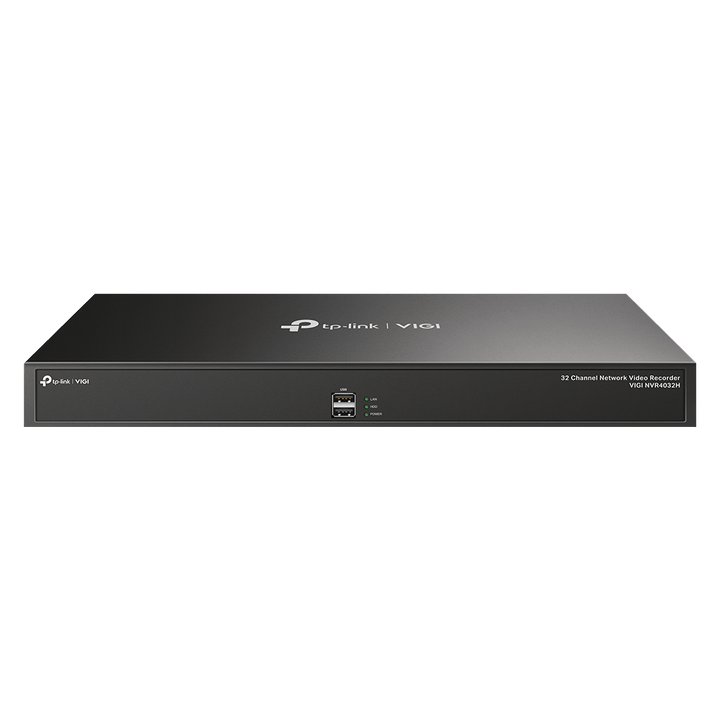

TP-Link VIGI NVR4032H 32 Channel Network Video Recorder
Advanced 32-Channel Network Video Recorder Elevate Your Surveillance System with High-Capacity Recording The TP-Link VIGI NVR4032H is a robust 32-Channel Network Video Recorder designed to...
Frequently Bought Together
Advanced 32-Channel Network Video Recorder
Elevate Your Surveillance System with High-Capacity Recording
The TP-Link VIGI NVR4032H is a robust 32-Channel Network Video Recorder designed to cater to extensive surveillance needs. It combines high-resolution video output, dual Ethernet ports, and massive storage capacity, making it an ideal choice for comprehensive security monitoring.
Key Features for Enhanced Security Monitoring
- 16-ch@2MP/ 8-ch@4MP Decoding Capacity: Enjoy multi-channel live view and playback simultaneously for comprehensive coverage.

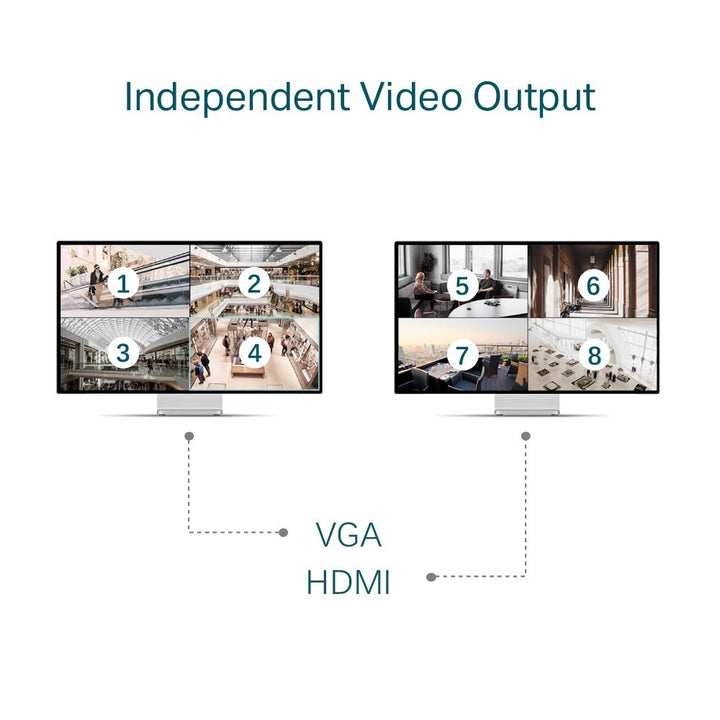

- 1 HDMI & 1 VGA Interface: Offers independent video output for flexible monitoring.
- H.265+ Video Coding: Efficiently compresses video to save space and bandwidth without compromising quality.
- 320 Mbps Bandwidth: Manages high-resolution cameras effectively.
- Mass Storage Capacity: Supports 4× SATA, up to 10 TB each, for extensive video storage.
- 16-Channel Simultaneous Playback: Allows concurrent playback from multiple cameras for efficient footage review.
- Dual Ethernet Ports Design: Supports multi-address mode, network fault-tolerance, and load balance.
- Plug & Play Functionality: Simplifies the addition and activation of new VIGI IP Cameras.
- Remote Monitoring: Accessible via the VIGI app and VIGI Security Manager for off-site surveillance.
- Rack Mounting: Space-efficient and easy to install.
- ONVIF Compatibility: Ensures seamless integration with various IPCs.
In-Depth Analysis of the VIGI NVR4032H
The VIGI NVR4032H stands out with its ability to handle up to 32 high-definition cameras, offering a comprehensive surveillance solution. Its dual Ethernet ports provide versatile network options, ensuring reliable and uninterrupted monitoring. The device's large storage capacity, combined with H.265+ video coding, makes it a practical choice for businesses requiring extensive video archiving.
Summary: A Comprehensive Solution for Extensive Surveillance Needs
The TP-Link VIGI NVR4032H is a high-capacity network video recorder, ideal for businesses needing extensive surveillance coverage. It offers advanced features like high decoding capacity, dual video outputs, and massive storage, ensuring a reliable and efficient security system.
| Category | Specification |
|---|---|
| Network | |
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 320 Mbps |
| General | |
| Package Contents | VIGI Network Video Recorder, Mouse, Installation Guide, Power Cord, HDD Power Cables, HDD Data Cables, Terminal Blocks, Mounting Brackets, Screws, Rubber Feet |
| Working Temperature | -10–55 °C |
| Working Humidity | 10%~90% RH Non-Condensing |
| Dimensions (W x D x H) | 440 × 330 × 44 mm |
| Net Weight | 4.0 Kg |
| Power Supply | 100-240 VAC, 50 to 60HZ, 1.5A |
| Power Consumption | 5 W (Without Disk), 48 W (With Disk) |

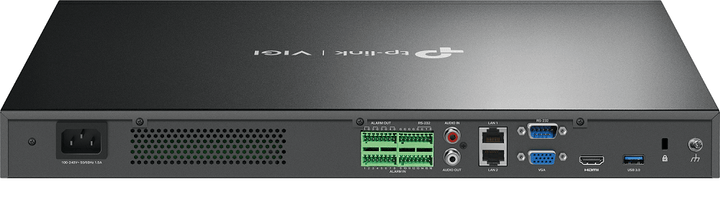

| External Interface | |
| Network Interface | 2 RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet |
| USB Interface | 2 USB 2.0 |
| Audio Interface | 1 Audio In, 1 Audio Out |
| Alarm In/Out | 16 In, 4 Out |
| Serial Interface | 1 RS232 |
| Network Management | |
| Network Protocols | UPnP (Plug and Play), NTP (Network Timing) |
| Interoperability | ONVIF, CGI |
| Mobile Phone Access | Android, iOS |
| Browser | Chrome (57+), Firefox (52+), Edge (91+) |
| Hard Disk | |
| SATA | 4 SATA Interfaces |
| Capacity | Up to 10 TB Capacity for Each HDD |
| Alarm | |
| General Alarm | Motion Detection, Video Tampering, Intrusion Detection, Line-Crossing Detection |
| Anomaly Alarm | Video Loss, Offline and IP Conflict, Disk Exception, Login Exception, Fan Exception |
| Alarm Linkage | Recording, White Light Alarm, Buzzer, Log, Audible Alarm |
| Record Playback | |
| Record Mode | Manual Recording, Scheduling Recording, Motion Detection Recording |
| Playback Mode | Instant Playback, Regular Playback, Tag Playback, Event Playback |
| Backup Mode | Regular Backup, Video Clip Backup |
| Playback Function | Play, Pause, Stop, Fast Forward, Fast Backward, Play by Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off |
| Video/Image | |
| IP Video Input | 32-Channel |
| Multi-View Display | 1/4/6/8/9/16/25/32/36 |
| Video Output Mode | HDMI/VGA Independent Output |
| Recording Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| HDMI Output Resolution | 1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| VGA Output Resolution | 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Decoding | |
| Decoding Format | H.265+/H.265/ H.264+/H.264 |
| Live View/Playback Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback | 16-Channel |
| Capability | 16-ch @ 1080p (30 fps), 8-ch @ 4MP (30 fps), 4-ch @ 8MP (30 fps) |
