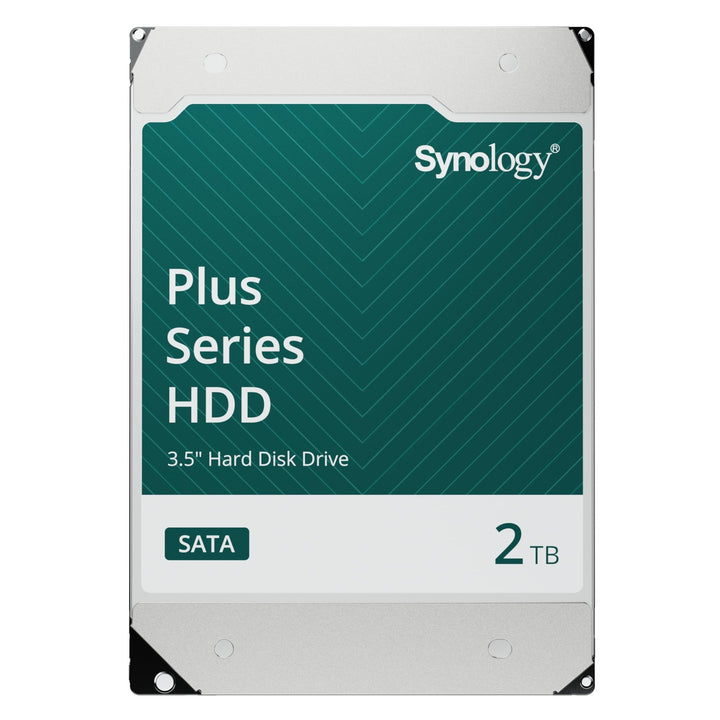

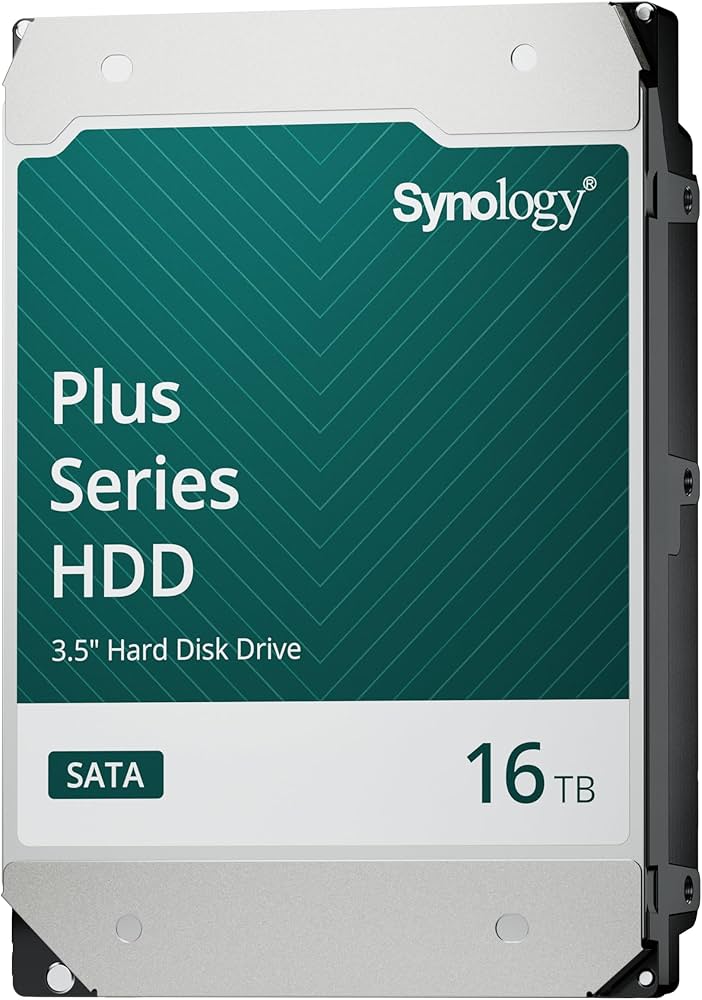

Synology HAT3300 Plus Series 3.5" SATA HDD
Reliable 24/7 Storage for Home and Small Office Systems Purpose-built for Synology environments, this Plus Series hard drive range delivers dependable storage, consistent write performance,...
Reliable 24/7 Storage for Home and Small Office Systems
Purpose-built for Synology environments, this Plus Series hard drive range delivers dependable storage, consistent write performance, and simplified maintenance through DSM firmware updates. The Synology HAT3300 Plus Series 3.5" SATA HDD is designed for home and small office users who need stable, long-term storage for everyday workloads.
Highlights
Built for Synology Systems
• Designed for smooth integration with Synology systems
• Firmware and system-level optimization for consistent performance
• Simplified troubleshooting through Synology support
Reliable 24/7 Operation
• Built for continuous operation in home and small office environments
• Uses 100% conventional magnetic recording technology
• Designed to maintain consistent write performance throughout the drive lifespan
Seamless DSM Firmware Updates
• Firmware updates can be performed directly through DSM
• No drive removal required for firmware maintenance
• Helps keep drives updated with the latest patches
Tested for Dependability
• Over 500,000 hours of cumulative stress testing
• Workload rating up to 300 TB per year
• MTBF up to 1.2 million hours
• Backed by a 3-year limited warranty
Key Features
Synology HAT3300 Plus Series 3.5" SATA HDD
• Plus Series 3.5" SATA HDD for Synology systems
• Available capacities from 2 TB to 20 TB based on listed models
• SATA 6 Gb/s interface
• Designed for home and small office storage environments
• Suitable for continuous multi-user workloads
Model Range and Capacity Options
• HAT3300-2T: 2 TB
• HAT3300-4T: 4 TB
• HAT3300-6T: 6 TB
• HAT3320-8T: 8 TB
• HAT3310-12T: 12 TB
• HAT3310-16T: 16 TB
• HAT3320-20T: 20 TB
Performance and Efficiency
• Rotational speed ranges from 5,400 rpm to 7,200 rpm depending on model
• Maximum sustained data transfer speed up to 295 MB/s
• Firmware and operating system-level optimizations enable up to 36% faster sequential reads compared to similar-class third-party drives
• Synology hard drives deliver up to 27% faster RAID repairs compared to third-party drives
Deployment Confidence
• 100% CMR technology supports consistent write performance
• Thorough compatibility and stress testing helps ensure stable 24/7 operation
• One-stop support from Synology helps simplify troubleshooting
• 3-year limited warranty includes technical support and hardware replacement services
Operating Environment
• Operating temperature ranges from 0°C to 65°C for selected lower-capacity models
• Operating temperature ranges from 5°C to 60°C for selected higher-capacity models
• Non-operating temperature range: -40°C to 70°C
• Power consumption may differ according to configurations and platforms
Summary / Conclusion
The Synology HAT3300 Plus Series 3.5" SATA HDD is a reliable storage choice for Synology home and small office systems. With CMR technology, DSM-based firmware updates, 24/7 operation design, extensive stress testing, and a 3-year warranty, it provides dependable storage performance with simplified long-term maintenance.
Synology HAT3300 Plus Series 3.5 inch SATA HDD
The Synology HAT3300 Plus Series is a 3.5 inch SATA HDD series designed for Synology NAS storage deployments. It provides multiple capacity options, reliable 24/7 storage performance, and SATA 6 Gb/s connectivity for SMB file storage, backup, and surveillance workloads.
Product Specifications
| Specification name | Specification details |
|---|---|
| Overview | |
| Product Type | Plus Series 3.5 inch SATA HDD |
| Series | HAT3300, HAT3310, HAT3320 |
| Brand | Synology |
| Form Factor | 3.5 inch |
| Interface | SATA 6 Gb/s |
| Capacity Options | |
| Models and Capacities | • HAT3300-2T: 2 TB • HAT3300-4T: 4 TB • HAT3300-6T: 6 TB • HAT3320-8T: 8 TB • HAT3310-12T: 12 TB • HAT3310-16T: 16 TB • HAT3320-20T: 20 TB |
| Performance | |
| Rotational Speed | • 2 TB, 4 TB, 6 TB: 5,400 rpm • 8 TB, 12 TB, 16 TB, 20 TB: 7,200 rpm |
| Max Sustained Data Transfer Speed | • 2 TB: 180 MB/s • 4 TB: 202 MB/s • 6 TB: 202 MB/s • 8 TB: 281 MB/s • 12 TB: 281 MB/s • 16 TB: 281 MB/s • 20 TB: 295 MB/s |
| Power Consumption | |
| Active Idle | • 2 TB: 2.8 W • 4 TB: 3.96 W • 6 TB: 3.4 W • 8 TB: 5.74 W • 12 TB: 3.30 W • 16 TB: 4.14 W • 20 TB: 4.35 W |
| Random Read Write 4KB Q1 | • 2 TB: 3.1 W • 4 TB: 4.85 W • 6 TB: 5.3 W • 8 TB: 9.07 W • 12 TB: 6.85 W • 16 TB: 7.48 W • 20 TB: 7.62 W |
| Power Consumption Note | Power consumption may differ according to configurations and platforms |
| Environmental | |
| Operating Temperature | • 2 TB, 4 TB, 6 TB: 0°C to 65°C (32°F to 149°F) • 8 TB, 12 TB, 16 TB, 20 TB: 5°C to 60°C (41°F to 140°F) |
| Non Operating Temperature | -40°C to 70°C (-40°F to 158°F) |
| Compatibility | |
| Applied Models | • HAT3300-4T • HAT3300-6T • HAT3320-8T • HAT3310-12T • HAT3310-16T • HAT3320-20T |
| Warranty | |
| Warranty Period | 3 years |
| Sizes |
2TB, 4TB, 6TB, 8TB, 12TB, 16TB, 20TB |
|---|
