D-Link DGS-3130-30S 30-Port SFP+ Gigabit L3 Lite Stackable Managed Switch with 6-Port 10G

Enterprise-Class PoE Switching with 10G Uplink Scalability

A powerful, secure, and stackable Layer 3 switch that delivers high PoE output, intelligent L2/L3 features, and 10G uplink versatility — built for agile enterprise, campus, and metro Ethernet deployments.

Highlights

• 24 x Gigabit PoE ports with 370W power budget (expandable to 740W)

• 2 x 10GBASE-T and 4 x 10G SFP+ uplinks for high-throughput expansion

• Advanced L2 and Lite L3 features for dynamic routing and optimized traffic

• 6 kV surge protection on all Gigabit Ethernet ports

• Stack up to 9 units with 80 Gbps stacking bandwidth per device

• Supports RIP, RIPng, OSPFv2/v3, Spanning Tree, and G.8032 ERPS

• Smart Fan and dual power input support for enhanced reliability

Ideal Use Cases

• Enterprise Access Layer: Robust security and performance for connecting end-users

• Metro Ethernet: Dynamic routing, high PoE output, and reliable recovery

• Surveillance & VoIP: Simplified deployment of IP cameras, phones, and APs

• Scalable Infrastructure: Stackable for easy growth with minimal downtime

Key Features

Ports & Connectivity

• 24 x 10/100/1000BASE-T PoE ports

• 2 x 10GBASE-T uplink ports

• 4 x 10G SFP+ uplink ports

Performance

• PoE Budget: 370W standard (expandable to 740W with DPS-700 RPS)

• Stacking: Up to 9 units, 80 Gbps per switch stacking bandwidth

• Fan: Smart Fan with self-adjusting cooling

Switching & Routing

• L2 Protocols: Spanning Tree (802.1D/w/s), ERPS (G.8032)

• L3 Routing: Static Routing, RIP/RIPng, OSPFv2/v3

• Multicast: L2 Multicast, IGMP/MLD Snooping, ISM VLAN

• QoS/CoS: Traffic Shaping, Priority Queues, Class-Based Queueing

Reliability

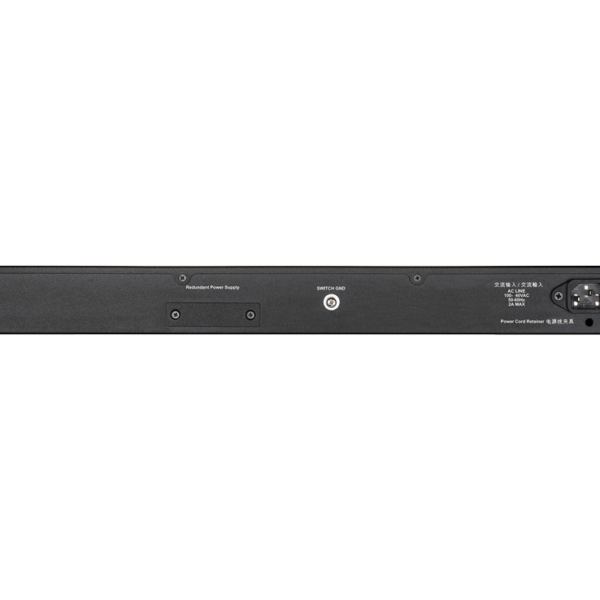

• Dual Power Inputs: Supports external Redundant Power Supply (RPS)

• Surge Protection: Built-in 6 kV protection on all access ports

• Recovery Time: Sub-50ms with Ethernet Ring Protection Switching

Security & Access Control

• Access Control: IEEE 802.1X, Web-based Access Control (WAC), MAC-based Access

• Security Features: IP-MAC-Port Binding, DHCP Snooping, Microsoft NAP support

• Unified Software Image: Integrated L2 and L3 features in one system

Summary

The D-Link DGS-3130-30PS delivers future-ready performance with advanced L2/L3 Lite features, generous PoE output, 10G uplinks, and exceptional reliability. Whether deployed in enterprise, campus, or smart city networks, this switch scales with your needs — offering secure access, high-availability architecture, and efficient traffic management with zero compromise.

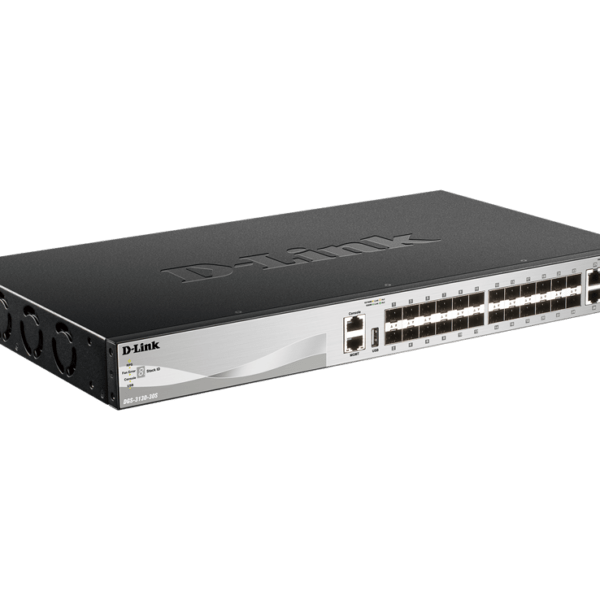

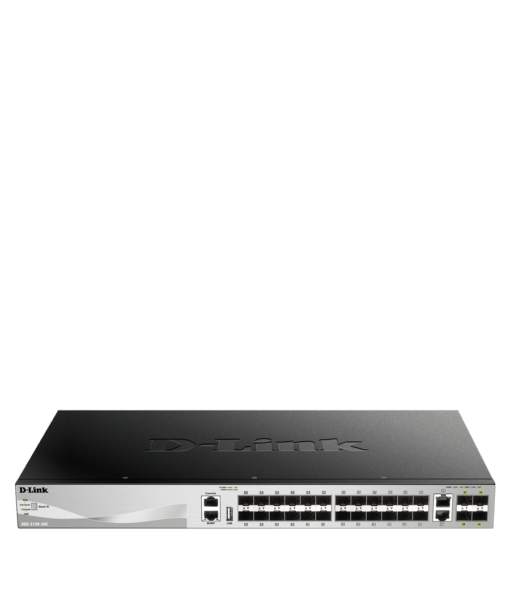

D-Link DGS-3130-30S – 30-Port SFP+ Gigabit L3 Lite Stackable Managed Switch with 6-Port 10G

Built for high-density aggregation and fiber-dominated network cores, the DGS-3130-30S combines 24 SFP ports and 6 high-speed 10G uplinks in a compact design. With advanced Layer 3 routing, enhanced security, and physical stacking capabilities, it's perfect for enterprise, data center, and campus networks.

Specifications
