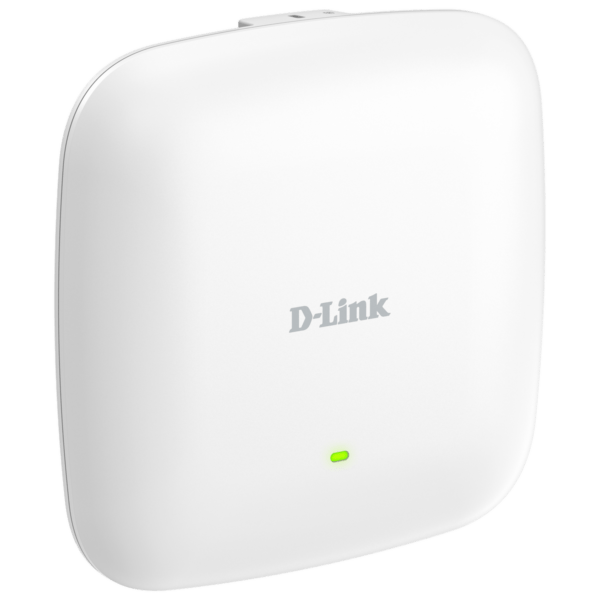

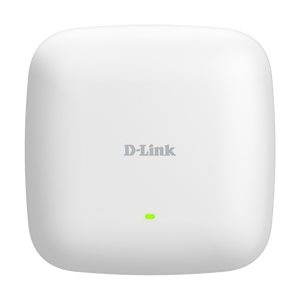

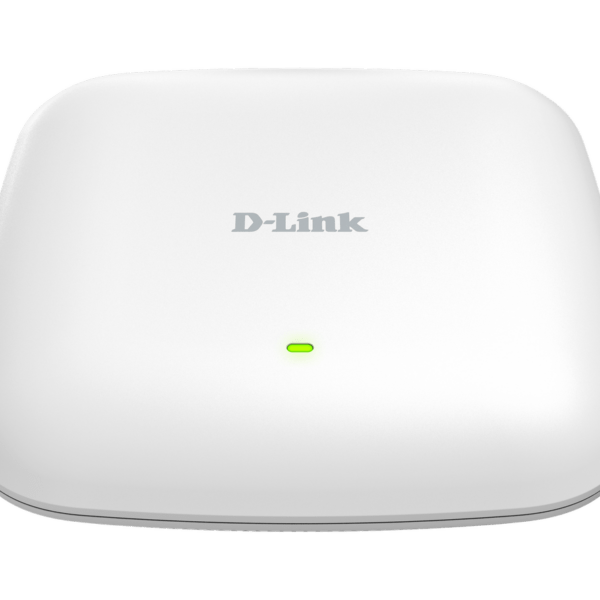

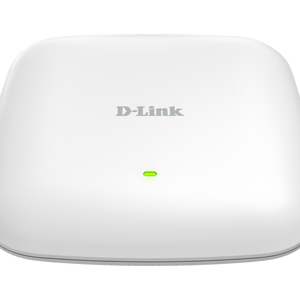

D-Link DAP-X3060 Nuclias Connect AX3000 WiFi 6 2.5GbE Access Point

Wi-Fi 6 Performance with Intelligent Cloud-Ready Management Deliver blazing-fast Wi-Fi 6 speeds, real-time traffic insights, and enterprise-grade security with the DAP-X3060 — the ultimate 2.5GbE...

$274.31 SGD $241.39 SGD SAVE $32.92 SGD

american expressapple paygoogle paymasterpaypalshopify payvisa
Vendor: D-Link
SKU: DAP-X3060
Barcode: 790069472930
Availability : In Stock Pre order Out of stock
Description

Wi-Fi 6 Performance with Intelligent Cloud-Ready Management

Deliver blazing-fast Wi-Fi 6 speeds, real-time traffic insights, and enterprise-grade security with the DAP-X3060 — the ultimate 2.5GbE access point for business-class connectivity and scalable Nuclias Connect deployment.

Highlights

  • AX3000 dual-band Wi-Fi 6 with combined speeds up to 3,000 Mbps

  • 1 x 2.5 Gigabit Ethernet LAN port for high-speed uplink

  • Dual-band 2×2 MU-MIMO with band steering and airtime fairness

  • Supports PoE (802.3at) for flexible installation

  • Secure WPA3 wireless encryption and customizable captive portal

  • Compatible with Nuclias Connect for centralized, on-premise management

Ideal Use Cases

  • SMBs & SMEs: Centralized site control, user management, traffic analytics

  • Retail Chains: Fast, secure Wi-Fi with branded guest onboarding

  • Hotels & Hospitality: In-room Wi-Fi, marketing funnel, user insights

  • Education: Web filtering, secure logins, and scalable deployment for campus-wide access

Key Features

Wi-Fi & Performance

  • Wi-Fi Standards: IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6)

  • Bands: Dual-band 2.4GHz + 5GHz

  • Wireless Speed: Up to 3,000 Mbps

  • MU-MIMO: 2×2 per band

  • Efficiency: Load balancing, airtime fairness, band steering, beamforming

Networking & Security

  • LAN: 1 x 2.5GbE PoE LAN port

  • Power: Supports 802.3at PoE

  • Encryption: WPA2/WPA3, network segmentation

  • Captive Portal: Email, social login, brand customization

  • Seamless Roaming: Maintains guest authentication across sites

Installation & Deployment

  • Modes: Access Point, WDS with AP, WDS/Bridge

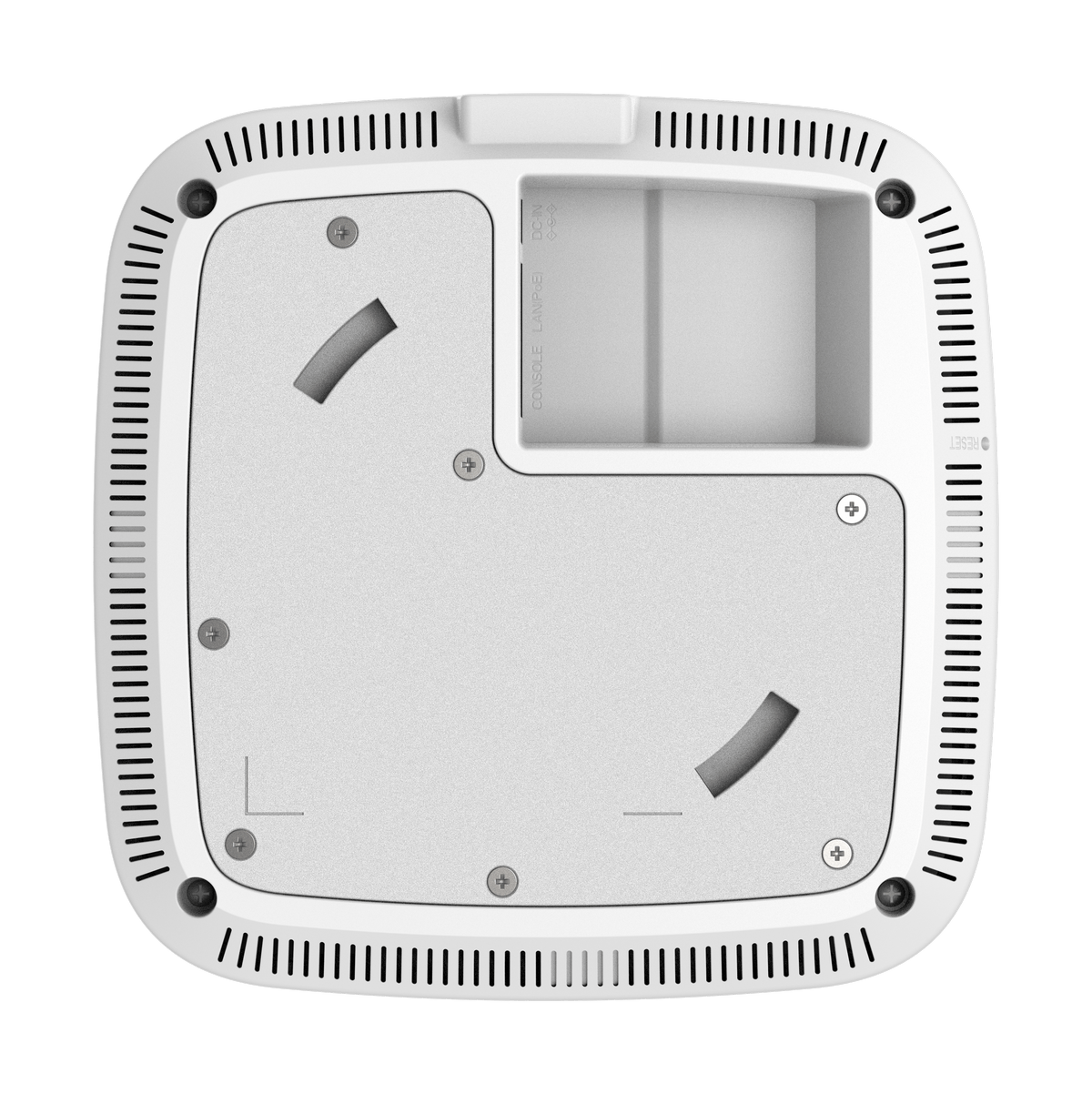

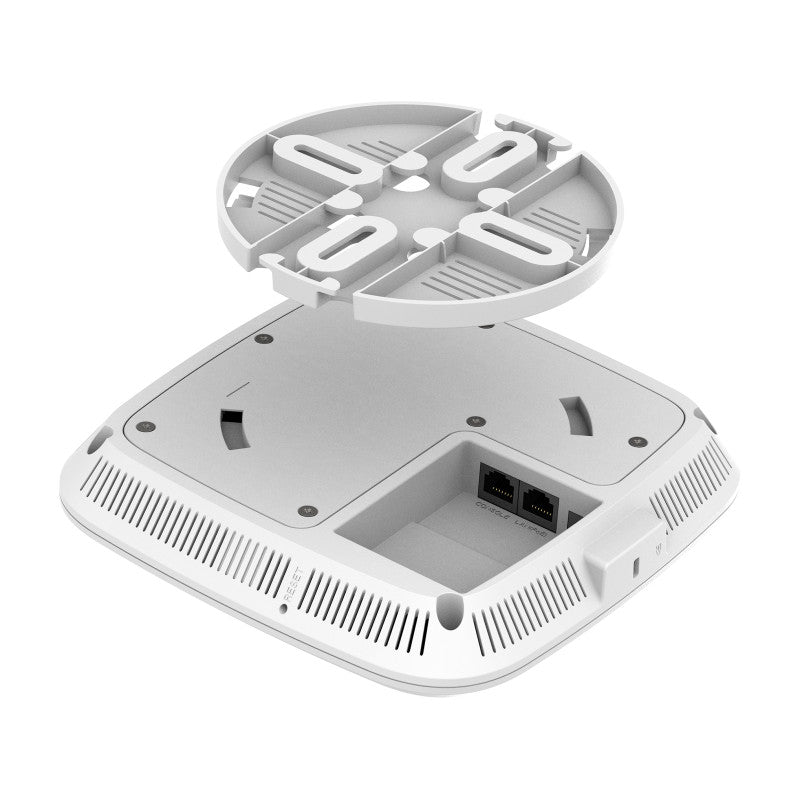

  • Mounting: Ceiling, wall, or desktop

  • Setup: Plug-and-play with Nuclias Connect or standalone mode

Centralized Management

  • Platform: Nuclias Connect (software-based)

  • Features:
     • Traffic analytics and reporting
     • Role-based admin controls
     • Network monitoring and alerts
     • Local throttling and client load balancing
     • Remote access and update
     • Scalable deployment from 1 to 1000+ devices

Summary

The DAP-X3060 is a high-performance AX3000 Wi-Fi 6 access point designed for growing businesses, hotels, campuses, and retail spaces. With centralized management via Nuclias Connect, built-in security, and enterprise-grade radio performance, it simplifies deployment while boosting coverage, speed, and reliability. Whether wall-mounted, ceiling-mounted, or desktop-installed, it’s built to scale with your business.

Specs

D-Link DAP-X3060 – Nuclias Connect AX3000 WiFi 6 2.5GbE Access Point

The D-Link DAP-X3060 is a high-performance AX3000 WiFi 6 access point built for advanced wireless coverage in enterprise and SMB environments. Featuring 2.5GbE connectivity, WPA3 security, and centralized management via Nuclias Connect, it delivers next-gen speed, reliability, and control.

Specifications

Specification Details
Model DAP-X3060
Description Nuclias Connect AX3000 WiFi 6 Access Point

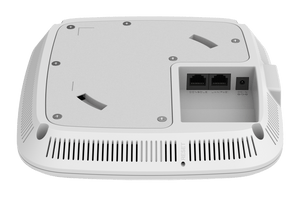

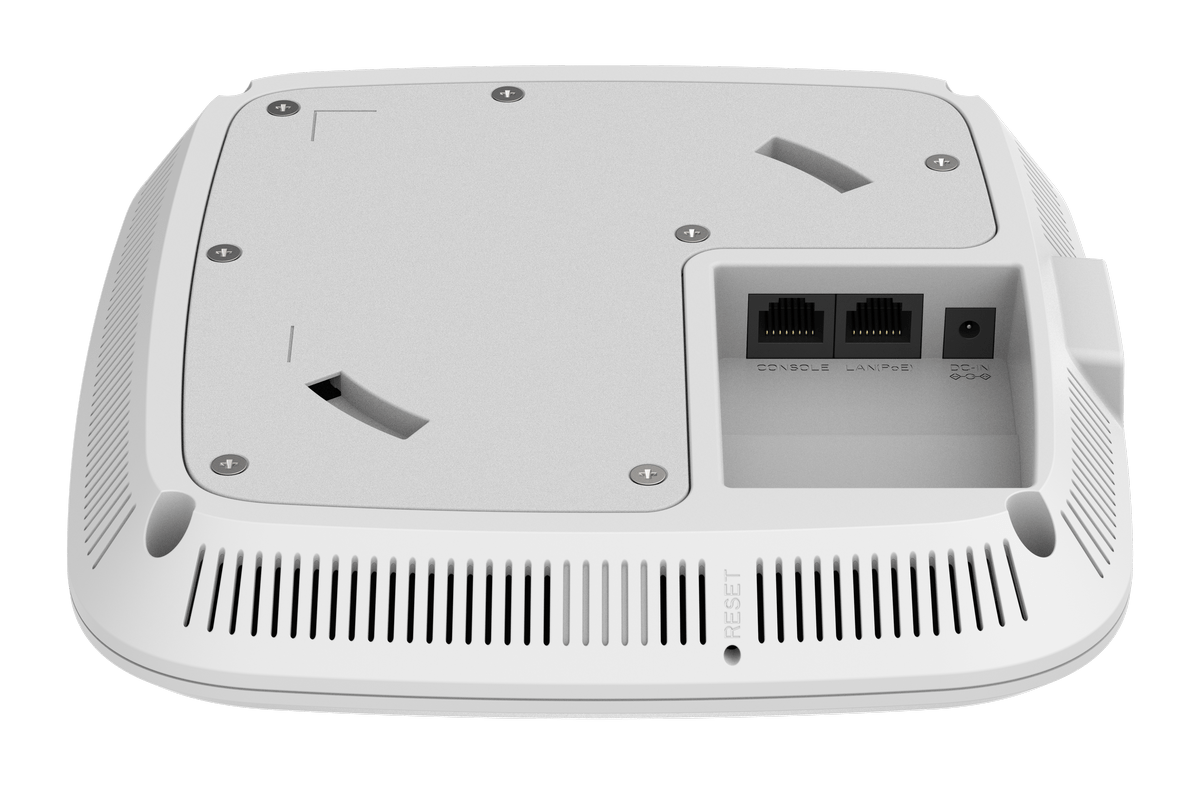

Device Interfaces • 1 × RJ45 console port
• 1 × 10/100/1000/2500 Mbps Ethernet LAN (PoE)
• Factory reset button
• Power input

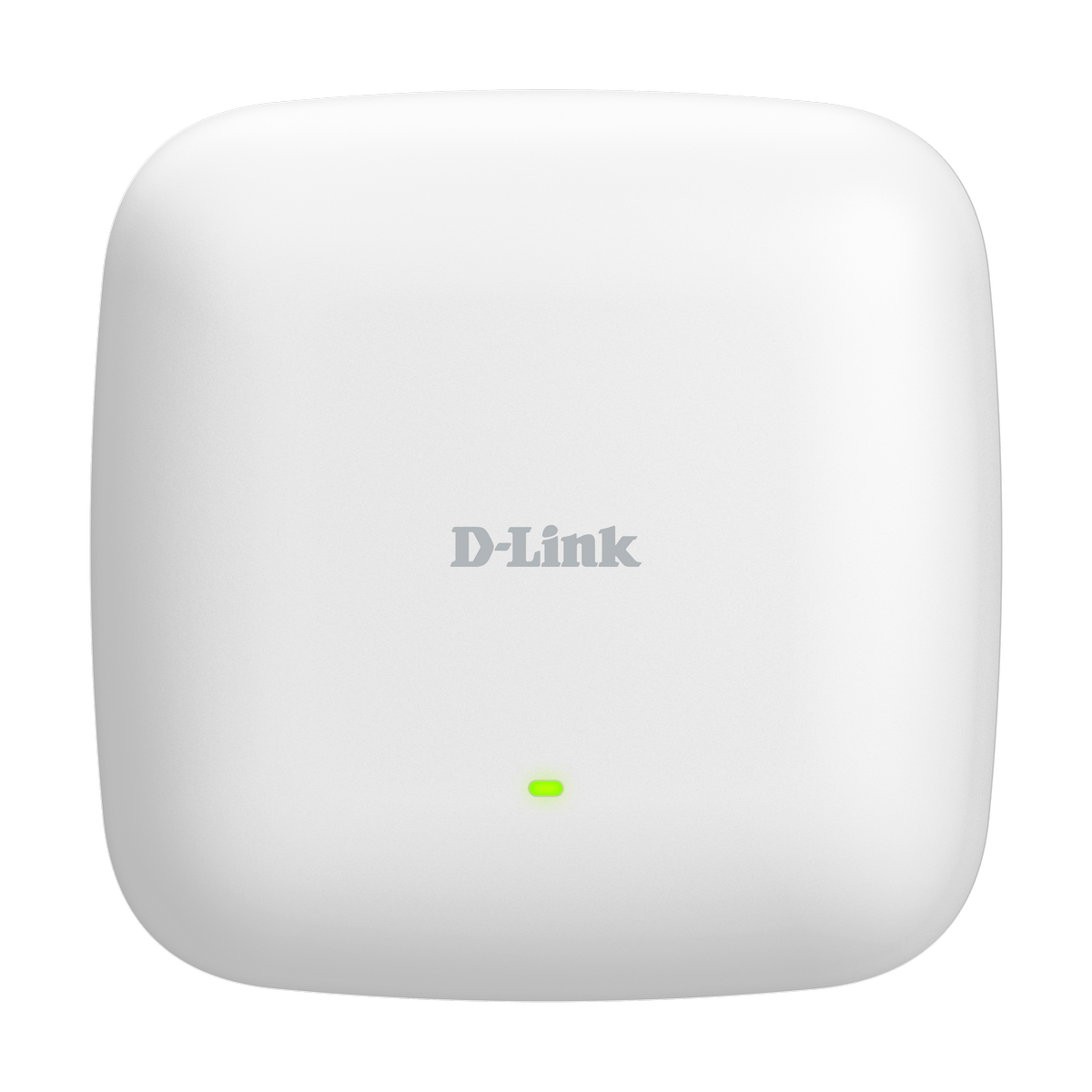

LED Indicator Power / Status
Antennas 4 × Internal Antennas
Antenna Gain • 3 dBi (2.4 GHz)
• 3 dBi (5 GHz)
Max. Output Power • 23 dBm (2.4 GHz)
• 22 dBm (5 GHz)
Wireless Performance
Max Data Rate • Up to 574 Mbps (2.4 GHz)
• Up to 2401 Mbps (5 GHz)
Operating Frequency • 2.4 – 2.483 GHz
• 5.15 – 5.35 GHz
• 5.47 – 5.85 GHz
Wireless Standards IEEE 802.11a/b/g/n/ac/ax, IEEE 802.3u/ab, IEEE 802.3az, IEEE 802.3at PoE
Security WPA/WPA2/WPA3 Personal & Enterprise, WEP 64/128-bit, SSID broadcast disable, MAC filtering, Internal RADIUS server
Network Management • Web (HTTP/SSL)
• D-Link Nuclias Connect
• D-View 8
• Traffic control
Power Options • 12 V / 2.5 A (optional adapter)
• IEEE 802.3at PoE
Max Power Consumption • 14.07 W (Adapter)
• 16.7 W (PoE)
Environmental
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 65°C (-4°F to 149°F)
Operating Humidity 10% to 90% RH
Storage Humidity 5% to 95% RH
Physical
Dimensions (W × D × H) 190 × 190 × 42.8 mm (7.48 × 7.48 × 1.68 in)
Weight 612.4 g (1.35 lb)
Certifications CE, FCC, IC, RCM, LVD, EN 60601-1-2
MTBF > 30,000 hours
