Ubiquiti U7-Lite U7 Lite BE5000 Ceiling Access Point
商品説明
High-Performance Ceiling-Mounted Wi-Fi 7 Access Point
The Ubiquiti U7 Lite BE5000 is a compact, ceiling-mounted Wi-Fi 7 access point designed for high-speed wireless performance and seamless connectivity. Featuring 4 spatial streams, 2.5 GbE uplink, and advanced radio management, this AP is ideal for small businesses, offices, and hospitality environments requiring fast, reliable, and scalable networking.
Highlights
- Wi-Fi 7 BE5000 with 4.3 Gbps (5 GHz) and 688 Mbps (2.4 GHz) speeds
- 2.5 GbE Uplink Port for high-speed wired connectivity
- Advanced MU-MIMO and OFDMA for optimized multi-device performance
- 115 m² (1,250 ft²) Coverage Area with support for 200+ concurrent clients
- Seamless Roaming and Band Steering for uninterrupted connectivity
- Hotspot and Guest Authentication with custom branding, vouchers, and payment-based login
- RADIUS over TLS (RadSec) for enhanced security and dynamic VLAN assignments
- Low Power Consumption (13W Max) and PoE-powered operation
Key Features
Next-Gen Wi-Fi 7 Performance
- Dual-band Wi-Fi 7 (5 GHz and 2.4 GHz) with 240 MHz bandwidth support
- 4 spatial streams for high-speed, low-latency data transmission
- MU-MIMO and OFDMA for efficient multi-client handling
- Max Data Rate: 4.3 Gbps (5 GHz) and 688 Mbps (2.4 GHz)
Advanced Wireless Management
- Wireless Meshing and Band Steering for optimized coverage
- 802.11r Fast Roaming & 802.11k Radio Resource Management
- 802.11v BSS Transition Management for seamless client handoff
- Wi-Fi Speed Limiting, Schedules, and Private Pre-Shared Key (PPSK)
Secure and Scalable Guest Networking
- Captive Hotspot Portal with custom branding, vouchers, and payment-based authentication
- Guest Network Isolation and Client Device Isolation for enhanced security
- Dynamic RADIUS-assigned VLANs and RADIUS over TLS (RadSec) Support

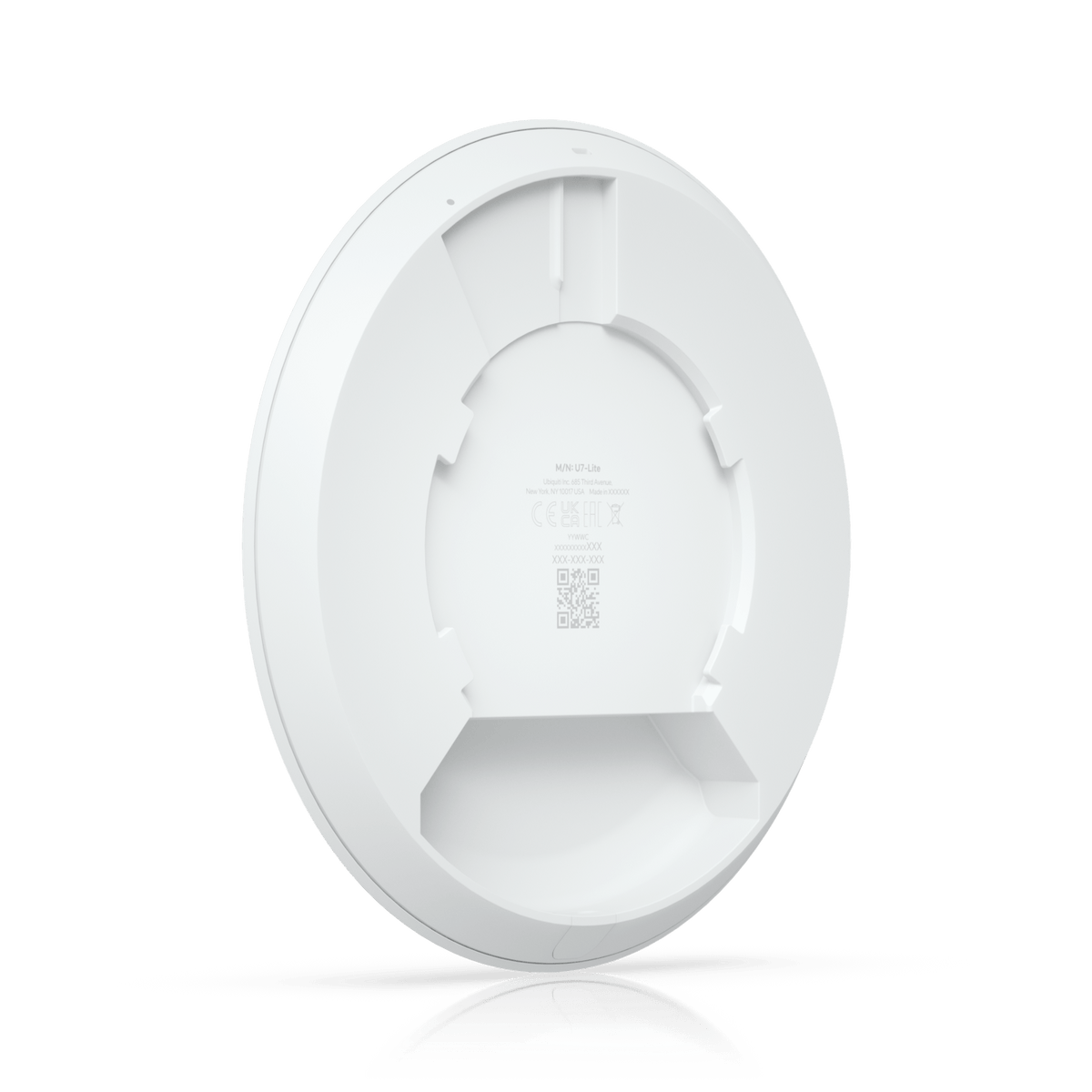

Compact and Durable Design
- Ceiling or Wall Mountable with UV-Stabilized Polycarbonate Enclosure

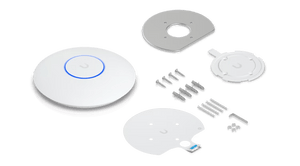

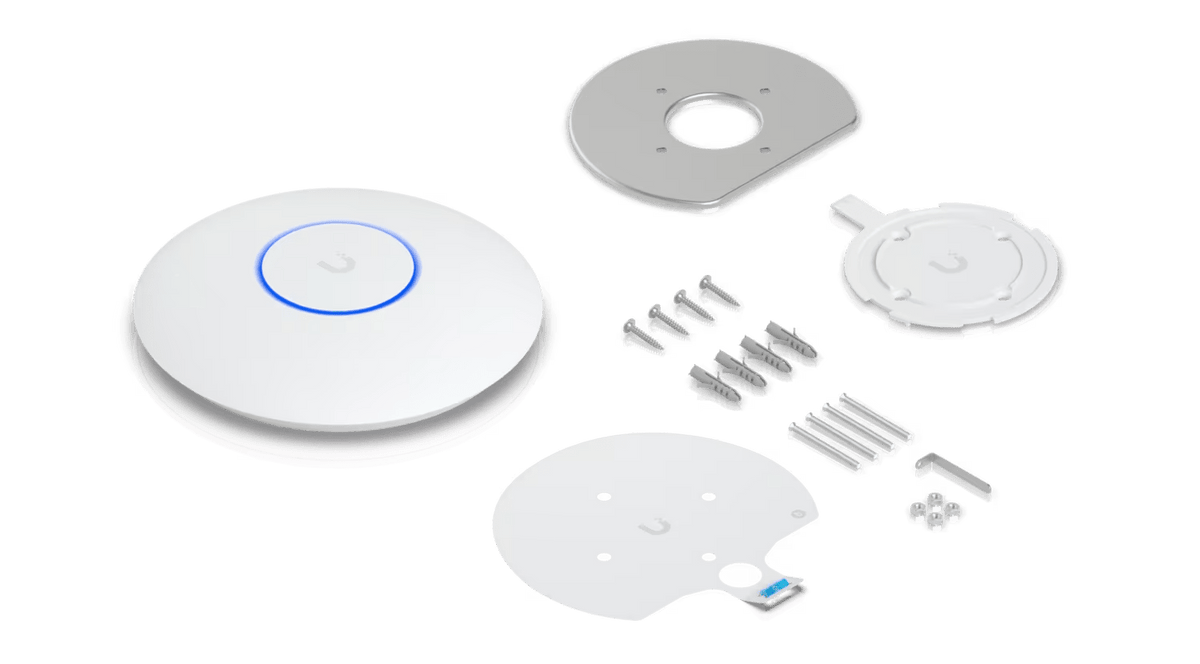

- Galvanized Steel Mounting Plate for secure installation
- Lightweight (313 g) and Discreet Design for seamless integration
- Ambient Operating Temperature: -30°C to 40°C (-22°F to 104°F)
Summary
The Ubiquiti U7 Lite BE5000 is a high-performance, ceiling-mounted Wi-Fi 7 access point designed for fast, secure, and scalable wireless networking. With advanced radio management, seamless roaming, and guest authentication features, this access point is ideal for businesses, retail spaces, and hospitality venues looking to deploy next-gen wireless connectivity with minimal effort.
仕様
Ubiquiti U7-Lite U7 Lite BE5000 Ceiling Access Point
| Specification | Details |
|---|---|
| Overview | |

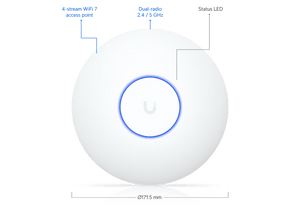

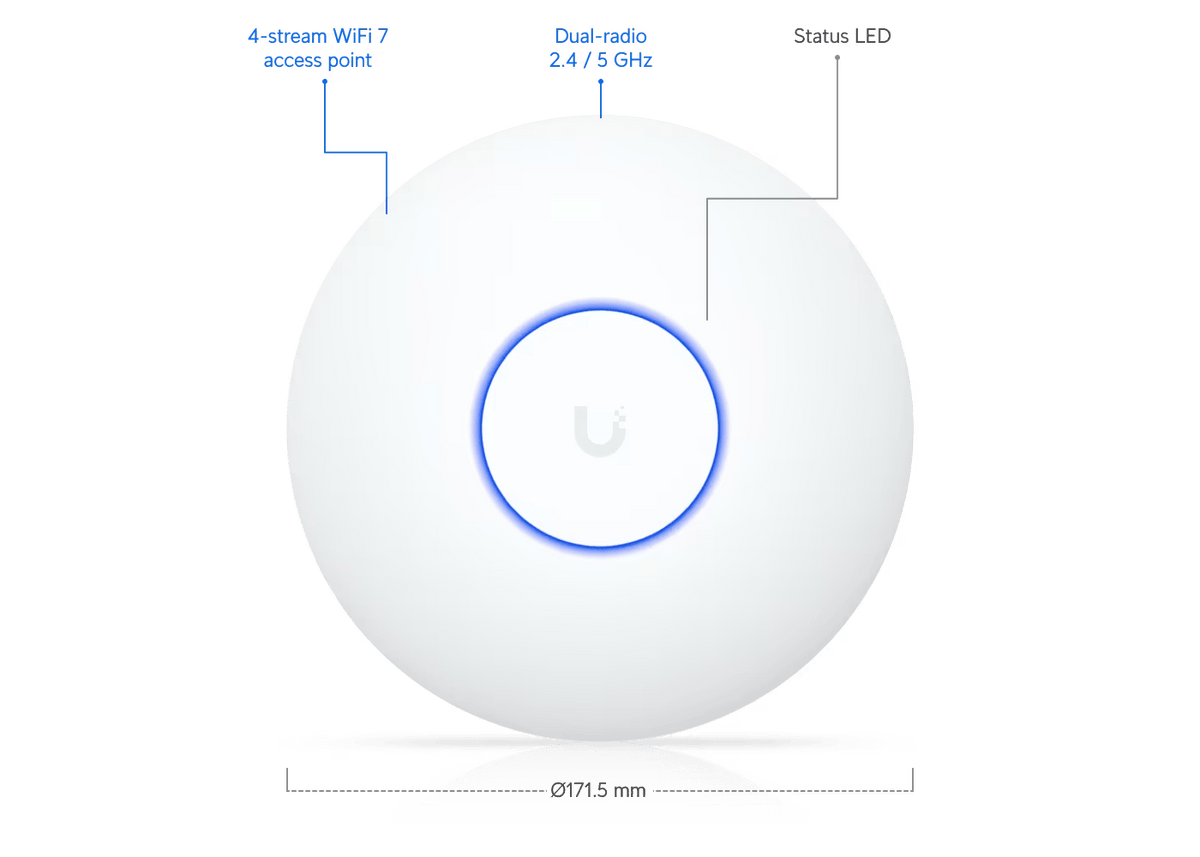

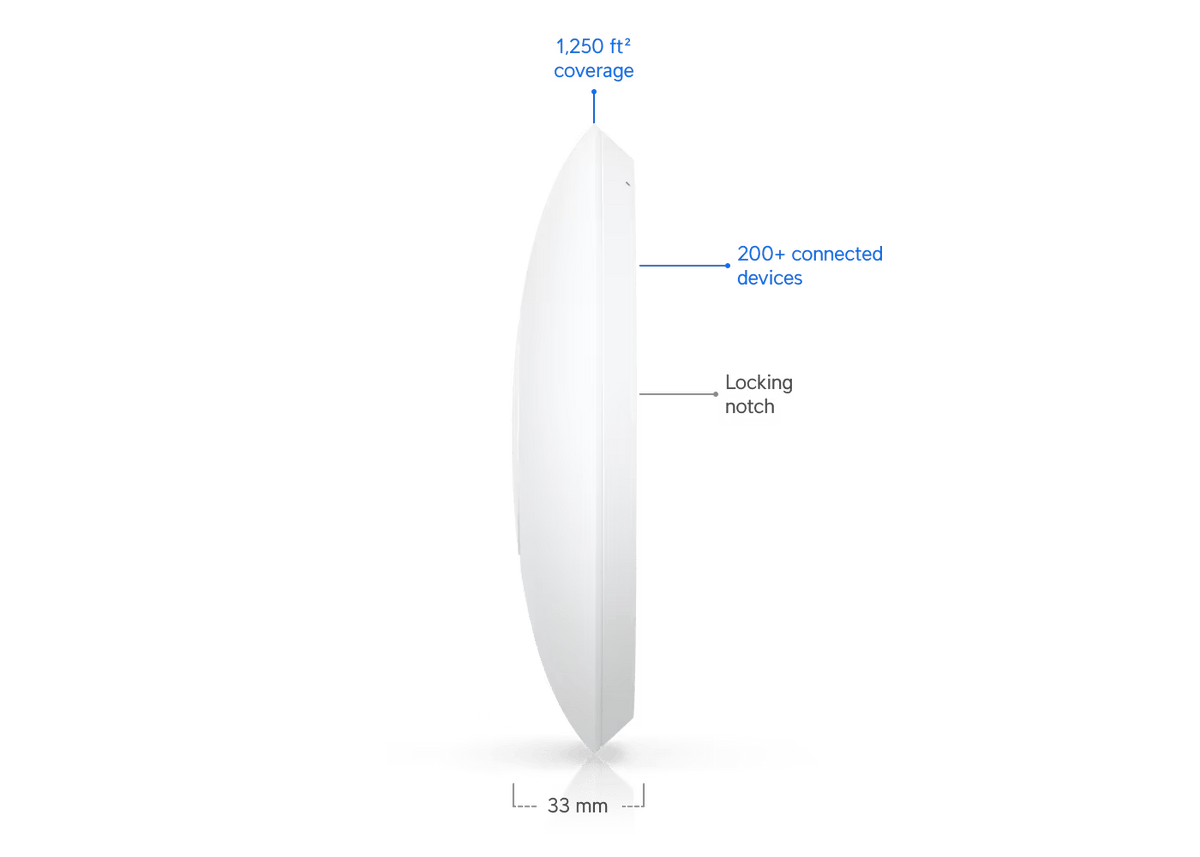

| Dimensions | Ø171.5 × 33 mm (Ø6.8 × 1.3") |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 4 |
| Coverage Area | 115 m² (1,250 ft²) |
| Max. Client Count | 200+ |
| Uplink | 2.5 GbE RJ45 |
| Mounting | |
| Locations | Ceiling, wall |
| Mounting Plate | Plastic mounting plate (Included) |
| Power Method | PoE |
| Performance | |
| MIMO | |
| 5 GHz | 2 × 2 (DL/UL MU-MIMO) |
| 2.4 GHz | 2 × 2 (DL/UL MU-MIMO) |
| Max. Data Rate | |
| 5 GHz | 4.3 Gbps (BW240) |
| 2.4 GHz | 688 Mbps (BW40) |
| Antenna Gain | |
| 5 GHz | 5 dBi |
| 2.4 GHz | 4 dBi |
| Max. TX Power | |
| 5 GHz | 24 dBm |
| 2.4 GHz | 23 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates | |
| 802.11be (WiFi 7) | 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| Features | |
| Wireless Meshing | Yes |
| Band Steering | Yes |
| 802.11v BSS Transition Management | Yes |
| 802.11r Fast Roaming | Yes |
| 802.11k Radio Resource Management (RRM) | Yes |
| Advanced Radio Management | Yes |
| Passpoint (Hotspot 2.0) | Yes |
| Captive Hotspot Portal | |
| Custom Branding Landing Page | Yes |
| Voucher Authentication | Yes |
| Payment-Based Authentication | Yes |
| External Portal Server Support | Yes |
| Password Authentication | Yes |
| Guest Network Isolation | Yes |
| Private Pre-Shared Key (PPSK) | Yes |
| WiFi Speed Limiting | Yes |
| Client Device Isolation | Yes |
| WiFi Schedules | Yes |
| RADIUS over TLS (RadSec) | Yes |
| Dynamic RADIUS-assigned VLAN | Yes |
| Hardware | |
| Max. Power Consumption | 13W |
| Supported Voltage Range | 42.5—57V DC |

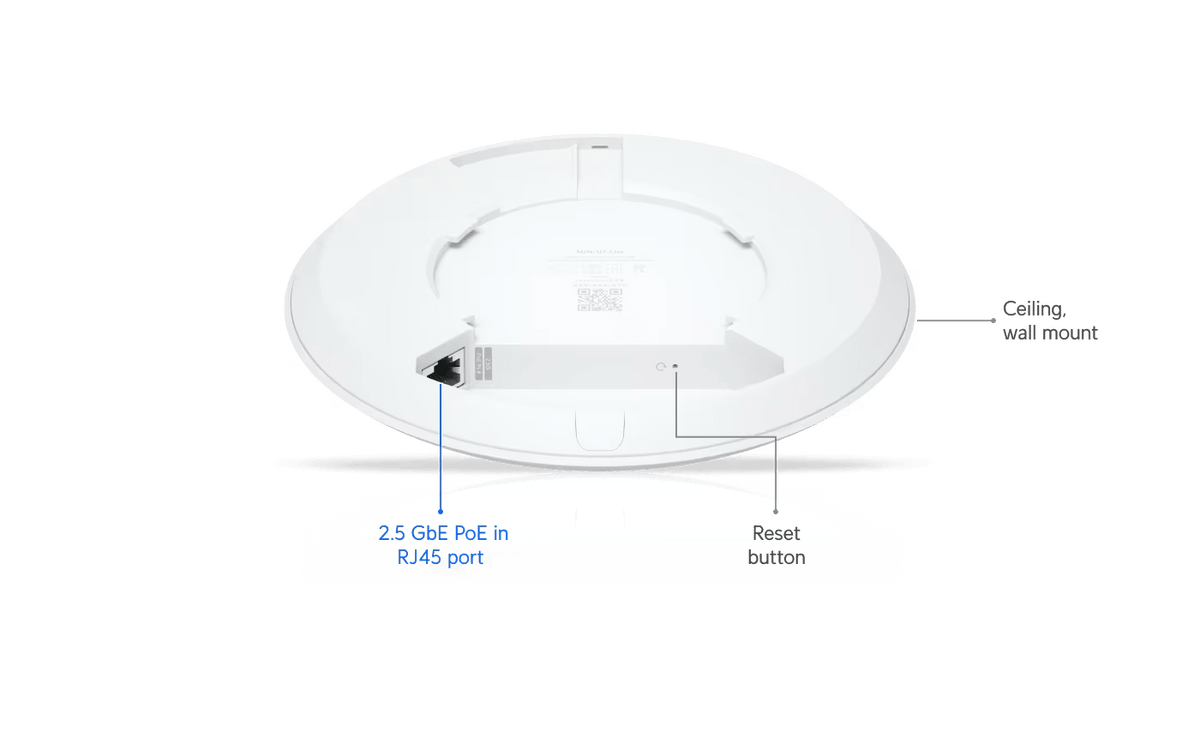

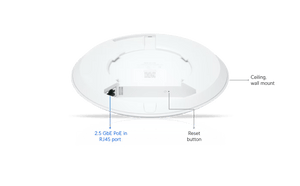

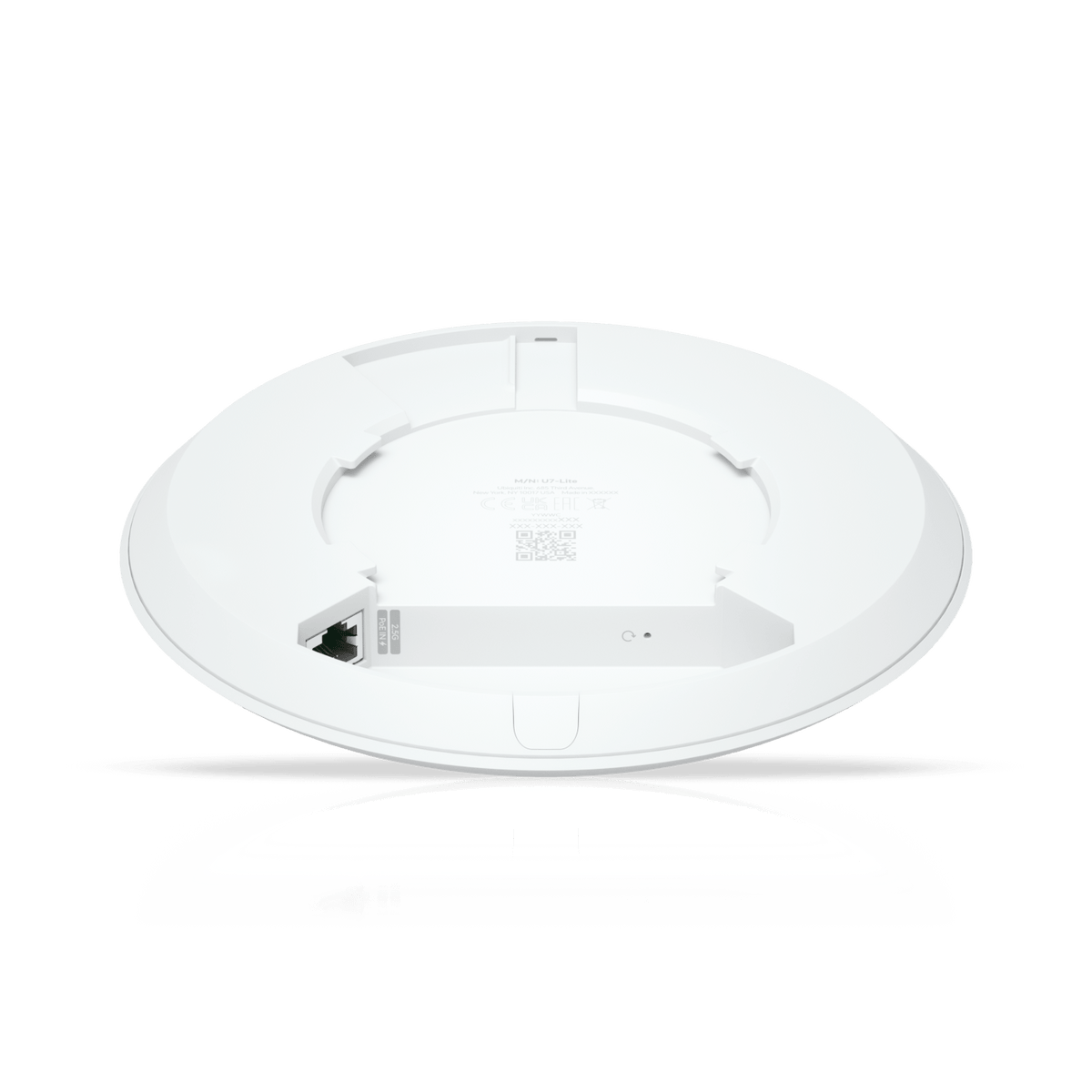

| Networking Interface | (1) 2.5 GbE RJ45 port |
| Weight | 313 g (11 oz) |
| Management | |
| Ethernet | Yes |
| Physical & Material | |
| Enclosure Material | UV-stabilized polycarbonate |
| Mount Material | UV-stabilized polycarbonate, galvanized steel (SGCC) |
| LED Indicators | |
| System | White/Blue |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz) |
| Certifications | CE, FCC, IC |
| Environmental | |
| Ambient Operating Temperature | -30 to 40°C (-22 to 104°F) |
| Ambient Operating Humidity | 5 to 95% non-condensing |
