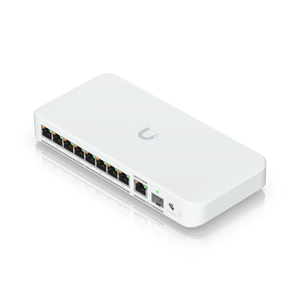

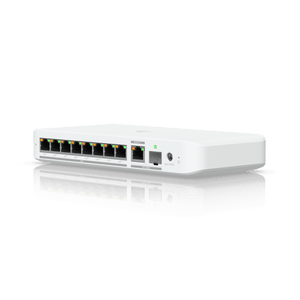

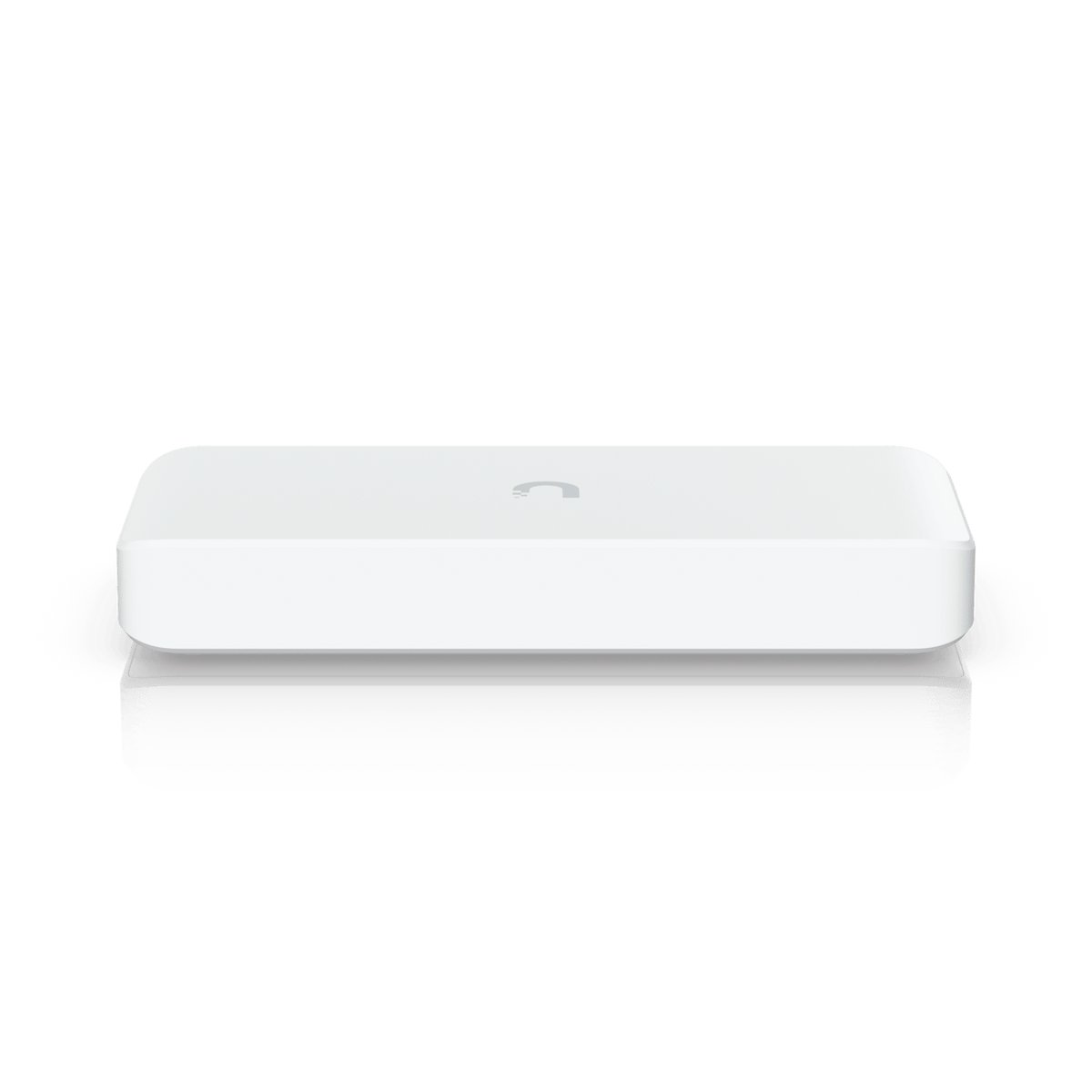

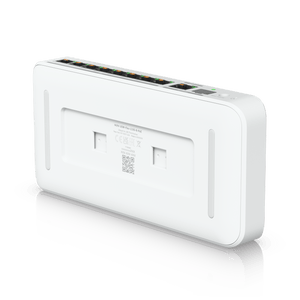

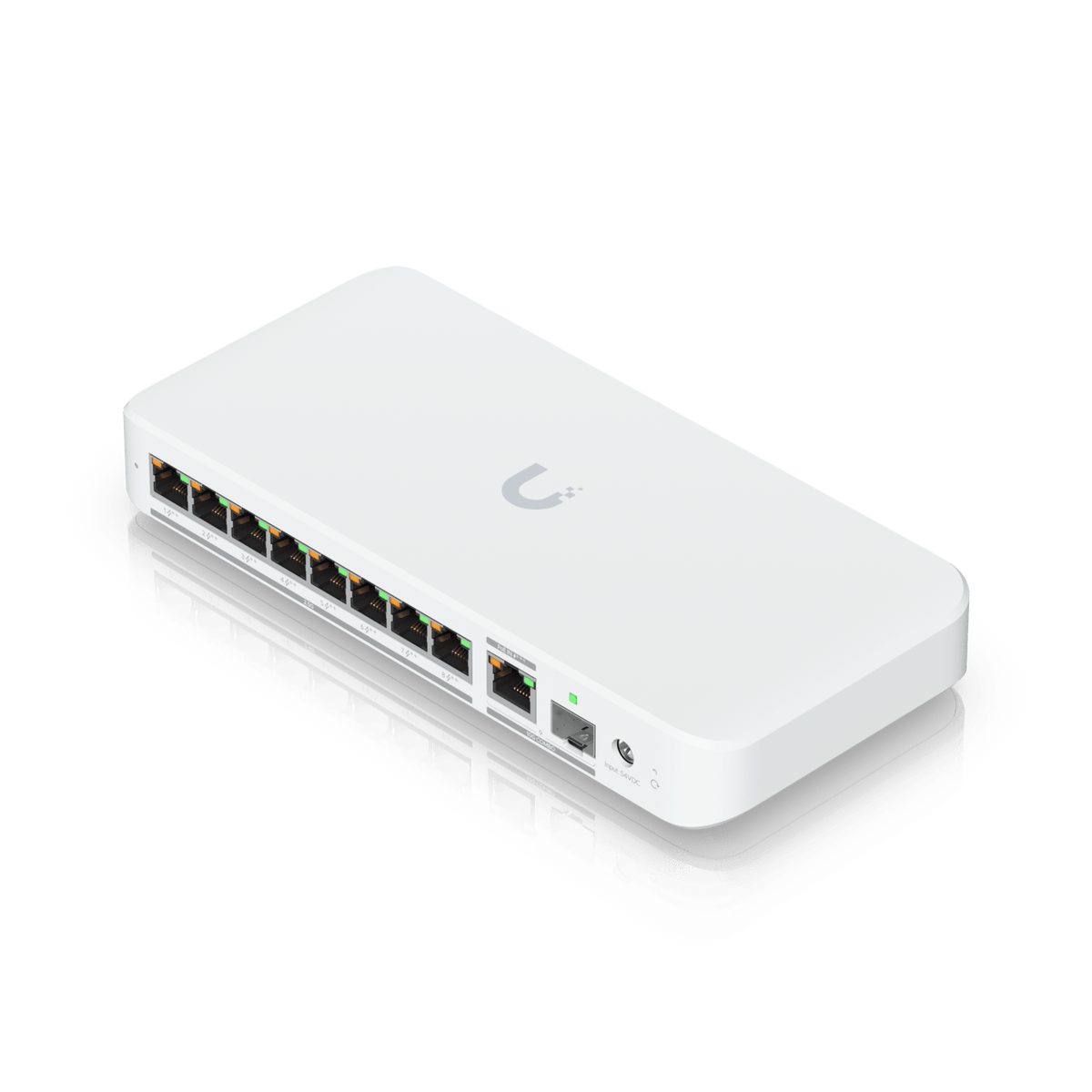

Ubiquiti USW-Flex-2.5G-8-PoE 8-Port 2.5GbE POE++ Switch 10GbE SPF+
商品説明
High-Performance PoE++ Switching with Ubiquiti USW-Flex-2.5G-8-PoE
The Ubiquiti USW-Flex-2.5G-8-PoE is a flexible, 8-port 2.5GbE PoE++ switch with a 10GbE RJ45/SFP+ combination uplink port, designed for modern, high-demand networks. With robust PoE capabilities, seamless uplink options, and advanced Layer 2 features, this switch ensures reliable connectivity and efficient power distribution for devices like access points, IP cameras, and IoT devices.
Highlights
- 8× 2.5GbE PoE++ Ports: Provides up to 60W per port for powering high-demand devices.
- 10GbE Uplink: RJ45/SFP+ combo port with PoE+++ power input.
- Flexible Power Options: Supports PoE+++, PoE++, or PoE+ input; AC power adapter available separately.
-
Advanced PoE Availability:
- Up to 76W with PoE+++ input*
- Up to 46W with PoE++ input*
- Up to 196W with optional AC power adapter**
*PoE availability depends on cable length and quality. **AC power adapter sold separately.
Key Features
Advanced PoE and Uplink Options
- 8× PoE++ Ports: Each port delivers up to 60W for powering access points, cameras, and more.
- 10GbE RJ45/SFP+ Uplink Combo: Provides versatile uplink options while RJ45 supports PoE+++ input.
- High PoE Budget: With an optional AC power adapter, delivers up to 196W of PoE power.
Robust Networking Performance
- Non-Blocking Throughput: 30Gbps for fast and reliable data transfer.
- Switching Capacity: 60Gbps ensures smooth traffic handling in high-demand environments.
- Forwarding Rate: 44.64 Mpps for efficient packet forwarding.
Enterprise-Grade Layer 2 Features
- Spanning Tree Protocol (STP/RSTP): Prevents network loops and ensures stability.
- Advanced Traffic Management: Includes storm control, multicast/broadcast rate limiting, and flow control.
- Port Customization: Port mirroring, isolation, and egress rate limit for fine-tuned control.
Technical Specifications
| Category | Details |
|---|---|
| Networking Interface | 8× 2.5/1GbE RJ45 ports |
| 1× 10GbE SFP+ or RJ45 combo port* | |
| PoE Interface | 8× PoE++ (60W per port) |
| PoE Budget | 76W with PoE+++ input*, 46W with PoE++ input* |
| 196W with optional AC power adapter** | |
| Non-Blocking Throughput | 30Gbps |
| Switching Capacity | 60Gbps |
| Forwarding Rate | 44.64 Mpps |
| Power Methods | PoE+++, PoE++, PoE+, or AC power adapter** |
| Layer 2 Features | STP/RSTP, port mirroring, jumbo frames, |
| storm control, rate limiting, port isolation |
Summary
The Ubiquiti USW-Flex-2.5G-8-PoE is a robust and versatile switch built for networks requiring high-speed data transfer and advanced PoE capabilities. With 8× 2.5GbE PoE++ ports, a 10GbE uplink, and flexible power options, this switch supports a wide range of devices while providing seamless connectivity and efficient management. Ideal for demanding setups, it delivers reliable performance for enterprise, SMB, and IoT environments.
仕様
Ubiquiti USW-Flex-2.5G-8-PoE 8-Port 2.5GbE PoE++ Switch with 10GbE SFP+
| Specification | Details |
|---|---|
| Mechanical | |
| Dimensions | 212.9 x 99.4 x 33.5 mm (8.4 x 3.9 x 1.3") |
| Weight | 567 g (20 oz) |
| Enclosure Material | Polycarbonate |

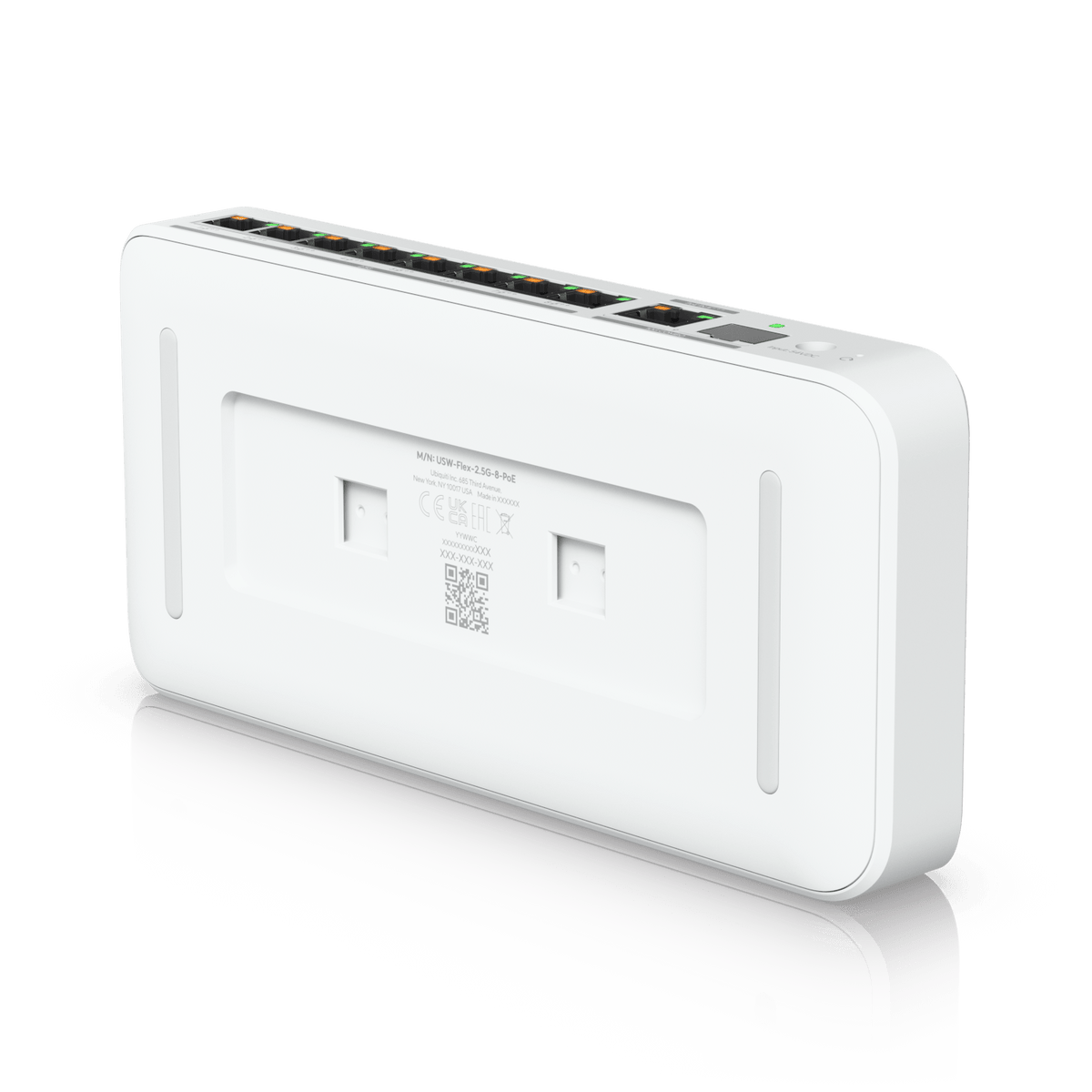

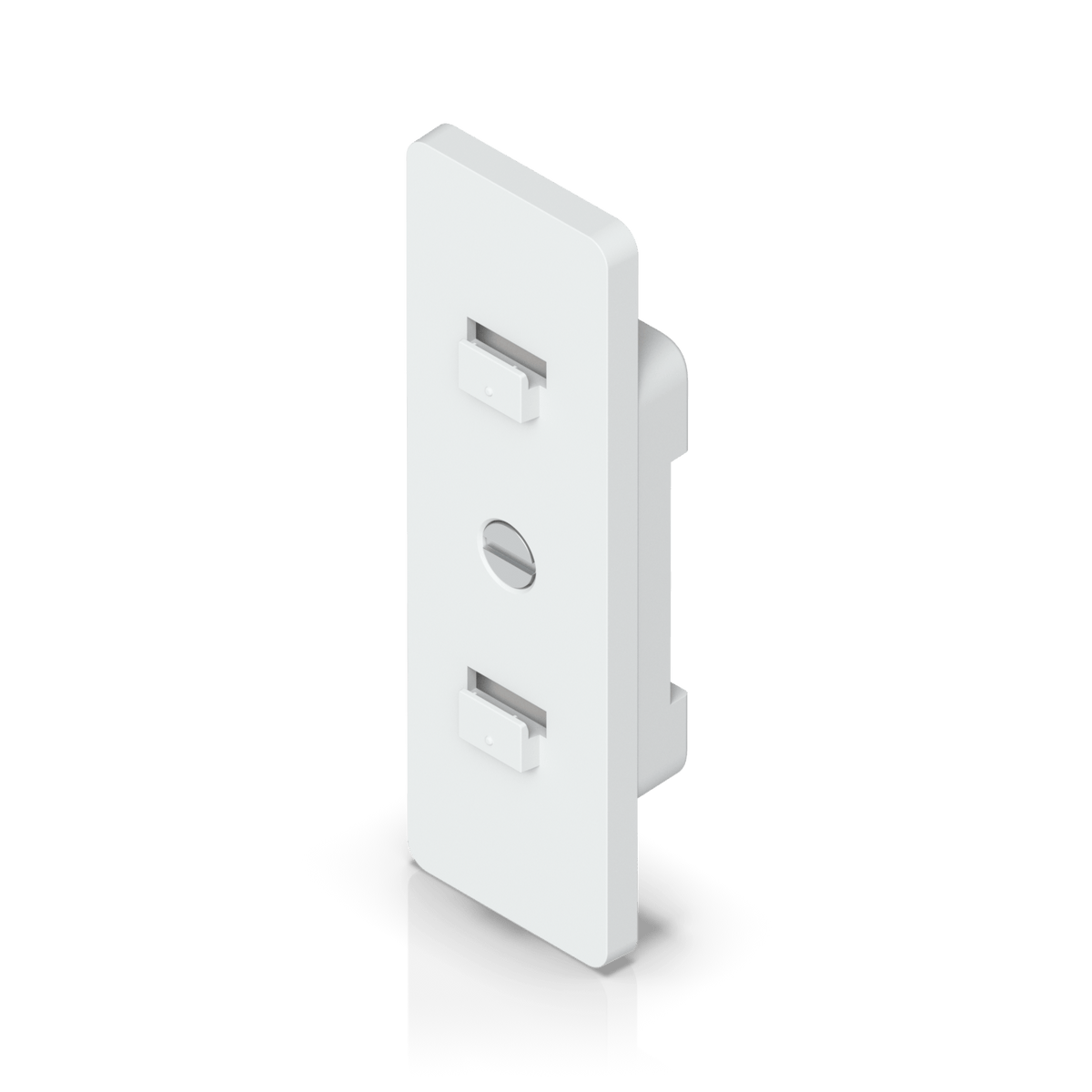

| Mounting | Wall-mountable (kit included), DIN rail-mountable (sold separately) |
| Hardware | |
| Management Interface | Ethernet In-Band |

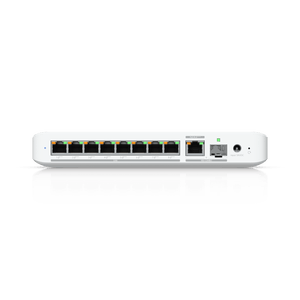

| Networking Interface | • (8) 2.5/1 GbE RJ45 ports • (1) 10G SFP+ or 10/5/2.5/1 GbE RJ45 combination port* |
| PoE Interface | (8) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-) |
| Total Non-Blocking Throughput | 30 Gbps |
| Switching Capacity | 60 Gbps |
| Forwarding Rate | 44.64 Mpps |
| Power Method | • (1) AC power adapter, 54V DC, 3.9A (Not included) • (1) PoE+++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-) |
| Power Supply | External AC/DC adapter, UniFi PoE switch |
| Supported Voltage Range | AC/DC input: 54V DC (DC jack) PoE input: 50—57V DC |
| Max. Power Consumption | • PoE input: 14W (Excluding PoE output) • AC input: 17W (Excluding PoE output) |
| Total Available PoE | • PoE+++ input: 76W* • PoE++ input: 46W* • PoE+ input: 16W* • 210W AC adapter input: 196W *Power values exclude cable losses. |
| Max. PoE Wattage per Port by PSE | • PoE: 15.4W • PoE+: 30W • PoE++: 60W |
| Voltage Range PoE Mode | • PoE: 44—57V • PoE+/PoE++: 50—57V |
| Environmental Specifications | |
| Ambient Operating Temperature | -20 to 45° C (-4 to 113° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Switching Features | |
| Layer 2 Features | • STP / RSTP with priorities and port-level disable • Storm control • Multicast/broadcast rate limiting • Flow control • Jumbo frames • Egress rate limit • Proprietary loop protection • Port isolation • Port mirroring |
| LEDs | |
| System | • Blue/white: power • Blinking white: bootup in progress • Blinking blue: firmware upgrading • Steady white: factory defaults; unit awaiting adoption • Steady blue: unit adopted |
| Ethernet | Link/activity |
| PoE Input/Output | Supported |
| SFP+ | Link/activity |
