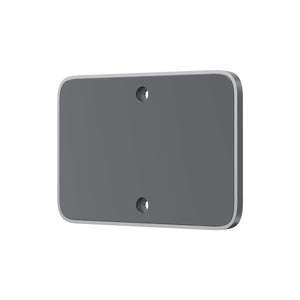

TP-Link MagMount-115mm Omada Magnetic Mounting Plate
Description
Flexible Mounting for Compact Omada Fusion Gateways
The TP-Link MagMount-115mm provides a compact mounting solution for compatible Omada Fusion gateways. Attach it to a suitable magnetic metal surface for convenient installation and removal, or secure it with screws on a suitable non-metal surface. Its slim profile helps keep networking equipment neatly positioned away from the desktop.
Highlights
Matched to compatible Fusion gateways
- Supports Fusion G+, Fusion 2.5G and Fusion Pro 2.5G.
- 115 × 75 × 5.3 mm plate with a compact, unobtrusive design.
Two installation methods
- Magnetic attachment to a suitable ferromagnetic surface.
- Screw-fixed mounting for suitable non-metal surfaces.
Practical maintenance
- Remove and reposition equipment more easily with magnetic mounting.
- 98.2 g plate made with polycarbonate and silicone.
Key Features
Magnetic attachment for quick deployment
The magnetic back attaches to suitable ferromagnetic surfaces, allowing convenient positioning without drilling into the metal mounting surface. Surface material and condition must provide a secure magnetic hold.
Screw-fixed mounting where needed
Integrated mounting points provide a conventional fixing option when the installation surface is not suitable for magnetic attachment. Choose an appropriate surface and follow the installation guide.
Compatibility that fits the gateway
Use this 115 mm plate with Fusion G+, Fusion 2.5G or Fusion Pro 2.5G. Fusion 2.5G PoE and Fusion Pro 2.5G PoE require the larger 167 mm mounting plate. The gateway is sold separately.
A slim installation with clear limits
The plate measures 115 × 75 × 5.3 mm and weighs 98.2 g. For magnetic wall mounting, the manufacturer requires the equipment to be installed below 2 m; follow the supplied guide for attachment and orientation.
Summary
MagMount-115mm suits compatible compact Fusion gateways in offices, shops and other business spaces. It offers magnetic or screw-fixed installation in a slim plate, with straightforward access for maintenance.
Specs
TP-Link MagMount-115mm Omada Magnetic Mounting Plate
The TP-Link MagMount-115mm is a magnetic mounting plate for compatible compact Omada Fusion gateways. It supports magnetic attachment to a suitable ferromagnetic surface or screw-fixed installation on a suitable non-metal surface. The plate measures 115 × 75 × 5.3 mm, weighs 98.2 g and uses polycarbonate and silicone materials. Compatibility covers Fusion G+, Fusion 2.5G and Fusion Pro 2.5G, with the gateway purchased separately. Magnetic wall-mounted equipment must be installed below 2 m.
| Specification | Details |
|---|---|
| Compatibility | |
| Compatible gateways | Omada Fusion G+, Fusion 2.5G and Fusion Pro 2.5G |
| Larger PoE gateway models | Fusion 2.5G PoE and Fusion Pro 2.5G PoE use the 167 mm mounting plate |

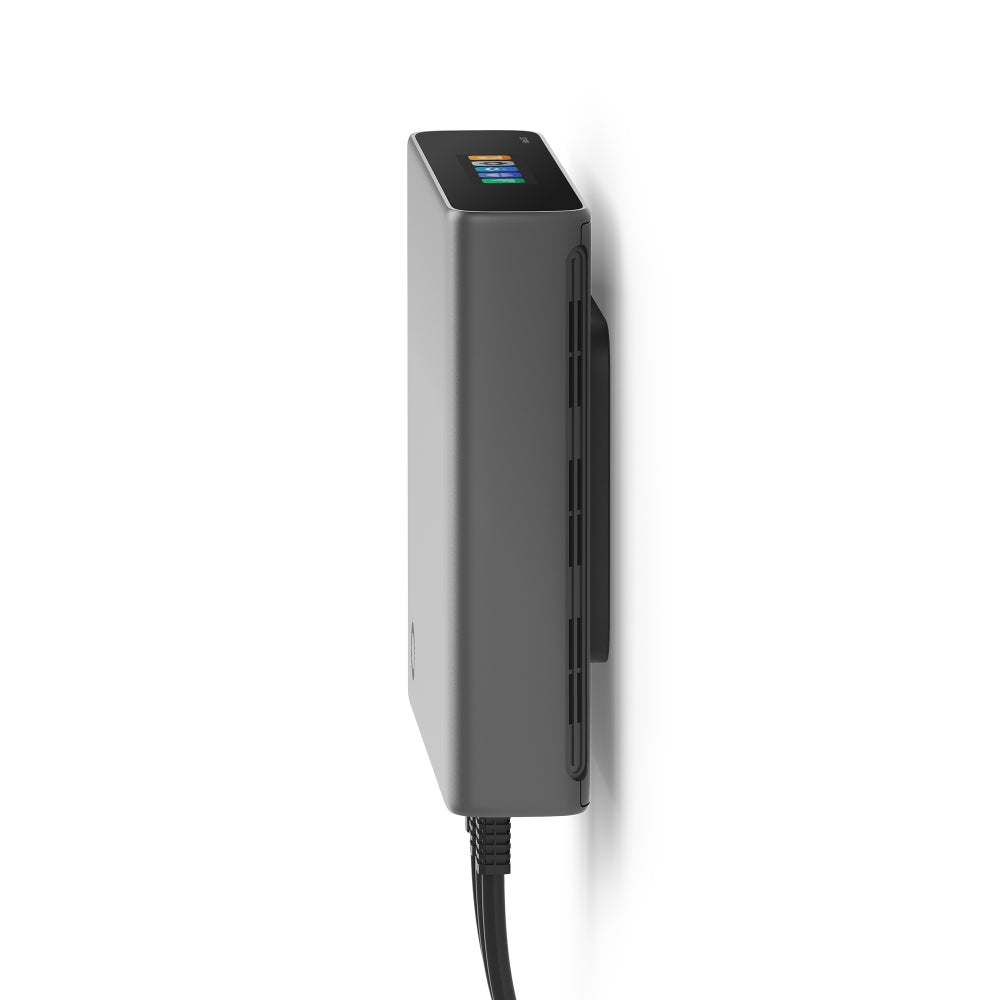

| Gateway inclusion | Gateway sold separately; installation images show an example |
| Mounting and Installation | |
| Installation methods | Magnetic attachment or screw-fixed mounting |
| Magnetic mounting surface | Suitable ferromagnetic metal surface with secure magnetic contact |
| Non-metal surface installation | Screw-fixed mounting using appropriate fixings and the manufacturer installation guide |
| Magnetic wall-mount height | Equipment must be installed below 2 m |
| Physical Specifications | |
| Dimensions (W × D × H) | 115 × 75 × 5.3 mm |
| Weight | 98.2 g (0.0982 kg) |
| Materials | Polycarbonate (PC) and silicone |
| Warranty | 5 years, as listed by the local supplier |
