Insta360 X6 Invisible Dive Case Pro
Description

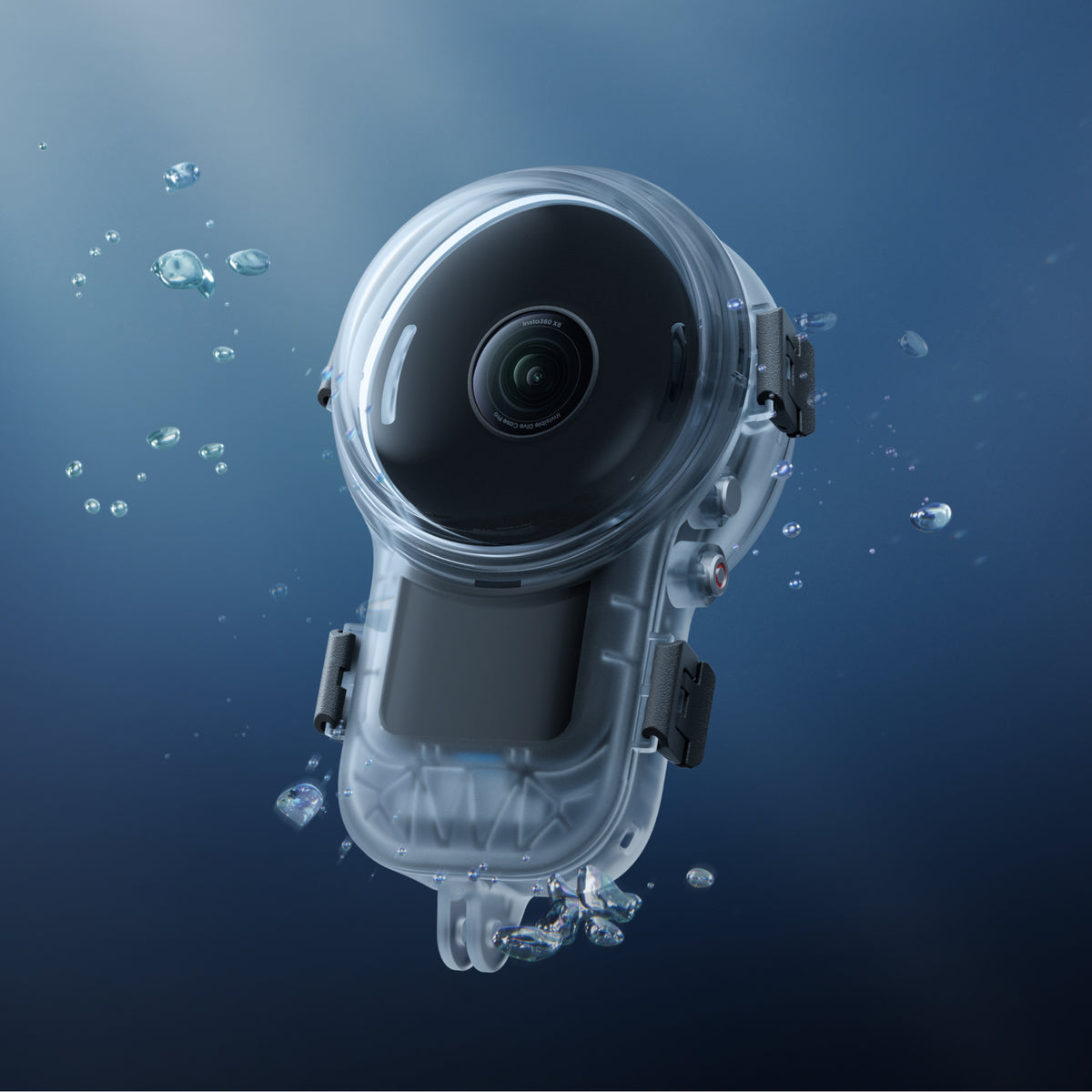

A Complete View Beneath The Surface
Prepare your Insta360 X6 for a different filming environment. The Invisible Dive Case Pro works with the included underwater lenses to support underwater 360° capture at depths of up to 60m. Its compact housing, supplied fitting tools and dedicated lens arrangement form one system, so correct preparation is as important as the case itself.
Highlights
- Purpose-built case and underwater-lens setup for Insta360 X6.
- Up to 60m waterproof depth with the camera correctly fitted.
- Designed to disappear from correctly stitched underwater 360° footage.
- Includes underwater lenses, fitting tools, anti-fog inserts and carrying accessories.
Key Features
Give Underwater Footage The Right Optical Setup
Water changes the way a camera sees the scene around it. This case is designed around X6 and the supplied underwater lenses, rather than being a generic transparent enclosure. Use the complete supported setup and the appropriate camera and editing workflow for underwater capture. The intended invisible-case effect depends on correct installation and stitching.
Install The Underwater Lenses Before The Case
The supplied underwater lenses are required for this dive-case system. Replace the camera’s standard lenses using the provided tools and the manufacturer’s procedure before fitting the camera into the housing. Carry out the work in a clean, low-dust environment with humidity below 70%, keeping moisture and particles away from the exposed lens area.
Prepare The Seal Before Every Dive
Inspect the seal and its contact surfaces for sand, hair, liquid and other contamination. Check that the sealing ring is correctly seated and undamaged, then close the housing according to the instructions. The maximum depth is up to 60m with X6 inserted; an empty case must not be taken deeper than 20m. A depth rating does not remove the need for careful preparation.

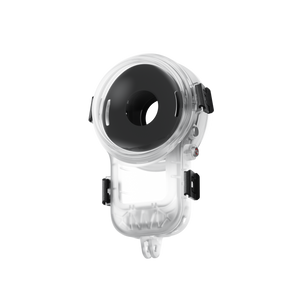

A Compact Housing For A Considered Dive Setup
The case measures approximately 101.7 × 156.5 × 98.6mm and uses a bottom two-prong mounting point. The manufacturer lists the case at approximately 225.8g without the camera and identifies a removable built-in 50g weight block. Check the complete camera, case and mounting arrangement before entering the water, and avoid impacts or severe vibration.
Keep The Fitting Equipment Together
The package includes two underwater lenses, lens tools, anti-fog inserts, a mount adapter and carrying accessories. Keeping these parts organised helps you prepare the correct optical and mounting setup before travelling to the dive site. Cameras and separately required filming mounts are not included, so check the rest of your equipment before setting out.
Care For The Housing After Saltwater Use
Open the case only when it is dry. After saltwater use, follow the manufacturer’s freshwater cleaning process, allow the equipment to dry and store it in a dry, ventilated place. Avoid detergents, solvents, direct heat and contact with sunscreen or similar products. Good cleaning and seal care are part of keeping the case ready for the next dive.
Summary
The Insta360 X6 Invisible Dive Case Pro is for X6 owners who want a dedicated underwater 360° setup with the correct lenses, housing and fitting accessories. Use the included underwater lenses, prepare the seal carefully and follow the complete installation and maintenance instructions before diving.
Frequently Asked Questions
Do I Need To Fit The Included Underwater Lenses?
Yes. The case must be used with the supplied underwater lenses. Follow the manufacturer’s lens-replacement procedure in a clean, low-dust environment with humidity below 70% before installing X6 in the case.
How Deep Can I Use The Case?
The maximum stated depth is up to 60m with X6 correctly installed. An empty case must not be submerged deeper than 20m. Prepare and inspect the seal and housing before every use.
Is It Compatible With X5 Or X4?
This is the X6 Invisible Dive Case Pro, designed for Insta360 X6. Other camera generations require their own compatible housing and optical setup.
Will The Housing Be Visible In My 360° Video?
The system is designed to keep the case out of correctly stitched underwater 360° footage. Use the required underwater lenses and the appropriate camera and editing settings; incorrect installation or stitching can affect the result.
How Should I Care For It After Diving?
Do not open it while wet. Follow the manufacturer’s freshwater cleaning and drying instructions after saltwater use, keep the seal free of contamination and store the case in a dry, ventilated place away from heat and solvents.
Specs
Insta360 X6 Invisible Dive Case Pro
These specifications cover the X6 Invisible Dive Case Pro and the underwater-lens system supplied with it. The depth rating applies to a correctly assembled setup with X6 installed, while the empty housing has a lower stated depth limit. Physical measurements, fitting requirements and care instructions follow the manufacturer’s current model-specific information. Underwater lenses are required, not optional add-ons. Prepare the camera, lens surfaces and sealing ring in a suitable clean environment before use, and follow the complete installation procedure.
| Specification | Details |
|---|---|
| Camera And Optical Setup | |
| Compatible Camera | Insta360 X6 |
| Required Lenses | Included underwater lenses; replace the camera’s standard lenses before fitting the case |
| 360° Capture | Designed for invisible-case underwater stitching when correctly installed and processed |
| Installation Environment | Clean, low-dust environment; humidity below 70% |
| Protection And Use | |
| Maximum Depth With Camera | Up to 60m with X6 correctly installed |
| Empty-Housing Depth Limit | 20m |
| Published Waterproof Rating | IPX9, as listed by the manufacturer; observe the separate model-specific depth limits |
| Seal Preparation | Clean, correctly seated and undamaged sealing ring; contact surfaces free of contamination |
| Impact And Entry Limits | Not impact-resistant; avoid severe vibration and impact; observe the manufacturer’s 2m entry-height limit |
| Magnetic Materials | Keep away from devices that may be affected by magnetic materials |
| Physical Design | |
| Dimensions | 101.7 × 156.5 × 98.6mm (W × H × D) |
| Case Weight | Approximately 225.8 ± 2g without camera |
| Weight Block | Approximately 50g; built in and removable |
| Materials | Plastic, silicone and hardware |
| Bottom Mount | Two-prong mounting point |
| Included Equipment | |

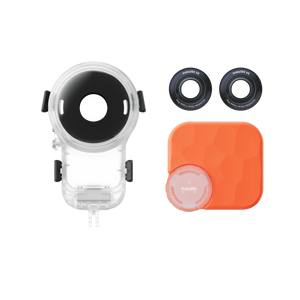

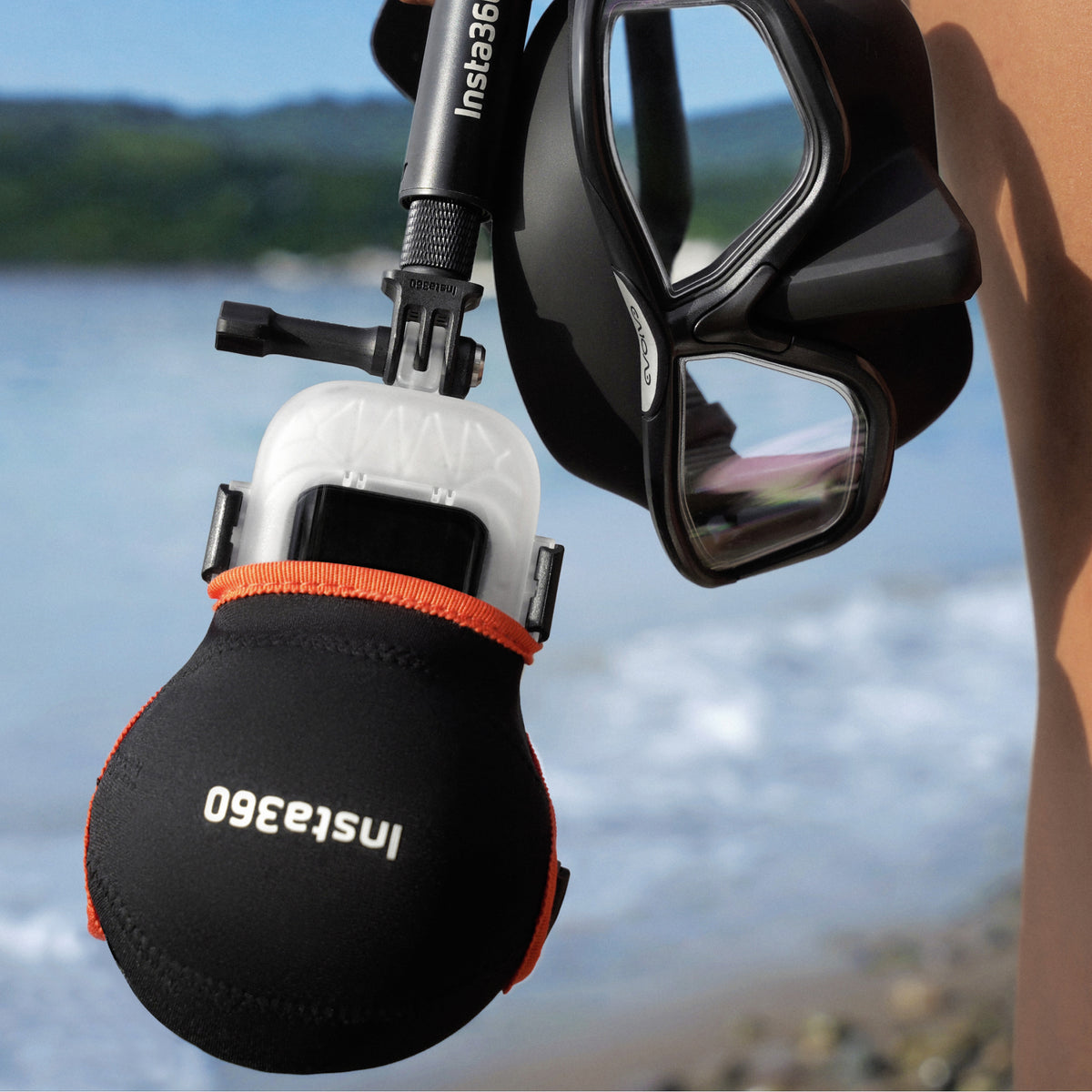

| Housing And Carrying | 1 Dive Case Pro, 1 carry case, 1 lens cap and 1 carry bag |
| Optical Items | 2 underwater lenses; 12 anti-fog inserts |
| Mounting And Fitting | 1 thumb screw, 1 1/4-inch to three-prong adapter, 1 lens grip tool and 1 removal tool |
| Cleaning Items | 1 lens blower, 1 brush, 2 cleaning wipes, 2 lens cloths and gloves |
| Separate Equipment | Camera and any separately required filming mounts |
| Care And Warranty | |
| After Saltwater Use | Follow the prescribed freshwater cleaning process; dry before opening; avoid solvents, detergents and direct heat |
| Storage | Dry, well-ventilated place; avoid hot or humid storage |
| Warranty | 1 year |
