Ubiquiti airMAX NanoBeam 5AC
Description
An Introduction to Unbeatable Connectivity with NanoBeam 5AC Gen 2
Ubiquiti Networks introduces the NanoBeam 5AC Gen 2, the latest generation of airMAX CPE designed for improved noise immunity, integrated design, and versatile deployment.
Key Features
- Frequency: 5 GHz
- Link Range: 10+ km
- Throughput: 450+ Mbps
- Easy Mounting
- Dedicated Spectral Analysis Radio
- Dedicated WiFi Management Radio
Improved Noise Immunity
The NanoBeam 5AC Gen 2 focuses RF energy in a tighter beamwidth, improving noise immunity by filtering out other RF signals in crowded areas.
Integrated Design
By combining the radio and antenna, the NanoBeam 5AC Gen 2 achieves maximum gain in a minimal footprint, making it both efficient and compact.
Software Features
- airOS 8: The advanced operating system for Ubiquiti airMAX products.
- Powerful Wireless Features: Including Access Point PtMP airMAX Mixed Mode, airMAX ac Protocol Support, and more.
- Usability Enhancements: Features airMagic Channel Selection Tool, Redesigned UI, and Detailed Device Stats.

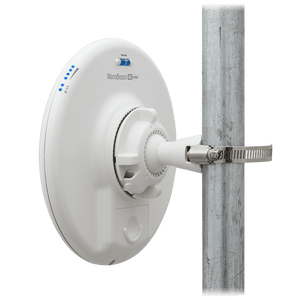

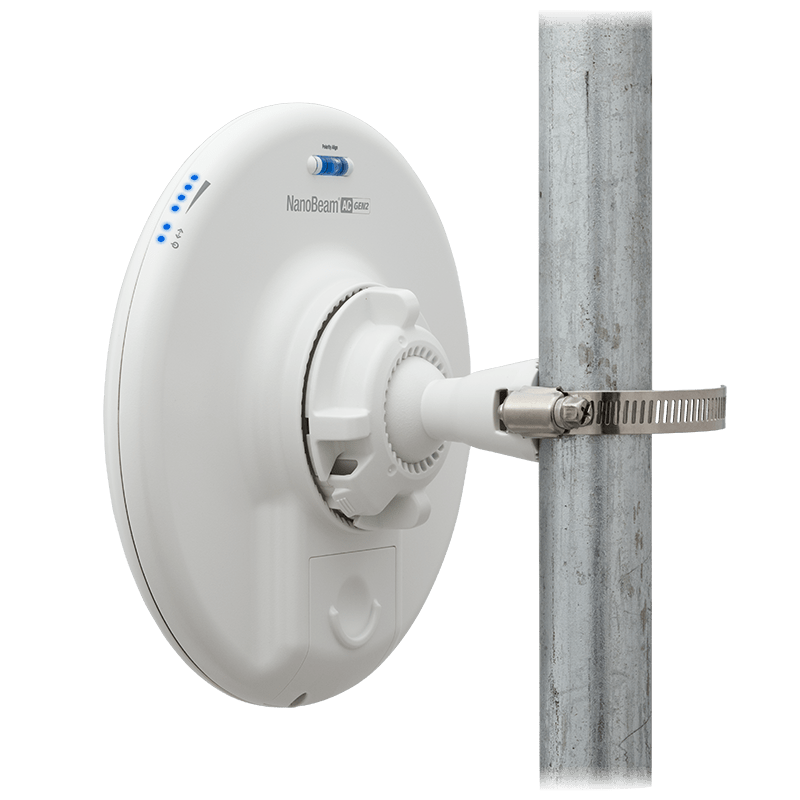

Ease of Installation
Installation is quick and easy, with no fasteners required for pole-mounting and a convenient 3-axis mount for alignment.
Innovative Mechanical Design
- Efficient Footprint: Compact design for maximum gain.
- Aesthetics: Blends seamlessly into the environment.

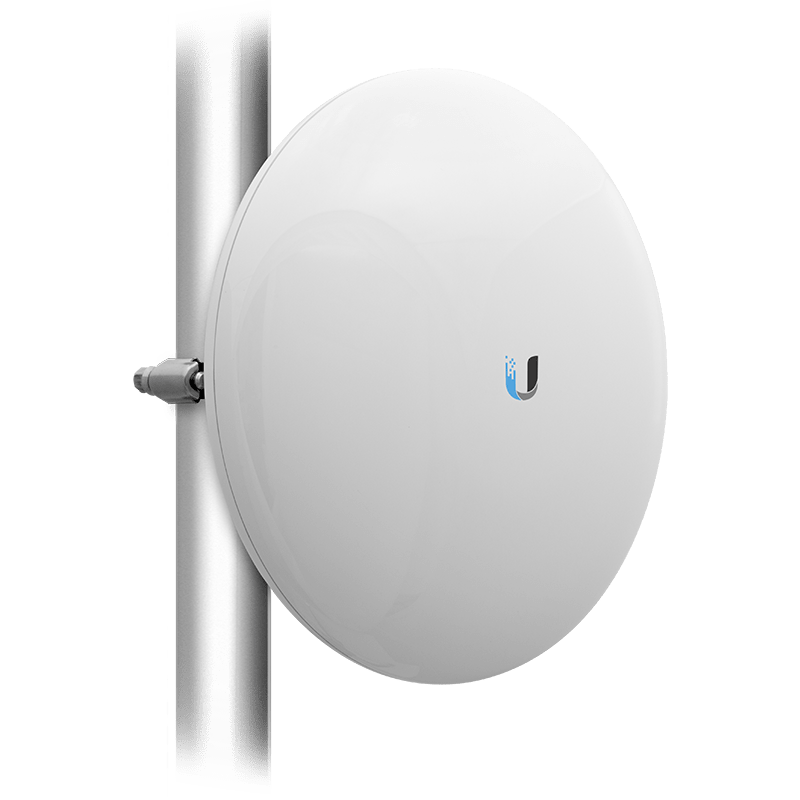

- Versatile Mounting: Adaptable for various line-of-sight positions.
Advanced Technology
Ubiquiti's TDMA airMAX protocol improves latency, noise immunity, and throughput, offering up to 450+ Mbps of real TCP/IP throughput.
Mobile App
The UNMS app provides easy setup and management, available for both iOS and Android.

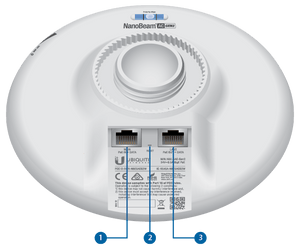

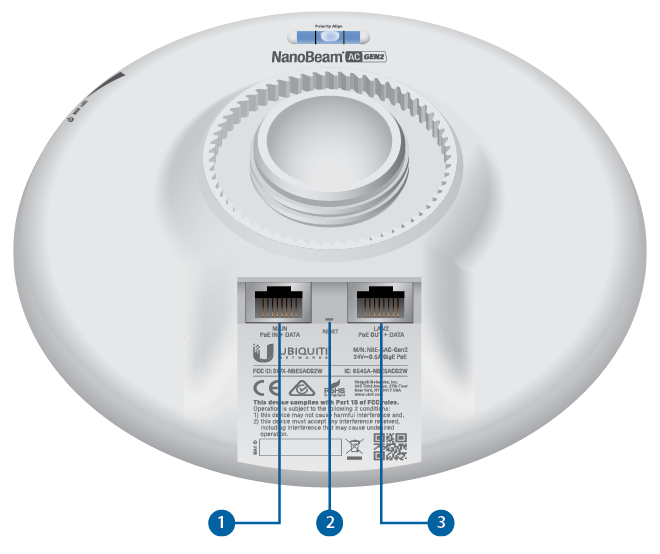

Hardware Overview
The device features enhanced protection against ESD events.
Specs
| Technical Specifications | |
|---|---|
| Mechanical | |
| Dimensions | 189 x 189 x 125 mm (7.44 x 7.44 x 4.92") |
| Weight | 530 g (1.17 lb) |
| Enclosure material | UV-stabilized plastic |
| Mounting | Pole mount kit (Included), Wall mount (Not included) |
| Wind Loading | 45.4 N at 200 km/h (10.2 lbf at 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| Hardware | |

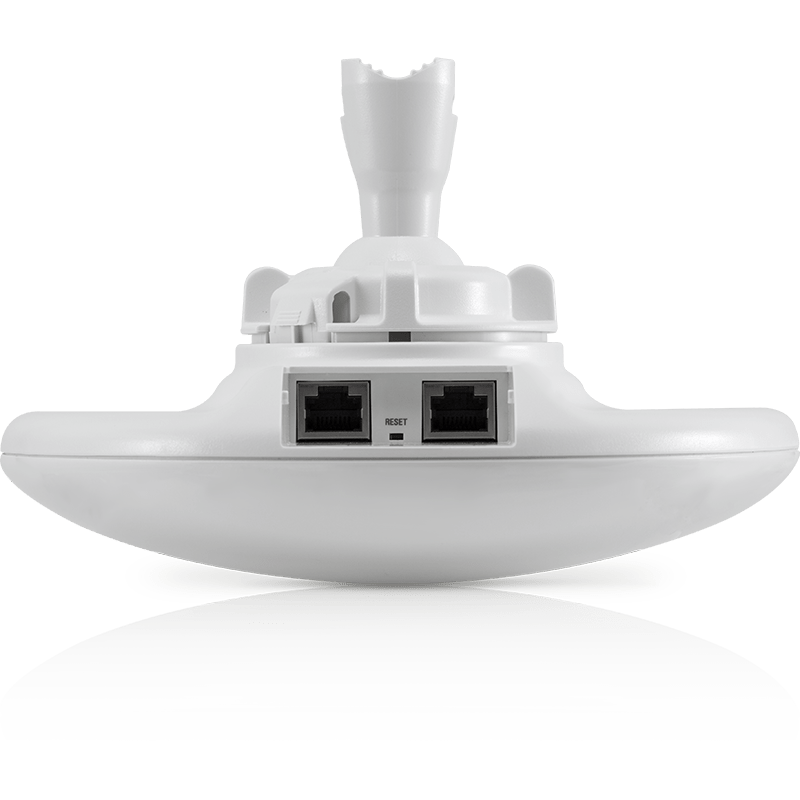

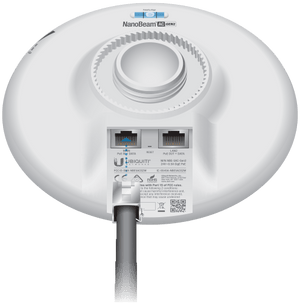

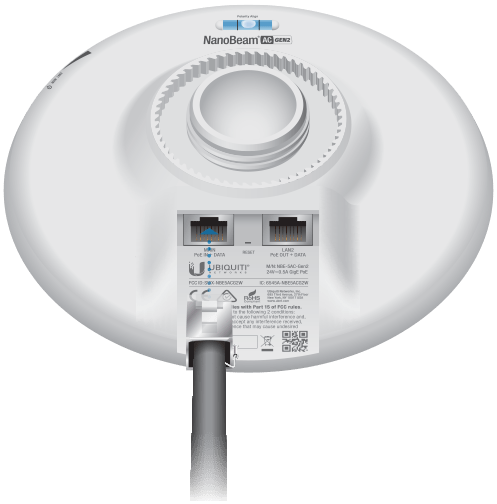

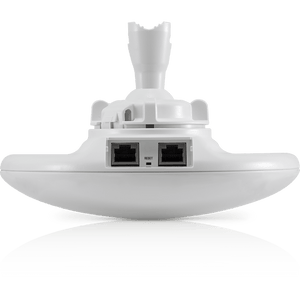

| Networking interface | (2) GbE RJ45 ports |
| Power method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Power supply | 24V, 0.5A Gigabit PoE adapter (Included) |
| Max. power consumption | 8W |
| ESD/EMP protection | Air/contact: ± 24kV |

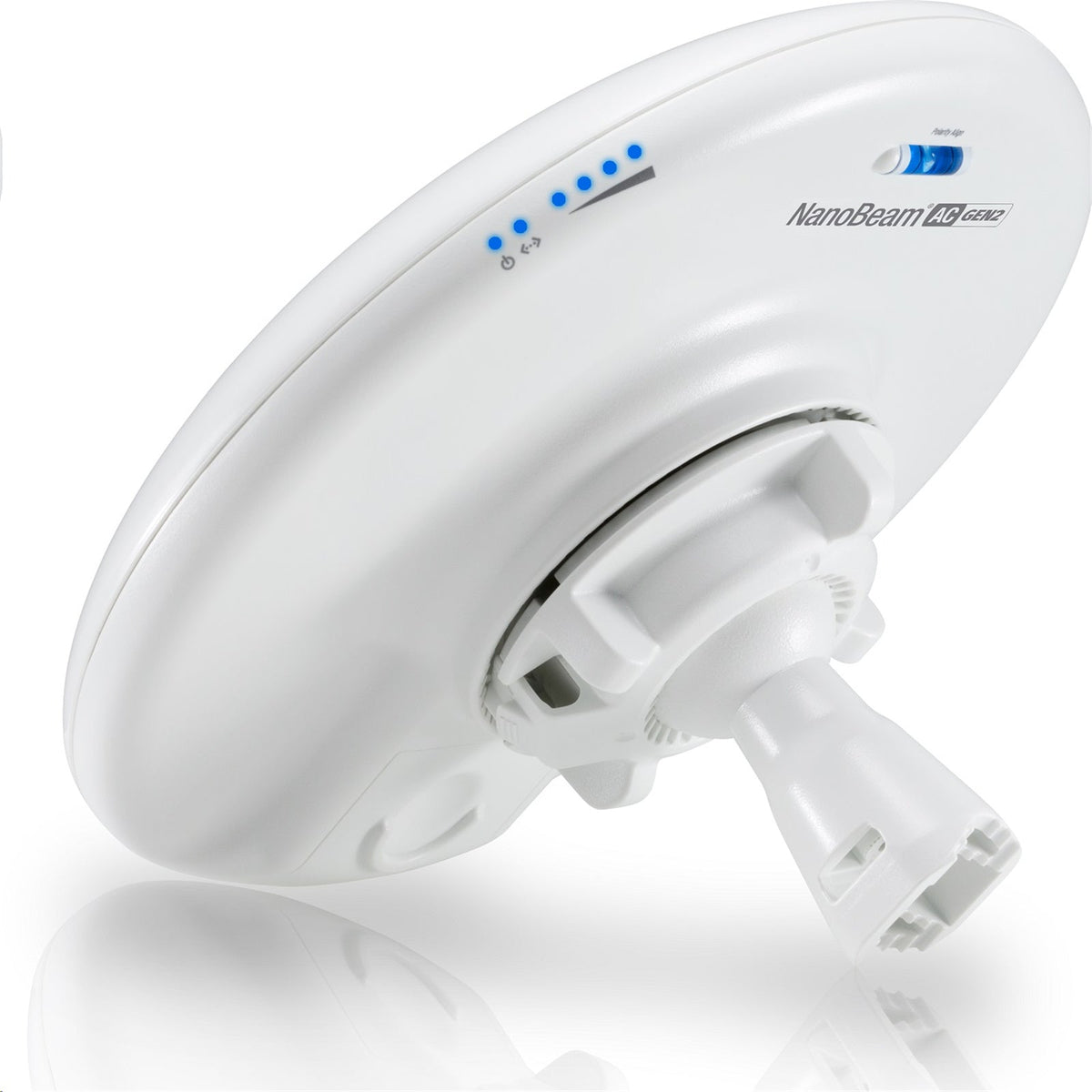

| LEDs | Power, Ethernet, (4) Signal strength |
| Salt fog test | IEC 68-2-11 (ASTM B117) |
| Vibration test | IEC 68-2-6 |
| Temperature shock test | IEC 68-2-14 |
| UV test | IEC 68-2-5 at 40° C (104° F) |
| Wind-driven rain test | ETS 300 019-1-4 |
| Operating temperature | -40 to 80° C (-40 to 176 F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| System | |
| Gain | 19 dBi |
| Channel sizes PtP Mode | 10/20/30/40/50/60/80 MHz |
| Channel sizes PtPM Mode | 10/20/30/40 MHz |
| Max. VSWR | 1.5:1 |
| Polarization | Dual linear |
| Operating Frequency Worldwide | 5150-5875 MHz |
| Operating Frequency USA | U-NII-1: 5150-5250 MHz, U-NII-2A: 5250-5350 MHz, U-NII-2C: 5240-5725 MHz, U-NII-3: 5725-5850 MHz |
