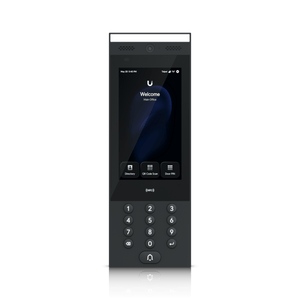

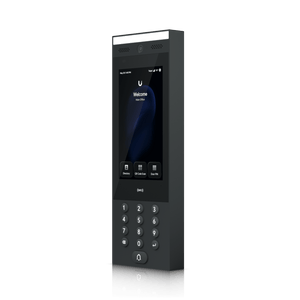

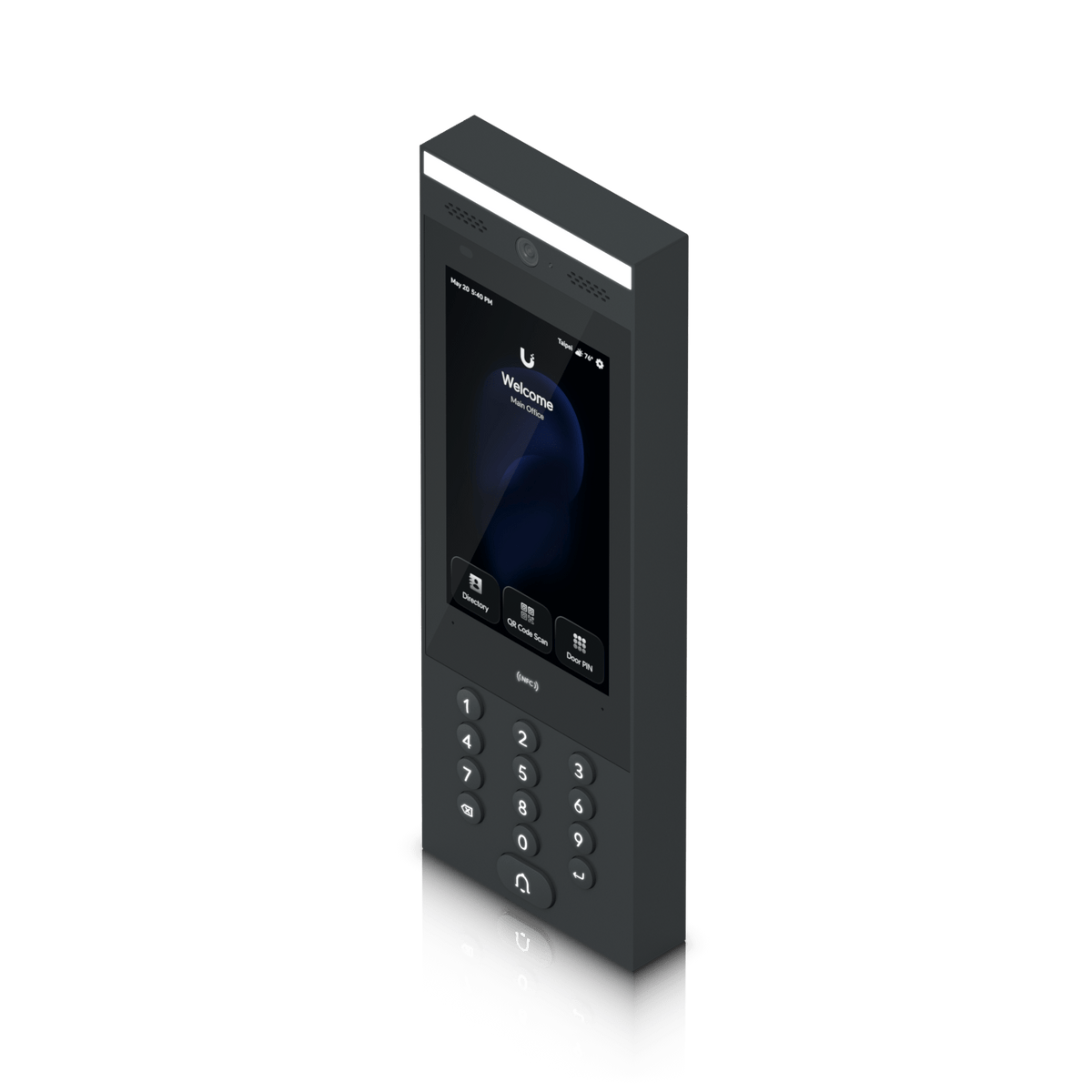

Ubiquiti UA-G3-Intercom G3 Intercom with Apple/ Google Wallet
Smart, Secure Entry at a Single Tap or Face ID Streamline access for residential and commercial spaces with modern mobile wallet credentials, powerful security, and...
Frequently Bought Together
Smart, Secure Entry at a Single Tap or Face ID
Streamline access for residential and commercial spaces with modern mobile wallet credentials, powerful security, and robust weatherproof design—all in a premium intercom terminal.
Highlights
-
Supports Apple and Google Wallet digital keys (Touch Pass)
-
Integrated HD camera, two-way audio, and PIN access
-
NFC and BLE for card, fob, and mobile unlock
-

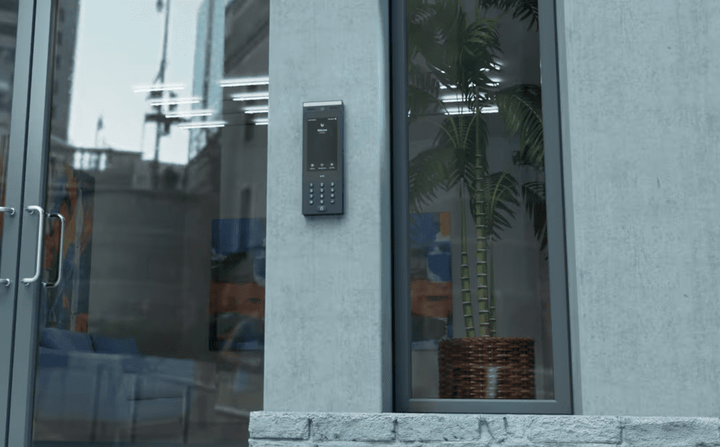

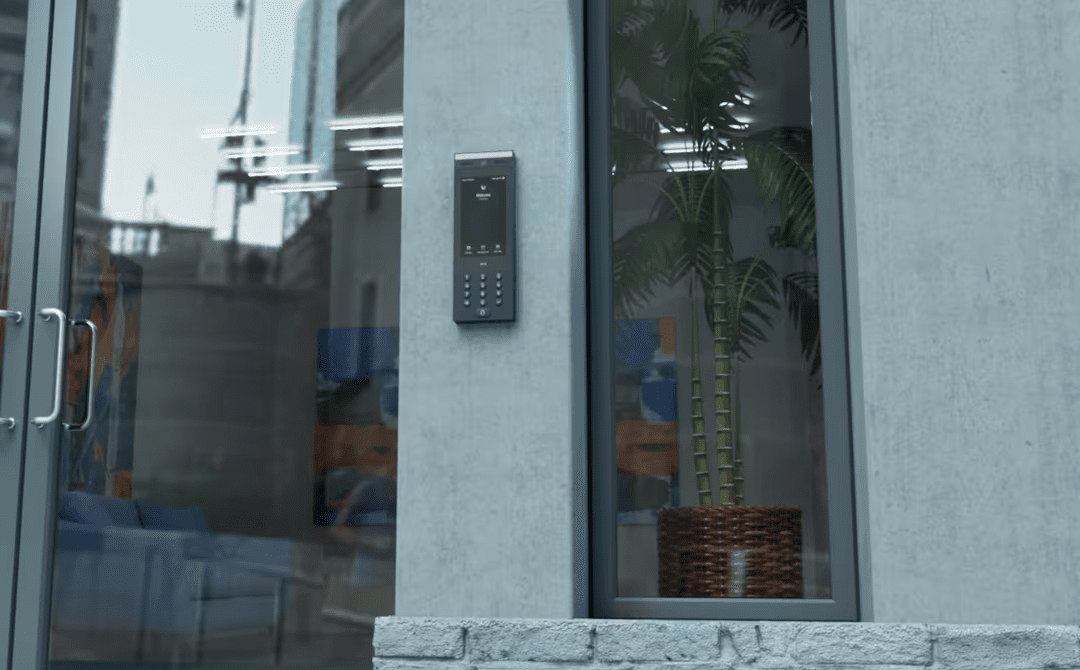

Designed for indoor and outdoor installations (IP65)
-
NDAA compliant and UL 294 Level I certified
-
Durable aluminum alloy and polycarbonate enclosure
-

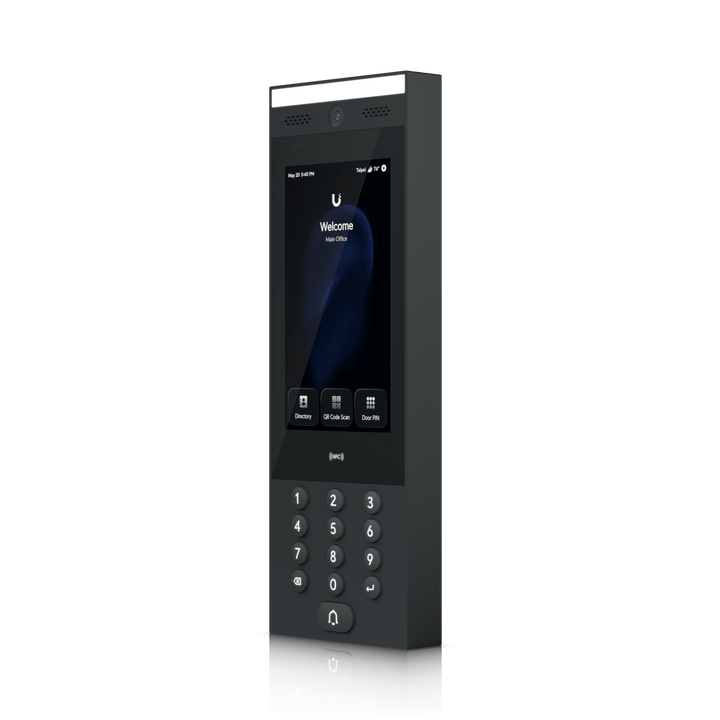

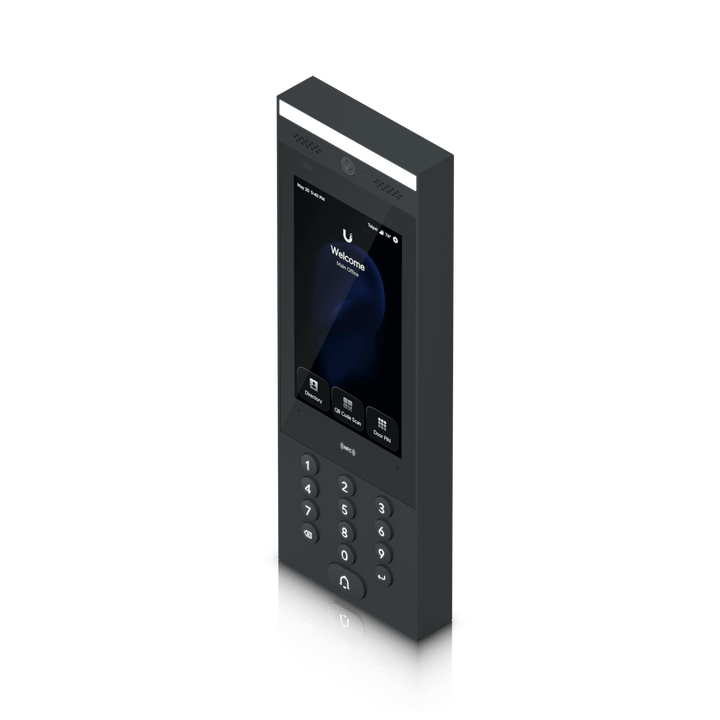

Intuitive 7-inch touchscreen for entry, PIN, and visitor directory
Key Features
Security & Access
-
Unlock with Apple Wallet, Google Wallet, NFC cards, keyfobs, PINs, or mobile app
-
Two-way intercom with microphone and speaker
-
Tamper-resistant aluminum and glass construction
-
Amber LED status indicator, built-in proximity and light sensors
-
Factory-reset button (concealed)
Hardware & Display
-
Integrated camera for video calls and snapshots
-
7-inch capacitive multi-touch display, 1024 x 600 px, up to 1000 nits
-
Portrait screen orientation for directory and access input
-
Enclosure: Aluminum alloy, UV-stabilized polycarbonate, glass
-

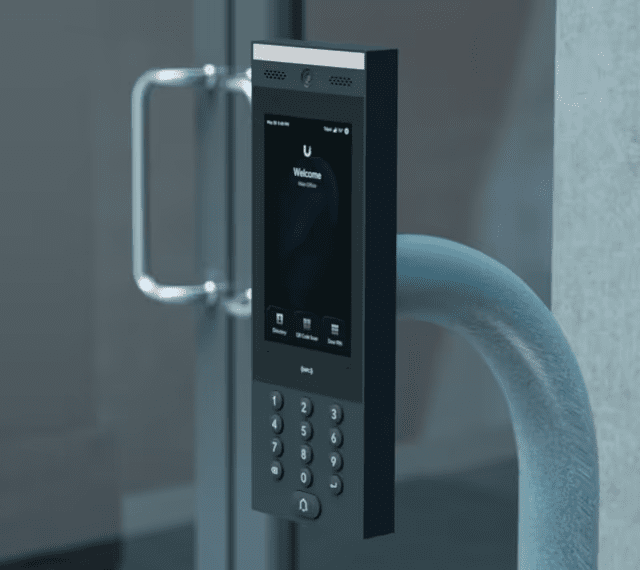

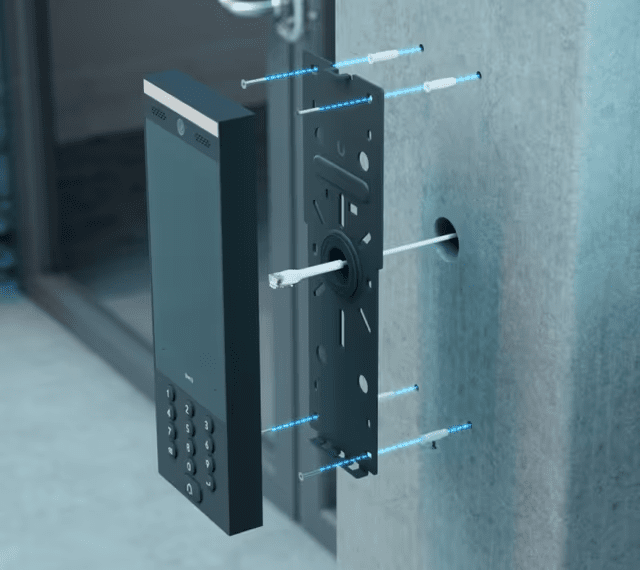

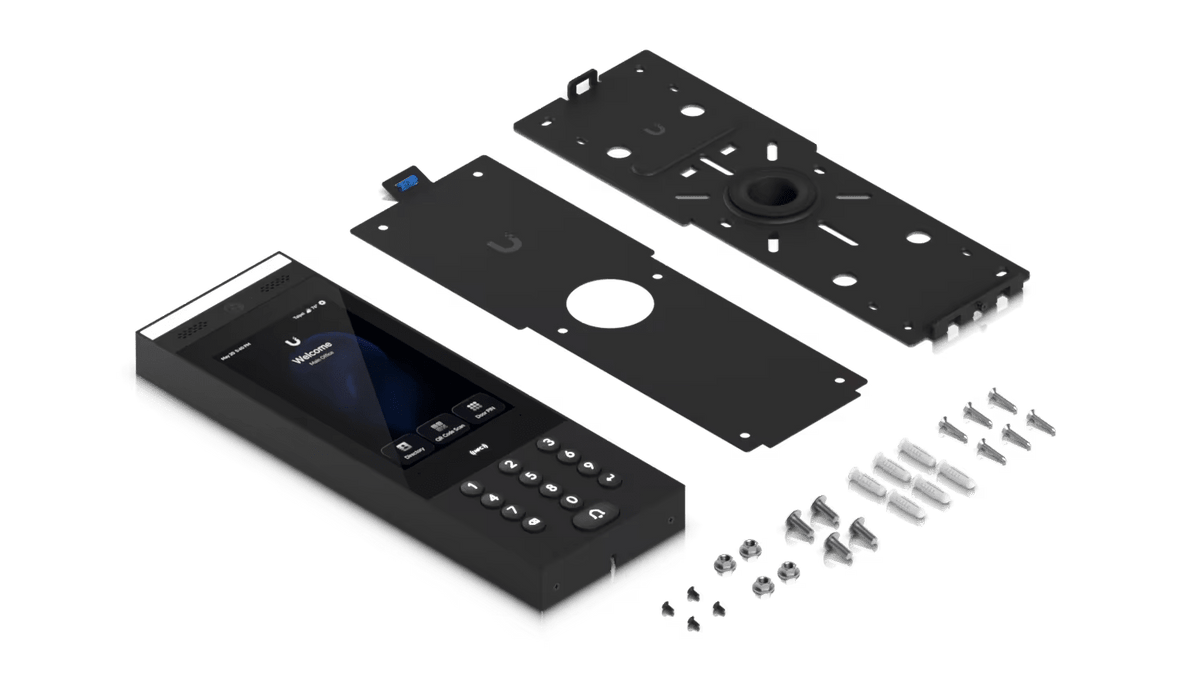

Mounting: Wall mount, gooseneck pedestal (included); angle, flush, or sunshield (optional)
-
Device weight: 965 g; bracket: 445 g
Connectivity & Power
-
1 x GbE RJ45 port, PoE-powered (48V DC, max 13W)
-
BLE 4.2 and NFC (13.56 MHz, <30 mm read range)
-
NFC compatibility: ISO 14443A/B, ISO 15693, 18092, MIFARE Classic/DESFire, Sony FeliCa, NFC Forum tags, Apple ECP 2.0
-
Cat 5e (or higher) cable recommended
Environmental & Compliance
-
Indoor/outdoor use, IP65 weatherproof
-
Operating temp: -30°C to 60°C (device), -25°C to 60°C (display)
-
Humidity: 5% to 90% non-condensing
-
UL 294 Level I, CAN/ULC-60839-11-1 Grade I, NDAA, CE, FCC, IC certified
Software & Integration
-
Managed with UniFi Access software (UniFi OS)
-
Supports centralized user management, remote unlock, and entry logs
-

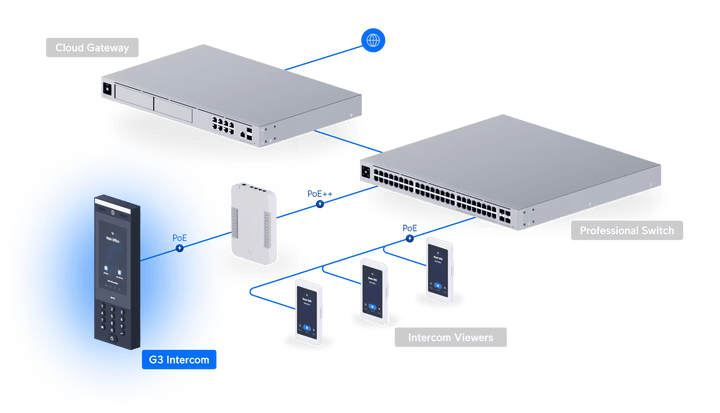

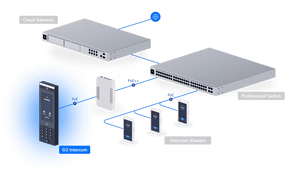

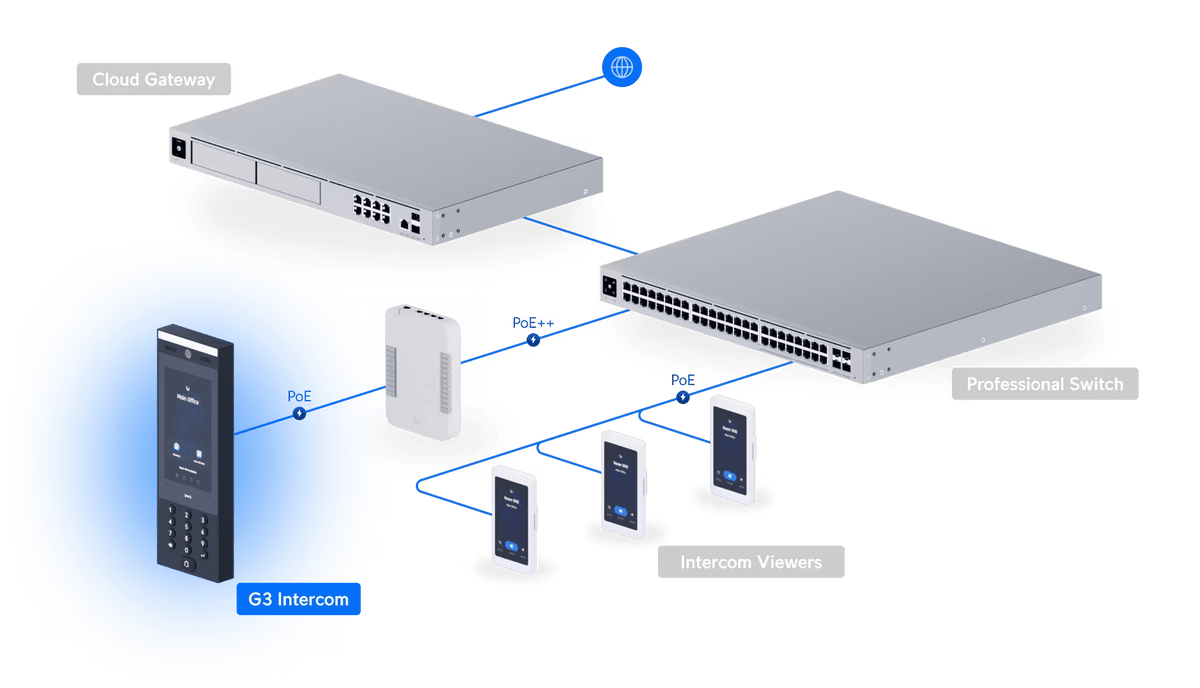

Integrates with UniFi Access Hubs, Viewers, and cloud/mobile management
Summary
The Ubiquiti UA-G3-Intercom elevates secure access with tap-and-go entry, high-visibility HD video, and universal credential support, all managed from a central cloud or on-prem platform. Built for high-traffic lobbies, apartment blocks, or business entries, it brings smart security and user-friendly convenience to any building.
Ubiquiti UA-G3-Intercom G3 Intercom with Apple/ Google Wallet
The Ubiquiti G3 Intercom is a robust indoor/outdoor access terminal, combining video, audio, and multi-factor authentication for secure entry management. It supports Touch Pass, Apple and Google Wallet, PIN, and mobile unlock, making it suitable for both residential and commercial buildings.
Specifications
| Specification | Details |
|---|---|
| Overview | |

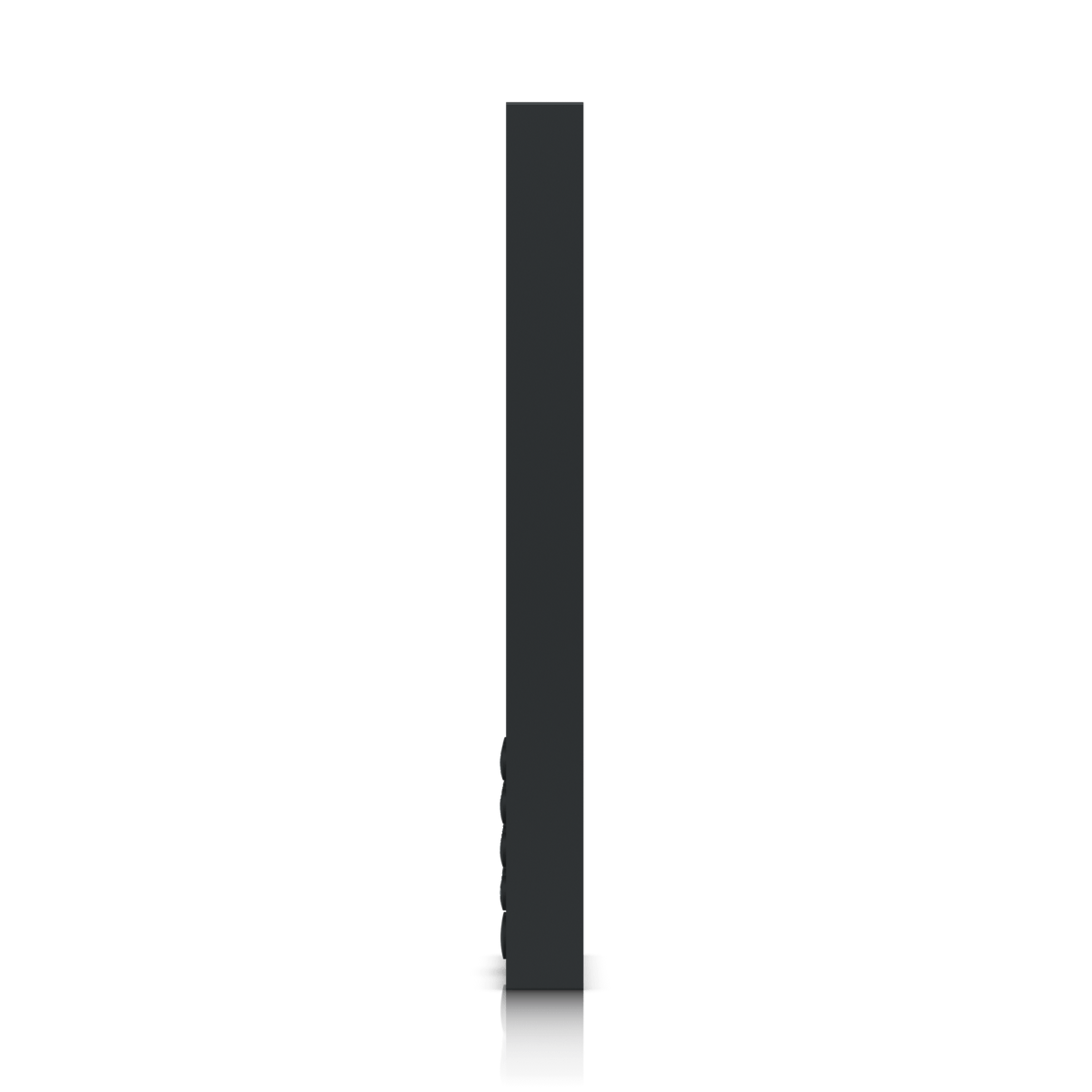

| Dimensions | 324.8 × 113.7 × 28.3 mm (12.8 × 4.5 × 1.1 in) |
| Integrated Camera | ✓ |
| NFC Card & Keyfob Access | ✓ |
| PIN Access | ✓ |
| Apple/Google Wallet | ✓ |
| Mobile Unlock | ✓ |
| Two-Way Intercom & Doorbell | ✓ |
| NDAA Compliant | ✓ |
| UL 294 Level | • Destructive attack: Level I • Line security: Level I • Endurance: Level I • Standby power: Level I |
| Weatherproofing | IP65 |
| Mechanical | |
| Weight | • Device: 965 g (2.1 lb) • Bracket: 445 g (1 lb) |
| Enclosure Material | • Aluminum alloy • UV-stabilized polycarbonate • Glass |
| Mount Material | Powder-coated stainless steel |

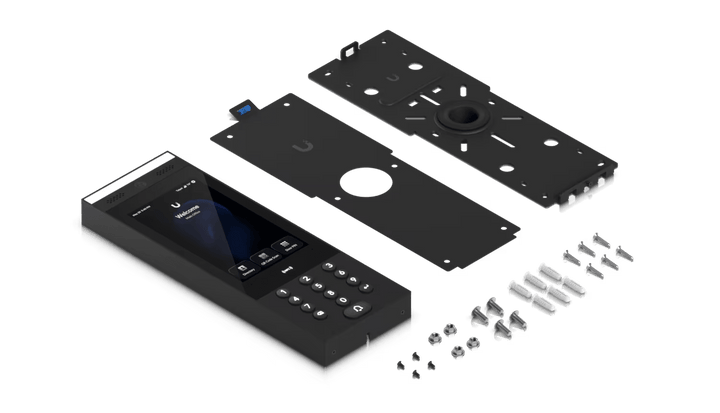

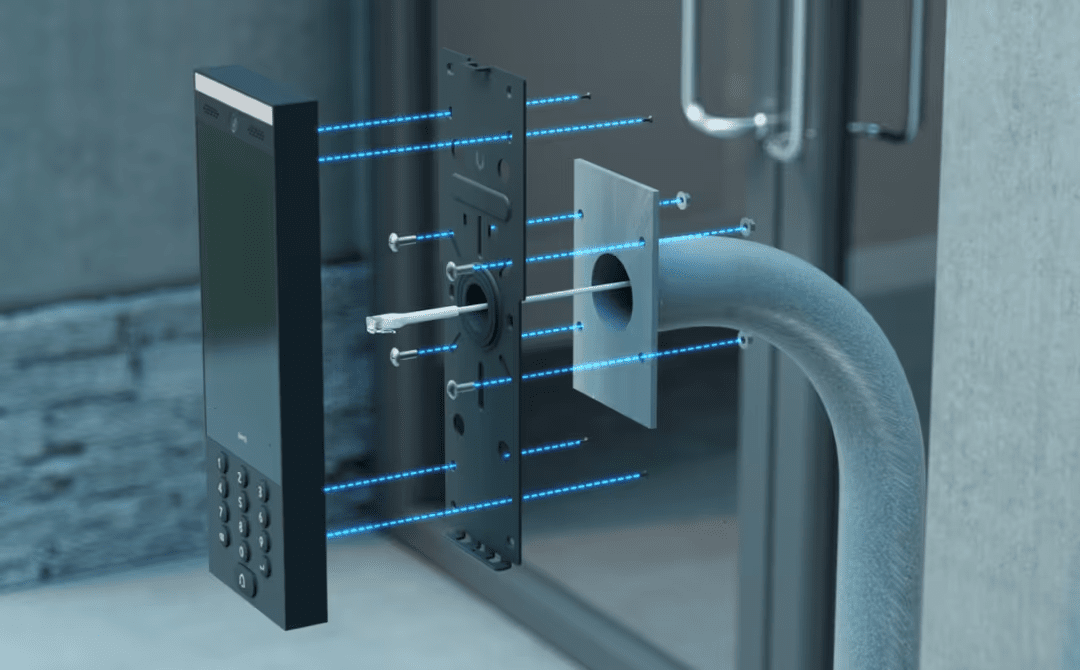

| Mounting | • Wall mount • Adapter to gooseneck pedestal (Included) • Surface angle, flush mount, sunshield kit (Optional) |
| Hardware | |
| Indoor and Outdoor Use | Yes |
| Ambient Operating Temperature | • Device: -30 to 60°C (-22 to 140°F) • Display: -25 to 60°C (-13 to 140°F) |
| Ambient Operating Humidity | 5% to 90% noncondensing |

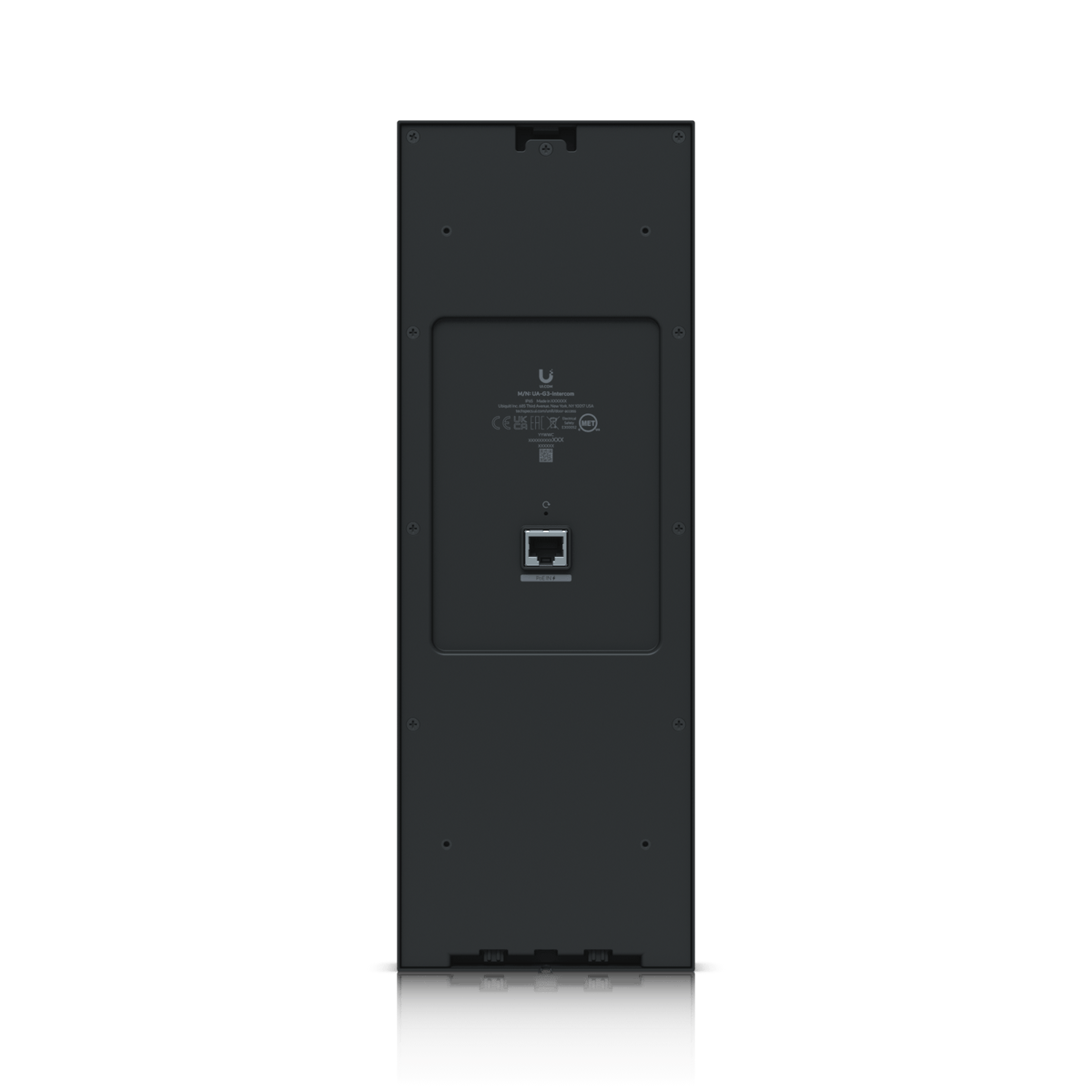

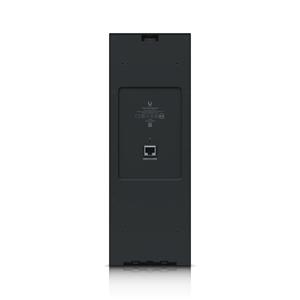

| Networking Interface | 1 × GbE RJ45 port |
| Connectivity | • BLE 4.2 • NFC |
| Power Method | PoE |
| Power Supply | • UL 294 Power-limited Class 2 PSU • UL 60950-1/62368-1 LPS/PS2 PSU |
| Max. Power Consumption | 13 W |
| Supported Voltage Range | 48V DC |
| Sensors | • Proximity sensor • ALS sensor |
| Display | • 177 mm (7") diagonal • Capacitive multi-touch • Max. 1000 nits (Typical) • Portrait orientation • 1024 × 600 px resolution |
| Microphone | ✓ |
| Speaker | ✓ |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | < 30 mm (1.18 in) |
| NFC Technology | • ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) • MIFARE Classic / MIFARE DESFIRE • Sony FeliCa (ID only) • NFC Forum tags T1T, T2T, T3T, T4T, T5T • ECP 2.0 |
| LEDs | Amber |
| Buttons | 1 × Factory-reset |
| PoE Cabling Requirements | • Cat 5e minimum • 26 AWG (0.13 mm²) patch cords • 24 AWG (0.21 mm²) horizontal/riser |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| CAN/ULC-60839-11-1 Grade | Grade I |
| Document | UA-G3-Intercom, V01 |
| Software | |
| Management Application | Access |
