OpenSpace BIM+ helps a project team compare design intent with a dated visual record of the site. BIM means Building Information Modelling. The practical value is finding the right location, checking the right model revision and giving a colleague enough evidence to resolve a question.

A coordinator asks whether services above a ceiling match the model. A project manager needs to know what was visible before a wall closed. A remote designer wants context without another site visit. These are useful reasons to connect a model with visual capture, provided the references are aligned and the conclusion is checked.

Two Views That Answer Different Questions

Coordinated BIM model of the building services in an OpenSpace example

The Model

Design intent for a particular revision: geometry, service routes and associated information.

Dated site capture of the matching building location in the OpenSpace example

The Site Record

Visible conditions at a particular place and date: what was installed and what the camera could see.

Manufacturer example: compare the same location, capture date and model revision.

The OpenSpace view pairs site imagery with model context. Compare the same location and revision, then record the visible difference and the decision required.

A Practical Model-to-Site Review

Turn a Visual Difference into a Reviewable Issue

  1. Dated Site Capture
  2. Aligned Model / Plan
  3. Compare the Location
  4. Record / Assign Issue
  5. Verify and Close

The useful output is a traceable observation with context and an owner. A visual difference still needs technical review before it becomes an instruction to change work.

  1. Choose the question: for example, whether the visible service route agrees with the current coordinated model.
  2. Select the location and date: use the relevant capture, floor and plan context.
  3. Check the model: confirm its revision, coordinate basis and appropriate level.
  4. Compare the views: inspect visible conditions and note what is obscured or outside the camera view.
  5. Record the issue: include location, evidence, reference revision, owner and the decision required.
  6. Verify the outcome: check the agreed action against a later capture or site inspection, then record the resolution.

A good issue is specific: “At this location and capture date, the visible route differs from this model revision; please confirm the intended arrangement.” That gives a reviewer a starting point. “The model is wrong” does not establish whether the problem is design, installation, timing or alignment.

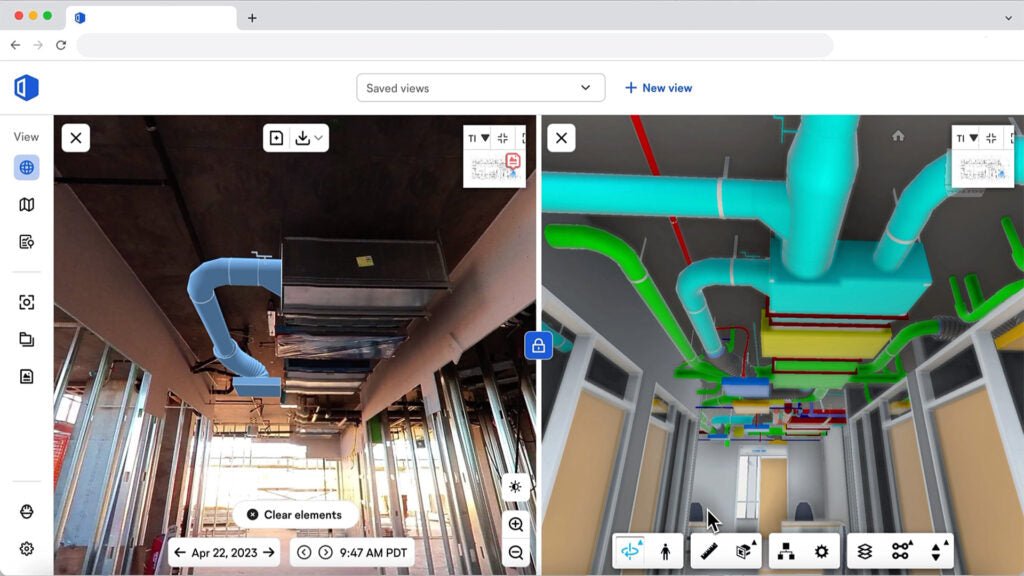

OpenSpace BIM Compare with site capture and model side by side
OpenSpace BIM Compare keeps the captured condition and model reference together for review.

Which Features Help the Review?

Capability Practical Job Important Check
BIM Compare Compare captured conditions with model context Same location, correct revision and alignment
2D sheet context / overlays Find and explain the location Current drawing and correct floor
Saved views and element context Return to a useful review position Make the view understandable to the next person
Point-cloud viewing Bring another spatial reference into review Source alignment and suitability for the task
BCF export Carry structured issue context into a supported workflow Required coordinates, compatible destination and complete evidence
Offline BIM View prepared model information without connectivity Test what is actually available on the intended device

OpenSpace's current release notes list BIM+ features as included in all subscriptions from August 2026. Confirm the actual project entitlements and permissions rather than assuming an older product description still defines the contract.

When Everything Looks Shifted, Check Alignment First

Check Alignment Before Calling Something Wrong

  1. Correct Model Revision
  2. Correct Floor / Sheet
  3. Matching Reference Points
  4. Verify in the Project

A wrong level, revision or alignment can look like a construction error. Check these before recording a deviation.

One of the most useful troubleshooting questions is whether the model is aligned to the correct sheet and level. A mismatch can make every service appear displaced. Check a few widely separated, recognisable references before spending time logging individual deviations.

OpenSpace's model-to-sheet alignment workflow allows authorised project administrators to select matching points. Use points with clear identities and useful separation, then verify the result in the project. Do not adjust a shared reference casually to make one viewpoint look right while displacing the rest.

Keep the source model and its revision history. When the designer publishes a change, decide who checks the new alignment and who communicates the changed reference to reviewers. Alignment is part of project control, not only a graphics setting.

Make the Site Conversation Easier to Finish

Construction team reviewing a dated site record on a tablet while wearing site PPE
A site review works best when the team can identify the location, capture date, drawing revision and issue owner before acting.

A useful handover combines the capture location and date, relevant model or drawing revision, the visible observation and the requested decision. Add an owner and an agreed status. If the issue is resolved, retain the response and the evidence used rather than leaving an unstructured chat thread as the only record.

Where BCF or another issue workflow is used, test an export and import with the actual receiving tool. Confirm that the recipient can find the right location and understand the context. A successful file download is not the same as a successful coordination handover.

What Visual Capture Cannot Prove on Its Own

A camera cannot see through a closed ceiling, identify every concealed fixing or certify a measurement simply because a model appears beside the image. Model-to-site review complements inspections and surveys; it does not automatically replace them.

Plan capture timing around the decision. A beautifully captured corridor after every service is concealed may be less useful for an installation question than a clear earlier record. Maintain safe access, suitable PPE and the site's capture/privacy permissions. Keep people out of unnecessary risk for a better camera angle.

The 360-degree reality-capture guide explains how to plan a useful route and repeatable records. The OpenSpace capture page provides the related solution context.

Start with One Review That the Team Needs

Begin with a real coordination question, a defined area and a clear recipient. Prepare the model and plan, capture at the right time, verify alignment and test the issue handover. Expand when the team can use that process consistently.

The result should be a faster route to a defensible decision: the right view, the right revision and enough evidence for the responsible person to act. That is a stronger reason to use BIM with reality capture than an impressive model screen alone.

Frequently Asked Questions

What does BIM mean?

Building Information Modelling brings a structured digital model and its associated information into design and coordination. In this article, the practical question is how that model compares with a dated visual record of the actual site.

What does OpenSpace BIM Compare do?

It helps a reviewer compare model context with captured site imagery. It supports investigation and communication; it is not proof that every hidden condition, dimension or installation has automatically been verified.

Is BIM+ still always a separate paid add-on?

Do not assume an old commercial arrangement. OpenSpace's current release notes list BIM+ features as included in all subscriptions from August 2026. Confirm the features, permissions and terms available in the actual project and contract.

Why does the model seem offset from the photograph?

Check the model revision, floor, source coordinates and model-to-sheet alignment first. A misaligned reference can create an apparent discrepancy even when the installation is in the intended place.

Does a 360-degree capture replace a survey?

No. It provides valuable visual context and a dated record, but it does not automatically provide certified measurement accuracy or replace the required inspection, survey or engineering checks.

Is offline BIM the same as having every site capture offline?

No. Model availability and capture availability are different capabilities. Test the intended device and cached content before relying on offline access at a site with limited connectivity.

Can this replace every clash-detection workflow?

No. Model-to-site visual review and model-to-model clash coordination answer different questions. Keep the appropriate design, coordination, inspection and issue-management tools in the workflow.
